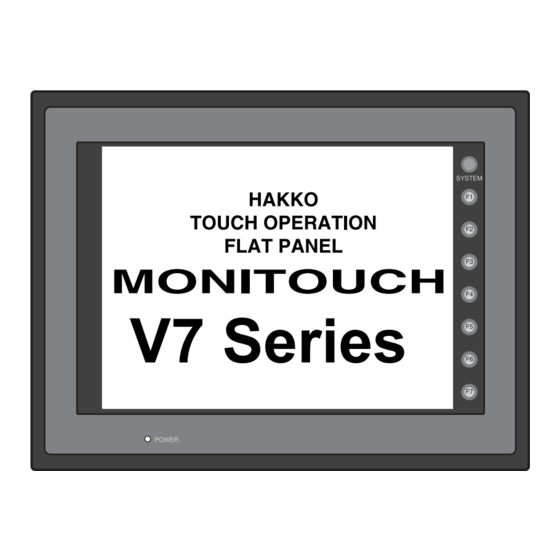

Hakko Electronics Monitouch V7 Series Hardware Specifications

Touch operation flat panel
Hide thumbs Also See for Monitouch V7 Series:
Table of Contents

Advertisement

Quick Links

See also: User Manual
V7 Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Monitouch V7 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hakko Electronics Monitouch V7 Series

Summary of Contents for Hakko Electronics Monitouch V7 Series

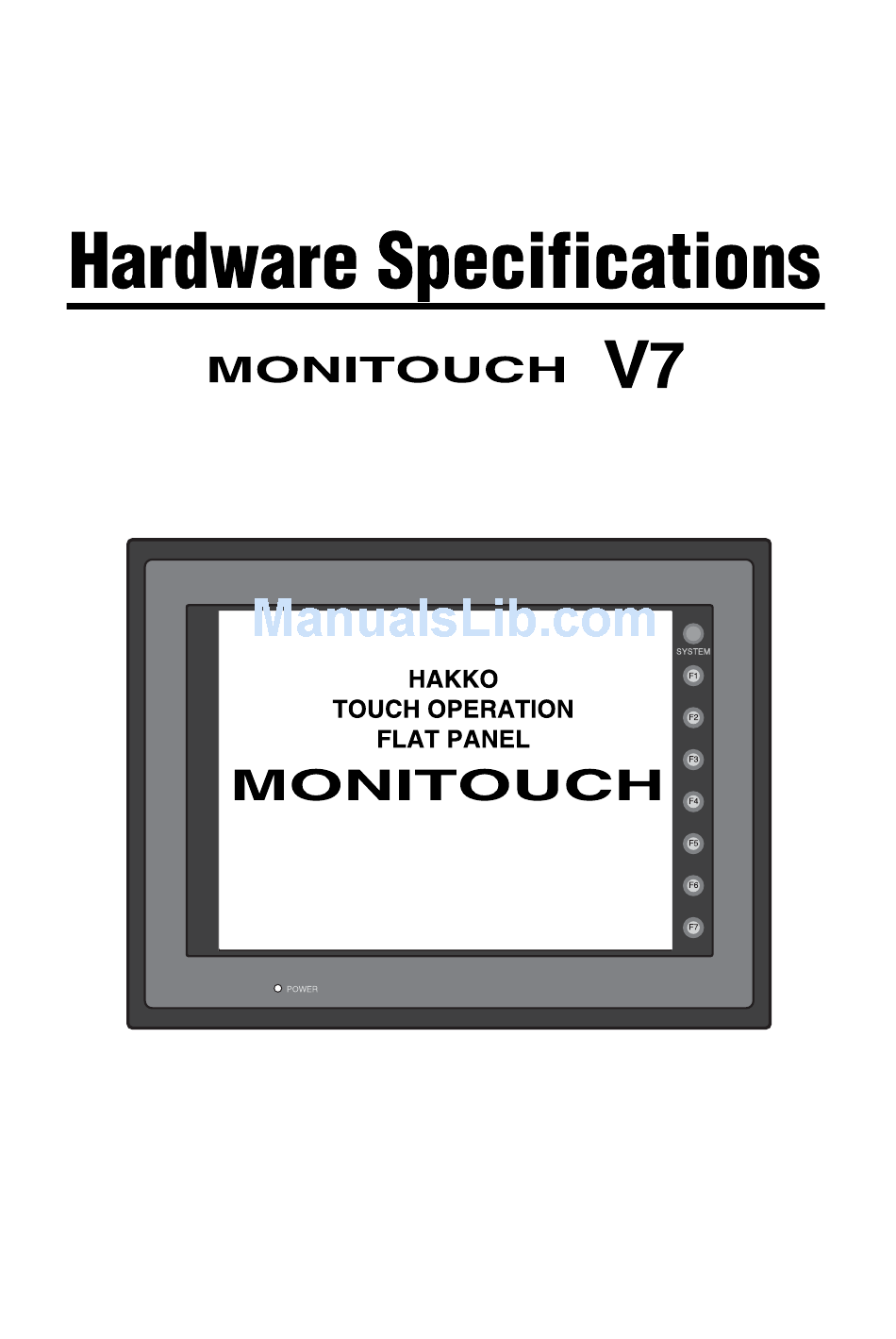

  • Page 1 V7 Series...
  • Page 2 Record of Revisions Reference numbers are shown at the bottom left corner on the back cover of each manual. Printing Date Reference No. Revised Contents September, 2002 2010NE0 First edition April, 2003 2010NE1 Second edition • Ladder Transfer Function MITSUBISHI Q00/Q01, FX/FX1S/FX2N series •...
  • Page 4 Preface Thank you for selecting the MONITOUCH V7 series. For correct set-up of the V7 series, you are requested to read through this manual to understand more about the product. For more information about the V7 series, refer to the following related manuals.

  • Page 6: Notes On Safe Use Of Monitouch

    Notes on Safe Use of MONITOUCH In this manual, you will find various notes categorized under the following levels with the signal words “DANGER,” and “CAUTION.” Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury.
  • Page 7 Operation with the cover attached may result in accident, fire, malfunction, or trouble. • Do not attempt to repair MONITOUCH at your site. Ask Hakko or the designated contractor for repair. • Do not disassemble or modify MONITOUCH. Otherwise, it may cause a malfunction.
  • Page 8 [General Notes] • Never bundle control cables and input/output cables with high-voltage and large-current carrying cables such as power supply cables. Keep these cables at least 200 mm away from the high-voltage and large-current carrying cables. Otherwise, malfunction may occur due to noise. •...

  • Page 10: Table Of Contents

    Contents Preface Notes on Safe Use of MONITOUCH Chapter 1 Overview Features............................1-1 Models and Peripheral Equipment....................1-2 MONITOUCH Models ............................1-2 Peripheral Equipment............................1-3 System Composition ......................... 1-7 System Composition of V7 Series (Standard).....................1-7 System Composition of V7i (High-performance)....................1-8 Chapter 2 Specifications Specifications ............................
  • Page 11 Chapter 3 Installation Mounting Procedure.......................... 3-1 Mounting Procedure............................3-1 Mounting Angle ..............................3-1 Power Supply Cable Connection ...................... 3-2 Power Supply Cable Connection ........................3-2 Notes on Usage of 100-240 VAC Specifications ....................3-3 Grounding ................................3-3 Chapter 4 Instructions Coin-type Lithium Battery........................4-1 Battery Mounting Procedure ..........................4-1 Battery Replacement ............................4-2 DIP Switch Setting ..........................
  • Page 12 Card Menu Screen......................6-11 2-1. CREC Menu Screen ....................6-12 2-2. Transferring Screen Data from a CF Card.............. 6-14 2-3. Saving Backup Copies of SRAM ................6-20 2-4. Messages during Data Transfer ................6-22 Ethernet ..........................6-23 SRAM/Clock........................6-26 Extension Program Information ..................6-27 Extended Function Setting....................
  • Page 14 Overview Features Models and Peripheral Equipment System Composition...
  • Page 16 1. Features Features The V7 series inherits and heightens the features of the V6 series as described below. 1. 32k-color Display 32,768-color display makes colorful expression possible. Bitmap files are clearly displayed in brilliant colors. 2. CF Card Interface as Standard The CF card can be used for saving multiple screen data, sampling data, recipe data, hard copy images, and other various usages.

  • Page 17: Models And Peripheral Equipment

    2. Models and Peripheral Equipment Models and Peripheral Equipment MONITOUCH Models The model name consists of the following information. Power supply specification D: 24 VDC specification (in compliance with CE/UL/cUL) None: 100-240 VAC specification Touch switch specification None: Analog M: Matrix Device specification S: TFT color LCD (SVGA) T: TFT color LCD (VGA)

  • Page 18: Peripheral Equipment

    2. Models and Peripheral Equipment Series and Size Model Name Specifications Remarks TFT color, 800 × 600 dots, standard, AC power supply V712S Compliant with TFT color, 800 × 600 dots, standard, DC power supply V712SD CE/UL/cUL V712 series 12-inch TFT color, 800 ×...
  • Page 19 2. Models and Peripheral Equipment V7EM-L (FLASH memory cassette for ladder monitor) Extension print circuit board for the ladder monitor function. The memory for screen data is extended at the same time. The capacity of FLASH memory is 8 Mbytes. (4 Mbytes for ladder monitor, 4 Mbytes for screen data) V7EM-S (SRAM cassette) Extension print circuit board to back-up the memory for sampling data, V7 internal memory...
  • Page 20 2. Models and Peripheral Equipment V-I/O (serial extension I/O) Used as an external I/O unit for PLC. It has 16 inputs and 16 outputs. CU-xx [xx: 00 → OPCN-1, 01 → T-LINK, 02 → CC-Link, 03-2 → Ethernet/FL-net (OPCN-2), 04 → PROFIBUS-DP, 05 →...
  • Page 21 2. Models and Peripheral Equipment MJ-D25 (MJ-to-D-sub conversion cable) 0.3 m Used for connection between the V7 series and a PLC via PLC2Way. V7xx-GS [xx: 08 → V708/V708i, 10 → V710/V710i, 12 → V712/V712i] (protective sheet) This sheet protects the operation panel surface. (5 sheets/set) V7xx-GSN10 [xx: 08 →...

  • Page 22: System Composition

    3. System Composition System Composition System Composition of V7 Series (Standard) The following illustration shows possible system configurations using the V7 series (standard). V series configuration During operation software Transferring (Link communication) screen data Creating SYSTEM RS-232C/RS-422 disc screens V6-CP RESET POWER V-SFT...

  • Page 23: System Composition Of V7I (High-Performance)

    3. System Composition System Composition of V7i (High-performance) The following illustration shows possible system configurations using the V7i series (high-performance). disc disc RESET RESET Computer (PC) Computer (PC) Ethernet V series configuration During operation software Transferring (Link communication) screen data SYSTEM RS-232C/RS-422 disc...
  • Page 24 Specifications Specifications Dimensions and Panel Cut-out Names and Functions of Components Serial Connector (CN1) Modular Jack (MJ1/MJ2) 10BASE-T (LAN) CF Card (CF) Printer Connection (PRINTER)

  • Page 26: General Specifications

    1. Specifications Specifications General Specifications Model Item V708 V710 V712 DC power supply AC power supply DC power supply AC power supply DC power supply Rated Voltage 24 VDC 100 - 240 VAC 24 VDC 100 - 240 VAC 24 VDC Permissible Range 100 - 240 VAC 100 - 240 VAC...

  • Page 27: Display Specifications

    1. Specifications Display Specifications Model Item V708C V708xS V710C V710xT V710xS V712xS Display Device STN color LCD TFT color LCD Display Size 7.7-inch 8.4-inch 10.4-inch 12.1-inch 128 colors 32,768 colors 128 colors 32,768 colors Colors +16-color blinks +16-color blinks +16-color blinks +16-color blinks Resolution 640 ×...

  • Page 28: Interface Specifications

    1. Specifications Interface Specifications Item Specifications RS-232C, RS-422/485 Asynchronous type Serial Interface for PLC Connection Data length: 7, 8 bits (D-sub 25-pin, female) Parity: Even, odd, none Stop bit: 1, 2 bits Baud Rate: 4800, 9600, 19200, 38400, 57600, 76800, 115k bps Serial Interface 1, 2 for Screen Data RS-232C, RS-422/485 (2-wire connection) Transfer/External Connection...

  • Page 29: Display Function Specifications

    1. Specifications Display Function Specifications Item Specifications English/Western Chinese Chinese Display Language* USEnglish Korean Europe (traditional) (simplified) 1/4-size, 1-byte ANK code Latin1 ASCII code ASCII code ASCII code Chinese Chinese Hangul − Characters 2-byte 16-dot JIS #1, 2 levels (traditional) (simplified) (without Kanji) −...

  • Page 30: Function Performance Specifications

    1. Specifications Function Performance Specifications Item Specifications Screens Max. 1024 Screen Memory Flash memory: Appox. 4,992 kbyte (varies depending on the font) Switch 768 per screen Set, reset, momentary, alternate, to light Switch Actions (Possible to press a function switch and a switch on the display at the same time) Reverse, blink, exchange of graphics Lamps 768 per screen...

  • Page 31: Dimensions And Panel Cut-Out

    2. Dimensions and Panel Cut-out Dimensions and Panel Cut-out V708/V708i External View and Dimensions (Unit: mm) • Side View • Front View 66.1 SYSTEM POWER • Rear View • Bottom View See operating or maintenance instruction for type of battery to be used.

  • Page 32: V710/V710I External View And Dimensions

    2. Dimensions and Panel Cut-out V710/V710i External View and Dimensions (Unit: mm) • Side View • Front View 303.8 SYSTEM POWER • Rear View • Bottom View 288.0 MEMORY 288.0 See operating or maintenance instruction for type of battery to be used. Battery replacement.

  • Page 33: V712/V712I External View And Dimensions

    2. Dimensions and Panel Cut-out V712/V712i External View and Dimensions (Unit: mm) • Side View • Front View 326.4 SYSTEM POWER • Rear View • Bottom View MEMORY See operating or maintenance instruction for type of battery to be used. Battery replacement.

  • Page 34: Names And Functions Of Components

    3. Names and Functions of Components Names and Functions of Components V708/V708i SYSTEM See operating or maintenance instruction for type of battery to be used. Battery replacement. MEMORY 24VDC PRINTER POWER V710/V710i SYSTEM MEMORY See operating or maintenance instruction for type of battery to be used.
  • Page 35 2-10 3. Names and Functions of Components V712/V712i MEMORY See operating or maintenance instruction for type of battery to be used. Battery replacement. PRINTER 100-240VAC SYSTEM POWER 1. Display This is the display unit. 2. Power lamp (POWER) Illuminates (green) when the power is supplied to the V7 series. 3.
  • Page 36 3. Names and Functions of Components 2-11 12. Option unit connector (CN6) ........V7i only This is the connector where the option unit (EU-xx) for video, sound, RGB IN or RGB OUT is mounted. 13. Add-on memory connector (MEMORY) This is the connector where the optional FLASH memory cassette (V7EM-F) or SRAM cassette (V7EM-S) is mounted.

  • Page 37: Serial Connector (Cn)

    2-12 4. Serial Connector (CN1) Serial Connector (CN1) Serial Connector for PLC Connection To communicate with the PLC (RS-232C, RS-422/485), connect the cable to the serial connector (CN1) at the bottom of the V7 unit. • For V708/V708i: • For V710/V710i/V712/V712i: Bottom View Bottom View The serial connector pins correspond to signals as given below.
  • Page 38 5. Modular Jack (MJ1/MJ2) 2-13 Modular Jack (MJ1/MJ2) Modular Jack 1 (MJ1)/2 (MJ2) This is a modular connector used for connection for screen data transfer, temperature controller, barcode reader, card recorder (CREC) or serial extension I/O (V-I/O). • For V708/V708i: •...
  • Page 39 2-14 5. Modular Jack (MJ1/MJ2) Refer to “EU-01 (RGB input + sound output unit)”. Select this option when using the ladder transfer function. *10 Select this option for Modbus slave connection. *11 Select this option when connecting the printer with serial interface. Refer to page 2-20.

  • Page 40: Transferring Screen Data

    • When an option other than [Editor Port] is selected for [Modular Jack 1], select the STOP mode (on the Main Menu screen) and transfer screen data. Simulation or on-line editing is not available. • When transferring screen data, use Hakko Electronics' data transfer cable (V6-CP) 3 m to connect the V7 series to a personal computer.

  • Page 41: Base-T (Lan)

    2-16 6. 10BASE-T (LAN) 10BASE-T (LAN) The connector for 10BASE-T is provided as standard on V7i (high-performance). To connect Ethernet with V7 (standard), use the communication unit “CU-03(-2)”. If CU-03(-2) is attached to V7i, it has priority over the built-in 10BASE-T; 10BASE-T cannot be used. 10BASE-T Connector Use this connector for Ethernet connection.
  • Page 42 6. 10BASE-T (LAN) 2-17 Wiring When using the LAN port, keep the LAN cable away from the power supply cable as CAUTION much as possible. UTP cable Straight or cross cable UTP cable (For more information, refer the HUB specifications.) Straight CU-03 Ethernet...

  • Page 43: Cf Card (Cf)

    2-18 7. CF Card (CF) CF Card (CF) Recommended CF Cards CF cards in compliance with CompactFlash can be used. The operation of the following cards has been verified by Hakko Electronics. Manufacturer Type Capacity Kodak KPCN-32 32 MB SDCFB-64-505...

  • Page 44: Notes On Handling The Cf Card

    7. CF Card (CF) 2-19 1. Insert the card securely into the interface with the card backside outwards viewed from the rear of the unit as shown below. When the card is inserted, the eject button pops out. M J 2 M J 2 P R IN P R IN...

  • Page 45: Printer Connection (Printer)

    2-20 8. Printer Connection (PRINTER) Printer Connection (PRINTER) When the V7 series is connected to a printer, a screen hard copy, data sheet or sampling data can be printed. To connect a printer with parallel interface, insert the cable into the printer connector (PRINTER); to connect a printer with serial interface, insert the cable into a modular jack (MJ1/MJ2).

  • Page 46: Connection With Printer Through Serial Interface

    8. Printer Connection (PRINTER) 2-21 Connecting Cable • To connect the V7 series to a printer, use Hakko Electronics’ printer cable “V7-PT” 2.5 m for 20-pin parallel interface. For the CBM292/293 printer, use the V7-PTCBM printer cable (2.5 m). V7 series...
  • Page 47 2-22 8. Printer Connection (PRINTER) Please use this page freely.
  • Page 48 Installation Mounting Procedure Power Supply Cable Connection...

  • Page 50: Mounting Procedure

    1. Mounting Procedure Mounting Procedure Mounting Procedure 1. Cut out the mounting panel (max. thick: 5 mm) to match the dimensions shown below. Mounting panel • Panel cut-out − 220.5 Panel cut-out hole dimensions (Unit: mm) + 0 .5 2 8 9 −...

  • Page 51: Power Supply Cable Connection

    2. Power Supply Cable Connection Power Supply Cable Connection Electric shock hazard DANGER Shut the power off before connecting the power supply cable. Power Supply Cable Connection • Connect the power supply cable to the terminal on the backside of the unit. - V708/V708i - V710/V710i/V712/V712i MEMORY...

  • Page 52: Notes On Usage Of 100-240 Vac Specifications

    2. Power Supply Cable Connection • Be sure to attach the terminal cover to the terminal block. - For V708/V708i: - For V710/V710i/V712/V712i: Attach the terminal cover (supplied) When closing the terminal cover, hold one to the terminal block. end of the cover as shown below. Terminal cover Press either end.
  • Page 53 2. Power Supply Cable Connection Please use this page freely.
  • Page 54 Instructions Coin-type Lithium Battery DIP Switch Setting Function Switches...

  • Page 56: Coin-Type Lithium Battery

    1. Coin-type Lithium Battery Coin-type Lithium Battery The MONITOUCH is delivered without inserting the battery connector in the battery holder on the back of the unit. CAUTION Be sure to set the battery when using the calendar function or SRAM. Without battery, the contents in the SRAM or calendar will not be retained.

  • Page 57: Battery Replacement

    1. Coin-type Lithium Battery 6. Turn on the power to the V7 unit and check that Main Menu screen the battery is correctly mounted on the Main Menu screen. When the battery is not connected, the Main Menu V 7 1 0 i T D [SRAM/Clock] switch blinks and the message System Information FONT...
  • Page 58 1. Coin-type Lithium Battery Battery Replacement Procedure Replacement batteries are available from Hakko Electronics. Name Type Contents Replacement battery for • Coin-type lithium primary cell 1 pce V7-BT the V7 series • Cautions sticker 1 pce 1. Replace the battery “V7-BT” within three minutes after the unit is turned off.

  • Page 59: Dip Switch Setting

    2. DIP Switch Setting DIP Switch Setting DIP Switch (DIPSW) Setting Set the terminating resistance for RS-422/485 connection with the DIP switch. When setting the DIP switch, turn the power off. - For V708/V708i: - For V710/V710i/V712/V712i: Side View Rear View MEMORY DIP switch 100-240VAC...

  • Page 60: Function Switches

    3. Function Switches Function Switches Types • There are eight function switches provided. [SYSTEM], [F1], [F2], [F3], [F4], [F5], [F6], [F7] [SYSTEM] Switch The [SYSTEM] switch works in “alternate” operations. When this switch is pressed once, the switch menu is displayed at the side of the function switches [F1] to [F5], and each function switch corresponds to the menu item displayed in the switch menu.
  • Page 61 3. Function Switches User-defined Function Switches [F1] to [F7] • When the V7 series is in the STOP mode, the function switches do not work. • When the V7 series is in the RUN mode and the switch menu by the [SYSTEM] switch is not displayed, the function switches can be defined by the user.
  • Page 62 Connections 1 : 1 Connection 1 : n Connection (Multi-drop) n : 1 Connection (Multi-link 2) n : 1 Connection (Multi-link) Universal Serial Communications V-Link PLC2Way Temperature Control Network Ethernet 10. Other Networks...
  • Page 64 1. 1 : 1 Connection 1 : 1 Connection • One set of the V7 series is connected to one PLC (1 : 1 connection). V7 series SYSTEM POWER RS-232C or RS-422 (RS-485) • The host link unit of the PLC or the CPU port is used and the V7 series (master station) establishes communications according to the protocol of the PLC.
  • Page 65 2. 1 : n Connection (Multi-drop) 1 : n Connection (Multi-drop) One V7 series is connected to multiple PLCs. (Maximum connectable PLCs: 31) V7 series SYSTEM POWER Maximum length (V7 series to the terminating PLC) = 500 m RS-422/RS-485 connection (n = 1 to 31) PLC1 PLC2...

  • Page 66: N : 1 Connection (Multi-Link)

    (The connection between the master station and the PLC is the same as the one for 1 : 1 connection.) • Use the RS-485 2-wire connection between stations of the V7 series. Please use Hakko Electronics’ multi-link 2 master cable (V6-MLT) for connection between the master station (Local Port 1) and the slave station (Local Port 2).
  • Page 67 4. n : 1 Connection (Multi-link) n : 1 Connection (Multi-link) • One PLC is connected to multiple V7 series. (Maximum connectable units: 31) V7 series No. 1 V7 series No. 2 V7 series No. 3 V7 series No. “n” (n = 1 to 31) SYSTEM SYSTEM SYSTEM...

  • Page 68: Universal Serial Communications

    5. Universal Serial Communications Universal Serial Communications • A general purpose computer or an ASCII unit of the PLC (master station) controls the V7 series (slave station) using dedicated commands. Dedicated commands General-purpose computer V7 series Read disc SYSTEM Write RESET POWER Interrupt...
  • Page 69 6. V-Link V-Link • “V-Link” is the network where the computer reads from and writes to the internal memory of the V7 series, memory card, PLC memory or temperature control/PLC2 memory using a dedicated protocol. Dedicated commands Read disc SYSTEM Write RESET POWER...
  • Page 70 7. PLC2Way PLC2Way • The “PLC2Way” function is an original network function where one V7 series can be connected to two PLCs. Even if the manufacturers of these PLCs are not the same, they can be connected to one V7 series. RS-232C RS-422/RS-485 SYSTEM...

  • Page 71: Temperature Control Network

    8. Temperature Control Network Temperature Control Network • Using the temperature control network, the V7 series can be connected to the temperature controller or inverter. With RS-232C, one PLC can be connected; with RS-485, a maximum of 31 temperature controllers can be connected. <PLC>...
  • Page 72 9. Ethernet Ethernet • Transferring data in memory Data in memory can be transferred to the V7 series on the Ethernet or to the PLCs linked to the V7 series as a host by using macro commands (EREAD/EWRITE). Ethernet SYSTEM <V7>...
  • Page 73 5-10 9. Ethernet - Screen data can be transferred from the V-SFT editor on the server to the V7 series. Server V-SFT Ethernet SYSTEM PROGRAMMER <V7> Ethernet-ready PLC POWER RS-232C RS-485 <PLC> PROGRAMMER • Communications between the Ethernet-ready PLC and the V7 series - The V7 series can communicate with the PLC on the Ethernet.

  • Page 74: Other Networks

    10. Other Networks 5-11 Other Networks FL-net (OPCN-2) • FL-net (OPCN-2) is standard specifications of the controller-level FA network that the Manufacturing Science and Technology Center has developed, which enables a communication network between multi-vendor programmable controllers, NCs and robot controllers. It is possible to connect FA controllers and computers, such as programmable controllers (PLCs) or NC controllers (CNCs), of different manufacturers as shown below for control and monitoring.
  • Page 75 5-12 10. Other Networks MELSECNET/10 • MELSECNET/10 is the network system that is developed by MITSUBISHI Electric Corporation. When the V7 series is equipped with the communication interface unit CU-05 is mounted, it can work as a NET/10 station (a sub-control station). Control station (1Mp1) Normal station (1Ns2) ¥...
  • Page 76 10. Other Networks 5-13 • This network system supports cyclic transmission and enables direct reading from link devices (LB, LW, LX or LY). Also it is possible to directly write data to link devices that are assigned by the control station. Example: When LW is assigned by the control station as shown below: Control station (1Mp1) Normal station (1Ns2)
  • Page 77 5-14 10. Other Networks CC-Link • CC-Link is the network that is developed by MITSUBISHI Electric Corporation. The V7 series works as a local station (intelligent device station). • To use CC-Link communications on the V7 series, the communication interface unit “CU-02” must be mounted.
  • Page 78 10. Other Networks 5-15 OPCN-1 • To use OPCN-1 communications on the V7 series, the communication interface unit “CU-00” must be mounted. When the V7 series is equipped with the communication interface unit CU-00, it becomes an OPCN-1-ready device. • The V7 series that supports OPCN-1 communications is a programmable display that can perform data transfer with the master station (PLC, etc.) in compliance with “JEM-F3008 programmable controller field network standard (level 1)”...
  • Page 79 5-16 10. Other Networks T-LINK • To use T-LINK communications on the V7 series, the communication interface unit “CU-01” must be mounted. When the V7 series is equipped with the communication interface unit CU-01, it becomes a T-LINK-ready device. • The V7 series that supports T-LINK communications can perform long-distance high-speed data transmission with the Fuji Electric's PLC MICREX-F series.
  • Page 80 With I/O communication, it is not possible to directly access the device memory (DB or MW) used in the CPU. To enable the V7 series to have direct access to these memory devices, Hakko Electronics' supplies the function (ladder file) for message communications. When this function is loaded in the master CPU, message communications using Hakko Electronics' original protocol are enabled, and the V7 series can have access to any memory address.
  • Page 81 5-18 10. Other Networks Please use this page freely.
  • Page 82 MONITOUCH Operations Operational Procedures Main Menu Screen...

  • Page 84: Operational Procedures

    1. Operational Procedures Operational Procedures MONITOUCH Operation Follow the procedure below to operate the MONITOUCH. 1. Installation and wiring For more information, refer to “Chapter 3.” 2. Connection with devices including a PLC and a temperature controller For instructions and precautions on wiring between the MONITOUCH and other devices, refer to the separate “PLC Connection Manual.”...
  • Page 85 1. Operational Procedures Initial Screen When the power of MONITOUCH is turned on for the first time, the Main Menu screen shown below on the left is displayed. Initial screen displayed when power is turned on Main Menu screen after transferring screen data for the first time Main Menu V 7 1 0 i T D...
  • Page 86 2. Main Menu Screen Main Menu Screen • To bring up the Main Menu screen in the RUN mode, press the [SYSTEM] switch and then the [F1] switch while the vertical menu is displayed. Main Menu screen Main Menu V 7 1 0 i T D 2002-4 -1 07:23:30 System Information...

  • Page 87: I/O Test

    2. Main Menu Screen I/O Test When the [I/O Test] switch on the Main Menu screen is pressed, the following “I/O Test” screen appears. This screen is used to check that there is no problem with the V7 series interface and touch switch operation.

  • Page 88: Self-Loop Test

    2. Main Menu Screen 1-1. Self-loop Test This is a signal test for communications through the CN1, MJ1 or MJ2 connector. Perform this test if the communication is not successful when transferring screen data through MJ1, connecting the PLC using CN1, or selecting multi-link 2, temperature controller/PLC2Way or PLC for MJ1/2, or connecting the card recorder or serial extension I/O.
  • Page 89 2. Main Menu Screen CN1: RS-485 Signal Test Turn the [CN1] and [RS485] switches on. Communication Port RS232C RS485 • SD/RD Test Check the signals [SD] and [RD]. 1. Install a jumper between pins 12 and 24 and between pins 13 and 25 of CN1 on the backside of the V7 unit.
  • Page 90 2. Main Menu Screen MJ1/2: RS-232C Signal Test Turn the [MJ1] (or [MJ2]) and [RS232C] switches on. Communication Port RS232C RS485 • RS-232C Self-loop Test Check the signals [SD] and [RD]. Connect the data transfer cable (V6-CP) to CN1 for the test. ADP25-9 V6-CP MJ1/2...

  • Page 91: Print Check

    2. Main Menu Screen 1-2. Print Check Check that the V7 series transmits the signals to the printer correctly. 1. Connect the V7 unit to the printer. 2. Press the [Printer Check] switch. The test is successful when a test page is printed out without problem.

  • Page 92: Touch Switch Test

    2. Main Menu Screen 1-4. Touch Switch Test If a touch switch does not activate at all or if an operation is performed without pressing any touch switch, check that the touch switches on the V7 panel are working properly. 1.
  • Page 93 6-10 2. Main Menu Screen Touch Switch Adjustment If a position different from the pressed position turns white on the touch switch test screen, follow the steps described below to adjust the touch switch position. 1. Hold down the [SYSTEM] switch and press the [F2] switch on the touch switch test screen. SYSTEM Touch Switch Adjustment Reset...

  • Page 94: Card Menu Screen

    2. Main Menu Screen 6-11 Card Menu Screen When the [Card Menu] switch on the Main Menu screen is pressed, the following “Card Menu” screen appears. This screen is used to transfer screen data between the V7 series and a CF card or a memory card. Moves back to the Main Menu screen or the initial screen.

  • Page 95: Crec Menu Screen

    6-12 2. Main Menu Screen 2-1. CREC Menu Screen When the [CREC Menu] switch on the “Card Menu” screen is pressed, the following “CREC Menu” screen appears. This screen is used to transfer screen data between the V7 series and a memory card. The procedure for transferring data is described below.
  • Page 96 2. Main Menu Screen 6-13 4. Data Selection and Transfer Selection In the “Transfer” field, select [Display <-- Card], [Display --> Card] or [Display <--> Card]. Press the desired switch to turn the switch on. Multiple switches can be pressed in the “Data Selection” field.
  • Page 97 6-14 2. Main Menu Screen 2-2. Transferring Screen Data from a CF Card CF Card Folder Configuration Folders in the CF card are configured as shown below. Folder Name Folder Name File Name CF card AAAAAAAA DSP0000.BIN BBBBBBBB MCMHEAD.BIN CARD MCMxxxx.BIN SRAM SRM0000.BIN...
  • Page 98 2. Main Menu Screen 6-15 Transferring Screen Data from a CF Card The procedure of transferring data between the V7 series and a CF card is described below. 1. Mounting the CF card Insert the CF card into the CF card connector at the side of the V7 unit. * Do not remove or insert the CF card in the later steps.
  • Page 99 6-16 2. Main Menu Screen 2. Check the folder name, free space, and CF card file information. If the correct folder is selected, move to step 4. • Folder Name Indicates the name of the currently selected folder. The access folder that is set for screen data defaults. If there is no screen data, “DAT0000”...
  • Page 100 2. Main Menu Screen 6-17 4. Press the [Select Data] switch. The [Data Selection] window is displayed and the [Select Data] switch changes to [Start]. Card Transfer Card Transfer CF Card File Infomation CF Card File Infomation Access Access Data Selection Access Folder Name: AAAAAAAA Folder Name: AAAAAAAA...
  • Page 101 6-18 2. Main Menu Screen When [Display --> Card] is Selected: 1. When [Display --> Card] is selected, the “Card Transfer” screen is displayed. Flashes during communication with the CF card. Indicates the name of the currently selected Card Transfer folder.
  • Page 102 2. Main Menu Screen 6-19 When [Display <--> Card] is Selected: 1. When [Display <--> Card] is selected, the “Card Transfer” screen is displayed. Screen data used for comparison is that in the DSP folder under the folder having the same name as the access folder that is set on the MONITOUCH.

  • Page 103: Saving Backup Copies Of Sram

    6-20 2. Main Menu Screen 2-3. Saving Backup Copies of SRAM In this section, the procedure for saving backup copies of the SRAM memory in the MONITOUCH or V7EM-S (SRAM cassette) for battery replacement is explained. 1. Press the [SRAM] switch on the “Card Menu” screen. When the lamp is red, it is selected. 2.
  • Page 104 2. Main Menu Screen 6-21 • When [Display <-- Card] is selected, the following screen is displayed. Flashes during communication Indicates the name of the currently selected file. with the CF card. Indicates the name of the currently SRAM Transfer selected folder.

  • Page 105: Messages During Data Transfer

    6-22 2. Main Menu Screen 2-4. Messages during Data Transfer If an error occurs during data transfer, the message Data discrepant window shown on the right is displayed. The kinds and the contents of the messages are shown below. The same messages are used for the memory card and CF card.
  • Page 106 2. Main Menu Screen 6-23 Ethernet * For more information on the IP address setting, refer to the V-SFT Additional Specifications Manual. The “Ethernet” screen is displayed by pressing the [IP Address (English)] switch on the initial screen when transferring screen data via Ethernet for the first time, or by pressing the [Ethernet] switch on the Main Menu screen when transferring screen data to the MONITOUCH.
  • Page 107 6-24 2. Main Menu Screen Not Use Network Table In the following cases, select [Not Use Network Table]. • Screen data is transferred for the first time via Ethernet. • The network table is not set for screen data of the V7 series. •...
  • Page 108 2. Main Menu Screen 6-25 Connection with CU-03(-2) on V7 IP address, gateway and sub-mask settings The Main Menu screen is displayed again. Ethernet Return Selects [10BASE-T] or [AUI]. It is not used when the gate way or the sub-mask is zero. IP Address: Cursor switches 10BASE-T...
  • Page 109 6-26 2. Main Menu Screen SRAM/Clock • To use the built-in clock of the V7 series or to use the SRAM memory or cassette, it is necessary to select [SRAM/Clock Setting] from the [System Setting] menu and make the SRAM/clock setting. For the setting procedure, refer to the Reference Manual.

  • Page 110: Extension Program Information

    2. Main Menu Screen 6-27 Date and Time Setting 1. Move the cursor using the [←] / [→] switch, and change the value by pressing the [+] / [−] switch. 2. When the desired date and time are set, press the [Set] switch to determine the setting. 3.

  • Page 111: Extended Function Setting

    6-28 2. Main Menu Screen Extended Function Setting When the [Editor: MJ1] switch on the Main Menu screen is pressed, the following “Extended Function Setting” screen appears. Set the baud rate to be used when transferring screen data between the V7 series and a modem. 1.

  • Page 112: Error Correction

    Error Correction Error Messages Troubleshooting...

  • Page 114: Error Message

    1. Error Message Error Message There are five kinds of error messages displayed on the V series: 1. Communication error 2. Check 3. Warning 4. SYSTEM ERROR 5. Touch switch is active Communication Error * When you go to [Comm. Parameter], bring up the [Detail] tab window and set [Continue] for [Comm.
  • Page 115 1. Error Message Error Message Contents Solution Examine the CPU error code and solve the Error code received The PLC sent an error code (NAK). problem. The PLC’s SD (TXD) remains at the low Examine the connection between the PLC’s Break level.
  • Page 116 1. Error Message • CC-LINK Error Message Contents Solution I/F Board Err The I/F unit for CC-LINK has an error. Contact your local distributor. The number of occupy in [Comm. Parameter] No. of Occupy Setting Err is different from the number of occupy by Check the setting of the number of occupy.
  • Page 117 1. Error Message • PROFIBUS-DP Error Message Contents Solution The setting for [Own Stat. No.] on V7 is “Check” is displayed 2 or 3 seconds before this discrepant with that for [Address] for [V7 error occurs when connecting V7 and series] on the SIMATIC Manager.
  • Page 118 1. Error Message Warning An error may be displayed on the Main Menu screen during data transfer. This is a warning message. For the warning details and solutions, refer to the Reference Manual (Function) and correct screen data. Main Menu V 7 1 0 i T 2002-4 -1 21:52:36...

  • Page 119: System Error

    1. Error Message SYSTEM ERROR When a system error is detected, the following error screen is displayed on the V7 series. SYSTEM ERROR : 32 TEA : XXXXXXXX EXPEVT : XXXXXXXX SSR : XXXXXXXX SPC : XXXXXXXX R0 : XXXXXXXX R1 : XXXXXXXX R2 : XXXXXXXX R3 : XXXXXXXX...

  • Page 120: Troubleshooting

    2. Troubleshooting Troubleshooting In the Event of an Error Perform the steps below: 1. If the current error matches a symptom in the following table, correct it by following the instructions provided. 2. If the error does not match the symptoms in the table, contact your local distributor. Please provide the distributor with the information on the MONITOUCH model, serial number, symptom of the error, error message (if shown), etc.
  • Page 121 2. Troubleshooting Symptom Cause Solution “SYSTEM ERROR: xx” The following causes are probable, depending occurs. on the symptoms. 1) Turning the power off and back on corrects 1) If communication is stable after turning the the error. power on again, continue and observe ↓...
  • Page 122 Inspection and Maintenance Inspection and Maintenance Warranty Policy...

  • Page 124: Inspection And Maintenance

    1. Inspection and Maintenance Inspection and Maintenance Be sure to turn off the power before conducting inspection or maintenance. Failure to DANGER do so could cause an electric shock or damage to the unit. Daily Inspection • Check that the screws on the MONITOUCH are tightened firmly. •...

  • Page 125: Warranty Policy

    2. Warranty Policy Warranty Policy Inquiries about Failure Please direct inquiries about failure or repair to your local distributor. Your information on the MONITOUCH model, serial number, symptom of the failure, error message (if shown), etc. will be appreciated. * An inquiry form is provided on the final page (page 8-3) of this chapter. The form may be used for your inquiry.

  • Page 126: Inquiry Form

    2. Warranty Policy Inquiry Form Your name Company name E-mail: Contact TEL: FAX: (*1) (*1) Model code Ser. No. MONITOUCH SYS. PROG. Ver. : I/F DRV. Ver. : (*2) version Purchased from: (Name of distributor) Date of purchase Symptom (Please describe the symptom of the failure and also include the error message if any is displayed.) See the label on the back of the MONITOUCH for the model code and serial number (seven digits plus one Serial number...
  • Page 127 2. Warranty Policy Please use this page freely.
  • Page 128 Hakko Electronics Co., Ltd. Sales 890-1, Kamikashiwano-machi, Matto-shi, Ishikawa, 924-0035 Japan TEL (076)274-2144 FAX(076)274-5208 Tokyo Office TEL (03)3255-0166 FAX(03)3255-0298 Osaka Office TEL (06)6385-8234 FAX(06)6385-7851 Nagoya Office TEL (052)789-0096 FAX(052)789-0098 Head Office 238, Kamikashiwano-machi, Matto-shi, Ishikawa, 924-0035 Japan PRICE 1,000- 2010NE2...
