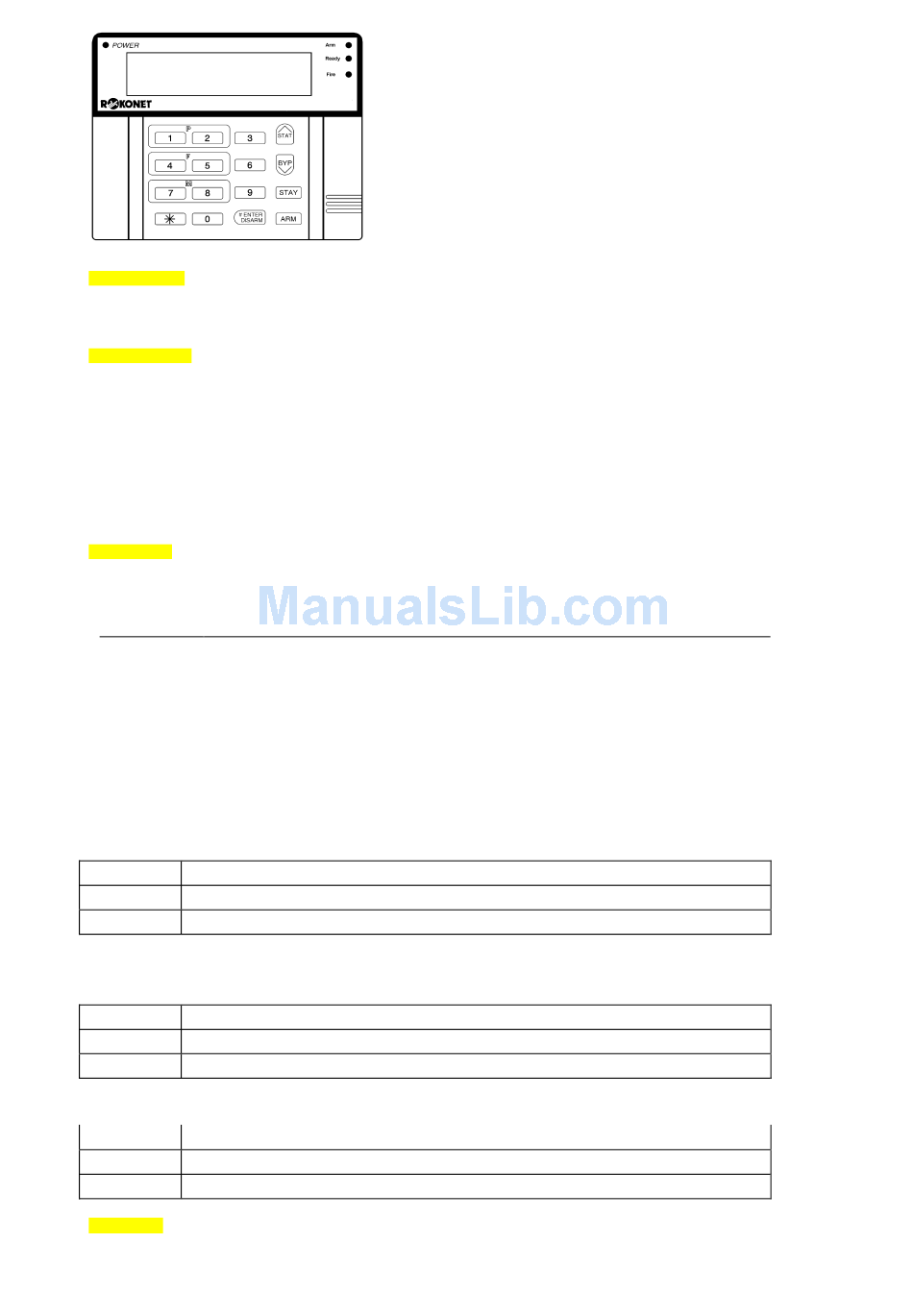

Orbit 14 LCD KEYPAD INSTRUCTIONS
INTRODUCTION
The LCD keypad is a visual interface tool that helps you operate the Orbit 14 panel. The operating procedures for the LCD are
based on those of the LED keypad. For full information regarding the operation of the Orbit-14 refer to the Orbit-
manual.
MAIN FEATURES
♦
2-line, 32-character display
♦
Menu driven interface for user functions
♦
2-zone expansion from the keypad
♦
Up to 5 LCD/LED keypads
♦
Custom message display programming
♦
3 emergency keys on keypad
♦
System trouble display
♦
Language support
♦
Double tamper protection (Box & Wall)
♦
Wired panic button
LED DISPLAY
The LCD keypad has four LED indicators as follows:
POWER LED
The Power LED indicates system operation.
The system is operating properly from premises (AC) power; its backup battery is in good
ON
condition.
The system is inoperative due to lack of power (from both premises AC and backup battery);
OFF
servicing is required.
Indicates a trouble condition when the system is disarmed.
FLASH
Note:
If a trouble condition exists, the Power LED will flash only when the system is in its disarmed state. Once the
system is armed, a previously flashing Power LED will light steadily.
ARM LED
The Arm LED indicates whether or not the system's intrusion detectors are armed.
The system's intrusion detectors are armed.
ON
The system is disarmed.
OFF
Indicates that an emergency alarm has been triggered or a burglary or fire is taking place.
FLASHING
READY LED
The Ready LED indicates whether or not the system's intrusion zones are secured and ready to be armed.
All intrusion zones are secure; the system is ready to be armed and no zones are bypassed.
ON
One or more intrusion zones are not secure and the system is not ready to be armed;
OFF
Indicates that the system is ready to be armed with bypassed zones
FLASHING
FIRE LED
A fire alarm or fire emergency is in progress or has recently occurred.
ON
All fire zones are operating normally.
OFF
A fault has been detected in the system's fire zone and needs to be corrected.
FLASHING
USER MENU
Ø
Entering the user menu:
The LCD keypad offers you the option to navigate through the menu structure until you reach your desired function.
Advertisement
Summary of Contents for Rokonet Orbit 14
- Page 1 INTRODUCTION The LCD keypad is a visual interface tool that helps you operate the Orbit 14 panel. The operating procedures for the LCD are based on those of the LED keypad. For full information regarding the operation of the Orbit-14 refer to the Orbit- manual.
- Page 2 [Þ Þ ] To access the Main User Functions menu press Ø Programming a User Function To access a user function press the number of the user function, or press the keys to scroll up or down until you find the function number and then press Notes: If no key is pressed for 10 seconds, the system automatically returns to the Main User Functions menu.
- Page 3 Press the number of the utility output from 1-6, or scroll through the utility output list using the keys until you find the desired utility output and then press Each time a utility output number or is pressed the utility output status changes and the keypad sends a confirmation beep.
- Page 4 In case of alarm the system can initiate a phone call to a designated telephone or pager and employ unique tones or messages to express the active alarm. Use this option to set the Follow-Me numbers: [Þ Þ ] [7]. From the Main User Functions menu press Press the phone number you want to modify from 1-4, or scroll through the list using the keys until you find...
- Page 5 Zone XX bypassed by user YY. BYPASS Z:XX U:YY Day Zone trouble restore. DAY ZONE RST Day Zone Trouble. DAY ZONE TRBL System disarmed by user XX. DISARM U: XX Duress alarm from user No. XX. DURESS U:XX User XX authority level changed. EDIT AUTH.
- Page 6 Follow Me phone No. X defined. SET FM PHONE:X Time/Date defined. SET TIME/DATE Tamper alarm from zones 1/9. TAMP.ZONES:1/9 Tamper alarm from zones 2/10. TAMP.ZONES:2/10 Tamper alarm from zones 3/11. TAMP.ZONES:3/11 Tamper alarm from zones 4/12. TAMP.ZONES:4/12 Tamper alarm from zones 5/13. TAMP.ZONES:5/13 Tamper alarm from zones 6/14.
- Page 7 Mounting the Keypad Connect the four wires from the keypad to the first four corresponding terminals on the Orbit 14 panel according to the color coding of the wires as indicated on the panel. When using cables to connect between the panel and the keypad, be sure to make the connections according to the color-coding.
- Page 8 WARNING: This product should be tested at least once a week. RTTE COMPLIANCE STATEMENT Hereby, Rokonet Electronics Ltd, declares that this keypad (RP214KCL0XXA * ) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Radio Frequency Interference (Ref.: FCC Part 15, Para. 15.105) This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules.
