Vanox Nova VL36BN Operating & Maintenance Instructions

Zero clearance bv gas fireplace

Advertisement

Quick Links

VANOX
DANGER
Read and understand this manual. Improper installa-
tion, adjustments, alterations, service or maintenance
can cause serious injury, property damage or even
death. For assistance or additional information consult
a qualified installer, service agency or gas supplier.
CAUTION
Glass doors on gas fireplaces are extremely hot while
the fireplace is on and remain hot even after the
fireplace has been turned off. Safety screens are
available and can reduce the risk of severe burns.
Please keep children away from the fireplace at all
times.
WARNING
Do not store or use gasoline or any other flammable
vapors and liquids in the vicinity of this or any other
gas burning appliance. A fire or explosion may occur
causing serious injury, property damage or even
death.
www.vanoxfireplace.com
Fireplace Inc.
Installation
Operation &
Maintenance
Instructions
NOVA
Zero clearance
BV Gas Fireplace
NOTICE
Installer: Leave this manual with the appliance.
Do not remove.
Consumer: Retain this manual for maintenance and
future reference. Do not discard
DANGER
IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any
phone in your building.
- Immediately call your gas supplier from your
neighbour's phone. Follow the gas supplier's instruc-
tions.
- If you cannot reach your gas supplier, call the fire
department.
Hot glass will cause burns.
Do not touch glass until unit
is cooled.
Never allow children to
touch glass.
1218837
VL36BN
.
WARNING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nova VL36BN and is the answer not in the manual?

Questions and answers

Summary of Contents for Vanox Nova VL36BN

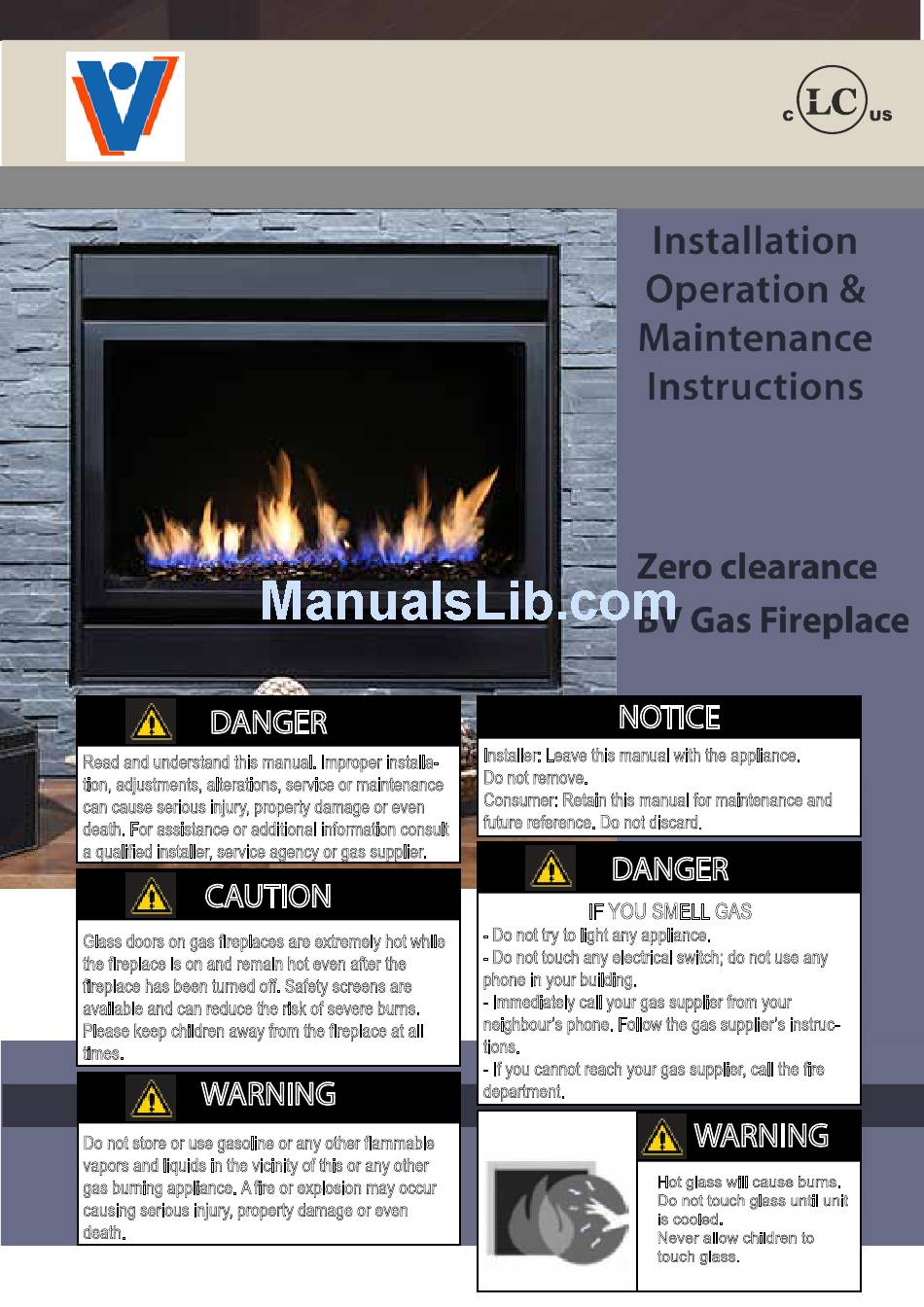

  • Page 1 VANOX Fireplace Inc. 1218837 Installation Operation & Maintenance Instructions NOVA VL36BN Zero clearance BV Gas Fireplace NOTICE DANGER Installer: Leave this manual with the appliance. Read and understand this manual. Improper installa- Do not remove. tion, adjustments, alterations, service or maintenance...
