Summary of Contents for Rugged Computing RI-1902

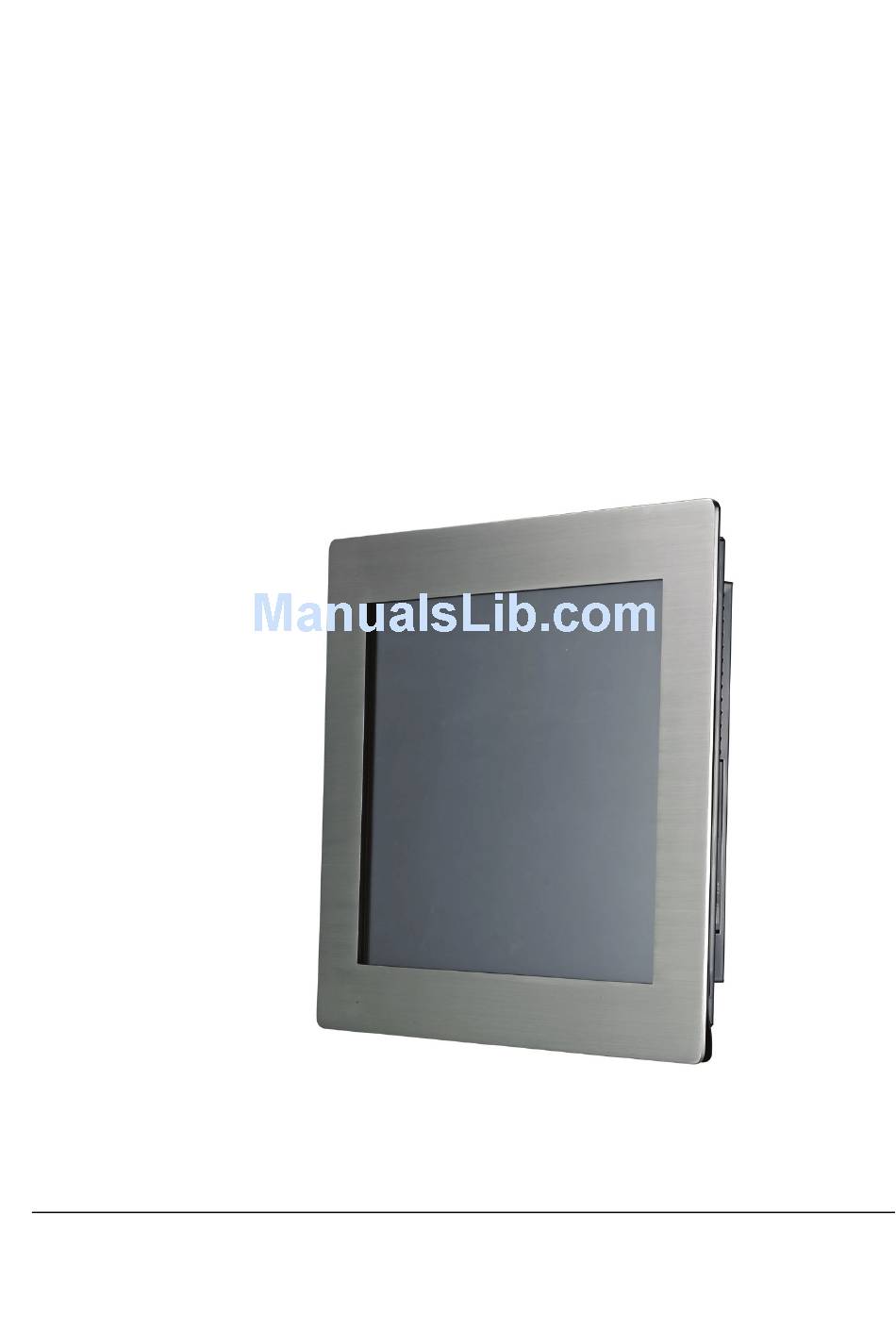

- Page 1 Panel PC RI-1902 19” Panel PC User’s Guide Version: A1.0 Users guide Ver. A1.0 Nov, 2013...
-
Page 2: Copyright
RI-1902 User’s Guide Notice Copyright The copyright of this user’s guide belongs to any authorized company and is protected by copyright law. This means partial or full duplication of this document is prohibited (electronically, mechanically or otherwise) without the permission of the authorized company. -
Page 3: Caution
Notice Caution For safe and proper installation and use of this product, please read this guide carefully. Even though this product is equipped with a safety device to prevent users from getting injured, please follow the instructions carefully. Caution during installation Install on an even and stable place to prevent product damage and injury. - Page 4 RI-1902 User’s Guide Unplug the power cord before cleaning this product. Please wipe with tissues or fabrics that are sprayed with a PC cleaner and do not directly spray the product. When this product will be idle for an extended period of time, unplug the power cord to prevent damage stemming from power surges.
-
Page 5: Table Of Contents
Table of Contents Table of Contents N o t i c e ....................2 Copyright..............................2 Registered Trademark ..........................2 The permissible level (Class A) of electromagnetic waves ................2... -
Page 6: Chapter 1 Introducing The Panel Pc
RI-1902 User’s Guide Chapter 1 Introducing the PANEL PC Product features The panel computer combines a CPU board, LCD display, and user- friendly touch screen within a slick, compact chassis. Each product is a compact, highly integrated, network-ready computer with the fullest I/O connectivity. -
Page 7: Unpacking
Chapter 1 : Introducing the Panel PC Unpacking This product is packaged with cardboard paper for safe delivery. If there is a defect or missing part, contact the agency where you purchased the product. The box should contain the following items. 19”... -
Page 8: Other Peripherals
RI-1902 User’s Guide Other peripherals This PC supports the following peripheral devices Printer Six serial communication port (COM1~6) USB devices (compatible with USB 2.0) External speakers/headphones External microphones External audio devices External monitors [For reference] What is USB? USB is a high-speed serial bus standard for the connection of peripheral devices that reduces the use of valuable system resources. -
Page 9: Preparing You Panel Pc
Chapter 1 : Introducing the Panel PC Preparing you PANEL PC These are only quick instructions for using you PANEL PC. Read the later pages for detailed information on using your PANEL PC Connect the AC Power Adapter 1. Insert power cord into power adapter A1.0... -
Page 10: Turn On The Panel Pc
RI-1902 User’s Guide 2. Insert power adapter cable into “Power Input” of rear I/O panel 3. Insert power cord into outlet Turn ON the PANEL PC 1. Before turn on power button the PW LED is Red color. 2. Press the power Button and release. -
Page 11: Chapter 2 . K N O W I N G T H E P A R T
Chapter 2 : Knowing the Parts Chapter 2. Knowing the Parts Dimension Unit : mm... -
Page 12: Cut-Out Dimension
RI-1902 User’s Guide Cut-Out Dimension Unit : mm... -
Page 13: Panel Mount Kit Installation
Chapter 2 : Knowing the Parts Panel mount Kit Installation Some screw sets will come with the product for user to mount the monitor on the wall. See the steps below along with the illustration. Step 0: Locate panel pc and fix frame set on the wall. Wall Fix Frame A1.0... -
Page 14: Panel Mounting
RI-1902 User’s Guide Step 1: Bore the screw into the screw hole. Step 2: Locate the screw set into the hole around the panel pc as the illustration and pull it back to lock the screw set on the hole. (A. B,) Step 3: Turn the screw around to make it tight until it is closed to the wall. -
Page 15: Front And Rear Sides
Chapter 2 : Knowing the Parts Front and Rear sides : Display Panel The display panel functions the same as a desktop monitor. The PANEL PC uses an active matrix TFT LCD, which provides excellent viewing like that of desktop monitors. Unlike desktop monitors, the LCD panel does not produce any radiation or flickering, so it is easier on the eyes. - Page 16 RI-1902 User’s Guide Instant Keys and Status Indicators Power button Power : Turns the computer on and off. Buttons for adjusting the speaker volume VOL : Up(+)/Down(-) : Adjusts the sound volume of the internal speaker. Buttons for adjusting the screen luminance LUM : Up(+)/Down(-) : Adjusts the luminance of the TFT-LCD display.
-
Page 17: Right Sides
Chapter 2 : Knowing the Parts Right Sides : Optical Drive The PANEL PC comes in various models with different optical drives. The PANEL PC optical drive support Slim COMBO and Slim DVD Multi (RW) capabilities. See the marketing specifications for details on each model. Optical Drive Electronic Eject The optical drive eject has an electronic eject button for opening the tray. -
Page 18: Left Sides
RI-1902 User’s Guide Left Sides : Side I/O Panel Item Connections Card reader support : SD/MS/MMC card. USB (2.0/1.1) device connection... -
Page 19: Rear Sides
Chapter 2 : Knowing the Parts Rear Sides : The following picture shows connectors that are for input/output connections located at the rear side of the main body. Here we provide a brief explanation about the name and function of each connection port. Rear I/O Panel Item Connections... -
Page 20: Chapter 3 . S T A R T I N G T H E C O M P U T E R F O R T H E F I R S T T I M
RI-1902 User’s Guide Chapter 3. Starting the computer for the first time This chapter will show you how to register a user ID for Windows and for this computer, and how to set up additional drivers and applications step by step. -
Page 21: Step 1: To Set Up The Computer
Chapter 3 : Starting the computer for the first time Step 1: To set up the computer To set up the computer that is pre-setup with Microsoft Windows 7 in step 0: 1. Connect the mouse and keyboard that come with the main body and turn on the power of the main body. - Page 22 RI-1902 User’s Guide 10. When “Review your time and date settings” displayed, please check and click <Next> 11. When “Select your computer’s current location” displayed, please select the one that best suits your connection and press <Next> If your computer is not connected to a network or failed to establish a network connection, a dialog box with “failed to establish an Internet connection”...
-
Page 23: Step 2: The Installation Of Drivers For Other Peripherals
Chapter 3 : Starting the computer for the first time Step 2: The installation of drivers for other peripherals Skip this step if you do not use other peripherals. To use other peripherals this PC supports such as printers, serial communication devices, USB devices, connect the device to the main body, press the power button and boot the PC. -
Page 24: System Upgrades
RI-1902 User’s Guide Chapter 4. System Upgrades System upgrades Hardware upgrades In order to maintain this product’s normal operation and the user’s safety, we do not provide warranty services when users upgrade the system on their own. If you disassemble the computer, it may cause system damage or electrical shock. -
Page 25: Chapter 5 . R E I N S T A L L I N G T H E O
Chapter 5 : Reinstalling the OS Chapter 5. Reinstalling the OS Should serious irreparable problems occur, users must reinstall a Windows operating system. This chapter will explain how to do that. To reinstall the OS, you will need the Microsoft Windows installation CD and the Master CD that comes with this product. - Page 26 RI-1902 User’s Guide [Caution] In most cases, it is necessary to restart the computer after installing drivers or utilities using the Master CD. [For reference] When the video driver is installed, click [Start]-[Control panel]-[Appearance and themes]-[Display] to bring up the “Display Registration Information”...
-
Page 27: Appendix 1 . T R O U B L E S H O O T I N
Appendix 1 : Troubleshooting Appendix 1. Troubleshooting The table below is an outline of general problems that may occur during the use of the PC along with suggested solutions. If any of these problems should occur, proceed with the instructions in the table below or refer to the ‘Troubleshooting”... - Page 28 RI-1902 User’s Guide The monitor appears Adjust the screen brightness using the buttons on the blank or the screen is front panel of the computer monitor. Should problems too dark. persist, contact the Customer Support Center. Mouse is not working. 1. Check if the mouse is properly connected to the PS/2 port located at the rear of the monitor.
- Page 29 Appendix 1 : Troubleshooting Unable to shut off the This could stem from a number of reasons. First, turn computer. off the computer by pressing the power button for more than four seconds. If this does not work, unplug the power cord. If you turn on the computer this time, ‘scan disc’...
-
Page 30: Appendix 2 . P R O D U C T S P E C I F I C A T I O N
RI-1902 User’s Guide Appendix 2. Product specifications HARDWARE Construction Steel chassis & IP-65 certified front panel (or optional stainless steel front panel) Intel ATOM D2550 processor Chipset Intel NM10 System Memory So-DIMM x 2 (up to 4GB) dual channel DDR3 800/1066 MHz... - Page 31 Appendix 2 : Product specifications 10 USB ports (Rear IO port x4, Jumper pin x5, Card reader x1) USB v2.0 compliant Card reader ports for SD/MS HG/MMC VGA / DVI-I Out Touch screen (optional) NETWORKING & COMMUNICATION Networking RJ-45, TCP/IP, 10/100/1000 Base-T Fast Ethernet Built-in Ethernet Controller: Intel®...
- Page 32 RI-1902 User’s Guide Power Specifications AC to DC adapter 100-240 VAC at 47-63Hz 5A/2A Max 60W (12V/5A) LCD Specifications Display type : 19” color TFT LCD Max. resolution : 1280 x 1024 Max. colors : 16.7M White Luminance (cd/m ) : 250 (typ.) Viewing angle : 160°(H) / 160°(V)
-
Page 33: Appendix 3 . P R O D U C T W A R R A N T
Appendix 3. Product warranty Appendix 3. Product warranty About the product warranty 1. Keep the product warranty document and complete it with the necessary information when you make the purchase. 2. We do our best to provide the best quality assurance. 3. - Page 34 RI-1902 User’s Guide Charge-based service The following services are charge-based. Malfunction or damage to the product due to careless handling by the user. Problems caused by software Damage caused by natural disaster Damage or changes to the product that is done by people other than our service representative.
-
Page 35: Appendix 4 . J U M P E R S E T T I N
COM2 (RS232/422/485) CN_JCOM2_SEL1 CN_JCOM2_SEL2 RS232 RS485 RS422 RS232 RS485 RS422 9-11 9-11 8-10 10-12 10-12 Digital I/O SMBUS CN_DIO1 CN SMBUS1 Pin 1 Pin 2 Pin 1 SMBDATA GP10_IN0 GP14_OUT4 SMBCLK GP11_IN1 GP15_OUT5 GP12_IN2 GP16_OUT6 GP13_IN3 GP17_OUT7 V12S Model Name (RI-1902-XXXXXXXX)
