Summary of Contents for BINDOMATIC 101 DFS

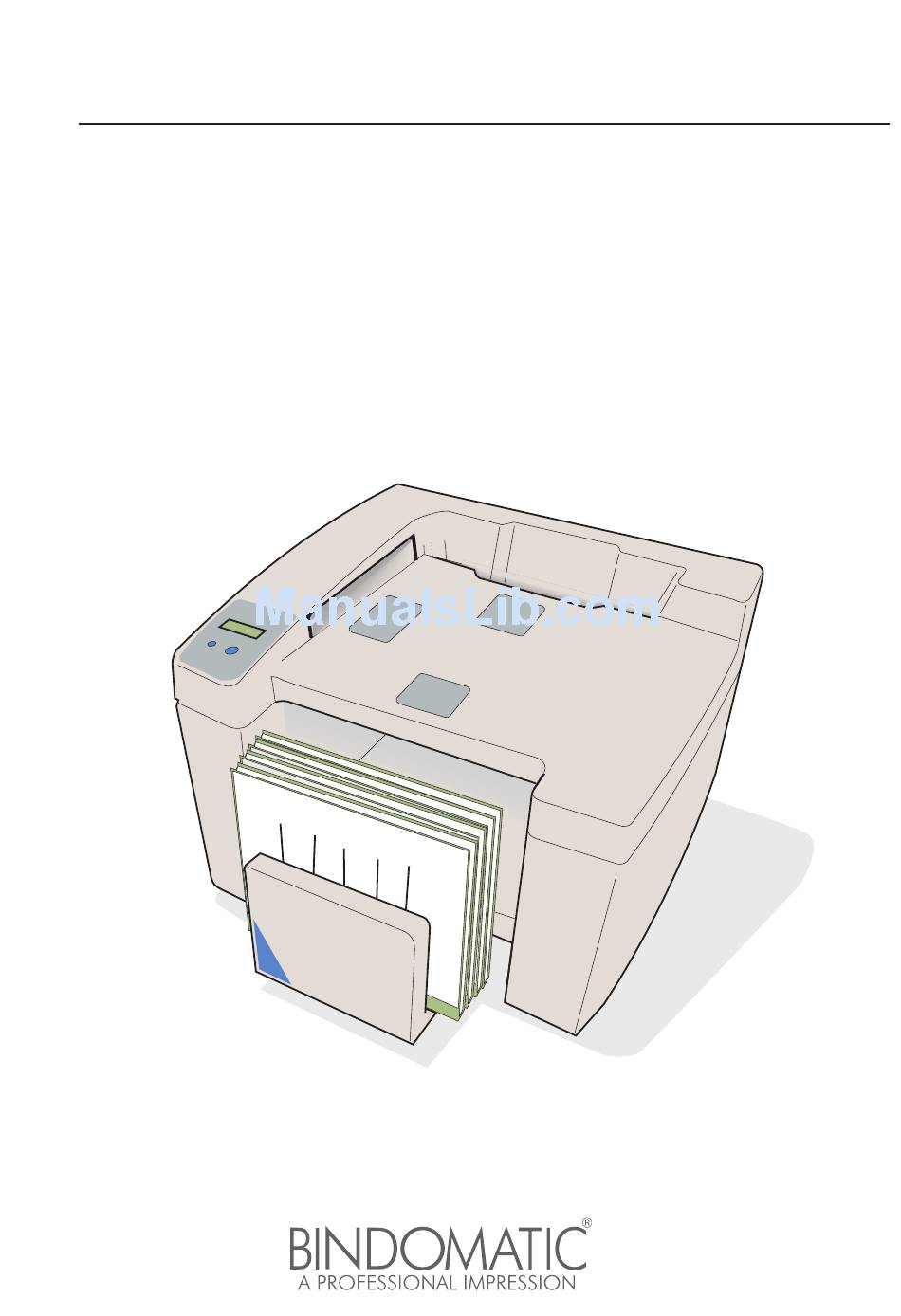

- Page 1 BINDOMATIC 101 DFS Document Finishing System Operator’s Manual Version (2003-02-17)
-
Page 2: Table Of Contents
Contents Safety instructions ..............3 Installation ................4 Description ................5 How to use the Bindomatic 101 DFS ........6 User settings ................8 Troubleshooting..............10 Clearing and emptying ............11 How to make the most of your binding machine ....12 Specifications ................ -
Page 3: Safety Instructions
Introduction: To be able to use the Bindomatic 101 DFS in the best possible way, you the user should read through this Operator’s Manual carefully and follow the instructions. Store the manual in the holder at the rear of the binding machine. -
Page 4: Installation
4. Plug the mains cable first into the machine and then into the wall socket. 5. Press the button on the machine marked with the symbol 6. Check that the Bindomatic 101 DFS starts and that the following message is shown on the display: MEASURE DOCUMENT SEE PICTURE 1 Holder for Operator’s Manual... -
Page 5: Description
3. Description Cover Terminology In this manual and in the Quick Guide, the Bindomatic Batch cover is referred to as cover and the set of papers is referred to as the set . When the set is put into the cover, this is referred to as a document . -
Page 6: How To Use The Bindomatic 101 Dfs
4. How to use the Bindomatic 101 DFS These are the most important parts of the machine that you should be acquainted with. Input bay Indicator lamps Cover selector Display Control buttons Jam clearance door Output tray MEASURE DOCUMENT The display asks you to measure the thickness of the SEE PICTURE 1 set. - Page 7 Put the set into the selected cover. Documents (cover and set) can always be put into the machine for binding when the green lamp is on. Documents can be put in one by one or in batches. The machine confirms that a document has been put in with an audible signal.
-
Page 8: User Settings
5.1 Choosing the language The default language setting for your Bindomatic 101 DFS upon delivery is English. You can, however, choose between a number of languages. Note that the English language is always used in the “User Settings” mode. Choose the language... - Page 9 5.2 How to select the time before the machine switches to the energy- saving mode. The time can be set to 4 hours or 15 minutes after the latest document has been transferred to the output tray. The default time upon delivery is 4 h. Note that the English language is always used in the “User Settings”...
-
Page 10: Troubleshooting
Use these instructions to solve the most common operating problem with your Bindomatic 101 DFS binding machine: NOTE! In order to guarantee perfect binding of your documents, only Bindomatic original covers can be used with this machine. Other types of covers or incorrect use of the machine can cause poor binding results or the machine may stop working, in which case an authorised service technician should be contacted to remedy the situation. -
Page 11: Clearing And Emptying
7. Clearing and emptying If there is a mains power failure or if the binding machine stops functioning for some other reason, documents that have just been put in and other unbound documents can be removed as described below. If there are unfinished documents in the machine when the power supply is restored, the machine will automatically move them into the output tray. -
Page 12: How To Make The Most Of Your Binding Machine
8. How to make the most of your binding machine The following suggestions can be useful when using your Bindomatic 101 DFS Avoiding loose pages! Tip: Always use the cover selector to ensure you have the correct spine width and thus avoid loose pages. -
Page 13: Specifications

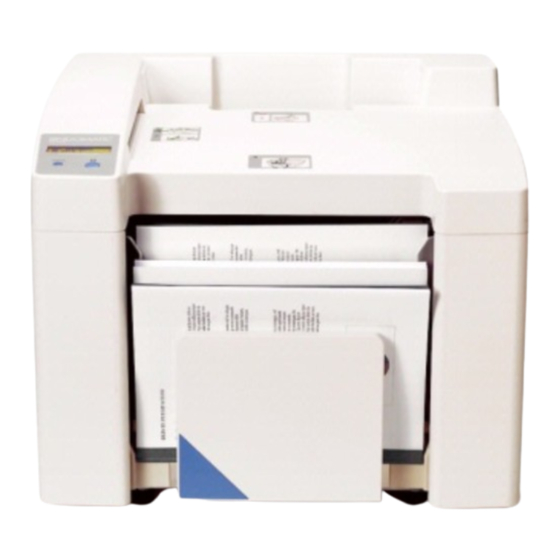

9. Specifications General: The Bindomatic 101 DFS is a semi-automatic high-speed thermal binding machine that uses only Bindomatic DFS document covers. Output capacity: 400 - 1600 documents per hour depending on the spine width. The number of documents that can be put into the machine simultaneously is shown in the table below and depends on the spine width. -
Page 14: Index And Addresses
10. Index Glazed paper 12 Quick Guide 4 Addresses 14 Index 14 Restart 8 Batch 5 Input bay 5 Binding temperature 13 Installation 4 Binding unit 5 Buzzer 10 Safety Instructions 3 Set 5 Jam clearance door 5 Sorting function 12 Jogging 13 Specifications 13 Clearing 11... - Page 15 FCC Declaration This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 16 BINDOMATIC AB Vretensborgsvägen 9 P.O. Box 42101 S-126 14 Stockholm, Sweden Tel. +46 8709 58 00 Fax. +46 81 88 652 www.bindomatic.com...
