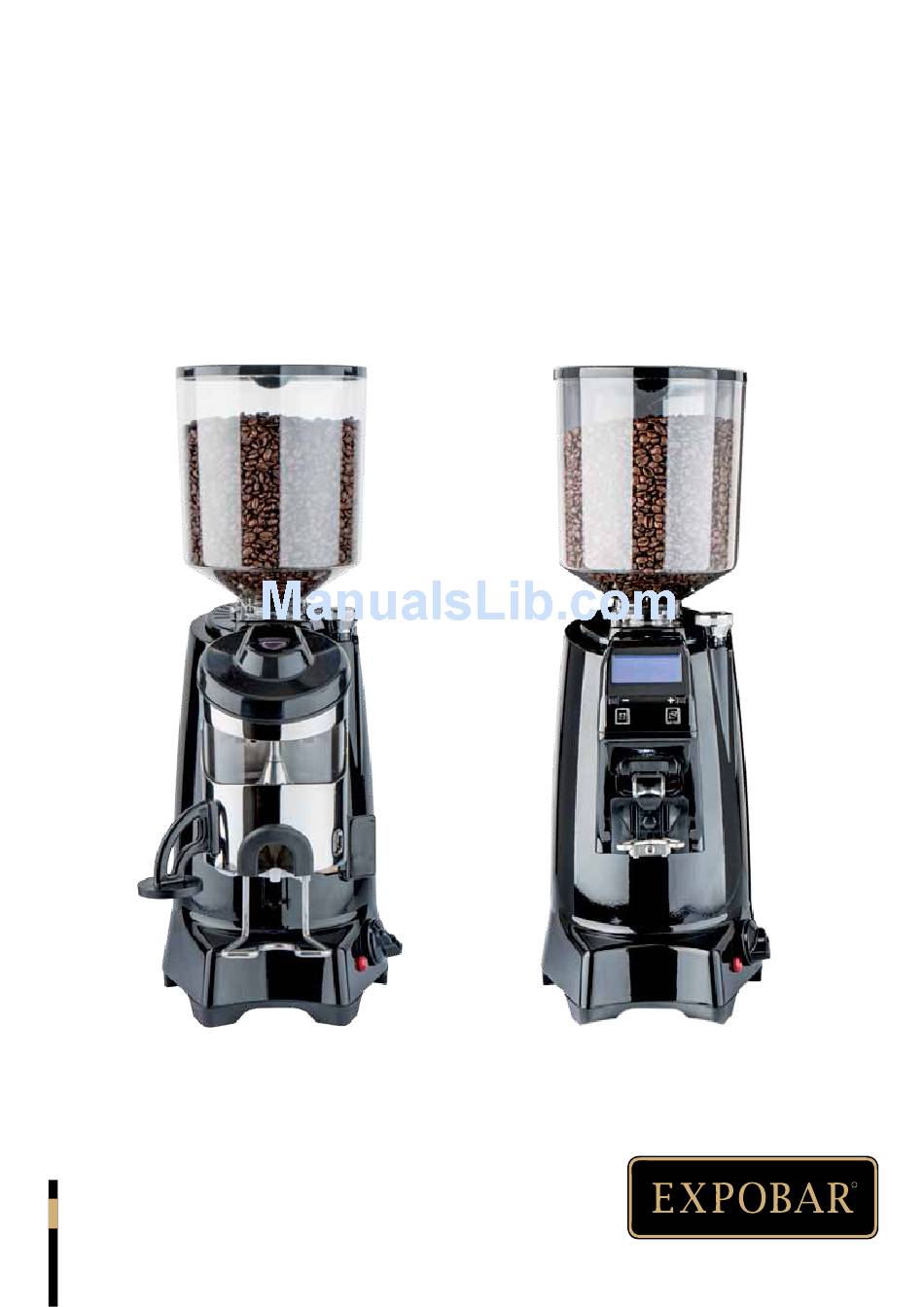

- Page 1 ZENITH USER MANUAL UM_EN Part No.: 1704260_00 Date: 25/11/2014 Original Instructions...
-
Page 2: Table Of Contents
Filter holder fork height adjustment ZENITH On Demand ..............14 CLEANING AND CARE ..................15 Maintenance of the grinder .........................15 Daily cleaning - clean the dispensing spout ZENITH Manual and Automatic ........15 Weekly cleaning - coffee bean container ..................16 Weekly cleaning - doser group ZENITH Manual and Automatic ............16 Weekly Cleaning - clean with Grindz ....................17... -
Page 3: General
GENERAL ZENITH Important: Alerts against unsafe practices. Observe to ensure drink quality, machine performance, food safety, to prevent minor personal injury or damage to the machine. WARNING! Indicates a potentially hazardous situation which, if not avoided, could result in scalding, serious injury and even death. -
Page 4: Introduction
GENERAL ZENITH Introduction Thank you for choosing the ZENITH coffee grinder We hope you enjoy it! Read the user manual before using the machine. This guide reflect the current state of the grinder This guide contains important instructions for using technology and shall not be considered obsolete solely the grinder correctly and safely. -
Page 5: Precautions
GENERAL ZENITH Precautions Always handle the machine with care to avoid the risk If the power cord of this appliance is damaged, switch off of machine failure. the appliance and contact a professional and qualified The packing materials (carton, cellophane, staples, technician for having it replaced. polystyrene, etc..) can cut, wound or create hazards Should you decide to no longer use this appliance, we if used improperly or handled carelessly. -
Page 6: Intended Use
GENERAL ZENITH Intended use This grinder dispenser has been designed for The persons installing and using the machine and doing professional use by trained personnel. machine maintenance shall inform the manufacturer The grinder/dispenser must be used only for the of any defects or damages due to wear that might application for which it was designed;... - Page 7 GENERAL ZENITH ZENITH DESCRIPTION Manual / Automatic On Demand EUR PLUG UK PLUG EUR PLUG UK PLUG Grinding discs (mm) Voltage (V) Frequency (Hz) Power consumption (W) 1290 1290 1290 1290 Throughput (Kg/h) Electrical connection CEE 7/7 BS 1363/A CEE 7/7 BS 1363/A Weight when empty (Kg) Note:...
-
Page 8: Overview Of Components
OVERVIEW OF ZENITH COMPONENTS Front view ZENITH Manual and Automatic Container lid Coffee beans container Grinding adjustment knob Tab to open/close the coffee bean container Doser lid Doser group Tamper Dispenser opening Dose counter Filter holder fork Doser lever ON/OFF switch... -
Page 9: Front View Zenith On Demand
OVERVIEW OF ZENITH COMPONENTS Front view ZENITH On Demand Container lid Coffee beans container Grinding adjustment knob Tab to open/close the coffee bean container LCD display Decreasing key Luminous key for 1 coffee dose Dispenser opening Luminous key for 2 coffees doses Increasing key Grinding start key... -
Page 10: Installation And Start-Up
INSTALLATION ZENITH AND START-UP Positioning MIN. 10 cm The minimum dimensions for the place of the machine must be 360 mm wide x 415 mm depth x 620 mm high. Position the machine on a flat and stable surface, away from water and sources of heat. It should be located in a dry environment, since excessive humidity will affect the machine negatively. -
Page 11: For Zenith Manual And Automatic
For ZENITH Manual and Automatic Switch ON the grinder on the ON/OFF switch and grind Place the filter holder on the fork until the desired amount of coffee has been grinded. -
Page 12: For Zenith On Demand
ZENITH AND START-UP For ZENITH On Demand After having filled the container with coffee beans (see Select single or double dose by pressing the instructions 1-4 “Starting the grinder ZENITH Manual corresponding keys and ZENITH On demand”), switch ON the grinder on the ON/OFF switch. Note: Dispensing stops once the preset time has elapsed. -
Page 13: Operation
WARNING! If the knob is rotated one turn with a stationary motor, the grinder may stop. Grinder dose adjustment ZENITH Manual and Automatic Use the dial under the doser lid to adjust the amount in each dose. Note: Turn the dial clockwise to reduce the amount or counter- clockwise to increase it. -
Page 14: Spout Orientation Adjustment Dispensing Zenith On Demand
OPERATION ZENITH Spout orientation adjustment dispensing ZENITH On Demand Adjust the orientation of the dispensing spout to suit the filter holder used. Filter holder fork height adjustment ZENITH On Demand Use a Philips screwdriver to loosen the fastening screw on the filter holder fork It is recommended not to unscrew the screw completely. Raise or lower the fork in order to adjust it according to filter holder used. -
Page 15: Cleaning And Care
For good appliance operation, it is necessary to check and if required, replace the grinders burrs for every 400 kg of coffee grinded. Daily cleaning - clean the dispensing spout ZENITH Manual and Automatic Remove the rubber protection. Clean the dispensing spout using a brush. -
Page 16: Weekly Cleaning - Coffee Bean Container
Use a clean cloth to wipe away oil from the coffee beans. Weekly cleaning - doser group ZENITH Manual and Automatic Lift the doser lid and clean the group with a brush. -
Page 17: Weekly Cleaning - Clean With Grindz
CLEANING AND CARE ZENITH Weekly Cleaning - clean with Grindz Close the bean stop in bottom of the bean hopper. Start grinder by pressing the ON/OFF switch or pushing the grinder start key for ZENITH On demand. Run grinder until no powder comes out of the grinder outlet. - Page 18 CLEANING AND CARE ZENITH Start the grinder again by pressing the ON/OFF Refill the bean hopper with fresh coffee beans. switch or pushing the grinder start key for ZENITH Make two cup of coffee and throw it away. On demand. Run until no more cleaning powder come out of the grinder.
-
Page 19: Programming
PROGRAMMING ZENITH On Demand Grinder setting ZENITH On Demand Continuous dispensing enabled Dispensing time Dispensing time of preset 2 coffee dose of preset 1 coffee dose Dispensing visualization Dispensing visualization of 1 coffee dose of 2 coffee dose Counter of dispensed Counter of dispensed 1 coffee dose 2 coffee dose... -
Page 20: Resetting Dose Counters
PROGRAMMING ZENITH On Demand Resetting dose counters By pressing both keys for more than 5 seconds, both dose counters are reset. Function block By pressing both keys and releasing them, The display shows the symbol all functions are blocked except the dose selection and After having pressed the keys , and the dispensing start. -
Page 21: Dimension Sketch
DIMENSION SKETCH ZENITH ZENITH Manual Model ZENITH Manual 231 mm 260 mm 324 mm ZENITH On Demand Model ZENITH On Demand 221 mm 559 mm 264 mm... - Page 22 For the warranty to be valid, the conditions for maintenance must have been followed in accordance with our instructions, proper care must have been taken and any claim against the warranty must be sent without delay. The equipment in question may not be used while awaiting service if there is any risk that the damage or defect would worsen.
