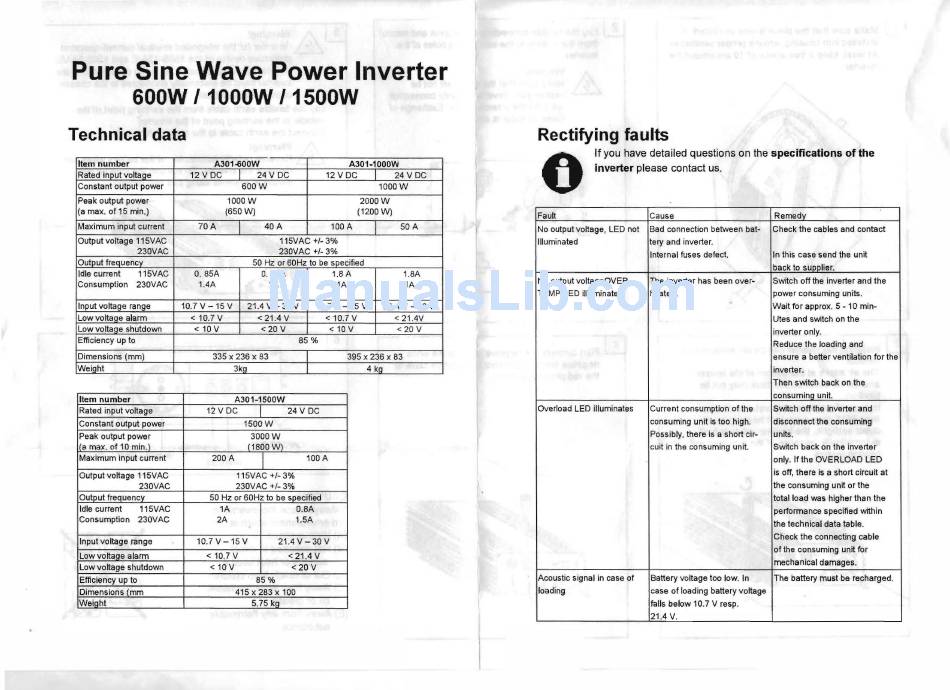

Meanwell A301-OOW Quick Manual

Pure Sine Wave Power Inverter
600W
I
1OOOW I 1500W
Technical data Rectifying faults
A
If you have detailed questions on the specifications of the
V
inverter please contact us.
Item number
Rated input voltage
Constant output power
Peak output power
(a max. of 15 min .)
Maximum input current
Output voltage 115VAC
230VAC
Output frequency
Idle current 115VAC
Consumption 230VAC
Input voltage range
Low voltage alarm
Low voltage shutdown
Efficiency up to
Dimensions (mm)
Weight
A301~OOW A301-1000W
12 V DC 24 V DC 12 V DC
I
24 V DC
600W 1000 W
1000 W 2000W
(650 W) (1200W)
70 A 40 A 100 A 50 A
115VAC +/- 3%
230VAC +/- 3%
50 Hz or 60Hz to be specified
O. 85A O. 45A 1.8 A 1.8A
1.4A 1A 1A 1A
10.7V-15V 21.4V-30V 10.7 V-15V 21.4 V-3~ V
< 10.7 V < 21.4 V < 10.7 V
<
21.4V
< 10 V < 20 V < 10 V
<
20 V
85 %
335 x 236 x 83 395 x 236 x 83
3kg 4 kg
Item number A301-1500W
I
Rated input voltage 12 V DC 24 V DC
Constant output power 1500W
I
Peak output power 3000W
a mal<'. of 10 min.l (1800 W)
Maximum input current 200 A 100 A
Output voltage 115VAC
115VAC +/- 3%
I
230VAC 230VAC
+/-
3%
I
Output frequency
50 Hz or 60Hz to be specified
Idle current 115VAC 1A 0.8A
Consumption 230VAC
2A 1.5A
Input voltage range 10.7V-15V 21.4V-30V
Low voltage alarm < 10.7 V < 21.4 V
Low voltage shutdown < 10 V < 20 V
Efficiency up to 85 %
Dimensions (mm 415 x 283 x 100
Weight 5.75 kg
Fault Cause
Remedy
No output voltege, LED not
Illuminated
Bad connection between bat­
tery and inverter.
Internal fuses defect.
Check the cables and contact
In this case send the unit
back to supplier.
No output voltageOVER-
The inverter has been over- Switch off the inverter and the
TEMP LED illuminates heated.
.
power consuming units.
Wait for approx. 5 -10 min-
Utes and switch on the
inverter only.
Reduce the loading and
ensure a better ventilation for the
inverter.
Then switch back on the
consuming unit.
Overload LED illuminates Current consumption of the
consuming unit is too high.
Possibly, there is a short cir­
cuit in the consuming unit.
Switch off the inverter and
disconnect the consuming
units.
switch back on the inverter
only. Ifthe OVERLOAD LED
is off, there is a short circuit at
the consuming unit or the
total load was higher than the
performance specified within
the technical data table.
Check the connecting cable
of the consuming unit for
mechanical damages.
Acoustic signal in case of
loading
-
Battery voltage too low. In
case of loading battery voltage
falls below 10.7 V resp.
21.4 V.
The battery must be recharged .
