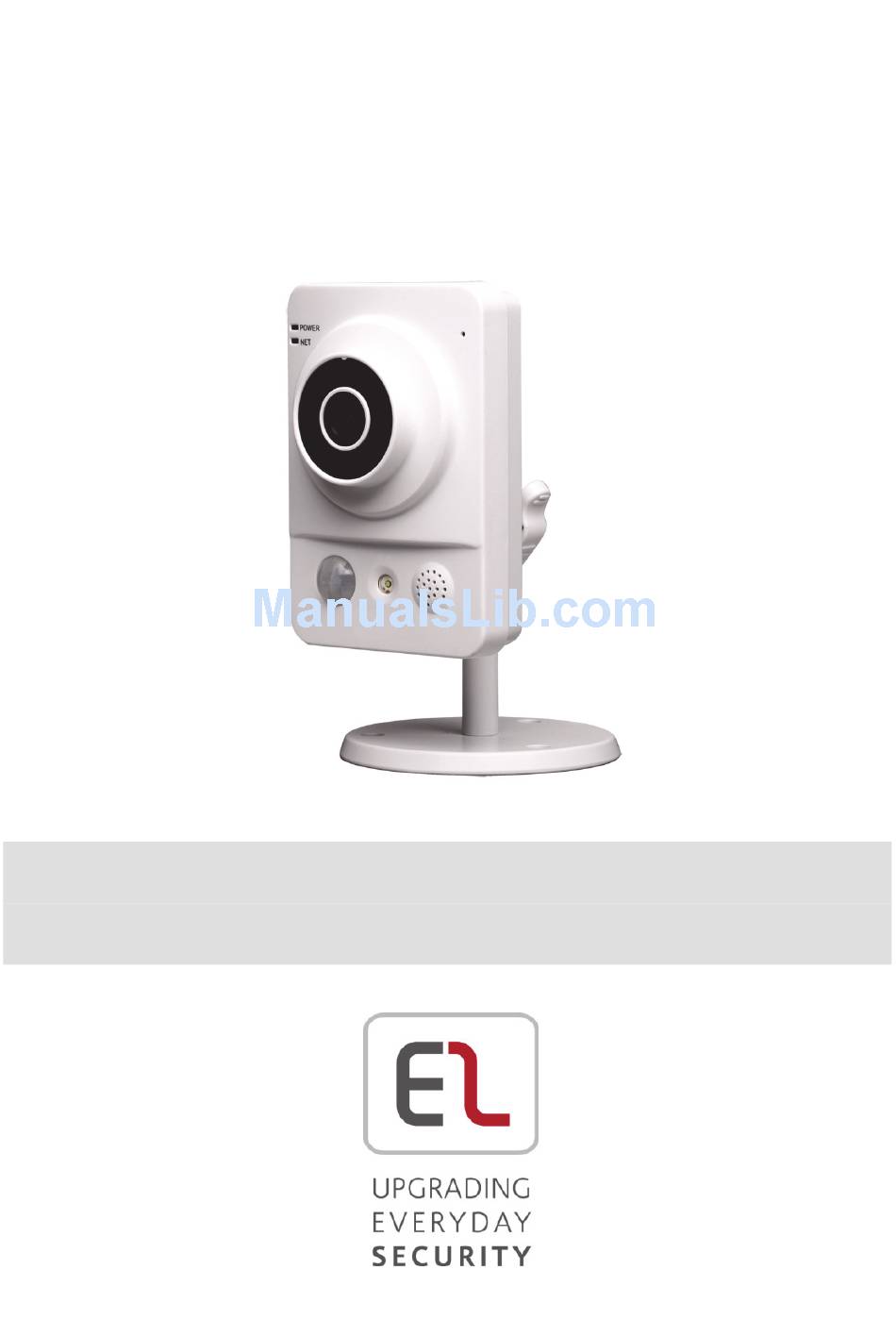

  • Page 1 InSight Visual Verification Platform Cube Indoor IP Camera Installation Guide...
  • Page 2 Safety Precautions These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. WARNINGS: Installation or usage of this product that is not in accordance with the intended use as defined by the supplier and as described in the instructional materials can result in damage, injury, or death.
  • Page 3: Table Of Contents

    Contents Safety Precautions ......................2 Introduction ........................2 Features ........................2 Components and Accessories ..................2 IP Camera Components and Dimensions..............3 IP Camera Installation ....................5 Mounting the IP Camera ..................... 5 Powering-up the IP Camera ..................6 Connecting the IP Camera to the Network ..............6 Connecting to a LAN Network .................
  • Page 4: Safety Precautions

    Introduction Electronics Line presents InSight, a revolutionary live video verification solution which seamlessly integrates IP Cameras within Electronic Line’s professional security systems. Powered by MyELAS (Electronics Line Application Server), InSight provides an unprecedented level of security and live video monitoring capabilities to monitoring stations and end-users alike.
  • Page 5: Ip Camera Components And Dimensions

    IP Camera Components and Dimensions Figure 1 IP Camera Components Label Port Name Indicator Connector Description Power POWER When camera boots up – Green indicator light turns on. light When camera is upgrading – Green light flashes. Interval is 0.5s. When camera is in alarm –...
  • Page 6 Label Port Name Indicator Connector Description Microphone Directly receive audio signal (This function is optional). Micro SD Micro Micro SD SD card storage (This function is card card slot optional). Reset Reset Restore factory default setup. When button system is running normally, press the RESET button for at least 5 seconds, system can restore factory default setup.
  • Page 7: Ip Camera Installation

    IP Camera Installation After reading the installation instructions and before installing your IP camera, prepare a plan for mounting the IP camera at your protected site. Correct placement of your IP camera is crucial for optimal security-monitoring performance. First, determine which areas need to be protected and then map out the most optimal areas for installing your IP camera.
  • Page 8: Powering-Up The Ip Camera

    Step Description Place the installation positioning template on the installation surface such as ceiling or wall. Make holes in the installation surface according to the installation positioning template. Insert the expansion bolts from the accessories bag into the holes you just made. Position the IP camera base over the holes Use the screws from the accessories bag to secure the IP camera firmly.
  • Page 9: Connecting To A Wireless Network Using Wps

    1. Connect the incoming network cable to the Network port on the IP camera. 2. Wait just a few minutes while the IP camera automatically connects to MyELAS. The RED network indicator light indicates that your IP camera is now ready for defining camera settings (Refer to Defining IP Camera Settings).
  • Page 10: Ip Cameras And The Myelas Web Application

    IP Cameras and the MyELAS Web Application The MyELAS Web Application provides an interface to your control panel from a local or remote PC via the Web. This enables you to add IP cameras to your system and define camera and event alarm trigger settings. IMPORTANT –...
  • Page 11 Figure 6 Main page 3. On the Main page, click Cameras, the Cameras page is displayed. Figure 7 Cameras page 4. Click Add Camera; Step 1 of the Add Camera wizard is displayed. Figure 8 Add Camera Wizard – Step 1 5.
  • Page 12 6. Enter the Camera ID (MAC Address) as displayed on the box or on the back cover of the IP camera and click Next. Step 3 of the Add Camera wizard is displayed. Figure 10 Add Camera Wizard – Step 3 7.
  • Page 13 9. Once the camera is ready for use, the defined IP camera is displayed in the IP Cameras page. Figure 12 IP Cameras page NOTE – You also have the option to edit or delete the selected IP camera.
  • Page 14: Defining Camera Event Settings

    Defining Camera Event Settings Any event associated to a specific detector can trigger an alarm. To define camera event settings: 1. On the Main page, click Camera Events, the Camera Events page is displayed. Figure 13 Camera Event page 2. Click the required Camera; the Select Detectors dialog box appears. Figure 14 Select Detector 3.
  • Page 15 4. Once finished, click Save. The defined camera events are displayed in the Camera Event page. Figure 15 Camera Event page NOTE – You also have the options to edit or to delete the selected camera event.
  • Page 16: Product Specification

    Product Specification Performance Please refer to the following table for product performance specification. Parameter Main Processor TI Davinci high performance DSP Embedded LINUX Support real-time network monitor, local record, and remote System Resources operation at the same time. User Interface Remote operation interface such as WEB, DSS, PSS.
  • Page 17 Parameter Standard Sensitivity level ranges from 1 to 6. Each sensitivity level is the percentage of the privacy mask zone. Camera Masking Activation event: alarm device, audio/video storage, image snapshot, log, email SMTP function and etc. Alarm Port 1-channel input and 1-channel output (on-off ) Record Priority Support remote record only Manual>Video detect>Schedule...
  • Page 18: Electronics Line 3000 Ltd. Limited Warranty

    Electronics Line 3000 Ltd. Limited Warranty EL and its subsidiaries and affiliates ("Seller") warrants its products to be free from defects in materials and workmanship under normal use for 24 months from the date of production. Because Seller does not install or connect the product and because the product may be used in conjunction with products not manufactured by the Seller, Seller can not guarantee the performance of the security system which uses this product.
  • Page 19: Contacting Your Installer / Supplier-Agent

    Contacting your Installer / Supplier-Agent When calling for service, ordering components, or for questions related to your camera, please contact us for assistance: Company/agent address, phone, e-mail address: Contact / department: Hours of business: Website URL: Company logo: Other supplier-specific information:...
  • Page 20: Contacting Electronics Line 3000 Ltd

    Contacting Electronics Line 3000 Ltd. International Headquarters: Electronics Line 3000 Ltd. 14 Hachoma St., 75655 Rishon Le Zion, Israel Tel: (+972-3) 963-7777 Fax: (+972-3) 961-6584 All rights reserved. No part of this document may be reproduced in any form without prior written permission from the publisher.
