Summary of Contents for Dultmeier Sales DU PMC-349H

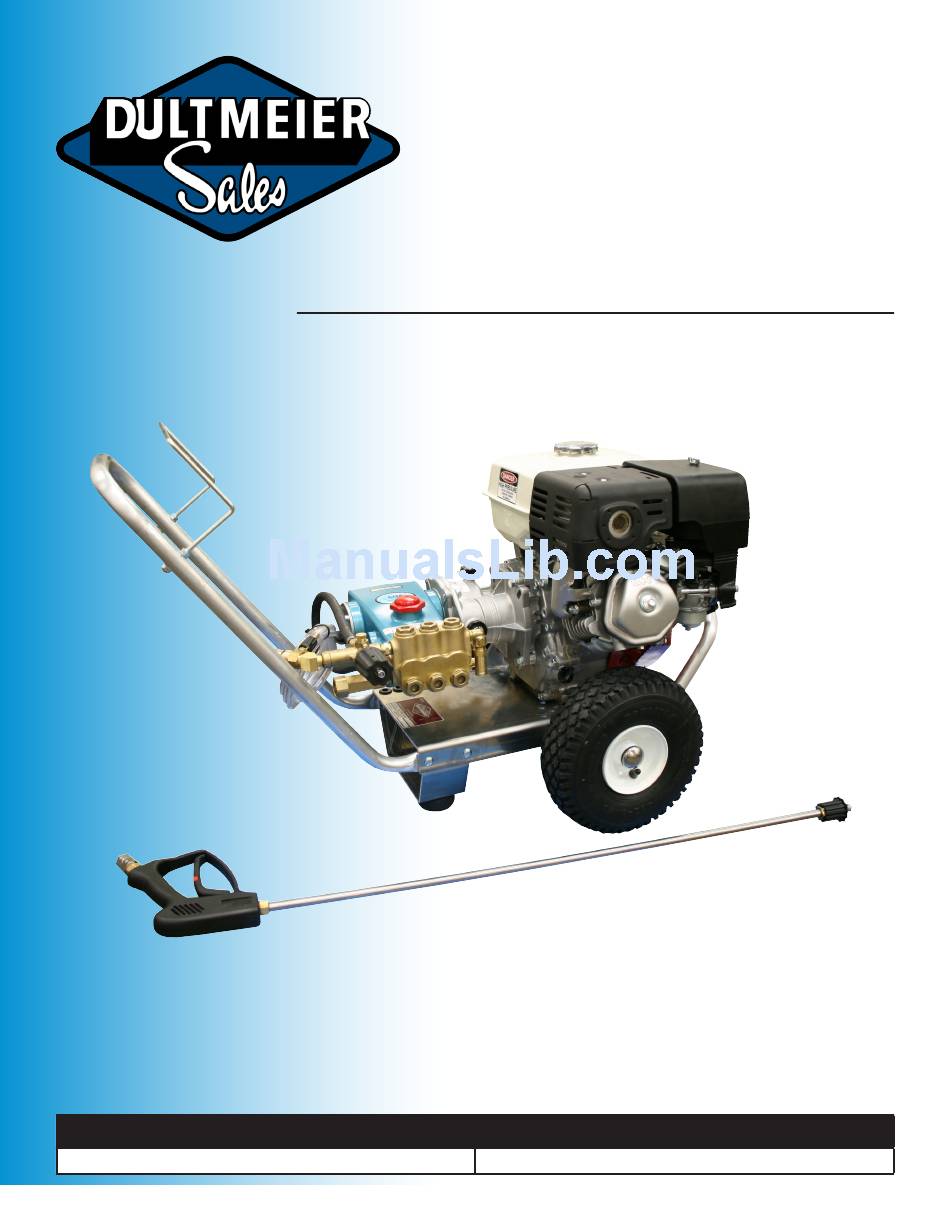

- Page 1 Gas Engine Pressure Washer with Gear Reduction DU PMC-349H Owner’s Manual #0783 032010 Serial Number: Installation Date:...
-
Page 2: Table Of Contents
When unpacking, check to make sure all the parts shown on the Parts Breakdown near the end of this manual are included. If any parts are missing or broken, please call Dultmeier Sales as soon as possible. Consumers should notice that this manual may differ slightly from the actual product as more improvements are made to our products. -
Page 3: Safety Information | 1
Safety Information | 1 To avoid serious or fatal personal injury or major property damage, read and follow all safety and operation instructions in the manual. This is a Safety Alert Symbol - When you see this symbol in the manual, look for the following signal words & be alert to the potential for personal injury or property damage. -
Page 4: Specifications | 2
Specifications | 2 Gas Engine Pressure Washer with Gear Reduction Specifications Style ............High Pressure Plunger Pump Capacity ..........4 GPM ............2200 Maximum Inlet Pressure ......60 PSI Maximum Inlet Temperature ....130° F *See Included CAT PUMPS® Service Manual for Higher Temperatures Engine ............. -
Page 5: Operating Instructions | 3
Operating Instructions | 3 Plumbing 1. Your Pressure Washer is Pre-Plumbed and Garden Hose ready. Simply run your Garden Hose from the Water Supply Outlet to the female Garden Hose fitting on the pump. 3/4” Garden Hose is recommended. (Fig. 1) Inlet Water Pressure IMPORTANT should not exceed 60 PSI. - Page 6 Operating Instructions | 4 Gas Engine 1. Turn the Fuel Valve to the ON position. (Fig. 5) 2. Move the Choke Lever to the CLOSE position. (Fig. 6) IMPORTANT Do not use Choke if the Engine is warm or the air temperature is high. 3.
-
Page 7: Maintenance | 5
Maintenance | 5 Maintenance - Pump 1. Change the oil after intial 50 hours. Use CAT PUMPS® Oil, part number CC 6100-1 for 21 oz. bottles or CC 6105-1 for 2.5 gallon jug. IMPORTANT This pump takes 18 oz. 2. The oil should be changed every 500 hours. If other than CAT PUMPS® special custom blend multi-viscosity ISO68 hydraulic oil is used, change the oil every 300 hours. -
Page 8: Storage | 6
Storage | 6 Storage - Engine Care Proper storage preparation is essential for keeping your system trouble-free and looking good. The following steps will help to keep rust and corrosion from impairing your system’s function and appearance, and will make the system easier to start when you use it again. If the engine has been running, allow it to cool for at least half an hour before cleaning. -
Page 9: Parts Breakdown | 7
Parts Breakdown | 7 Parts Breakdown: DU PMC-349H Item Part Number Description ..DU 1796 ....Aluminum Baseplate with Wheels ..DU 1252 ....Hose Holder ..AE GX240K1QA ..8 HP Honda Engine ..CC 34G1 ....Cat Plunger Pump with Gear Box .. -
Page 10: Warranty Information | 8
Warranty Information | 8 Notice Regarding Manufacturer’s Limited Warranty Dultmeier Sales Limited Liability Company (hereinafter Dultmeier), notifies you that component part(s) carry a manufacturer’s limited warranty provided by the manufacturer of said component part(s). These warranties do not pertain to normal wear of component part(s) that may occur within any specified period. -
Page 11: Checklist | 9
Accessories Included Shipping Container Was In Good Shape Overall Condition If you have any questions or concerns about condition of this unit, please contact us before operating. Dultmeier Sales, LLC Omaha, NE 1.800.228.9666 • Davenport, IA 1.800.553.6975 http://www.dultmeier.com • dultmeier@dultmeier.com...
