BACKUP CAMERA
OWNER'S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and
other basic safety precautions may result in serious personal injury.
Item#s 44595
Thank you very much for choosing an Ironton™ product. For future reference, please complete
the owner's record below:
Model: _______________
Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual
to become familiar with this product before you begin using it.
This item is designed for certain applications only. The distributor cannot be responsible for
issues arising from modification. We strongly recommend this item not be modified and/or used
for any application other than that for which it was designed. If you have any questions relative
to a particular application, DO NOT use this product until you have first contacted the
distributor to determine if it can or should be performed on the product.
For technical questions please call 1-800-222-5381.

INTENDED USE

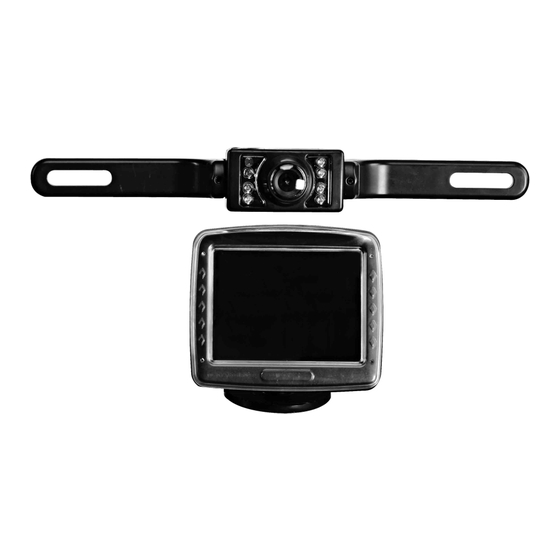

This Ironton™ 5–32V DC compact camera system is an easy way to stay safe and prevent
accidents while backing your vehicle. The easy-to-install, water-resistant camera mounts on
your vehicle bumper to offer a 120° viewing angle of what's behind you. The plug and play
3 1⁄2" color monitor sits inside the vehicle and features 320RGB x 240 resolution for a clear
view. The sensor range covers 0–30 ft. An AV signal automatically detects if the power is on or
off and automatically switches on when reversing. 4:3 display format and 350:1 contrast.

TECHNICAL SPECIFICATIONS

3.5inch digital panel
Display format
320RGB*240
Aspect Ratio
4:3
System
PAL/NTSC auto switch
Contrast
350:1
Video input
Two video input V1,V2
Power supply
DC12V
Rear view camera
Total pixels
656 x 492
Resolution
420 TV lines
Water-proof
IP67
S/N Ratio
More than 48db
Operating temperature
-4F Degree-140F degree (-20°C~60°C) RH95% Max
Storage temperature
-22F Degree-140F degree (-30°C~60°C) RH95% Max
Power supply
DC 12V
Visual angle
120 degree

GENERAL SAFETY RULES

WARNING: Read and understand all instructions.
listed below may result in serious injury or death, and/or property damage.
WARNING: The warnings, cautions, and instructions discussed in this
instruction manual cannot cover all possible conditions or situations that could
occur.
It must be understood by the operator that common sense and caution are factors
which cannot be built into this product, but must be supplied by the operator.
BACKUP CAMERA
OWNER'S MANUAL
Failure to follow all instructions
1 of 3
