Summary of Contents for DXG SmartCam DXG109V

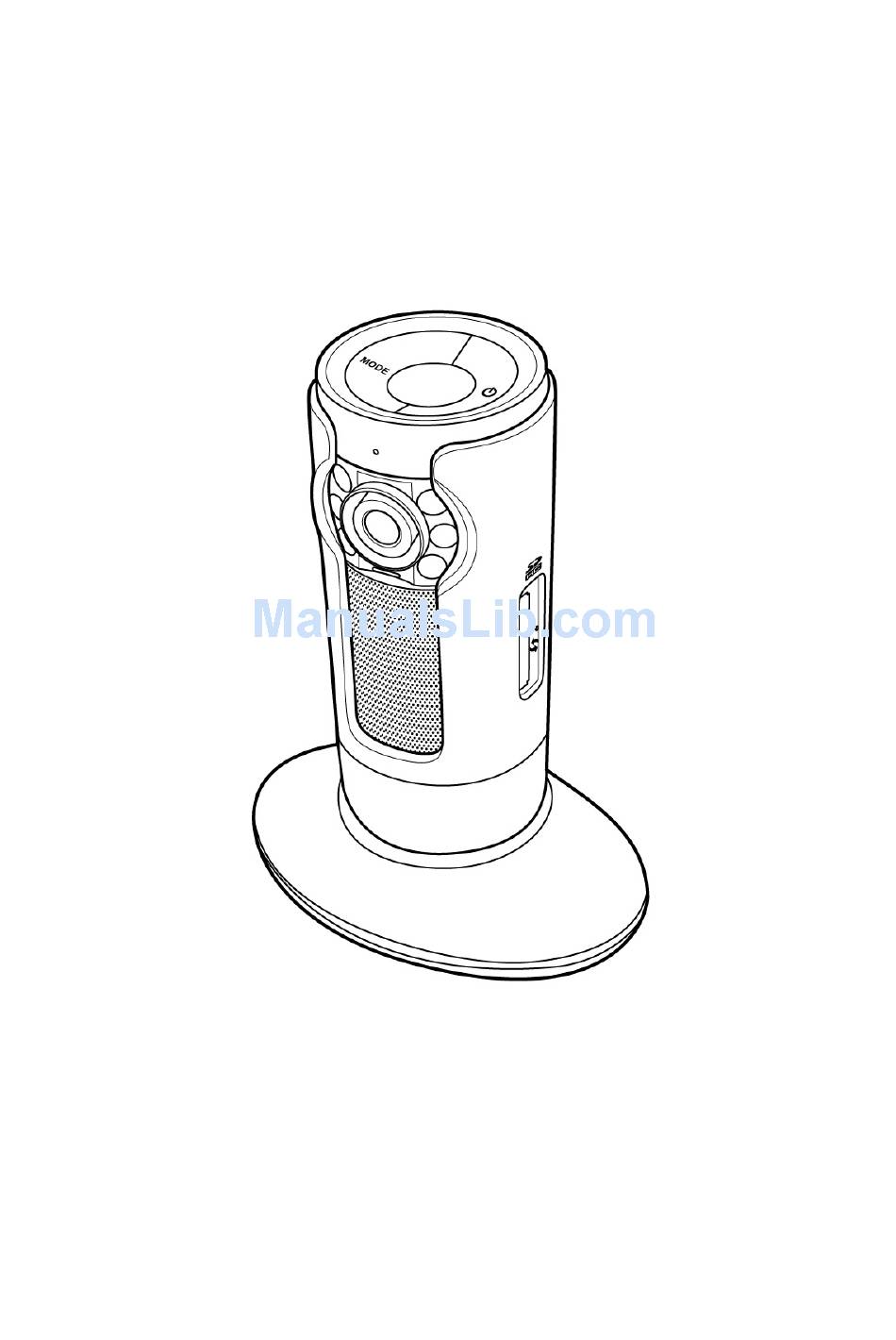

- Page 1 SmartCam Video Monitoring User’s Manual...
-
Page 2: Table Of Contents
Table of Contents About this manual............iii Copyright................. iii Precautions...............iv Getting Started ........... 1 System Requirements..........1 Unpacking the SmartCam........2 About the SmartCam ..........3 1.3.1 Camera Views ..........3 1.3.2 LED Indicator ..........4 1.3.3 Button Functions........4 Getting Started ........... 5 Installing the SD Card..........5 2.1.1 Removing the SD card.......6 Connecting to Power ..........6... - Page 3 Configuring Settings ..........16 3.4.1 General Settings ........16 3.4.2 Camera Settings ........18 Appendix............20 Specifications ..............20 FCC Statement ..............21...
-
Page 4: About This Manual
Preface Congratulations on your purchase of this advanced See.ing SmartCam. Please ensure that you read this manual carefully and keep it in a safe place for future reference. About this manual Every effort has been made to ensure that the contents of this manual are correct and up to date. -
Page 5: Precautions
Precautions General precautions • Do not store the product in dusty, dirty, or sandy areas, as its components may be damaged. • Do not store the product in a hot environment. High temperatures can shorten the life of electronic devices, damage batteries and warp or melt certain plastics. -
Page 6: Getting Started
1 Getting Started Read this section to learn about the system requirements and how to get your See.ing SmartCam ready for the SeeingCloud app. 1.1 System Requirements The camera requires a Smartphone or tablet PC with the following specifications for remote preview and settings: Internet access An internet connection (WiFi, 3G or 4G LTE) is required to connect the application and camera and save the recorded files from the... -
Page 7: Unpacking The Smartcam
1.2 Unpacking the SmartCam The following items should be present in the package. If any item is missing or appears damaged, contact your dealer immediately. SmartCam USB Cable User Manual AC Adapter Quick Start Guide... -
Page 8: About The Smartcam
1.3 About the SmartCam Refer to the following illustrations to familiarize yourself with the buttons and controls of this camera. 1.3.1 Camera Views Power Button Mode Button Microphone Lens IR LED slot Power/ Status LED Restart Button Speaker SD Card slot UB Sticker USB port (DC IN) -
Page 9: Led Indicator
1.3.2 LED Indicator The status LED color depends on the camera mode. Press the Mode Button to switch to different camera mode. Color Description Wi-Fi is powering on Red Blinking Camera is at Setup mode Status LED Green Wi-Fi is connected successfully Green Blinking Wi-Fi is connecting 1.3.3... -
Page 10: Getting Started
2 Getting Started Read this section to learn how to start using the camera. This section covers basic functions such as switching on, installing SD card, and charging the battery. See later chapters for advanced functions. 2.1 Installing the SD Card An SD card is required to capture photos and videos. -
Page 11: Removing The Sd Card
2.1.1 Removing the SD card Turn off the camera. With a fingertip, push the SD card to eject it from the slot. Remove the SD card. 2.2 Connecting to Power You can directly supply the power using the mini USB cable that came with the camera. -
Page 12: Preparing Devices
2.3 Preparing Devices To get your cameras ready, do the following: • Set up your network connection • Install SeeingCloud • Create an account • Register the cameras 2.3.1 Configuring Your Network Connection As the SeeingCloud app and the camera require an Internet connection to connect with each other, make sure your network connection is ready and your mobile device is connected to the Internet. -
Page 13: Creating An Account
2.3.3 Creating an Account When you first launch the SeeingCloud app on your mobile device, you will be asked to log in with a See.ing ID. If you don’t have a See.ing ID, tap Sign up to create a new ID. To create an account, do the following: Launch SeeingCloud... - Page 14 To add a camera, tap Add New. Close SeeingCloud app and go to Settings > Wi-Fi. NOTE: -Make sure the SmartCam is powered On, and the red LED is On, indicating the system is powered On and Wi-Fi initialization is in progress.
- Page 15 Launch SeeingCloud app and tap Next to continue. When your device is connected to the camera successfully, you can see the image from the camera on your device. Tap Next again to choose another AP (access point) or router which your camera can access the Internet.
-
Page 16: Using Seeingcloud App
3 Using SeeingCloud App 3.1 Preview Videos After you have completed all cameras registration, the Live screen appears. The thumbnails will be refreshed every 10 seconds. Tap to add camera or access camera settings. Camera name Live view... - Page 17 The display screen varies depending on the camera connection status. Thumbnail Display Description Live view from the camera. This camera is currently used by another mobile device. Loading the live image from the camera. This camera is currently not connected to the network or not powered on.
- Page 18 Tap any thumbnail to view the live view in full screen mode. In full screen mode, hold your mobile device sideways for better viewing. • On most Android phones, press both Power and Volume Down buttons to capture a screenshot of the current screen. •...
-
Page 19: Adding New Camera
3.2 Adding New Camera If have already have camera(s) under your account, tap > new camera to add a new camera. Follow the on-screen instruction to configure the new camera. -
Page 20: Viewing The Recorded Files
3.3 Viewing the Recorded Files To view the recorded videos that are saved at https://www.closeli.com/, do the following: Tap any thumbnail to view the live view in full screen. > Recorded files. Do the following: • To play a video tap, the desired thumbnail. •... -
Page 21: Configuring Settings
3.4 Configuring Settings Use Settings menu to configure your account settings, recording mode, and other general settings. 3.4.1 General Settings > On the Main page, Settings to enter the General Settings menu. Tap a menu option to open the respective menu. Modify the necessary settings. - Page 22 Menu Option Description Email View your SeeingCloud account. Account info View your account details on https://www.closeli.com/. Change password Change the account password. Receive Notification Check the box to receive a push notification when motion is detected. Welcome Display a Help tutorial. About Display the app version number.
-
Page 23: Camera Settings
3.4.2 Camera Settings Tap any thumbnail to view the live view in full screen. > Settings to enter the Camera Settings menu. Tap a menu option to open the respective menu. Modify the necessary settings. - Page 24 Menu Option Description Rename camera Change your camera name/label. DVR plan Display the current DVR plan for your camera. Time Zone Select the time zone to match your current location. Change Wi-Fi Select your preferred network (Wi-Fi router) network for better internet connection. Record to Select the recording destination.
-
Page 25: Appendix
Appendix Specifications General Imaging sensor 1/4” CMOS 1.0 Megapixel Sensor Active pixels 1.0 Megapixel Sensor sensitivity ISO Auto Lens F number = 2.5, f=2.36mm View angle = 128° Focus range 0.5m ~ infinity Video resolution Video recording: 720p (30fps) Video streaming: WVGA IR Night Vision Effective Range: >3m Mode: Auto... -
Page 26: Fcc Statement
FCC Statement Modifications not approved by the party responsible for compliance could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. - Page 27 Trademarks and licenses SDHC Logo is a trademark of SD-3C, L...
