Summary of Contents for Code Code Reader 4100

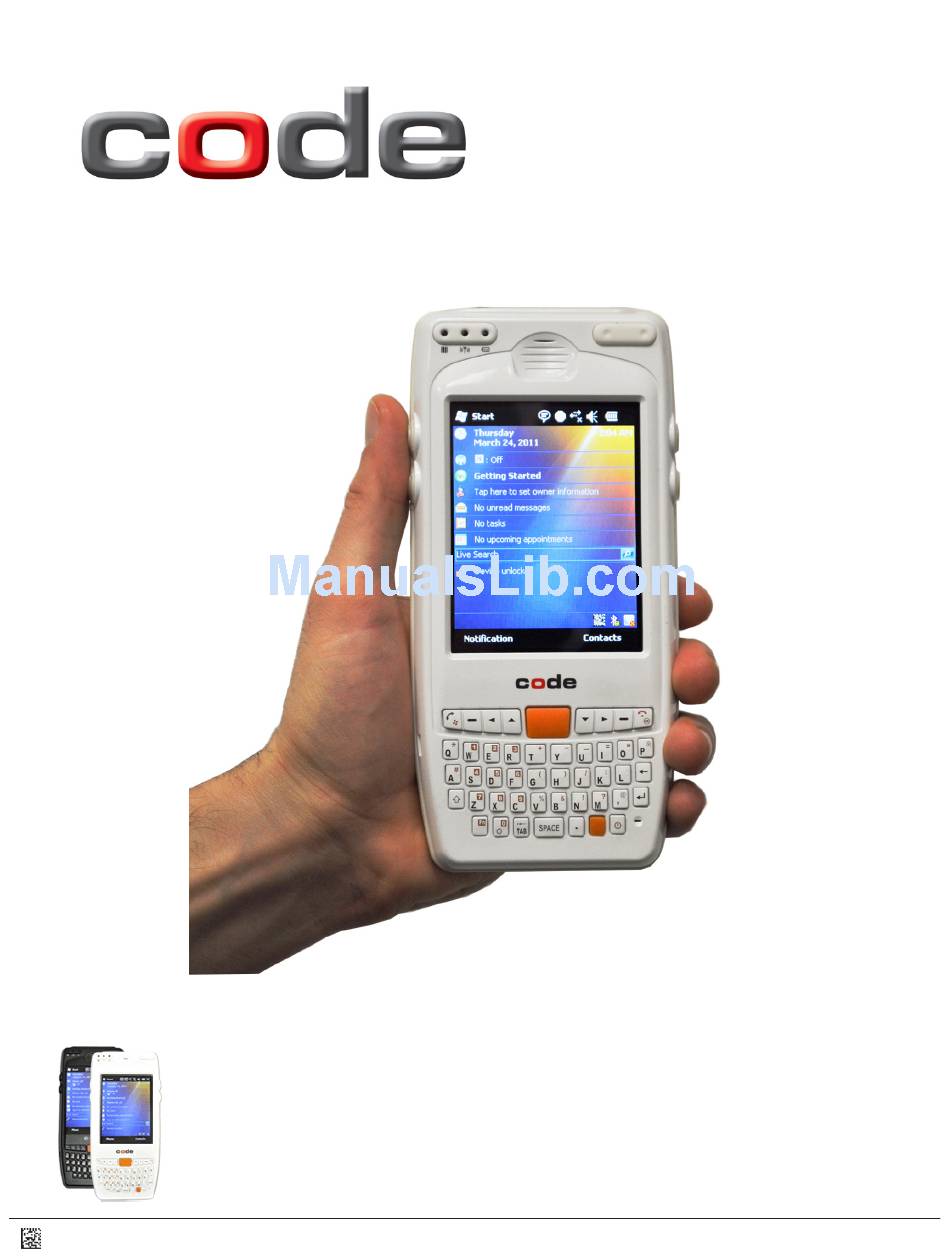

- Page 1 QuickStart Guide Code Reader 4100 ™ QuickStart Guide Version 01 Release Date: May 2011 C006244_01_CR4100_QuickStart_Guide...
- Page 2 CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The Code Reader 4100 has been tested for compliance to CE standards and guidelines and was found to conform to applicable CE standards, specifically the EMC requirements EN 301489-1/-7/-17/-19/-24, Radio: EN 301511, 301908 -1/-2, 300328, 301893, 300440-1/-2, Safety: EN 60950-1+A11, 50332-1/-2, Health EN50360, 62209-1.
- Page 3 NO WARRANTY. This technical documentation is provided AS-IS. Further, the documentation does not represent a commitment on the part of Code Corporation. Code Corporation does not warrant that it is accurate, complete or error free. Any use of the technical documentation is at the risk of the user.
-
Page 4: Table Of Contents
2.11 - Inserting an SD Card ................................. 5 2.12 - Inserting a SIM Card ................................. 6 3.0 - Configuring the CR4100 Bar Code Reader using Cortex™ Mobile ..................6 3.1 - Option Settings .................................. 7 3.2 - Symbologies ..................................7 3.3 - Prefixes/Suffixes ................................. -
Page 5: What Is Included
1.0 - What is Included Refer to your Code Part Number with the following tables to determine what is included in your CR4100 order. For example, the part number on your order will be silimilar to: CR4100 - Rabc - de - F1. -
Page 6: Inserting The Battery
2.0 - Inserting the Battery 1. Using the flat portion of the stylus (Figure 1), insert the tool into the slot on the battery cover located on the back of the unit (Figure 2). Rotate the slot clockwise from LOCK to UNLOCK. -
Page 7: Led Indicators On The Reader
2.3 - LED Indicators on the Reader LED Position Description of LED LED Status LED Meaning 1st LED Good Read Indicator Flashes Green Good Read 2nd LED Wireless Indicator Flashes Red Weak Wireless Signal Flashes Blue Strong Wireless Signal 3rd LED Charging Indicator for Battery Solid Red Charging... -
Page 8: Charging The Cr4100
2.5 - Charging the CR4100 1. Make sure a battery is installed in the CR4100 (see Section 2.0 Installing the Battery). 2. Insert the CR4100 into the front charging slot of the Cradle with the screen and keypad facing forward (Figure 7). 3. -
Page 9: Charging Cradle Connectors
2.8 - Using the Charging Cup 1. Slide the Charging Cup (Figure 10) onto the bottom of the CR4100. 2. Connect the Power Supply into the back on the Charging Cup. This will charge the CR4100. 3. Please refer to the LED Indicator Section (Sections 2.3 and 2.4) of this QuickStart Guide for charging LED status descriptions. -
Page 10: Inserting A Sim Card
CR4100 (Figre 14). 2. Click on Cortex Mobile (Figure 15), you may need to scroll down through the icons to find Cortex Mobile. Cortex Mobile is the bar code reader configuration tool. 3. You will see a pop-up which states “Initializing Scanner” (Figure 16). -
Page 11: Option Settings
Vibrate – Click to Enable/Disable a vibration on good read. This option functions independent of the 3 options above. 3.2 - Symbologies 1D Tab (Figure 20) Code 39 – Click to Enable/Disable Code 39 Code 128 – Click to Enable/Disable Code 128 Interleave 2 of 5 – Click to Enable/Disable Interleaved 2 of 5 Codabar –... -
Page 12: Prefixes/Suffixes
Prefix Add up to 256 alphanumeric characters as a prefix in the text field. These characters will appear in the output before the scanned bar code data (Figure 23). Suffix Add up to 256 alphanumeric characters as a suffix in the text field. These characters will appear in the output after the scanned bar code data (Figure 23). -
Page 13: Button Settings
3.4 - Button Settings Select/Unselect the desired buttons to trigger the bar code reader on the CR4100 (Figure 24). Options are: • Front & Right Side Scan Button (default) • Left Side Up • Left Side Down • Navigation Up •... -
Page 14: Configuring The Cr4100 Bar Code Reader - Advanced
7. Press the Orange scan button below the logo. 8. Align the blue bar over the bar code. The bar code reader is omnidirectional, so the bar code can be in any orientation to achieve a good read. 9. The bar code data will appear in the result window along with an estimated time to decode the bar code.
