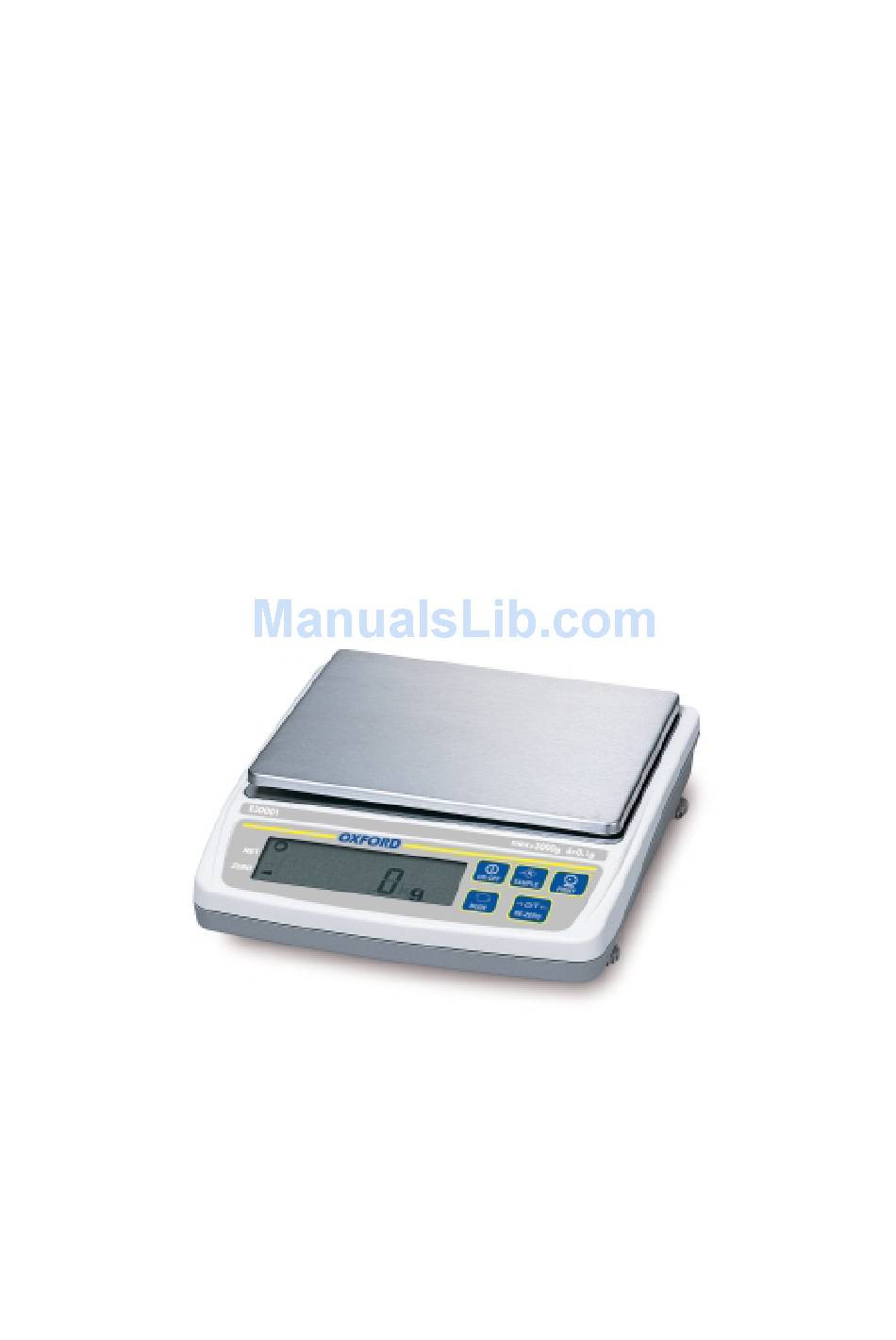

- Page 1 Oxford E Series Instruction Manual...
-
Page 2: Table Of Contents
E Series User Manual C o n t e n t s 1. Introduction ..............1 2. -
Page 3: Introduction
E Series User Manual I n t r o d u c t i o n This manual describes how this balance works and how to get the most out of it in terms of performance. A ll E series balances have the following features: •... -
Page 4: Parts Name And Function
P a r t s n a m e a n d f u n c t i o n Weighing range indicator ACAI mark Comparator results Stability mark Units Weighing pan LCD display Leveling foot Spirit level OP-04/09 slot ON/OFF key MODE key PRINT key... -
Page 5: Setting Up
E Series User Manual S e t t i n g u p 4-1. Setting up your balance 1. Place the weighing pan on the main unit as shown on the previous page. 2. Adjust the level of the balance using the leveling feet. Use the spirit level to confirm. The bubble should be in the center of the circle. -
Page 6: Operation
O p e r a t i o n 5-1. Turning the power ON and OFF 1. Press the ON/OFF key to turn the power ON. All the display symbols are displayed as shown above. (About units: Only the units available illuminate.) When the weighing value internally becomes stable, the display turns off except for a weighing unit and a decimal point. -
Page 7: Units
E Series User Manual 5-3. Units The most common unit of weight used around the world is gram, but there is often a need to shift to alternative units specific to the country where the balance is used or to select modes such as counting or percent. -
Page 8: Selecting A Weighing Unit
5-4. Selecting a weighing unit Press the MODE key to select a unit. The following sections describe about three common units: g (gram mode), pcs (counting mode), and % (percent mode). Each press of the key switches the units available in 5-5. -
Page 9: Weighing Range For The Ew-I Series
E Series User Manual 5-6. Weighing range for the E series • The EW-i series have three weighing ranges, and the display shows which range the weight value belongs to with the mark R1, R2 or R3. • There is a function setting to select how the weighing range changes. •... -
Page 10: Counting Mode (Pcs)
5-7. Counting mode (pcs) Determines the number of objects in a sample. Calculates the reading, using the basic sample unit weight, and determines how many pieces are contained. Selecting the counting mode 1 Press the MODE key to select pcs. (pcs:pieces) Storing the sample unit 2 Press the SAMPLE key to enter the sample... -
Page 11: Percent Mode (%)
E Series User Manual 9 The balance re-calculates the unit weight while the ACAI mark is blinking. Do not touch the balance or samples on the pan until the ACAI mark turns off. 10 Counting accuracy is improved when the ACAI mark turns off. Each time the above operation is performed, a more accurate unit weight will be obtained. -
Page 12: Calibration
C a l i b r a t i o n This function adjusts the balance for accurate weighing. Perform a calibration in the following cases. • When the balance is first used. • When the balance has been moved. •... -
Page 13: Calibration Using A Weight
E Series User Manual 5 At step 3, pressing the PRINT key weighs the Weighing pan zero-point value. Do not touch the pan during weighing. With nothing on the pan To store 6 Place the calibration weight with the same value as displayed on the pan. -
Page 14: Functions
E Series User Manual F u n c t i o n s 7-1. Key operation Cancels an operation and turns off the balance. Item key Selects a class and an item. In the weighing mode, press and hold the key to enter the function setting mode. Enter key Proceeds to the selected class. - Page 15 Setting example Press and hold To set auto power-off function to "Enabled”, and the ACAI function to "Disabled”. 1 Press and hold the SAMPLE key to display func . 2 Press the PRINT key. The balance displays poff 0 . Each pressing switches the parameter...
- Page 16 E Series User Manual Storing weighing units Press and hold It is possible to store the weighing units that will be actually used from the units available. For the units available, see “5-3. Units” Select and store the weighing units as described Press below: several times...
-
Page 17: Function List
7-3 Function list Class Item Parameter Description Auto power-off disabled func • 0 Automatically poff Auto power-off Auto power-off enabled power off Manual range change Range change Range • 1 Automatic range change setting for EW-i Fixed to the lowest range series Fixed to the middle range Fixed to the highest range... - Page 18 E Series User Manual Class Item Parameter Description • 0 7 bits, even parity func btpr 7 bits, odd parity Data and parity 8 bits, non parity ACAI disabled If “0” is set, no ACAi ACAI enabled ACAI function • 1 additional samples required •...
-
Page 19: Specifications
Battery operation 110mm 133mmX170mm Pan size 1.1kg 1.5kg Weight (approx) 200g 300g 1200g 3000g 6000g Cal wt (fact set) Accessories OP09-I Rechargeable battery unit (internal) AD-8920 External Display DP-1012 Basic Printer OXFORD ELECTRONIC BALANCES ANALYTICAL PRODUCTS LTD OXFORD. OX3 8ST. ENGLAND... -
Page 20: Dimensions
8-2 Dimensions Max 1200g d= 0.1g ZERO ZERO E2002 / E3002 E12001 / E30001 / E6000...
