Summary of Contents for Dyna Pos PST-8000

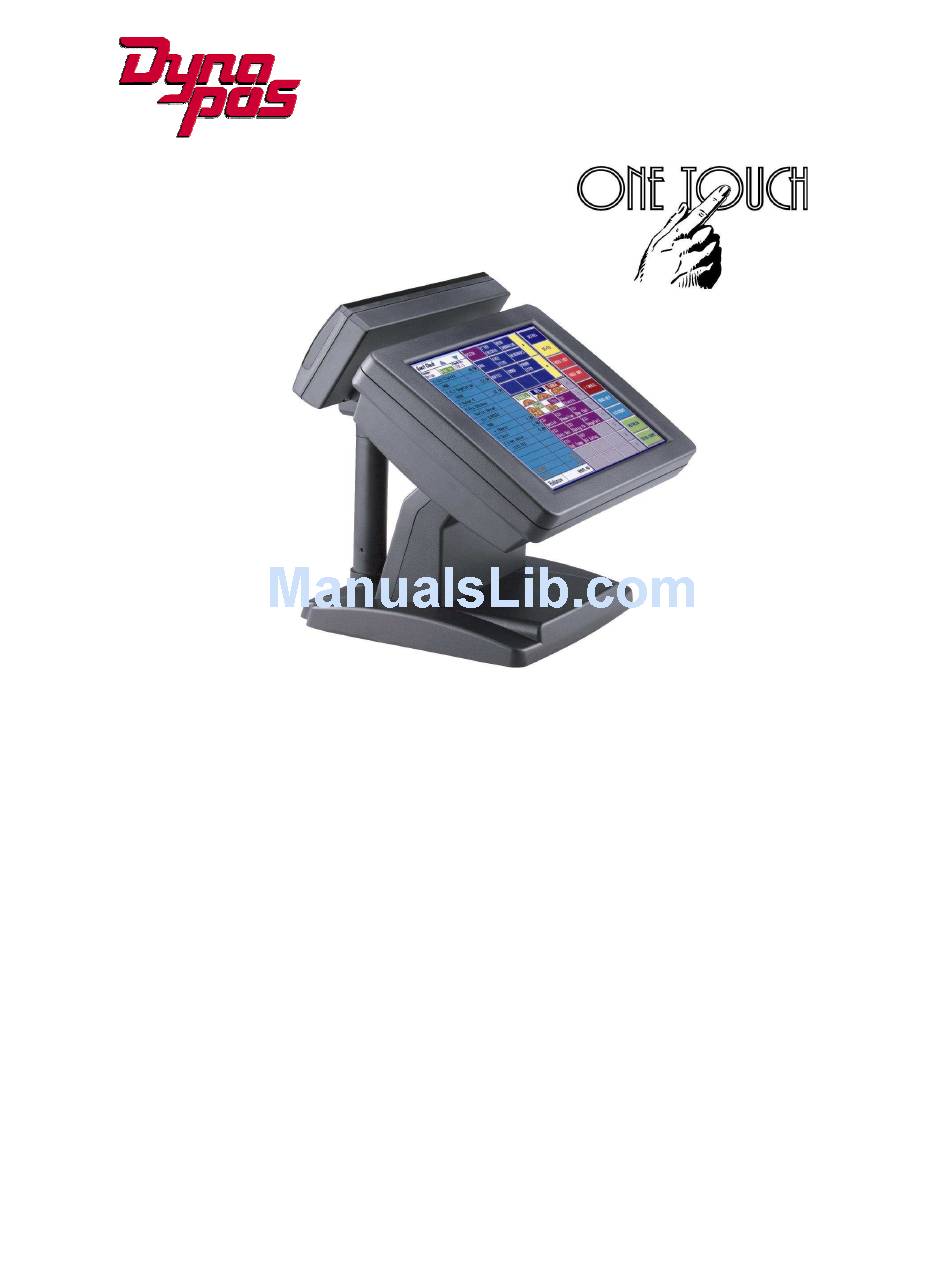

  • Page 1 P P P P S S S S T T T T - - - - 8 8 8 8 0 0 0 0 0 0 0 0 0 0 0 0 P P P P S S S S T T T T - - - - 8 8 8 8...
  • Page 2 Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 3 Important Safety Information SAFETY INSTRUCTIONS Please read these safety instructions carefully. Keep this User’s Manual for later reference. Disconnect this equipment from the AC outlet before cleaning. Don’t use liquid or spray detergent for cleaning. Use only a moistened sheet or cloth. For pluggable equipment, the socket-outlet should be installed near the equipment and should be easily accessible.
  • Page 4 Copyright The information in this guide is subject to change without prior notice. The manufacturer shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. This manual contains information protected by copyright.

  • Page 5: Table Of Contents

    Introduction Model H700 Characteristics ....................1 How to Use This Manual ...................... 2 A Visual Tour of Model H700 ....................3 What comes with Model H700 ..................4 Dimensions 12.1” ......................6 Dimensions 15” ......................7 Connector Panels ........................ 8 Primary Connector Panel ....................
  • Page 6 USB 2.0 Installation for Windows 2000 and XP ............40 ELO Touch Tools Installation ..................... 41 ELO Touch Tools Installation for Windows 98 ............. 41 ELO Touch Tools Installation for Windows 2000 and Windows XP ......43 ELO Control Panel ...................... 46 TouchKit Tools Installation ....................

  • Page 7: Introduction

    4720 Main Board Model H700 Characteristics Model H700 uses a high speed processor capable of handling a high capacity of data efficiently. Model H700’s solid quality Aluminum housing distinguishes it from ordinary plastic housings. The Model H700 touch terminal all-in-one design combines a powerful PC, multiple LCD and touch screens, which are suitable for any market.

  • Page 8: How To Use This Manual

    4720 Main Board How to Use This Manual This manual contains all the information you need to set up and use Model H700. In addition, you can also consult the manuals for the operating system and added hardware. Chapter 1 Provides an introduction to Model H700 and this manual.

  • Page 9: A Visual Tour Of Model H700

    4720 Main Board A Visual Tour of Model H700 Before you start, take a few moments to become familiar with Model H700.

  • Page 10: What Comes With Model H700

    4720 Main Board What comes with Model H700 The following items are standard with Model H700: Main system with LCD panel Base ATX power supply Model H700 user’s guide 4720 motherboard user’s guide ELO touch screen driver CD Utility and Motherboard chipset driver CD AC power cord Model H700 and power adapter Model H700 with MCR...
  • Page 11 4720 Main Board The following items are optional: Magnetic card reader (MCR) and bracket External CD-ROM drive with cable External USB floppy disk drive with cable VFD customer display Optional accessories...

  • Page 12: Dimensions 12.1

    4720 Main Board Dimensions 12.1” Model H700 Dimensions Model H700 and MCR Dimensions Model H700 and VFD customer display...
  • Page 13 4720 Main Board Dimensions 15” Model H700 Dimensions Model H700 and MCR Dimensions Model H700 and VFD customer display...

  • Page 14: Connector Panels

    Connector Panels Primary Connector Panel The primary connector panel is located at the bottom of the main unit base. To clearly see the panel you must turn Model H700 upside down. C ash DC 12v Line O ut EX T D raw er output C O M 5...

  • Page 15: Second Connector Panel

    PEB-4720 Main Board Second Connector Panel The second connector panel is located on the left side of the back of the main unit.It comes with a cover that needs to be removed to install a CD ROM Driver. I/O Port Connector Type Description The CD-ROM port is used to attach an external...

  • Page 16: Hardware Setup

    PEB-4720 Main Board Model H700 Assembly Please make sure that the system power is turned off and the power supply is disconnected when making any hardware changes to Model H700. Remove the rear neck plate There are two I/O ports, 9000PB0700 and 9000PB0710, located on the back of the neck. The rear neck plate must therefore be removed before alterations can be made to the hardware.

  • Page 17: Hard Disk Drive Installation

    PEB-4720 Main Board Hard Disk Drive Installation Model H700 comes with an empty hard disk drive (HDD), unless a special request has been made. Installing a HDD 1. Turn off power and remove power cable from main unit. 2. Remove the Base/HDD Plate from the base (4 screws).

  • Page 18: Compact Flash Installation

    PEB-4720 Main Board Compact Flash Installation Model H700 will configure Compact Flash in IDE mode as secondary master after it is installed. The next available drive letter will be automatically assigned to Compact Flash. Installing Compact Flash 1. Turn off power and remove power cable from Model H700. 2.

  • Page 19: Magnetic Card Reader Installation

    PEB-4720 Main Board Magnetic Card Reader Installation An optional Magnetic Card Reader (MCR) can be installed on the right side of Model H700. Magnetic Card Reader (MCR) Installing an MCR 1. Turn off system power. 2. Unplug the loopback from the MCR socket. The MCR socket is found on the right side on the back of the main Unit.
  • Page 20 PEB-4720 Main Board 5. Turn on system power. Note: If the MCR does not work normally, please refer to troubleshooting Attention: The loopback or the MCR cable must be inserted in the socket for an external keyboard to function with Model H700.

  • Page 21: Mcr Parameter Modification

    PEB-4720 Main Board MCR Parameter Modification This option is for users who need to customize the MCR parameters for a particular task. Some of the useful parameters include: The selection of country code, other than the default English. The choice of track combinations. The preamble/postamble codes.

  • Page 22: Vfd Customer Display Installation

    PEB-4720 Main Board VFD Customer Display Installation An optional VFD customer display can be installed on the back of Model H700. Rear view with VFD attached. Installing a VFD 1. Turn off system power. 2. Important, make sure that the jumpers on the secondary I/O board 9000PB0710 are set correctly.
  • Page 23 PEB-4720 Main Board V F D C O M 4 6. Connect the VFD RJ45 cable in the VFD/COM4 port on the I/O panel which located under the base. 7. Turn on VFD power switch, then turn on system power. Note: If the VFD does not display correctly after an application is loaded, please refer to troubleshooting.

  • Page 24: Cash Drawer Installation

    PEB-4720 Main Board CD-ROM Installation 1. Please make sure the IDE 2 in the CMOS setup is enabled. 2. Turn off the power. 3. Plug the CD-ROM cable to the CD-ROM port. C D-RO M Note: If the CD-ROM cannot be detected by the system, please refer to troubleshooting. Cash Drawer Installation 1.

  • Page 25: Cash Drawer Activation

    PEB-4720 Main Board Cash Drawer Activation Two cash drawers may be driven from this port. Driving voltage of the solenoid is DC+12V. Unlike previous models, the 4720 motherboard does not use a direct I/O port but instead is accessed via a super I/O chip. A test program and source code is supplied and can be found on the CD in \Utility\Cashdrawer.

  • Page 26: Optional Second Lcd Panel Display

    PEB-4720 Main Board Optional Second LCD Panel Display An optional second LCD panel can be easily installed on Model H700. There are two standard pole heights that may be ordered, 150mm and 400mm. The mechanical fitting of the second panel display is a very simple process. Position the Model H700 onto it’s side.

  • Page 27: Osd Settings For Second Lcd Panel

    PEB-4720 Main Board OSD Settings for Second LCD Panel Model H700 secondary LCD panel has built-in OSD (on screen display) controls to adjust various display parameters. The control buttons are located on the right side of the back cover. OSD Settings There are four buttons on the OSD panel: Select, Down, Up, and Enter.

  • Page 28: Cmos Setup

    PEB-4720 Main Board CMOS Setup Model H700 systems have adopted the motherboards 4720 , using AWARD BIOS. Please refer to the 4720 M/B User's Manual for a detailed description of the BIOS CMOS setup.

  • Page 29: Software Setup

    PEB-4720 Main Board Model H700 comes with a variety of drivers for different operating systems. You will find 1 CD with Model H700. The CD has all necessary drivers to setup Model H700. Please follow this installation sequence exactly. Driver installation sequence: Chipset Driver ->...
  • Page 30 PEB-4720 Main Board 5. Read the License Agreement and click Yes. 6. Click Next and the drivers for the Intel Chip set will install. 7. When the 'Setup COMPLETE' message appears click Finish to restart your computer.

  • Page 31: Vga Driver Installation

    PEB-4720 Main Board VGA Driver Installation 4720 uses only one chipset “852GME” that is capable of driving a single or dual panel display. Only one driver needs to be installed. 852GME driver installation Windows 98 & ME 1. Locate the VGA folder on the utilities CD. 2.
  • Page 32 PEB-4720 Main Board 6. Read the License Agreement and click Yes. 7. Click Finish to complete the installation procedure and restart the system.
  • Page 33 PEB-4720 Main Board 8. When entering Windows, Windows will find new hardware. Insert Disk Open D:\PEB-4720\GRAPHIC\INTEL\WIN9X\WIN9X\ikch8xx.cat folder Click OK...

  • Page 34: 852Gme Driver Installation Windows 2000 & Xp

    PEB-4720 Main Board 852GME driver installation Windows 2000 & XP 1. Open D:\PEB-4720\GRAPHIC\INTEL\WIN2KXP folder. 2. Run setup.exe 3. Select Next to continue. 4. Select Next to continue.
  • Page 35 PEB-4720 Main Board 5. Read the License Agreement and click Yes. 6. Click Finish to complete the installation procedure and restart the system.

  • Page 36: Enable Second Lcd Panel Setting Windows 2000/Windows Xp

    PEB-4720 Main Board Enable second LCD panel setting Windows 2000/Windows XP. After you have installed the VGA driver you must adjust the settings. 1. Right click your mouse anywhere on the desktop then click properties. 2. Click the settings tab.
  • Page 37 PEB-4720 Main Board 3. Click Advanced. 4. Click Intel(R) Extreme Graphics.
  • Page 38 PEB-4720 Main Board 5. Click Graphics Properties. 6. Click Extended Desktop and select Notebook for primary device, monitor for secondary device.
  • Page 39 PEB-4720 Main Board 7. Click OK. 8. Select the second LCD panel. This is done either by clicking on the number 2 or selecting from the dropdown menu. For the second LCD panel make sure that Extend my Windows desktop onto this monitor is selected.

  • Page 40: Lan Driver Installation

    PEB-4720 Main Board LAN Driver Installation Realtek LAN Driver Installation Windows 98 1. Open Device Manger in the System Properties. Select PCI Ethernet Controller Click Properties 2. Select the General tab. Click Reinstall Driver.
  • Page 41 PEB-4720 Main Board 3. Click Next. 4. Select Search for a better driver then the one your device is using now (Recommended). Click Next. 5. Select The updated driver [Recommended]. Click Next.

  • Page 42: Realtek Lan Driver Installation Windows 2000 And Windows Xp

    PEB-4720 Main Board 6. Click Next. 7. Click Finish. 8. Click Yes to restart your computer. Realtek LAN Driver Installation Windows 2000 and Windows XP After Windows 2000 is installed the Realtek LAN driver will be automatically installed.

  • Page 43: Audio Driver Installation

    PEB-4720 Main Board Audio Driver Installation Audio Driver Installation for all Windows Operating Systems. 1. Open D:\PEB-4720\AUDIO\WDM 2. double click Setup.exe. 3. Select Next to continue. Note: For Windows 2K. If you receive this warning message, please click Yes to continue.
  • Page 44 PEB-4720 Main Board Note: For XP If you receive this warning message, please click Continue Anyway. 4. Click Finish and restart the system.

  • Page 45: Usb Driver Installation

    PEB-4720 Main Board USB Driver Installation USB 2.0 Installation for Windows 98 & ME Open D:\PEB-4720\USB20\WIN9X double click Setup.exe. Read the License Agreement and click Yes. Click Close...

  • Page 46: Usb 2.0 Installation For Windows 2000 And Xp

    PEB-4720 Main Board USB 2.0 Installation for Windows 2000 and XP For Windows 2000, SP4 must be installed for USB 2.0 support. For Windows XP, SP1 or SP2 must be installed for USB 2.0 support. Note, with lower version service packs only USB 1.1 is supported. This will be indicated in the device manager as an exclamation icon (!) beside the USB device.

  • Page 47: Elo Touch Tools Installation

    PEB-4720 Main Board ELO Touch Tools Installation ELO Touch Tools Installation for Windows 98 1. Insert the Utility CD and locate the touch screen folder “D:\Utility\TOUCHSCREEN\ELO Touch\ELO Win 9X_me”. 2. Run Setup.exe 3. Click Next. 4. Read the “License Agreement” and click Yes if you accept it. 5.
  • Page 48 PEB-4720 Main Board 6. Select the COM port for the monitor. It is recommended that you select COM3 for primary touch screen and COM4 for second touch screen. Then click Next. 7. Wait until the ELO Touch Tools have been installed. 8.

  • Page 49: Elo Touch Tools Installation For Windows 2000 And Windows Xp

    PEB-4720 Main Board ELO Touch Tools Installation for Windows 2000 and Windows XP Locate D:\Utility\TOUCHSCREEN\ELO Touch Select the relevant ELO folder for the operating system that you are using. Example. If you are installing for a Windows 2000 or XP then select Elo Touch 2K_XP Run Setup.exe Click Next Check “Install serial Touch screen Drivers.”...
  • Page 50 PEB-4720 Main Board Select “Auto-detect Elo devices.” and click Next. Select the COM port for the touch monitor. It is recommended that you select COM3 for the touch screen, as this port is internally configured for touch operation. Wait until the ELO Touch Tools have been installed. 10.
  • Page 51 PEB-4720 Main Board IT MAY BE NECESSARY TO RESTART YOUR COMPUTER TO UTILIZE YOUR TOUCHSCREEN FEATURES. 11. Click NEXT while this window appears after system finishs rebooting. 12. Click YES to restart your computer again. After the system finishes rebooting follow the directions to calibrate ELO Touch Tools.

  • Page 52: Elo Control Panel

    PEB-4720 Main Board ELO Control Panel This section explains the different options in the ELO control Panel. General tab The general tab allows you to: Change the COM port your touch screen is set to. Calibrate the touch screen with the Align button.
  • Page 53 PEB-4720 Main Board Mode tab The Buttons tab allows you to: Adjust all mouse emulation controls. Change cursor properties Enable or disable right mouse button utility. Sound tab The Sound tab allows you to: To change sound properties for ELO touch tools.
  • Page 54 PEB-4720 Main Board Properties tab The Diagnostics tab allows you to: View Controller Information. About tab The About tab displays Information about ELO Touchsystems...

  • Page 55: Touchkit Tools Installation

    PEB-4720 Main Board TouchKit Tools Installation TouchKit Tools Installation for all Windows Operating Systems 1. Locate D:\Utility\TOUCHSCREEN\TouchKit\Driver Select the relevant eGalax folder for the operating system that you are using. Example. If you are installing for a Windows 98 system, then select Win9x_Me. If you are installing under Windows 2000 or XP then select Win2000_XP 3.
  • Page 56 PEB-4720 Main Board 6. Click Next 7. Click Next 8. Click Next...
  • Page 57 PEB-4720 Main Board 9. Click Yes 10. Click Finish to restart your computer again. After the system finishes rebooting follow the directions to calibrate the Touch screen.

  • Page 58: Touchkit Control Panel

    PEB-4720 Main Board TouchKit Control Panel This section explains the different options in the TouchKit control Panel. General tab The general tab allows you to: Change the COM port your touch screen is set to. Calibrate the touch screen with the 4 pts Cal button.

  • Page 59: Fix Com Port Tools Installation

    PEB-4720 Main Board FIX COM PORT Tools Installation At time of publication, there is a odd configuration applied to the COM5 and COM6 serial ports after Windows XP has been installed regardless of the settings in BIOS. Please note that this odd configuration does not exist with other Windows operating systems, or Linux.

  • Page 60: Wireless Lan Driver Installation

    PEB-4720 Main Board Wireless LAN Driver Installation Wireless LAN Driver Installation for all Windows Operating Systems (Optional) 1. Open D:\Utility\Wireless LAN folder 2. Run Setup.EXE 3. Click Next 4. Click Next...

  • Page 61: Specifications

    PEB-4720 Main Board System Configuration CPU (PGA 478) Intel Pentium 4 / Celeron Processor, supports 400/533 MHz FSB Bus speed PCI: 33 MHz DMA channels Interrupt levels ® Chipset INTEL 82852 GME (GMCH). Real-time clock INTEL 82801DB (ICH4) One 184-pin DIMM socket to support DDR 266/333 SDRAM. The DRAM maximum memory is up to 1 GB.
  • Page 62 PEB-4720 Main Board Cash drawer port RJ11 Single/Dual Cashdrawer port ,12V actuation support. Mouse Port One PS/2 mouse port. Keyboard Port One PS/2 keyboard port. LAN Port 10/100Mbps Ethernet Controller Realtek RTL8139C. VGA Port Standard VGA Port for second LCD panel. CD-ROM Port Supports 24x Slim type external CD-Rom drive.

  • Page 63: I/O Board Configuration

    PEB-4720 Main Board I/O board Configuration The main I/O board 9000PB0700 covers the primary I/O ports to the mainboard. Including: DC power input, COM1 and COM2, LPT1, PS/2 keyboard, PS/2 mouse, audio port. 9000PB0700 I/O Board Pin Definition CON101 DC power connector PIN No.
  • Page 64 PEB-4720 Main Board DC +5V DC+12V PSON CON3 parallel port LPT1 SCSI connector PIN No. Description PIN No. Description PRT_STB# PRT_D0 PRT_D1 PRT_D2 PRT_D3 PRT_D4 PRT_D5 PRT_D6 PRT_D7 PRT_ACK# PRT_BUSY PRT_PE PRT_SLCT PRT_AED# PRT_ERR# PRT_INIT# PRT_SLIN PS/2 keyboard connector PIN No. Description KB-DATA KB-CLK CON8...
  • Page 65 PEB-4720 Main Board CON13 Audio line output EAR connector PIN No. DESCRIPTION EAROUT-L EAROUT-R CON4&CON41 RS232 port COM1 and COM2 D-SUB connector PIN No. Description SIN (Rx) SOUT (Tx) RI/DC output (RI is the default setting) Pin9 signal can be selected as standard RI or DC power output depending on the JP2 and JP3 jumper settings.
  • Page 66 PEB-4720 Main Board COM2_CTS COM2_RI COM2_DSR COM2_RTS COM2_SOUT COM2_DTR COM2_DCD COM2_SIN COM1_CTS COM1_RI COM1_DSR COM1_RTS COM1_SOUT COM1_DTR COM1_DCD COM1_SIN PC_CLK PC_DATA MOUSE_CLK MOUSE_DATA USB_1+ USB_1- USB_0+ USB_0- COM4_SIN PRT_STB# PRT_D0 PRT_D1 PRT_D2 PRT_D3 PRT_D4 PRT_D5 PRT_D6 PRT_D7 PRT_ACK# PRT_PE PRT_BUSY PRT_SLCT PRT_AED# PRT_ERR#...

  • Page 67: 9000Pb0710 I/O Board Pin Definition

    PEB-4720 Main Board 9000PB0710 I/O Board Pin Definition 9000PB0710 secondary I/O board includes VGA port, Lan port, Cash drawer, and COM4/VFD and COM5 and 4 X USB ports. CN13 Com4 uses the RJ-45 connector to accept VFD customer display. If the customer display is not required, this port may function as an RS-232C port.
  • Page 68 PEB-4720 Main Board PIN No. Description COM4_CTS COM4_RTS COM4_DTR COM4_DSR COM4_SOUT COM4_SIN CN6 Com5 uses an adapter cable to convert RJ-45 to DB-9 which may be obtained from your supplier. Jumpers on the circuit board must also be reconfigured as shown in the figure. Mode1 RJ45 connector used for VFD Short (+12V) Short...
  • Page 69 PEB-4720 Main Board RJ45 LAN connector PIN No. Description PIN No. Description LAN_TX+ LAN_TX- LAN_L45 LAN_RX+ LAN_RX- LAN_L78 RJ45 LAN Port PIN No. Description LAN_TX+ LAN_TX- LAN_RX+ LAN_L45 LAN_L45 LAN_RX- LAN_L78 LAN_L78 CN10&CN11 USB port PIN No. Description PIN No. Description USB_0- USB_1-...
  • Page 70 PEB-4720 Main Board VGA,COM4 and COM5 2x15 PIN header connector connects to the mainboard J10 and J43 Description Description COM5_DSR COM5_SIN COM5_RTS COM5_SOUT COM5_CTS COM5_DTR COM4_DSR COM4_SIN COM4_RTS COM4_SOUT COM4_CTS COM4_DTR SM DATA GREEN SM CLK BLUE H-SYNC V-SYNC VGA Port PIN No.

  • Page 71: 9000Pb0230 I/O Board Pin Definition

    PEB-4720 Main Board 9000PB0230 I/O Board Pin Definition 9000PB0230 Third I/O board includes external CD ROM port. External CD ROM connector Description Description IDE RESET DATA7 DATA8 DATA6 DATA9 DATA5 DATA10 DATA4 DATA11 DATA3 DATA12 DATA2 DATA13 DATA1 DATA14 DATA0 DATA15 IO WRITE ADDR2...
  • Page 72 PEB-4720 Main Board 44PIN 2.00mm IDE connector connects to the mainboard secondary IDE connector CN3 PIN No. Description PIN No. Description RESET# DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2 DATA 13...

  • Page 73: Troubleshooting

    PEB-4720 Main Board Please note that the following troubleshooting guide is designed for people with strong computer hardware knowledge such as System Administrators and Engineers. Power is on, but there is no Panel Display Check that the external power adapter LED is on when the power adapter power switch is in the on position.

  • Page 74: Cannot Detect Hdd

    PEB-4720 Main Board To check where the problem could be: Please connect a VGA monitor to the VGA port. If the VGA monitor is display normally, one of the problems above is occurring, otherwise it could be the mainboard is not functioning properly.

  • Page 75: Second Lcd Panel Is Not Functioning Properly

    PEB-4720 Main Board controller, the touch panel may be not installed properly or it could be defective. Second LCD Panel is Not Functioning Properly Check that the VGA driver 852GME is installed properly (Please refer to the VGA driver installation section). Connect a VGA CRT monitor to the VGA2 connector, if there is a display, then the second LCD panel could be defective or is not installed properly.

  • Page 76: Ps/2 Keyboard Is Not Functioning Normally

    PEB-4720 Main Board E-3) Check that the COM4 cable is properly connected between 9000PB0270 secondary I/O board CN7 and mainboard J43. ELO controller could be defective or the ELO Touch panel could be defective. PS/2 Keyboard is not Functioning Normally Make sure the keyboard is properly connected to the PS/2 keyboard port before the system is powered up.

  • Page 77: External Cd-Rom Is Not Functioning Properly

    PEB-4720 Main Board The proper settings are: JP1 PINs 1-2 shorted JP2 PINs 1-2, PINs 3-5 and PINs 4-6 shorted B-3) Fuse F1 on the 9000PB0710 secondary I/O board could be faulty. Check if the 10pin cable is properly connected between 9000PB0710 secondary I/O board CON8 and 9000PB0700 primary I/O board CON12.

  • Page 78: Usb Device Is Not Functioning Properly

    PEB-4720 Main Board Check if the 60pin I/O bus cable is properly connected. Check that the 10PIN cable is properly connected between 9000PB0700 primary I/O board CON12 and 9000PB0710 secondary I/O board CN8. The 9000PB0700 primary I/O board or 9000PB0710 secondary I/O board could be defective.
