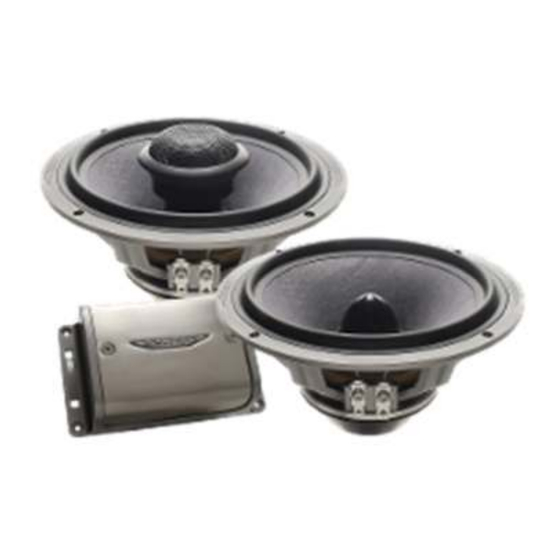

The XS Interchangeable component speakers are a unique and innovative speaker
that allows you to optimize the mounting options to work best with your
installation. They offer you the choice of point source separates with the tweeter
mounted on the midrange's pole piece or a pair of conventional separates with
the tweeter mounted separately. The phase plug is easily removed by un-
threading it from the pole piece. The adapter and tweeter are then screwed
together and installed in place of the phase plug.
Advertisement
Table of Contents
Related Manuals for Image Dynamics USA XS
Summary of Contents for Image Dynamics USA XS

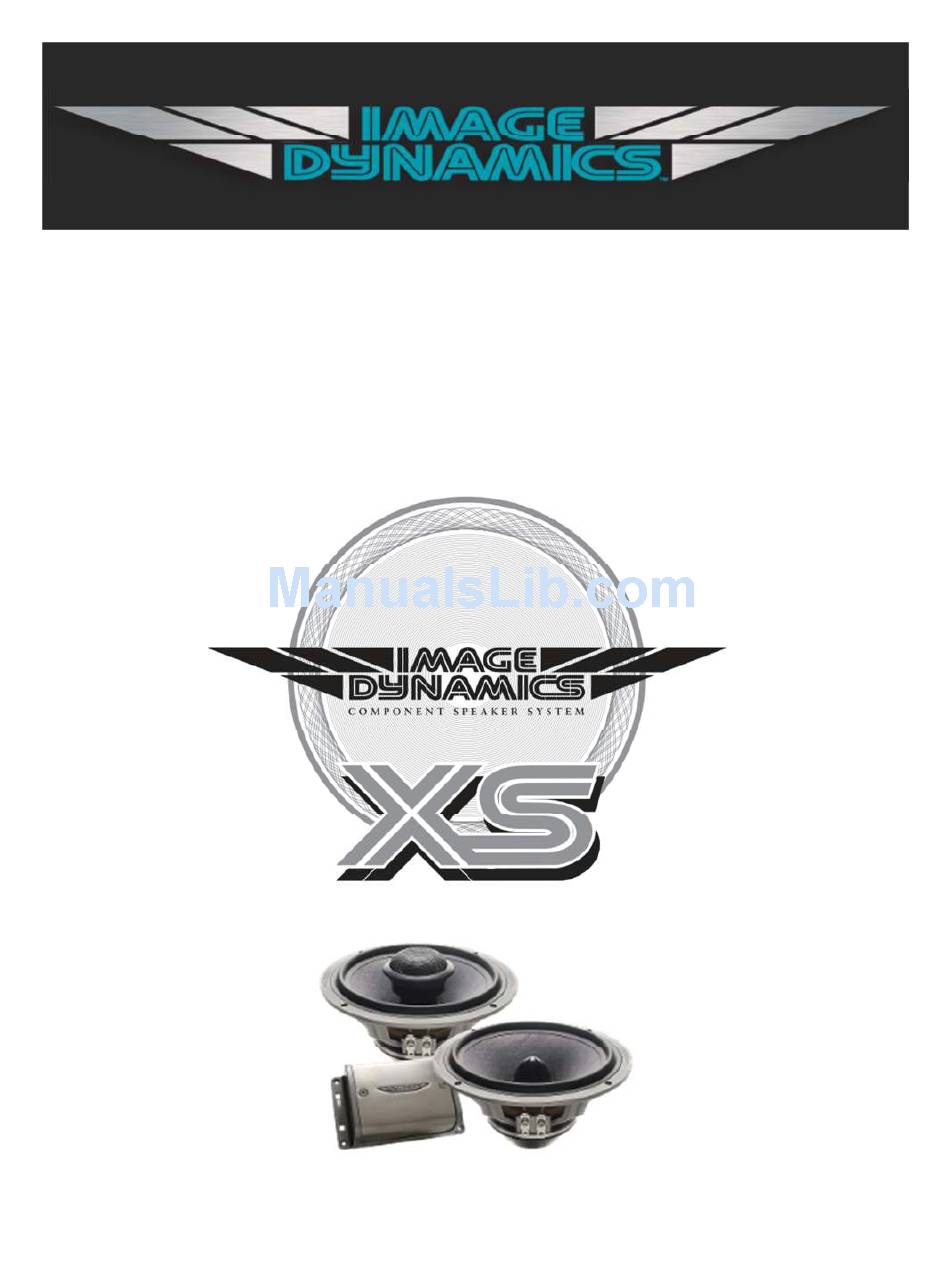

- Page 1 The XS Interchangeable component speakers are a unique and innovative speaker that allows you to optimize the mounting options to work best with your installation. They offer you the choice of point source separates with the tweeter mounted on the midrange’s pole piece or a pair of conventional separates with the tweeter mounted separately.
- Page 2 In most instances the best results will be attained when using the XS separates as a point source driver or with the tweeter mounted within a few inches of the mid- bass driver.
- Page 3 Remove the rear magnetic label from the mid-bass speaker and save for reassembly. Insert wire through hole in pole piece of the XS mid-bass and screw the tweeter assembly into the threads in the top of the mid-bass driver pole piece. Make sure to tighten snugly to prevent vibrations but do not over tighten.
- Page 4 2- Crimp or solder a terminal to the end of the wire and insert into terminal block and tighten. The XS crossovers are equipped with multiple adjustments for tailoring the sound output to compensate for different mounting locations and acoustic environments.
- Page 5 Specs: Model: XS65 Description: 6.5" Neo Component w/silk Tweeter 4 OHM Power:25 -250w Sens: 92Db Freq Resp: 55Hz – 25Khz Top Mount Depth: 3.0” Midrange Cutout Diameter: 5.6” Tweeter Cutout Diameter: www.imagedynamicsusa.net...
