Screen Research MCS Serial IP Adapter Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MCS Serial IP Adapter
Installation Manual
Revision A 2007.07.06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCS Serial IP Adapter and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Screen Research MCS Serial IP Adapter

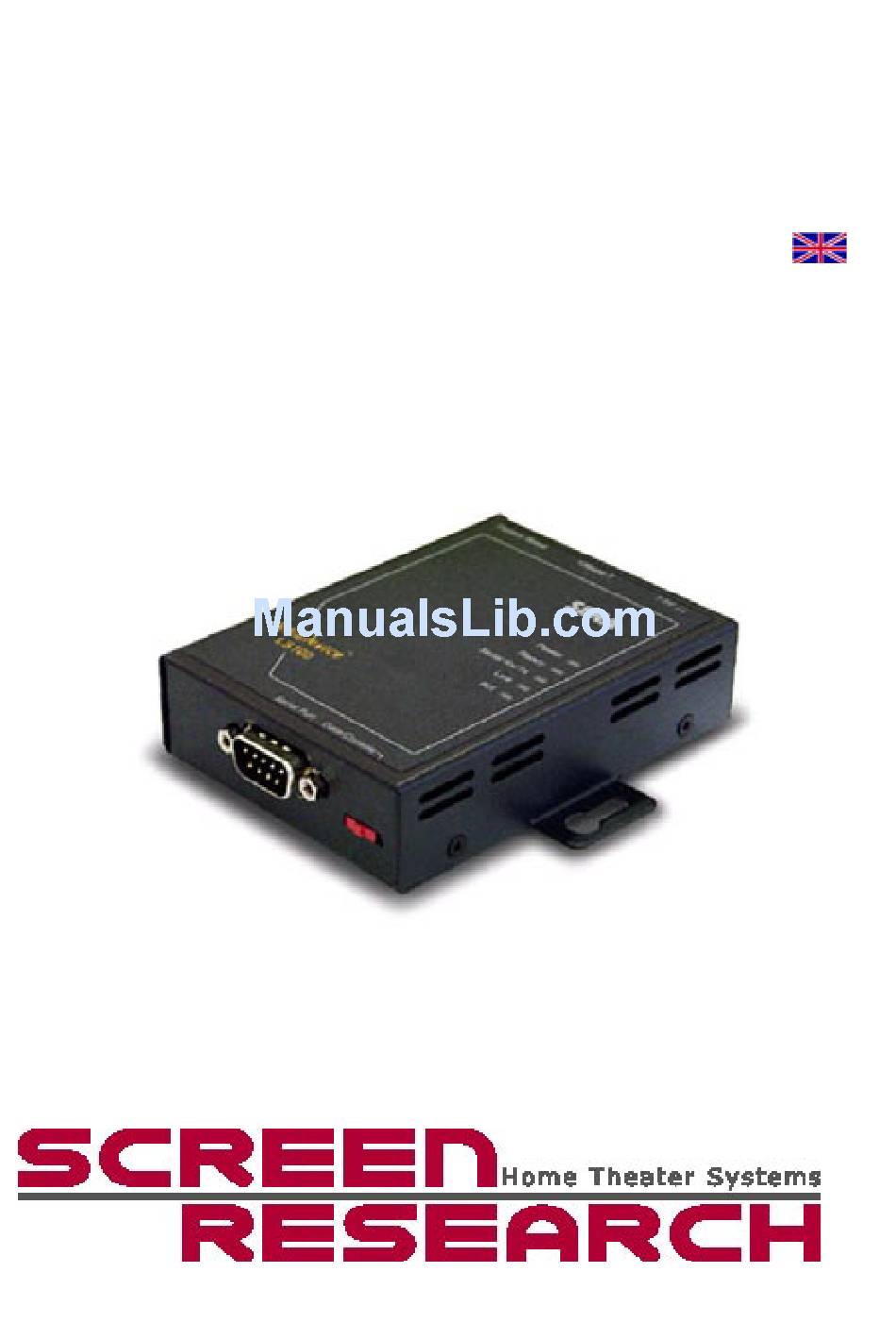

  • Page 1 MCS Serial IP Adapter Installation Manual Revision A 2007.07.06...
  • Page 3 FOREWORDS: Typographic Convention So that our manuals are easy to read and understand, we have adopted the following typographic convention: Iconography Indicates additional information concerning the subject. Indicates a potentially hazardous situation which, if not avoided, coul result in serious injury or death. Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.
  • Page 5 W: Written R: Page revised A: Page added D: Page deleted C: Rewritten completely Date Rev. Action Rev. Reason For Change N° pages révisées 2007.07.06 New document MCS Seria IP Adapter Installation Manual Revision A 2007 07 06 ©Screen Research 2006...

  • Page 7: Table Of Contents

    MCS Serial IP Adapter Table Of Contents 1. Introduction 2. Connect The MCS Serial IP Adapter 3. Configure the MCS Serial IP Adapter 4. Assign IP Address 5. Configure Serial Port 6. Apply Changes 7. Reach Connection Quickly 8. Check Configuration 9.
  • Page 9 1. Introduction Congratulations on your purchase! We want to help you to get the best results from your MCS Serial IP Adapter and to operate it safely. This manual contains information on how to do that; please read it carefully before operating.

  • Page 10: Connect The Mcs Serial Ip Adapter

    MCS Serial IP Adapter 2. Connect The MCS Serial IP Adapter 2. Connect The MCS Serial IP Adapter 1. Hook up the power to the MCS Serial Ip Adapter. Power Ready leds are blinking. 2. Connect the Null-Modem cable between your computer and the MCS Serial Ip Adapter.
  • Page 11 MCS Serial IP Adapter 2. Connect The MCS Serial IP Adapter Data/Console Console 3. Slide switch to the mode. MCS Seria IP Adapter Installation Manual Revision A 2007 07 06 ©Screen Research 2006...

  • Page 12: Configure The Mcs Serial Ip Adapter

    MCS Serial IP Adapter 2. Configure The MCS Serial IP Adapter 3. Configure The MCS Serial IP Adapter Use the HyperTerminal program (Windows) to configure the MCS Serial IP Adapter: 1. Click on the button Start. Programs>Accessories>Com- 2. Choose the HyperTerminal application in munication.
  • Page 13 MCS Serial IP Adapter 3. Configure The MCS Serial IP Adapter Connection 3. Enter a name to describe the connection. Choose an icon then in the Description window. Connection 4. Select the COM port to which the adapter is connected in the window.
  • Page 14 MCS Serial IP Adapter 3. Configure The MCS Serial IP Adapter 5. Select the following parameters to configure the COM port: - “9600” for Baud rate - “8” for Data bits - “none” for Parity - “1” for Stop bits - “None”...
  • Page 15 MCS Serial IP Adapter 3. Configure The MCS Serial IP Adapter 9. Enter the user name and password. Factory default settings of the user name and password are both “admin”. You can change by the terminal: - IP address; - client /server configuration;...

  • Page 16: Assign Ip Address

    > set ip static 192.168.1.11 255.255.255.0 192.168.1.111 6. To verify that IP configuration is correct, we typed: > get ip IP_mode: static IP_address: 192.168.1.11 Subnet_mask: 255.255.255.0 Gateway: 192.168.1.111 MCS Serial IP Adapter Installation Manual Revision A 2007 07 06 ©Screen Research 2006...

  • Page 17: Configure Serial Port

    MCS Serial IP Adapter 5. Configure Serial Port 5. Configure Serial Port Select the following parameters to configure the connection serie and the driving of the MCS via the MCS BRS: - baud rate = 9600 - data bits = 8...

  • Page 18: Apply Changes

    6. Apply Changes Save changed values using “save” and “reboot” commands as follows: > save < reboot Reboot the MCS Serial IP adapter using ‘reboot’ command. MCS Serial IP Adapter Installation Manual Revision A 2007 07 06 ©Screen Research 2006...

  • Page 19: Reach Connection Quickly

    MCS Serial IP Adapter 7. Reach Connection Quickly 7. Reach Connection Quickly 1. Save connection settings from computer towards the MCS Serial IP Adapter. ‘Start> Programs> Accessories 2. Connection is accessible directly by the menu > Communication > HyperTerminal >Connection name’.

  • Page 20: Check Configuration

    1. Hook up the Null-Modem cable. Data 2. Slide Data/Console swith to the side. 3. Hook up the Ethernet cable to the RJ45 connector of the MCS Serial Ip Adapter with your switch. Link LED is blinking. 4. Connect the series port of the adapter to the MCS BRS which is itself connected to a MCS.

  • Page 21: Confirm Connection

    MCS Serial IP Adapter 9. Confirm Connection 9. Confirm Connection 1. Connect a MCS on the SYS1 port of the MCS BRS. Commands for the MCS are: OPEN 1 CLOSE 1 *1o01004; 2. Type commands (that is to say respectively...

  • Page 22: Send A Command Via Internet

    Example : http:// 192.168.1.11 :6001 *1o01004; IP Address Port MCS OPEN 1 Command Prefix http:// 192.168.1.11 :6001 *1c01004; IP Address Port MCS CLOSE 1 Command Prefix MCS Serial IP Adapter Installation Manual Revision A 2007 07 06 ©Screen Research 2006...

  • Page 23: Send A Command Via Hyperterminal

    MCS Serial IP Adapter 11. Send A Command Via HyperTerminal 11. Send A Command Via HyperTerminal 1. Configure a new connection while being connected to protocol TCP/IP. 2. Type the IP address and the port number. 3. The device is well connected: connection is done automatically.
  • Page 24 MCS Serial IP Adapter 11. Send A Command Via HyperTerminal Configuration ASCII 5. Click on the button “Reproduce Locally The Typed Data”. 6. Select MCS Serial IP Adapter Installation Manual Revision A 2007 07 06 ©Screen Research 2006...
  • Page 25 MCS Serial IP Adapter 11. Send A Command Via HyperTerminal 7. Type commands as below: *1c01004; 8. Command is correct: the MCS BRS returns the command (line break). 9. Command is sent to the motor: the MCS BRS returns the command (return to the beginning of the line ).
  • Page 26 ClearPix, ClearPix 2, ClearPix 3; ClearPix 4k, SilverPix 3D; SilverPix 3D Sonic; MultiPix 4K; MultiPix 4K Sonic; SolidPix, SolidPix Sonic, X-Mask, C-Mask, E-Mask, LeWing, TheaterCurve, Pi-Grip, E-Grip, StopLight, DécorMask, TailorMade and the Screen Research logo are all trademarks of Adeo Screen.
