Page 1: Installation Manual

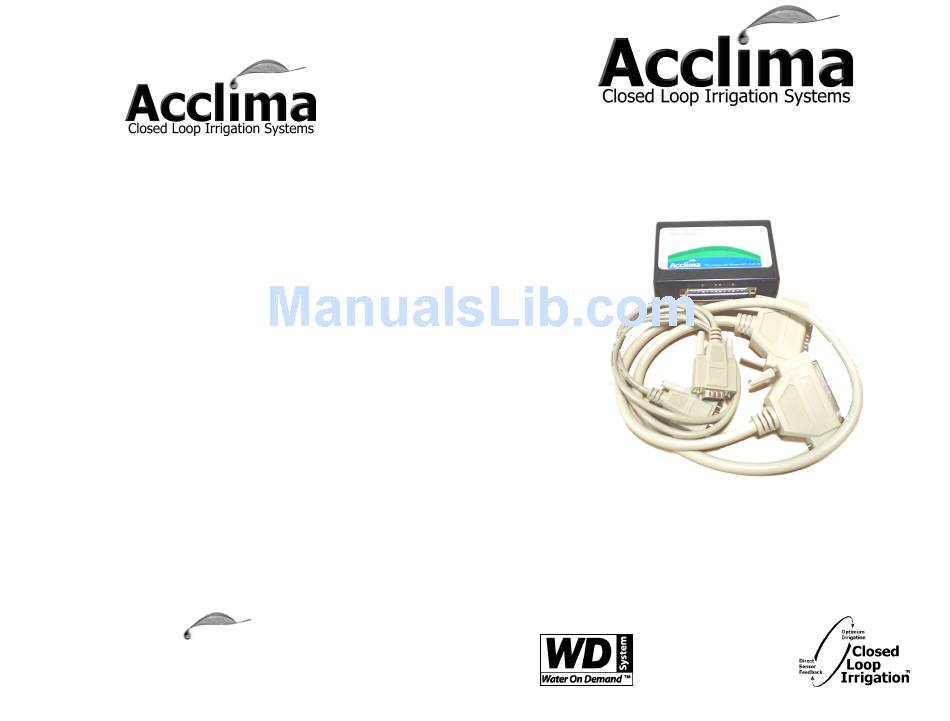

Acclima Radio Receiver Interface Acclima, Inc. 2260 East Commercial Street Meridian, Idaho 83642 208-887-1470 toll free:866-887-1470 fax: 208-887-6368 Model# ACC-RAD-005 Installation Manual www.acclima.com... - Page 2 The Radio Receiver Interface provides power to your Radio Receiver. You can now use your Radio to turn your irrigation stations on and off. Acclima, Inc. 2260 East Commercial Street Meridian, Idaho 83642 www.acclima.com © 2006 Acclima, Inc. All Rights Reserved © 2006 Acclima, Inc. All Rights Reserved...
-
Page 3: Installation Instructions
Acclima's Radio Receiver Interface enables connection of the Acclima Connection instructions controller to a Remote Control Technology radio. Once connected the Acclima controller can be operated remotely by the use of the radio. 1. Connect the DB9 serial cable to the controller's serial connection. The Radio Receiver 2. - Page 4 3. Optional DB37 3' M/F Serial Cable (Included) Radio Receiver Interface Components Used to connect the Radio Receiver Interface to the Radio Receiver's The Acclima Radio Receiver Interface included the following parts: serial connection (Optional). 1. Radio Receiver Interface 2. DB9 3' M/F Serial Cable (Included) This cable is required to connect the Radio Receiver Interface to the controller cabinet's serial connection.
