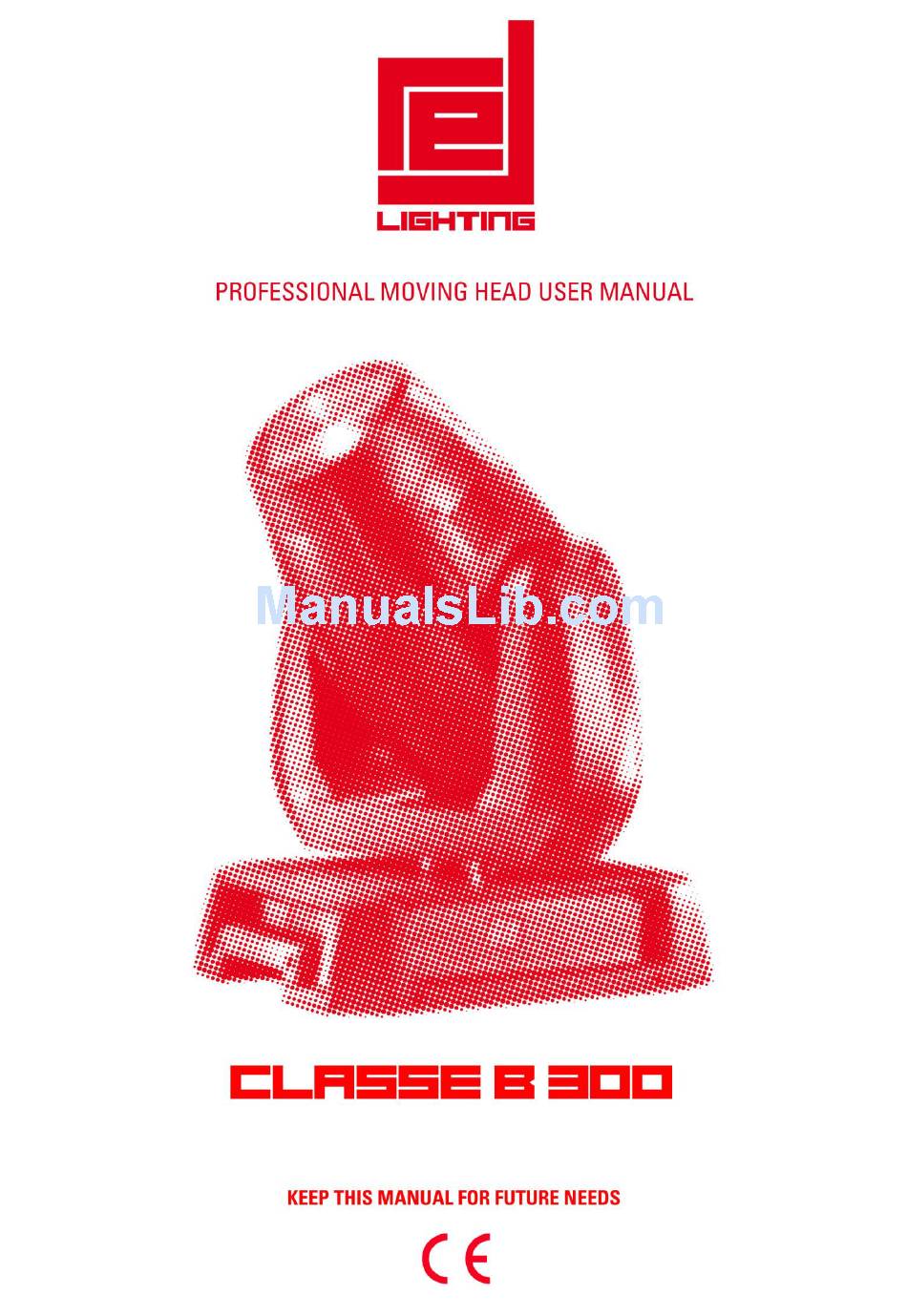

red lighting Classe B 300 User Manual

Professional moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classe B 300 and is the answer not in the manual?

Questions and answers

Summary of Contents for red lighting Classe B 300

  • Page 2: Table Of Contents

    Contents 1. FEATURES ..............................1 2. FIXTURE OVERVIEW ..........................2 3. SAFETY INSTRUCTIONS ..........................3 3.1) Important safety warns ........................3 3.2) GENERAL GUIDELINES ........................4 4. INSTALLATION INSTRUCTIONS ......................4 4.1) Installing or replacing the lamp ......................4 4.2) Mounting the device ..........................6 5.

  • Page 3: Features

    Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.

  • Page 4: Fixture Overview

    ·Wireless receiver pre-installed · Rechargeable Back up Battery for Display, no need external power supply, enable users to enter display menu for address setting or access other functions setting. ·Auto-program: 7 pre-built programs can be selected. ·Software-upload by optional accessory via DMX line 2.

  • Page 5: Safety Instructions

    3. SAFETY INSTRUCTIONS 3.1) Important safety warns This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

  • Page 6: General Guidelines

    3.2) GENERAL GUIDELINES This device is a lighting effect for professional use on stages, in discotheques, theatres, etc., the device was designed for indoor use only. This fixture is only allowed to be operated with the max alternating current which stated in the technical specifications in the last page of this manual.
  • Page 7 Do not install lamps with a higher wattage. They generate higher temperatures than which the device was designed for. For the installation, you need one: MSR 300 FASTFIT Procedures: 1).Center the hot-spot (the brightest part of the beam) using the 3 adjustment screws located under the lamp cover labeled A, B, and C as illustrated on the next page.

  • Page 8: Mounting The Device

    4.2) Mounting the device The applicable temperature for the lighting is between -25°C to 45°C. Do not use the lighting under or above the temperature. The installation of the effect has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
  • Page 9 Installation via the Omega holders a) Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the Ф13 hole in the middle of the bracket. b) Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom of the device.
  • Page 10 Dimensional Drawings: Layout Drawings: Classe 300 B v1.0...

  • Page 11: Dmx-512 Control Connection

    Mounting points Be sure this fixture is kept at least 3m away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture.

  • Page 12: Projector Dmx Start Address Selection

    7. Projector DMX start address selection All fixtures should be given a DMX starting address when using a DMX signal, so that the correct fixture responds to the correct control signals. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control information sent out from the DMX controller.
  • Page 13 1) When the fixture is on power，and the WDMX is activated to ON status, but did not connect to the controller and did not log in to the transmitter, the fixture will search for the DMX signal source. If the fixture is connected to the DMX controller it can be controlled by DMX controller;...

  • Page 14: Control Board

    9. Control Board The Control Board offers several features: you can simply set the starting address , run the pre-programmed program or make a reset. The main menu is accessed by pressing the -button until the display starts flashing. Browse through the menu by pressing the -button , -button , -button or...
  • Page 15 Status Settings Address via DMX ON/OFF Add. via DMX No DMX Status Close/Hold/Auto/Music Auto run if no DMX Pan Reverse ON/OFF Pan Reverse movement Tilt Reverse ON/OFF Tilt Reverse movement Pan Degree 630/540 Pan Degree Select Feedback ON/OFF Movement Feedback switch Movement Speed Speed 1~ 4 Movement Mode Select...

  • Page 16: Function Mode

    Select Programs Auto Pro Part 1 = Program 1 ~ 10 Program 1 Select programs to be run Auto Pro Part 2 = Program 1 ~ 10 Program 2 Auto Pro Part 3 = Program 1 ~ 10 Program 3 Edit Program Program 1 Program Test...

  • Page 17: Music Control

    2．Tap the <Up/Down>button until“Auto Program”is displayed. 3．Press ENTER, the display will show “Auto Program”. 4．Tap the <Up/Down>button，the display will show “Master1”, ” Alone”. 5．Press ENTER to confirm or press <MODE/ESC> to return to the main menu. 9.1.5 Music control With this function, you can run the internal program sound-controlled. 1．Access the main menu.
  • Page 18 the display will show “Time Information”. 2．Press <Up/Down>, the display will show “Last Run Hours”. 3．Press< ENTER>, the display will show “Last Run Hours”. 4．The display will show “XXXX” (Hours) ； 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Lamp Hours With this function, you can display the running time of the lamp.

  • Page 19: Temperature Info

    the display will show “Time Information”. 2．Press <Up/Down>, the display will show “Clear Last Run”. “Timer Password”menu input a correct password, press< ENTER>, the display will show 3． “ ”, Clear Last Run 4．The display will show “OFF”or“ON”. 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. L-Time Password With this function, you can display the timer password.

  • Page 20: Lamp Control

    3．Press< ENTER>, the display will show “Software version”. 4．The display show “Ver 1.0……”. 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.3 LAMP CONTROL When the real temperature around the lamp is higher than the preset value, the lamp will be shut down in 5 minutes automatically.

  • Page 21: Lamp Off Via External Controller

    2．Press <Up/Down>, the display will show “OFF”or“ON”. 3．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.3.4 Lamp off via external controller With this function you can select if you can switch the lamp off via an external controller (DMX-channel of internal programs, value 224-239).
  • Page 22 the <Up/Down>button until the display will show “Status setting”. Press ENTER, the display will show “Status setting”. 2．Press <Up/Down>, the display will show “Address via DMX”. 3．Press< ENTER>, the display will show “Address via DMX”. 4．The display show “ON”,Press <Up/Down>, the display will show “OFF”. 5．Press <ENTER>...
  • Page 23 2．Press <Up/Down>, the display will show “Pan Degree”. 3．Press< ENTER>, the display will show “Pan Degree”. 4．The display show “540”,Press <Up/Down>, the display will show “630”. 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Feedback With this function, you can feedback switch of pan movement or tilt movement.

  • Page 24: Fans Control

    2．Press <Up/Down>, the display will show “Hibernation”. 3．Press< ENTER>, the display will show “Hibernation”. 4．The display show “15M”,Press <Up/Down>, the display will show “01M” ， “02M” …. “99M” or“OFF”. 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.4.2 Fans Control With this function, you can set the speed of the running fans.

  • Page 25: Temperature C/F

    9.4.4 Temperature C/F With this function, Display the temperature for Celsius or Fahrenheit. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Personality”is displayed. Press ENTER, the display will show “Personality”. 2．Press <Up/Down>, the display will show “Temperature C/F”. 3．Press< ENTER>, the display will show “Temperature C/F”. 4．The display show “Celsius”,Press <Up/Down>, the display will show “Fahrenheit”.

  • Page 26: Effect Adjust

    3．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.6 Effect Adjust 9.6.1 Test channel With this function you can test each channel on its (correct) function. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Effect Adjust”is displayed. Press ENTER, the display will show “Effect Adjust”. 2．Press <Up/Down>, the display will show “Test Channel”.

  • Page 27: Edit Program

    “Edit User Mode”. 3．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.8 Edit program 9.8.1 Select program With this function, you can select the program for the Program Run. 9.8.2 Edit program With this function, you can edit the internal programs. 9.8.3 Edit scenes With this function, you can edit the scenes of the internal programs.
  • Page 28 2. Automatic Program Run • Select “Function Mode” by turning the encoder. • Press the Enter button to confirm. • Select “Auto Program” by turning the encoder. • Press the Enter button to confirm. • Turn the encoder to select “Master” or “Alone”. The selection "Alone" means Stand Alone-mode and "Master"...

  • Page 29: Instructions On Use

    The 3 Slave groups run the Auto Program in certain time segments, as shown in the following picture: 10. INSTRUCTIONS ON USE: DMX channel´s functions and their values (26 DMX channels): Mode/Channe Value Function Cyan Color 0-255 Cyan (0-white, 255-100% Cyan) Cyan Color Fine : 0-255 Cyan Fine...
  • Page 30 236-245 Blackout by all wheel changing 246-255 No function Yellow Color : 0-255 Yellow (0-white, 255-100% Yellow) Yellow Color Fine : 0-255 Yellow Fine Color Wheel: 0-13 Open / white 14-27 Color 1 28-41 Color 2 42-55 Color 3 56-69 Color 4 70-83 Color 5...
  • Page 31 Rotating Effect index, rotating Effect rotation: NO Effect 4-127 Effect indexing 128-189 Forwards prism rotation from fast to slow 190-193 No rotation 194-255 Backwards prism rotation from slow to fast Rotating Effect indexing Fine 0-255 Fine indexing Shutter, strobe: 0-31 Shutter closed 32-63 No function (shutter open)
  • Page 32 120-127 Macro15 128-135 Macro16 136-143 Macro17 144-151 Macro18 152-159 Macro19 160-167 Macro20 168-175 Macro21 176-183 Macro22 184-191 Macro23 192-199 Macro24 200-207 Macro25 208-215 Macro26 216-223 Macro27 224-231 Macro28 232-239 Macro29 240-247 Macro30 248-255 Random CMY Lamp on/off, reset, internal programs: 0-19 Colour &...

  • Page 33: Error Message

    11. ERROR MESSAGE ERROR MESSAGE When you turn on the fixture, it will make a reset at first. The display may show“Err channel is XX” while there are problems with one or more channels. “XX” stands for channel 1, 2, 3, 4, 5, 6 who has the testing sensor for positioning.

  • Page 34: Cleaning And Maintenance

    12. CLEANING AND MAINTENANCE The following points have to be considered during the inspection: 1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2) There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing).
  • Page 35 Classe 300 B v1.0...
