Summary of Contents for Auraland INT300 VoIPhone

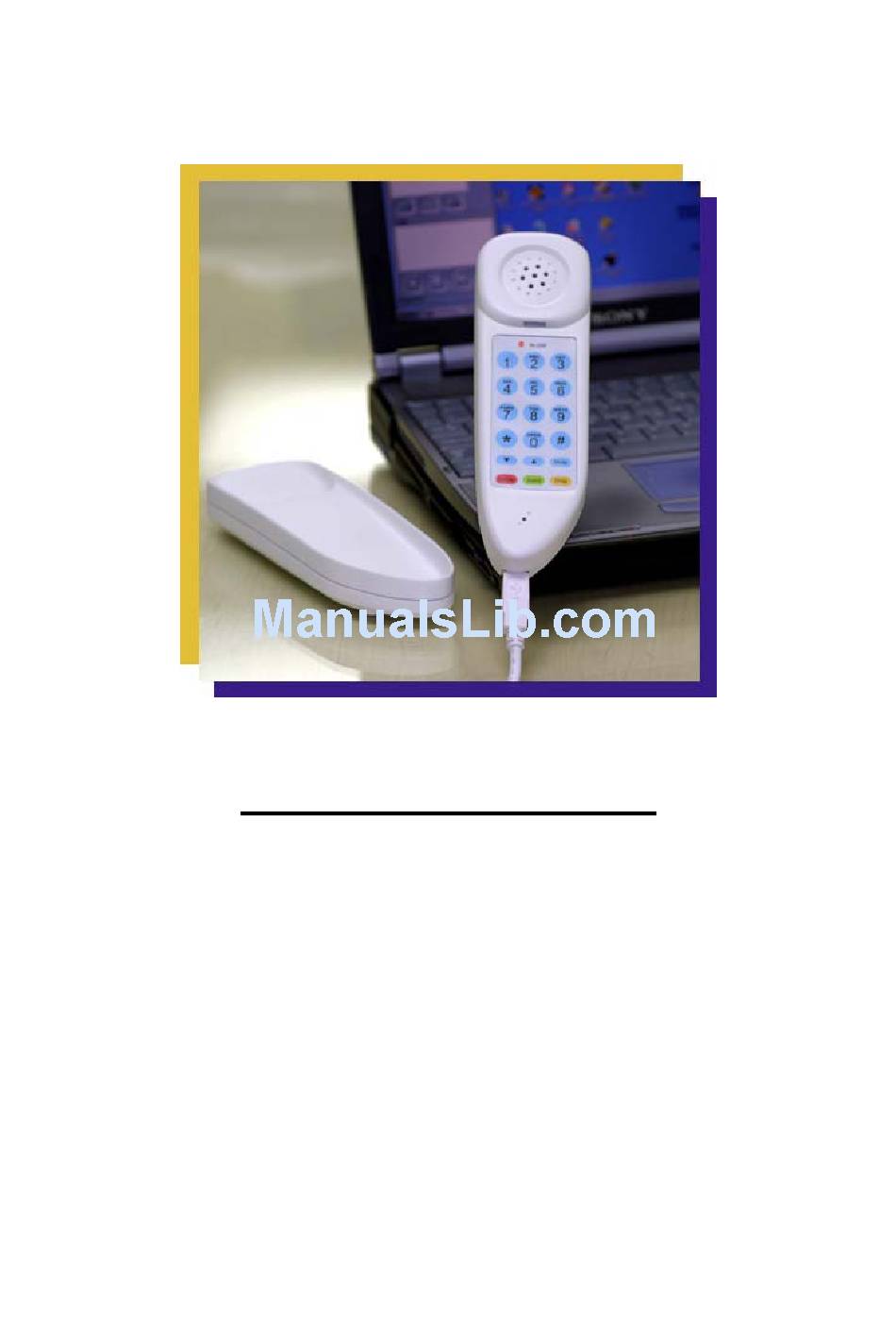

- Page 1 INT300 VoIPhone USB Phone Installation Guide and User Manual Auraland Electronics Co Ltd http://www.hkael.com...
- Page 2 1. Introduction USB Phone is a solution which utilizes USB audio to work with different VoIP softwares. It mainly helps PC users to make VoIP calls work like traditional PSTN calls. Also, the USB phone can be used to directly control the VoIP softwares. For achieving this, it is mainly through the communication between the driver we provided in the PC and the program in the MCU of the USB phone.
- Page 3 (iii) Click “Browse” to choose the folder the driver to be installed or click “Disk Cost” to know the free space left in the PC. In the Boxes below, click “Everyone” to share the driver with all the users of the PC or click “Just me” to install the driver for just the account being used (iv) Click “Next”...
- Page 4 (v) Click “Close” to exit the installation (vi) Please restart the PC after the installation (vii) After the PC is rebooted, the icon of our driver should be shown in the system tray...
- Page 5 (viii) Double Click it and Select the VoIP software you are going to make call (ix) After you select the VoIP software, e.g. Skype, the dialog box will first show the message “Searching Skype”. If it is already up, the dialog box will then show “Skype is running” and you can enjoy using the USB phone to make VoIP phone calls.
- Page 6 4. User Manual In this section, we would introduce how to use the keypad of the USB phone to make VoIP calls on all 4 softwares. Now we have 17 keys in total, including 1,2,3,4,5,6,7,8,9,0,*,#, UP, DOWN, FUNCTION, HOOK and OK keys (A) Skype When you open Skype after installing our driver, Skype will pop up a dialog box to indicate that our driver is going to control Skype...
- Page 7 open Skype again. (i) Number Keys (1-0, *, #) - to input the ordinary PSTN telephone number if you want to use the “SkypeOut” service - The number will be displayed on the space at the bottom of the software - please dial “00”...
- Page 8 (iii) UP, DOWN Keys - to move the cursor upwards and downwards for choosing the users in the contact list (iv) FUNCTION Key - to browse START, CONTACT, DIAL and CALL LIST pages one by one - like HOOK Key, to pop up the Skype to the top of Desktop which is hidden in system tray (v) OK Key - to make the call...
- Page 9 (B) MSN Messenger Since MSN Messenger does not provide software keys to make VoIP calls, only 4 keys of the USB phone can be used (i) HOOK Key - to pop up the possible account list which you can make the VoIP call * this key will only be functioned properly when the MSN Messenger is hidden in the taskbar.
- Page 10 (ii) HOOK Key - work like the hook switch in PSTN phone, which ends a phone call - if SJPhone is hidden in the system tray or minimized in the taskbar, press this key can pop it up to the top of Desktop (iii) UP, DOWN Keys - to move the cursor upwards and downwards for choosing the users in the contact list or a specific past call in...
- Page 11 (D) Net2Phone (i) Number Keys (1-0, *, #) - to input the IP address or the ordinary PSTN telephone number if you have subscribed its PC-to-Phone Service - The number will be displayed on the space in the middle of the software (ii) HOOK Key - work like the hook switch in PSTN phone, which ends a...
