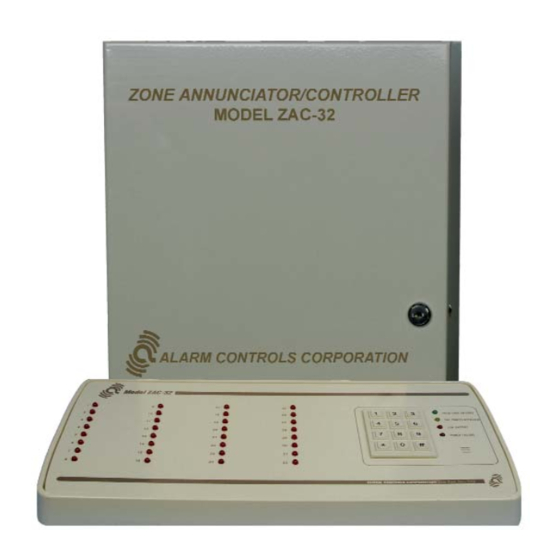

MODEL ZAC-32

32 ZONE ANNUNCIATOR/CONTROLLER

DESIGNED FOR ZONE ANNUNCIATION AND MONITORING

32 HARD WIRED ZONES CAN BE NORMALLY-OPEN OR NORMALLY-CLOSED

ZONE WIRING RUNS CAN BE AS FAR AS 10,000 FEET FROM CONTROL CABINET

UP TO FOUR REMOTE CONSOLES CAN BE ADDED TO A SYSTEM

CONTROL CABINET CONNECTED TO CONSOLE WITH FOUR WIRE CABLE

REMOTE CONSOLE CAN BE LOCATED UP TO 1000 FEET FROM CONTROL CABINET

BUILT-IN AUDIBLE SIGNAL, SOUND LEVEL IS 80dB @ 3 FEET

SIXTEEN FOUR DIGIT ACCESS CODES

ALL ZONE CONTROL AND ZONE STATUS ON REMOTE CONSOLE

ZONE BY-PASS CAPABILITY, ZONE BY-PASS OUTPUT, DAY ZONE BYPASS

THIRTY-TWO RED LED ZONE STATUS INDICATORS

LOW STAND-BY BATTERY OUTPUT, AC POWER FAILURE OUTPUT

ALL FIELD WIRING TERMINATED IN CENTRALLY LOCATED CONTROL CABINET

ALARM CONTROLS CORPORATION

Table of Contents

Need help?

Do you have a question about the ZAC-32 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alarm Controls Corporation ZAC-32

Page 1 MODEL ZAC-32 32 ZONE ANNUNCIATOR/CONTROLLER DESIGNED FOR ZONE ANNUNCIATION AND MONITORING 32 HARD WIRED ZONES CAN BE NORMALLY-OPEN OR NORMALLY-CLOSED ZONE WIRING RUNS CAN BE AS FAR AS 10,000 FEET FROM CONTROL CABINET UP TO FOUR REMOTE CONSOLES CAN BE ADDED TO A SYSTEM...
Page 2 VOLTAGE INPUT: 12 VOLT AC, USE 20 VA TRANSFORMER INCLUDED STANDBY BATTERY: 12 VOLT 4AH RECHARGEABLE BATTERY INCLUDED POWER CONSUMPTION: ZAC-32 CONTROL 30MA., REMOTE ANNUNCIATOR 25MA.IN, 150MA. MAX. TOTAL OUTPUT CURRENT: NOT TO EXCEED 800MA . FROM ALL OUTPUTS ZONES: NORMALLY-OPEN, NORMALLY-CLOSED, SUPERVISED ZONE MODEL AVAILABLE ZONE LENGTH: 10,000 FEET 18 GA., 5000 FEET 20 GA., 2500 FEET 22 GA., 2 CONDUCTOR WIRE...
Page 3: Table Of Contents
SUBJECT PAGE INTRODUCTION SYSTEM FEATURES POWER REQUIREMENTS AC POWER STANDBY BATTERY EARTH GROUND ZONE INPUTS ZAC-32 ZONE INPUTS ZAC-32S ZONE TERMINAL DESIGNATIONS CONNECTING PROCESSOR TO PRINTER INTERFACE AUXILIARY VOLTAGE OUTPUTS EXTERNAL STATUS OUTPUTS EXTERNAL STATUS DESCRIPTION CONNECTING DISPLAY TO PROCESSOR...
Page 4: Introduction
MODEL ZAC-32 INSTALLATION INSTRUCTIONS INTRODUCTION THE ZAC-32 ZONE ANNUNCIATOR/ CONTROLLER IS A TWO COMPONENT SYSTEM COMPRISED OF A CENTRAL ZONE PROCESSOR AND A REMOTE DISPLAY/CONSOLE. THE SYSTEM PROVIDES TOTAL ZONE MONITORING AND CONTROL AT A FULL FEATURED REMOTE DISPLAY CONSOLE.
Page 5: Power Requirements
NOTE: IF THE ZONE PROCESSOR CIRCUIT BOARD IS REMOVED FROM THE CABINET ALL FOUR MOUNTING SCREWS MUST BE REPLACED TO INSURE PROPER GROUNDING TO AVOID LIGHTNING DAMAGE. IV. ZONE INPUTS (MODEL ZAC-32) THE ZONE PROCESSOR HAS 32 NON-SUPERVISED ZONE INPUTS WHICH CAN BE CONNECTED FOR NORMALLY-OPEN OR NORMALLY-CLOSED SWITCH CONTACT CONFIGURATIONS.
Page 6: Zone Inputs Zac-32S
ZONE INPUTS (MODEL ZAC-32S) THE ZAC-32S ZONE PROCESSOR HAS 32 ZONE INPUTS WHICH ARE SUPERVISED WITH A 10K OHM END OF LINE RESISTOR. NORMALLY-CLOSED OR NORMALLY-OPEN SWITCH CONTACTS CAN BE CONNECTED TO THE SAME ZONE INPUT. ALL NORMALLY-OPEN DEVICES ARE CONNECTED IN PARALLEL AND ALL NORMALLY-CLOSED DEVICES ARE CONNECTED IN SERIES.
Page 7: Connecting Processor To Printer Interface
VII. CONNECTIONS TO ZAP-256 PRINTER INTERFACE, (SEE ZAP-256 INSTRUCTIONS FOR FURTHER DETAILS) ZONE ANNUNCIATOR PRINTER INTERFACE TERMINALS TERMINALS 1 (RED) 1 OR 6 (RED) 2 (GREEN) 2, 3, 4, 5, 7, 8, 9, 10 (GREEN) 3 (YELLOW) 11 OR 12 (YELLOW) 4 (BLACK) 13 OR 14 (BLACK) NOTE: THE RED WIRE FROM EACH ZONE ANNUNCIATOR MAY BE CONNECTED TO EITHER...
Page 8: External Status Description
EXTERNAL STATUS OUTPUT DESCRIPTION ANNUNCIATE- WHEN ANY ZONE IS VIOLATED THE ANNUNCIATE OUPUT TURNS “ON”. WHEN THE AUDIBLE SIGNAL IS SILENCED THE ANNNICATE OUTPUT WILL TURN “OFF”. BYPASS- THE BYPASS OUTPUT WILL TURN “ON” WHEN ANY ZONE IS BYPASSED. THE BYPASS OUTPUT WILL TURN “OFF”...
Page 9: Specifications
INPUT: 12 V.A.C., 20 VA., CLASS 2 PLUG-IN TRANSFORMER, (ACC P/N BE12V20) STANDBY: 12 VOLT, 4 A.H. RECHARGEABLE BATTERY, (YUASA P/N NP4-12) POWER CONSUMPTION ZAC-32 ZONE PROCESSOR: 30 MA. ZAR-32 REMOTE ANNUNCIATOR: 25 MA. MINIMUM, 150 MA. MAXIMUM POWER OUTPUT ANNUNCIATOR OUTPUT: 10 V.D.C.
Page 10: Fcc Compliance
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE OR USE, AND IN NO EVENT SHALL ALARM CONTROLS CORPORATION BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES AS SAME ARE DEFINED IN THE UNIFORM COMMERCIAL CODE.
Page 12 II. THE ZONE PROCESSOR THE ZAC-32 HAS 32 ZONES. EACH ZONE IS INDEPENDENT IN OPERATION. WHEN A ZONE IS VIOLATED THE ZONE INDICATOR AND THE AUDIBLE SIGNAL WILL TURN ON AND ZONE MEMORY WILL BE SET. IF THE VIOLATED ZONE IS RESTORED BEFORE IT IS ACKNOWLEDGED THE ZONE INDICATOR WILL REMAIN ON.
Page 13 BYPASS CONTROL CODE FUNCTION ZONE BYPASS ON ZONE BYPASS OFF TO ENTER A SYSTEM CONTROL FUNCTION CODE 1. LOAD VALID FOUR DIGIT ACCESS CODE, THEN PRESS #,(POUND), KEY TO ENTER CODE 2. ENTER THE SELECTED FUNCTION CODE, THEN PRESS #,(POUND), KEY TO ENTER CODE TO ENTER A BYPASS CONTROL FUNCTION CODE 1.
Page 14 TO OPERATE SYSTEM TEST 1. ENTER A VALID FOUR DIGIT ACCESS CODE, THEN PRESS # ,(POUND),KEY TO ENTER 2. PRESS KEY 4 3. PRESS #,(POUND), KEY TO EXECUTE ALL ZONE AND SYSTEM INDICATORS WILL TURN ON. AC POWER WILL BE DISCONNECTED AND THE AUDIBLE SIGNAL WILL SOUND.
Page 15 ZAC-32 PROGRAMMED INFORMATION PROM # 111 A. ACCESS CODES ACCESS ID NUMBER ACCESS CODE 1865 9506 5198 7357 9274 4742 2645 2405 7928 9258 8296 8320 9078 9536 8878 4530 B. ZONE DESIGNATIONS STANDARD ZONES # 1 - 24 DAY ZONES...
