Summary of Contents for System Audio SubElectro 175

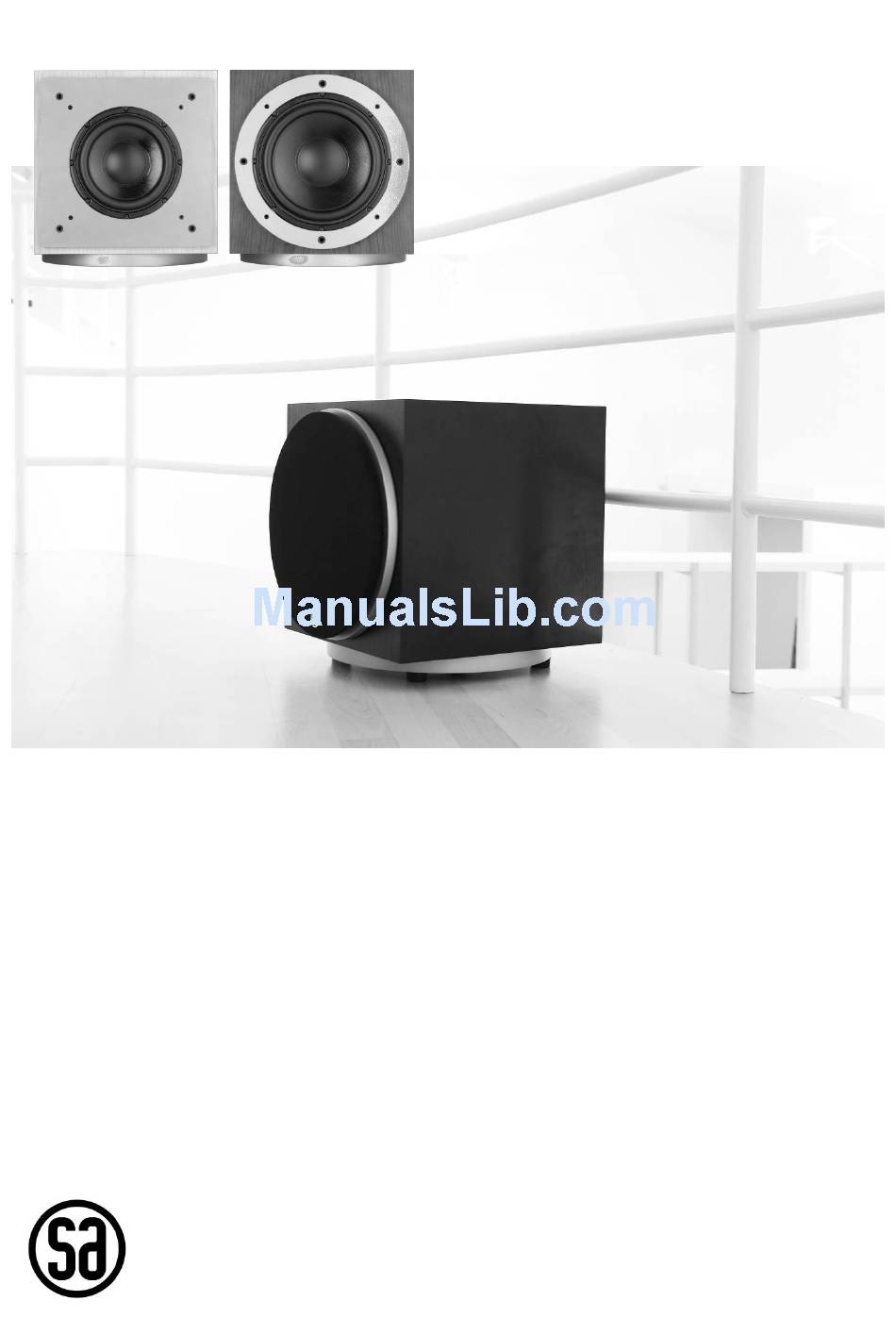

- Page 1 SubElectro 175 SubElectro 200 manual brugsanvisning english dansk 2010...
- Page 2 System Audio A/S provides a two-year guarantee against production defects and a five-year guarantee on the subwoofer element. The guarantee does not cover misuse. Repairs and service are done by the dealer or an associated workshop. Any changes made to the construction will annul the guarantee.
- Page 3 Indicator for on/off/standby Indikator for tænd/sluk/standby Volume control Styrkeregulering Crossover frequency adjust Delefrekvens justering Input for line signal. Left + Right Indgangsbøsninger for liniesignal. Venstre + højte Off/On selector with auto function Tænd/sluk omskifter med automatic function Phase switch Fase omskifter Speaker high level input right channel + &...
- Page 4 ”OFF” an SA SubElectro 175/200 can be connected in several ways, dependent on the system and the nature of the use. Here are some of the options. If you are in any doubt, contact your dealer or System Audio A/S on info@system-audio.com tilslutning Inden tilslutning skal anlæggets forstærker/receiver/dekoder være slukket...
- Page 5 fig. B connection – stereo with PREOUT (or line out) stereo pre-amplifiers and individual integrated amplifiers have volume-regulated line output sockets. They are usually marked PRE- OUT and are also suitable for connecting a subwoofer. See figure C. tilslutning – stereo med PRE OUT stereo forforstærkere og enkelte integrerede forstærkere er forsynet med en volumereguleret linieudgang.
- Page 6 – stereo via speaker cables If the system’s amplifier/receiver does not have a subwoofer output, SubElectro 175/200 can be connected via speaker cables and, in that sense, be inserted between the amplifier and loudspeakers. See figure D. tilslutning – stereo via højttalerkabler Hvis anlæggets forstærker/receiver ikke har en subwoofer udgang kan SubElectro 175/200 tilsluttes via højttalerkabler, og på...
- Page 7 tænd og sluk Tænd/sluk omskifteren (fig. A 5) afbryder ikke helt for subwooferens forstærker. Et lille kredsløb vil have et lavt forbrug. Skal forstærkeren afbrydes helt fra nettet, stilles hovedafbryderen (fig. A 11) til ”OFF”. power-omskifteren (fig. A 5) har tre stillinger: med omskifteren i denne position er subwooferen aktiv, og indikatoren lyser rødt.
- Page 8 SubElectro 175/200 is made of MDF and has a genuine wood surface protected by cabinet varnish. Clean the surface with a firmly wrung damp cloth. Do not use detergent as it may damage the varnish. If the rear of the subwoofer has to be cleaned, the electricity must be turned off.
