www.videolarm.com

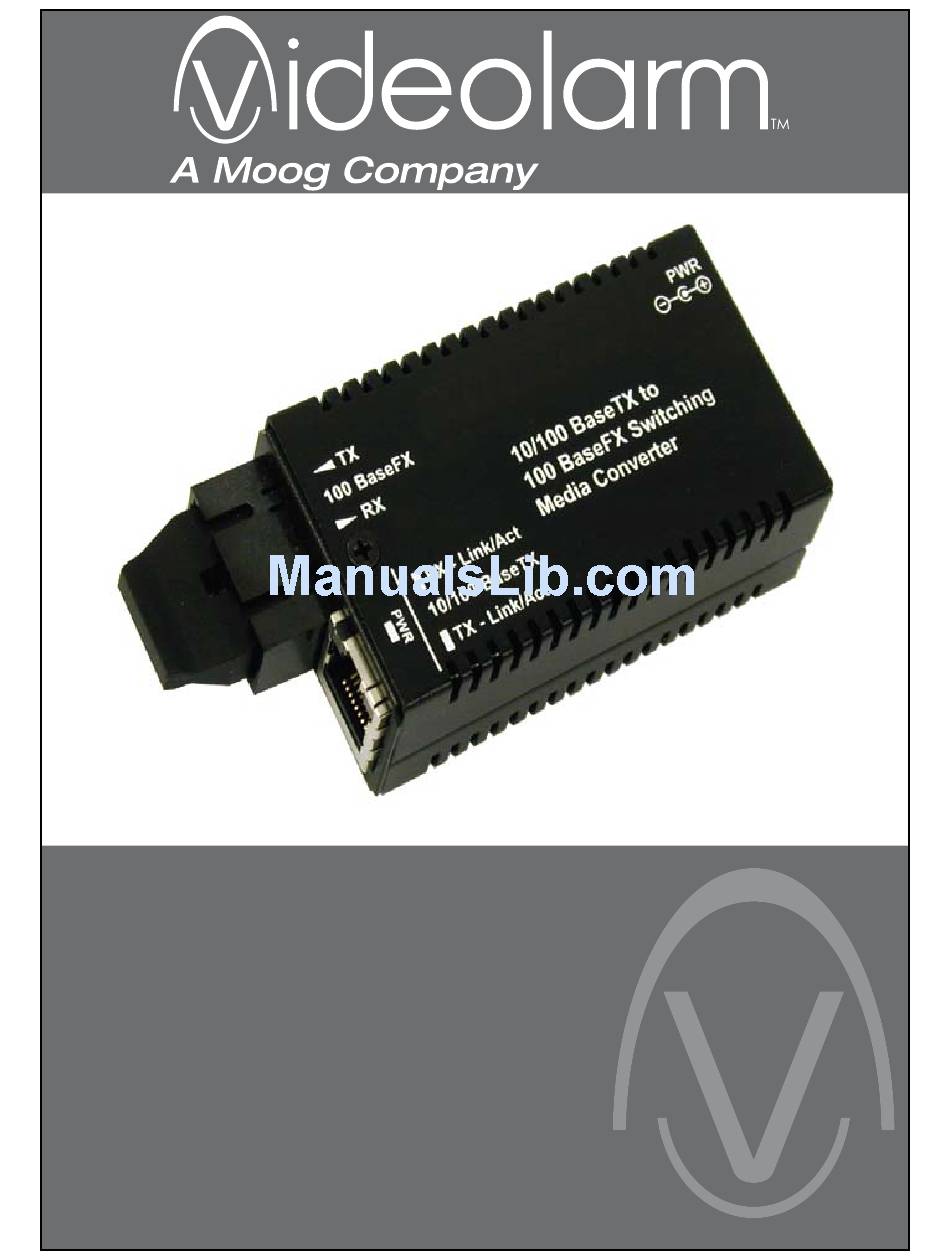

E O F 2 N
Stand-Alone Media Converter for IP Ready, SView, CCTV Pole,
and PolEvator
Installation and Operation Instructions for the following models:
EOF2N
Mini-media converter, Ethernet over multi-media fiber, SC connector, power
supply included.
• Copper to Fiber
• 10/100Base-TX to 100Base-FX
B e fo r e a t t e m p t i n g t o c o n n e c t o r o p e r a t e t h i s p r o d u c t ,
p l e a s e r e a d t h e s e i n s t r u c t i o n s c o m p l e t e l y.
81-IN5407
01-29-2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EOF2N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moog Videolarm EOF2N

  • Page 1 E O F 2 N Stand-Alone Media Converter for IP Ready, SView, CCTV Pole, and PolEvator Installation and Operation Instructions for the following models: EOF2N Mini-media converter, Ethernet over multi-media fiber, SC connector, power supply included. • Copper to Fiber • 10/100Base-TX to 100Base-FX 81-IN5407 B e fo r e a t t e m p t i n g t o c o n n e c t o r o p e r a t e t h i s p r o d u c t , p l e a s e r e a d t h e s e i n s t r u c t i o n s c o m p l e t e l y.
  • Page 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE Do not block any of the ventilation openings.
  • Page 3 LIMITED WARRANTY FOR VIDEOLARM INC. PRODUCTS VIDEOLARM INC. warrants this Product to be free from defects in material or workmanship,as follows: PRODUCTCATEGORY PARTS LABOR All Enclosures and Electronics Five (5) Years Five (5) Years Pan/Tilts Three (3) Years **6 months if used in autoscan Three (3) Years **6 months if used in autoscan /tour operation /tour operation...

  • Page 4: Electrostatic Discharge (Esd)

    Electrostatic Discharge (ESD) Always observe the following ESD precautions when installing or handing the EOF2N media converter: • Do not remove the converter from its protective packaging until you are ready to install it. • Wear an ESD wrist grounding strap before handling any module or component. If you do not have a wrist strap, maintain grounded contct with the system unit throughout any procedure requiring ESD protection.

  • Page 5: Connect The Fiber Cable

    2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the EOF2N media converter. 3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on the other device (switch, workstation, etc.).

  • Page 6: Powering The Media Converter

    Powering the media converter The power options for the EOF2N media converter are product dependent. The following shows the power configuration. EOF2N EOF2N Back Panel Power Barrel Connector 5 - 50 VDC Back Panel Power adapter AC power 1. Connect the barrel connector of the power adapter to the media converter’s power port ( located on the back panel of the media converter).

  • Page 7: Product Features

    Product features Congestion reduction The EOF2N media converter do not forward collision signals or error packets from one collision domain to another, resulting in improvements in baseline network performance. In addition, the media converter filters packets destined for local devices, which reduces network congestion also.

  • Page 8: Automatic Link Restoration

    Negotiation and Link Pass-through ( both directions) enabled. Full-Duplex flow control In a full-duplex network, the maximum cable lengths are determined by the type of cables used for EOF2N cable specifications. The 512-Bit Rule does not apply in a full-duplex network.

  • Page 9: Fiber Cable

    (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm EOF2N EOF2N 1300 nm multimode Fiber-Optic Transmitter Power: min: -19.0 dBm max: - 14.0 dBm Fiber-Optic Receiver Sensitivity: min: - 30.0 dBm max: - 14.0 dBm The fiber optic transmitters on this device meet Class I Laser safety requirements per IEC-825/CDRH standards and comply with 21 CFR1040.10 and 21CFR1040.11.

  • Page 10: Troubleshooting

    Note the following: • The EOF2N ( no link pass-through option ), the TX LED will turn ON when the twisted pair copper cable is installed; the FX LED will turn ON when the fiber cable is installed. Are the “TX and FX-Link/ ACT” LEDs illuminated on the RJ-45 port? •...

  • Page 11: Product Registration/Warranty

    Product Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second-to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products by offering some of the most impressive warranty plans available: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on all camera systems (SView, QView, Warriors), and InfraRed Illuminators.
