Gedge Systems GS8920 Operating & Installation Manual

Intelligent ticket printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

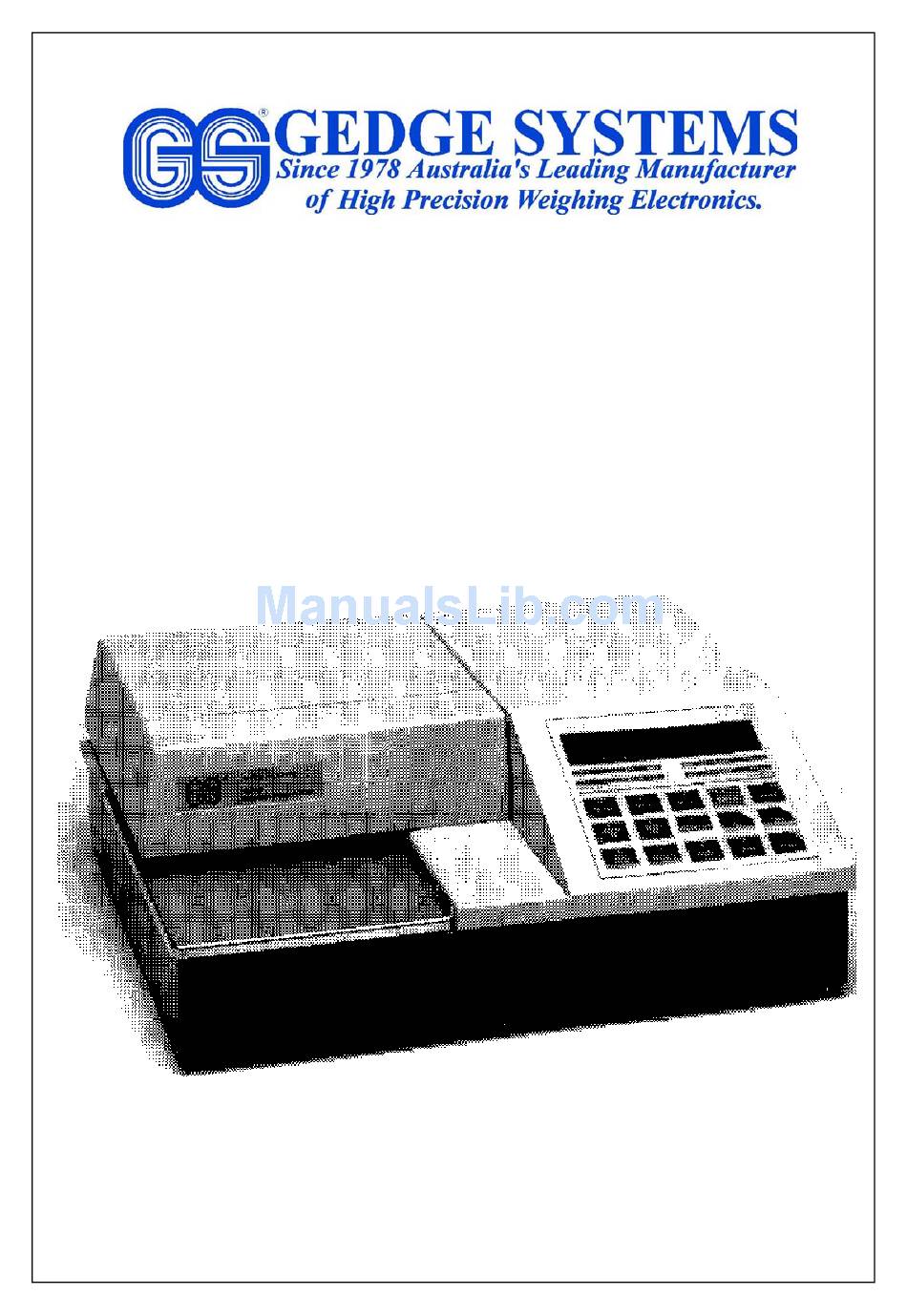

GS8920 Intelligent Ticket Printer.
GS8920 IN TEL LI GENT TICKET PRINTER
OP ER ATING & IN STAL LA TION MAN UAL.
488 Church Street, Rich mond, Vic to ria 3121 Aus tra lia
Phone: +61 3 9429 8396 Fax: +61 3 9429 8097
Email: inf@gedgesystems.com.au
Issue 05
Copyright 2006 Gedge Systems.
GS Systems Pty Ltd A.C.N. 005 647 209

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS8920 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gedge Systems GS8920

  • Page 1 GS8920 Intelligent Ticket Printer. GS8920 IN TEL LI GENT TICKET PRINTER OP ER ATING & IN STAL LA TION MAN UAL. 488 Church Street, Rich mond, Vic to ria 3121 Aus tra lia Phone: +61 3 9429 8396 Fax: +61 3 9429 8097 Email: inf@gedgesystems.com.au...
  • Page 2 Version SA2.0 or higher on power up are YEAR 2000 COMPLIANT. To ensure year 2000 compliance, these GS8920 Printers ONLY print the time and date using an internally fitted Option BR2 time and date chip. Time and date data is no longer accepted from weight indicators connected to the GS8920.
  • Page 3 2. Select the weight indicators C3 serial output with beg/end and block divide characters number 06. 3. Connect the GS8920 Printer to the GS weight indicator using the interconnecting cable provided, apply power and start accumulating weight ! ( No messy switches and internal settings to worry about !) The...
  • Page 4 All metal enclosure. 1 Interlock Input to allow lockout of functions NOT requiring operator access. 1 Sealable Input to lock out access to the GS8920’s set up parameters. User initiated print test at power up. Optional BR2 internal calendar/clock and expanded RAM for item entry and counting.
  • Page 5 Completely Automatic RS-232C or 20mA Current Loop input selection as well as Baud rate and parity bit setting at power up. No need to EVER set the baud rate or parity setting. Full Digital Setup using the front panel keyboard. Access to the inside of the GS8920 is NOT required.

  • Page 6: Table Of Contents

    TO TALS/7 Key. FEED/8 Key. SUM/9 Key. PRINT Key. AC Key. TARE Key. ENTER Key. CLEAR Key. 1 .3 The Mean ing of the GS8920’s Prompt and Er ror Mes sages. 1 .3 .1 Prompt mes sages. COPY PAPEr —— -Errt- -Locd-...
  • Page 7 -Err08- -Err09- -Err10- -Err11- -Err12- 1 .4 The GS8920’s Ma jor Day to Day Func tions and How to Use Them.1-9 1 .4 .1 In tro duc tion 1 .4 .2 En tering and Print ing ID Num bers. 1-10 1 .4 .3...
  • Page 8 1 .6 .3 .2 Print ing the Ac cu mu la tor To tals 1-38 1 .7 Ap plying Power to the GS8920. 1-40 1 .7 .1 The GS8920’s Dis play Mes sages When Power is Ap plied. 1-40 Pt0.0bt 1-40 888888 1-40...
  • Page 9 2 .4 .3 .29 Au to matic Print. 2 .4 .3 .30 Re mote Print 2 .5 Con necting the GS8920 to Dig i tal Weight In di ca tors. 2 .5 .1 Se rial Data In put. 2 .5 .1 .1 Con necting the GS8920 to Sev eral Weight In di ca tors.

  • Page 10: A Description And Overview Of The Gs8920

    The GS8920 Ticket Printer may be connected to virtually any number of digital weight indicators via a low cost multi - pole switch. The GS8920 includes software which allows simple switching of the serial input line without causing an operational failure of the GS8920. Additionally, the GS8920 Ticket Printer includes the indicator’s device number on the printed ticket and so allows the scale from...

  • Page 11: Physical Description

    GS8920 Intelligent Ticket Printer. As an option and a further security measure, the GS8920 Ticket Printer may be fitted with a serial output board, which, when connected to the user’s printer, will produce a copy of every printout as the GS8920 prints them.

  • Page 12: The Gs8920'S Mem Ory Reg Is Ters

    GS8920 Intelligent Ticket Printer. A .2 The GS8920’s Mem ory Reg is ters. A .2 .1 Introduction. The GS8920 Ticket Printer includes, in its basic configuration, 8K bytes of battery supported memory, a part of which is 50 Accumulator Registers.
  • Page 13 In addition to the retained ID number held in the ID register, the weight transaction GS8920 is able to print up to a further nine 6 digit ID numbers. printouts. These ID numbers are entered and printed but not saved. During digital setup, the GS8920 can be configured to print up to the first Fig.A-6 ID Number Register.
  • Page 14 If Option BR2 is fitted and the GS8920’s item entry feature is being used, then the item’s quantity, total price and total weight are also added to the selected 6 digit Code.
  • Page 15 One alpha/numeric name table containing up to 50 names each of 12 characters which may be entered via the GS8920’s keyboard. Each name in the table has a reference number 1 to 50. When the number 1 to 50 is used as the material Any name may be assigned to any code for any of the accumulators the material’s...
  • Page 16 GS8920’s interlock input. Fig.A-10 Security Register (SEC REG). Reference to quantity and price applies only if the GS8920’s item entry facility is enabled by fitment of Option BR2.

  • Page 17: Ac Cu Mu La Tors (Ac

    The accumulator and tare memory registers are essential to the useful operation of the GS8920 Ticket Printer. While the GS8920 has 50 accumulator registers and 50 tare registers, only one of each is kept open at any one time. The GS8920 uses only the active accumulator or active tare register for its ticket operations.

  • Page 18: Weight Data In Put To The Gs8920

    The GS8920 completely automatically determines if the transmission is RS - 232C or 20mA Current Loop as well as the baud rate and parity setting. While it is doing this the GS8920 displays messages to enable the user to verify the serial input characteristics.

  • Page 19: Weight Data Message String

    “F0" in the date setup of the Indicator. See page 3.3 for details of the Time and Date Option for the GS8920.

  • Page 20: Using The Gs8920 Ticket Printer

    The GS8920 ticket printer includes an input line which may be used in conjunction with a user’s key switch to interlock access to certain of the GS8920’s ticket printing and setup facilities.

  • Page 21: Display And Lamps

    GS8920 Intelligent Ticket Printer. 1 .2 .2 Display and Lamps. The GS8920 printer front panel contains a 6 digit display plus 2 sets of four lamps. One group of lamps identifies the information in the GS8920’s display window, the other group identifies the printer’s...

  • Page 22: The Gs8920'S Normal Operating Mode

    Any 6 digit ID number may now be keyed in. Operating the key while entering an ID number will cause the ID number in the display to be placed in the GS8920’s print buffer for inclusion at the -Id x- top of the next printed ticket.

  • Page 23: Code Wt/5 Key

    A complete weight ticket is then printed. If the GS8920 has been set up for parts counting and item entry, then the quantity and price per unit weight will need to be entered prior to the GS8920 printing a ticket. After the ticket is printed, the tare register is cleared. Used also as numeral 4.

  • Page 24: Feed/8 Key

    . The summed weight can PRINT be placed in the GS8920’s print buffer for later printing on a ticket by keying The summed weight is used in place of the indicator’s gross weight when a ticket is printed in response...

  • Page 25: The Mean Ing Of The Gs8920'S Prompt And Er Ror Mes Sages

    CLEAR operation. Pressing will immediately return the GS8920 to normal operation without having to wait 30 seconds. The GS8920 may be set up on installation to print 1, 2 or 3 copies. Each PRINT copy requires an operation of the...
  • Page 26 —nr— Not Ready. The GS8920 is waiting for a set of weight data from the weight indicator. The GS8920 will make 5 attempts to obtain a good set of weight data and if at each attempt the data was not received within 2 seconds the GS8920 will first attempt to recalibrate itself to the serial input being sent by the weight indicator.
  • Page 27 Recheck the serial transmission rate settings on the indicator serial output board to ensure that they are any one of the following and reset the GS8920 to try again. (600, 1200, 2400, 4800, 9600, 19200 baud) -Err02- Error 2.
  • Page 28 ( WARNING - do not forcefully remove a ticket from the GS8920 printer. The pinch rollers which grip the ticket may be opened by depressing the lever in the location shown. The lever is identified by an arrow and is located adjacent to the ticket sensor.
  • Page 29 The GS8920 has one permanent ID number register and 9 temporary ID registers. The permanent ID number, which may be entered at any time, is retained in memory and always printed at the top of a ticket. The temporary ID numbers are not retained in memory but are loaded into the GS8920’s print PRINT buffer when the key is operated.
  • Page 30 . Either now key to return the GS8920 to its normal operating mode or use the GS8920’s numeral keys to enter an ID number. The ID number may be permanently saved by keying ENTER following which the GS8920 returns to its normal operating mode, or, the number may be PRINT placed into the GS8920’s print buffer by keying...
  • Page 31 GS8920 Intelligent Ticket Printer. 1 .4 .3 Selecting an Accumulator. The GS8920 saves each weight transaction to the currently active accumulator whose number and description appear on all printed tickets. An accumulator is selected and made active by keying to display the currently active accumulator’s number, then keying the number for the new accumulator within 10 seconds, followed...
  • Page 32 Fig.1-6 Enter a Material Code. Changes to the GS8920’s Material Code Numbers and Name Reference Numbers may be locked out by the installation of a remote key switch. If access has been locked out, then the GS8920 will display -Locd- on any attempt to change the accumulator’s code number.
  • Page 33 1 .4 .5 Selecting a Tare Register. If the GS8920’s key tare facility was enabled during installation then the GS8920 will use the tare weight from its currently active tare register instead of the tare weight provided by the weight indicator.
  • Page 34 1 .4 .6 Entering a Tare Weight via the GS8920 Keyboard. The GS8920 will store up to fifty 6 digit tare weights each of which is accessed by reference to its tare register number in the range 1 to 50. The stored tare weight belonging to the currently active tare...
  • Page 35 Fig.1-9 Add to an Accumulator. If the GS8920’s stored tare is to be used, then the tare register should be selected before operating the AC + AC - keys.
  • Page 36 Fig.1-10 Weigh In. The weight used for the “weigh in” ticket can either come directly from the weight indicator as its gross weight or it can have been built up by “end to end” weighing using the GS8920’s summing facility.
  • Page 37 “weigh in” or it can be printed upon a new ticket. In any event, the GS8920 will have been set up during installation to provide the correct line feeds for proper placement of the information upon the ticket without overwriting the “weigh in”...
  • Page 38 GS8920 Intelligent Ticket Printer. Additionally, the GS8920’s item entry and counting facility may be in use. In this event, the item’s quantity and unit price or unit weight and unit price will require entry following operation of the WEIGH OUT key.
  • Page 39 The contents of the Security Register. The GS8920 will automatically ask for a new sheet of paper as it fills each with data and it will also number each page so that the proper sequence for the data is retained.
  • Page 40 It will also number each page so that the proper sequence for the data is retained. The GS8920 has a remote interlock facility that may be used to prevent clearing of the contents of the -Locd- accumulators and Security Register.
  • Page 41 Option BR2. If the item entry facility is active, then the GS8920 will ask for the quantity and price data whenever a ticket is printed. In addition, the quantity and price data will be added to the active accumulator and to the Security Register.
  • Page 42 GS8920 will resume normal operation WITHOUT printing a ticket. If a key is NOT operated for a continuous period of 60 seconds then the GS8920 will automatically return to its normal mode without printing a ticket.
  • Page 43 GS8920 Intelligent Ticket Printer. Fig.1-14 Item Entry and Pricing. 1-24...
  • Page 44 The GS8920’s memory has space allocated for up to 50 alpha/numeric general purpose names each of 12 characters long. Any of these 50 names may be assigned as descriptions to any of the GS8920’s 50 accumulators. It is not necessary to assign name number 10 to accumulator 10. Name number 10 may, for example, be assigned to accumulators 1, 7, 23, 45 and 50: or, to just one accumulator, say 19.
  • Page 45 The numbers 101 to 151 have a special use. They are never actually saved as a material code number but they are entered in the same way as a code number and they are used to access the GS8920’s alpha name table routines.
  • Page 46 This key does not list the accumulated weights. 1 .5 .7 Listing all of the Alpha Names in Memory. To list all of the names in the GS8920’s Alpha Name table first access the alpha name routines by ENTER entering any code number in the range 101 to 150.
  • Page 47 GS8920 Intelligent Ticket Printer. Name Entry Key summary :- ENTER to go to next character. to go to previous character. CLEAR to save the name and resume normal operations. PRINT to print the name being entered. Fig.1-15 Alpha Name Entry Form.
  • Page 48 GS8920 Intelligent Ticket Printer. 1 .6 Ex am ples of the GS8920’s Tickets and Lists. 1 .6 .1 Enhanced Printing and Zero Suppression The GS8920 may be set up at installation to print all normal characters from 1.6mm high to 3.6mm high by 1.6mm wide with an interline...
  • Page 49 1 .6 .2 Tickets Printed when Accumulating a Weight. All of the following examples add a weight to the active accumulator. The GS8920 Ticket Printer can be set up to operate in a variety of ways and these examples illustrate some of them.
  • Page 50 In this example the gross weight is from the digital weight indicator and the tare weight from one of the GS8920’s 50 tare registers. The net weight is computed by the GS8920 Ticket Printer and a ticket is printed. The weights are added to the active accumulator.
  • Page 51 The net weight is computed by the GS8920 Ticket Printer and a ticket is printed. In addition, the GS8920’s Item Entry facility is active and so the number of items as well as the price per unit weight were entered.
  • Page 52 This can be accomplished using the GS8920’s summation capability. The truck is fully laden and its tare weight will be entered via the GS8920’s keyboard from information printed on the side of the truck. The ticket printout setup is the same as the preceding example.
  • Page 53 A truck arrives at the weighbridge fully laden. Since the truck is being weighed in, no information need be entered into the GS8920 Ticket Printer. ID numbers may be used to keep track of the truck’s registration number and any other useful information.
  • Page 54 Depending upon the way in which the GS8920 was installed, the “weigh out” ticket will be printed on the same ticket as the “weigh in” ticket with the GS8920 automatically advancing the ticket to the correct location, or the “weigh out”...
  • Page 55 If all of the weights are not required then only the gross or only the net weight may be printed. The GS8920 can even be setup so as NOT to print a ticket at all.
  • Page 56 GS8920 Intelligent Ticket Printer. 1 .6 .3 Printing Totals 1 .6 .3 .1 Printing the Security Register Totals. The security registers contents are printed whenever the security register is cleared. They are also printed on keying SEC REG following the PRINT key.
  • Page 57 GS8920 Intelligent Ticket Printer. 1 .6 .3 .2 Printing the Accumulator Totals The weights in the active accumulator will be printed out whenever the key AC is operated following the PRINT key. The weights in all of the accumulators are printed together with a total whenever the accumulators are cleared and whenever TOTALS is keyed following the PRINT key.
  • Page 58 GS8920 Intelligent Ticket Printer. Ticket print out for All ac cu mu la tors. Key strokes are:- page01 PRINT, TO TALS Ajax Meat Co Melbourne ————————————— Active Accumulators :- Page numbering and page headers. 24-02-90 16:50 dn39 ————————————— Printout time and date.
  • Page 59 1 .7 .1 The GS8920’s Display Messages When Power is Applied. When power is applied, the GS8920 takes only 3 seconds to display the sign on messages and a further 3 seconds to automatically calibrate itself to the serial input from a properly functioning weight indicator.
  • Page 60 U6 IMMEDIATELY.” The battery and RAM in the basic GS8920 identified as U6 are one integral 8K * 8 non - volatile static RAM chip Thomson model MK48Z08B - 20 having an expected life of 10 - 20 years when used in the GS8920 Ticket Printer.
  • Page 61 Ensure that the ribbon does not become twisted and that the ribbon is retensioned at completion of its installation. 5. Replace the GS8920’s printer mechanism cover. Insert a sample ticket and test the GS8920 Printer PRINT by removing then applying power while the holding the key depressed.
  • Page 62 Ticket Layout Drawing. The ticket may be single, double or triple copy construction provided that it does not exceed a maximum thickness of 0.35mm. The GS8920 may be set up on installation to produce up to 3 copies plus one original of each ticket. ( Does not apply to list printouts).
  • Page 63 P1 is installed, section 3 ”OPTIONS“. 2 .2 In stal la tion Steps. Following is a check list of the steps required for the installation of the GS8920 Ticket Printer. Unpack GS8920 Ticket Printer. Check the supply voltage. (Unpacking, 2.3) Install options.
  • Page 64 GS8920 Intelligent Ticket Printer. The GS8920’s keys are then used to step through the digital setup table and to make selections. When WEIGH IN finished, the key is pressed to save the settings and resume normal operation. The GS8920’s keys which are used for digital setup and for setting the time and date follow. They are identified with a label which denotes their setup function, an example being “DS”...
  • Page 65 GS8920 Intelligent Ticket Printer. 2 .4 .3 Digital Setup Parameters. Digital setup is used to give the GS8920 Ticket Printer its operating identity. During digital setup the GS8920 Ticket Printer displays easy to remember symbols for each parameter and in most cases the actual setting value.
  • Page 66 2 2 .4 .3 .3 Decimals, Average Weight. The number of decimal places from 0 to 5 in the average weight which is calculated by the GS8920. To ensure no degradation in precision, the GS8920 will AUTOMATICALLY use this parameters setting if it has more decimal places than the input weight from the weight indicator.
  • Page 67 NEVER the result of using the Gross weight from the indicator and the Tare weight from the GS8920. If the GS8920 is set up to print only Net or only Gross then the key tare parameter should be turned off to prevent the confusion of a tare register number being printed on the ticket.
  • Page 68 In addition to being able to print normal characters in heights which may be set from 1.6mm to 3.6mm, the GS8920 can enhance the printed weights and/or the ID number in any 1 of 4 sizes. They may be printed normal size, double normal height, double normal wide or double normal wide/double high. In...
  • Page 69 2 .4 .3 .18 Side Margin. The GS8920 normally starts a line of 24 printed characters fully to the left or fully to the right of its 35 character print head. The location of left or right is set up by the line justification parameter above.
  • Page 70 GS8920 Intelligent Ticket Printer. EJ bA 2 .4 .3 .24 Eject Ticket The GS8920 may be set up to eject a printed ticket to the front or back when printing is completed. Adjustable or eject to front or back Tare en try from Key board or In di ca tor :- tE 80 2 .4 .3 .25 Tare Entry.
  • Page 71 2 .4 .3 .28 AC+/- Print The GS8920 may be setup to create a ticket printout in response to a AC+ or AC- command on its front mounted printer and its serial output or to create the ticket printout on one or the other of these or on none of these.
  • Page 72 The parity setting, if available, is made via the digital indicator’s “Digital setup” and may be EVEN, ODD, always 1 or always 0. The GS8920 will use EVEN parity if it is detected otherwise the GS8920 sets itself to ignore the parity bit and to send data with the parity bit set to Zero. ( ie b7 = 0 ) 2 .5 .1 .3 Connection to Toledo Weight Indicators.
  • Page 73 3. If only the net weight is to be printed, then the GS8920 should be set up to print only the net weight and the weight indicator should always display the net weight. The GS8920 will assume that the weight received from the indicator is the net weight even if it is the gross weight and a weighing error can occure unless the installation personnel lock out access to the gross weight display on the A&D...
  • Page 74 GS8920’s digital setup may be denied to unauthorized personnel by the installation of a remotely mounted keyswitch connected to pins 7 and 9 of the GS8920’s 9 pin input connector. A closed condition is required to lock out access to these functions. An open condition or removal of the 9 pin connector will allow access to these functions.
  • Page 75 The table below shows the availability of time and date as well as device numbering on the serial output of Gedge Systems weight indicators. Time and Date as well as a device number is not available for the GS1650P, GS1650T or GS1650S.
  • Page 76 2 .7 Ticket Lay out. The drawing below shows the area in which the GS8920 can be made to print for right of page justification printing with the ticket being drawn into the printer as the ticket is printed. This results in a printout which may have the lines left or right justified but which appears on a wide ticket as either somewhere in the middle or down the right side.
  • Page 77 GS8920 automatically and correctly locates the printing in accordance with all the other location parameters. The range of printout forms available from the GS8920 Ticket Printer is very extensive. Sample printouts of the ACTUAL applications setup should therefore be obtained before printing standard ticket stationery.
  • Page 78 The data is transmitted at the same time as the GS8920 generates a printout on its printer mechanism. Since the data to be printed on the GS8920’s mechanism may be buffered with all the data sent first to the remote printer, and since handshake lines and/or codes are not used, the remote printer must have a buffer capable of receiving all of the data.
  • Page 79 The GS8920 Ticket Printer automatically detects the serial output option P1. No changes are required to any of the GS8920’s digital setup parameters upon installation of Option P1, but note, the baud rate and parity settings for the serial input to the GS8920 Ticket Printer will also apply to the GS8920’s serial output.
  • Page 80 3 .3 Fac tory In stalled Cal en dar/Clock and Item En try Op tion BR2. 3 .3 .1 General. The GS8920’s extensive range of printed outputs may be enhanced by the inclusion of time and date. Additionally, the GS8920’s usefulness can be expanded substantially by the addition of an item price entry and piece counting facility.
  • Page 81 At this point the GS8920 will continue to show the time. This can be used to verify that the clock is running by observing the seconds as they change.

  • Page 82: Technical Specification

    A max i mum of 3 in clud ing the orig i nal not in clud ing the GS8920’s re peat print fa cil ity which pro vides up to an ad di tional 4 cop ies of orig i nals.
  • Page 83 Baud Rate :- 600 to 19,200 bits per sec ond au to mat i cally de tected by the GS8920. Par ity :- Even or none au to mat i cally de tected by the GS8920.
  • Page 84 GS8920 Ticket Printer. Spec ify mains volt age and if re quired, Op tion BR2 . If the GS8920 is to be con nected to a To ledo weight in di ca tor, check the avail abil ity of that fa cil ity in the GS8920’s de liv ered to your coun try.
  • Page 85 GS8920 Intelligent Ticket Printer. 5 WARRANTY 5 .1 Def i ni tion. In the fol low ing, Buyer shall mean the orig i nal pur chaser of the equip ment sup plied by Gedge Sys tems. Seller shall mean Gedge Sys tems, the man u fac turer of the equip ment.
