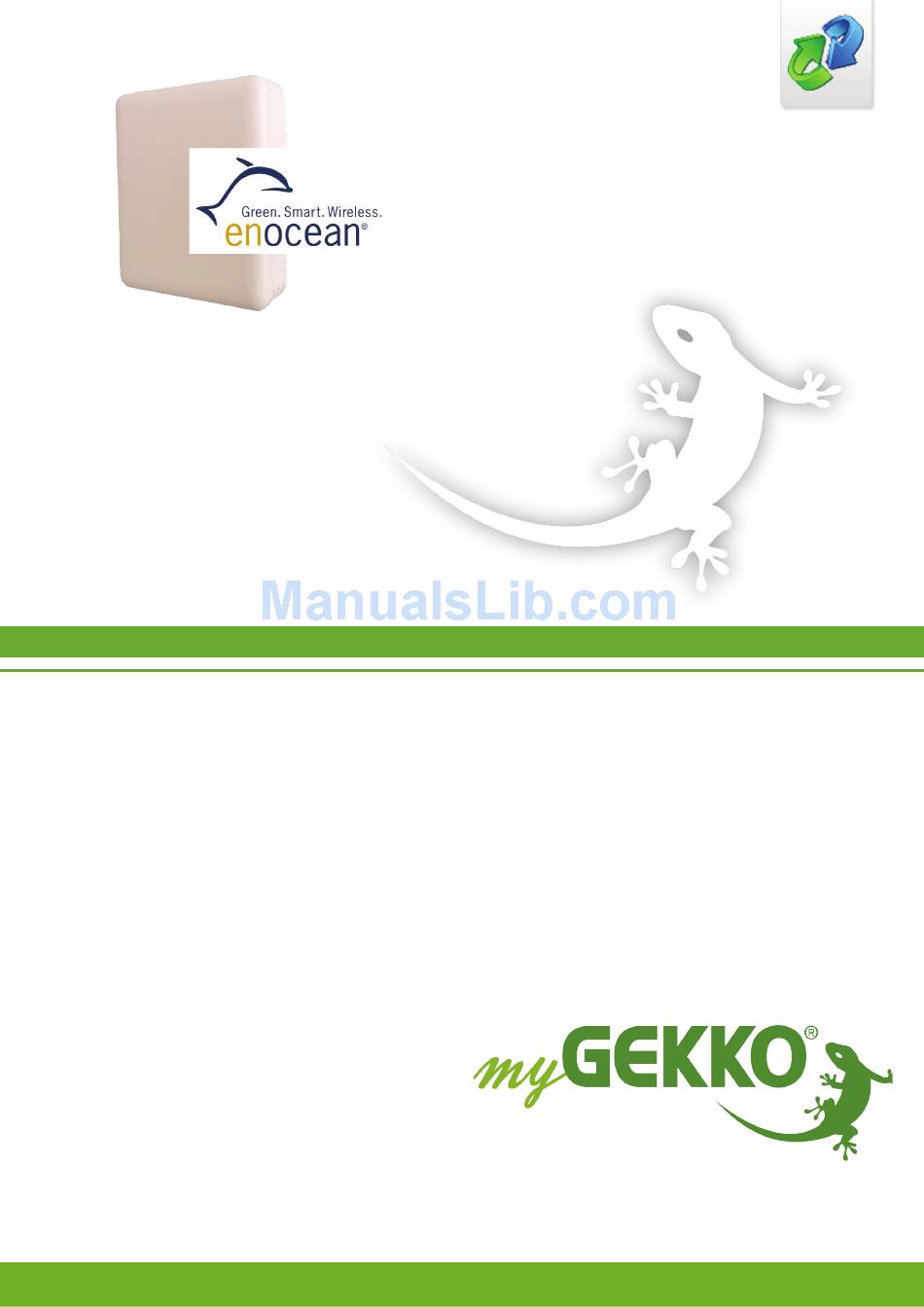

- Page 1 & User Manual EnOcean V 0.1...
- Page 2 ® ® Last update: July 2012 All software-related descriptions refer to the software V1279. We recommend to update older versions of the system. Small deviations in the description because of software changes are possible. All listed brands and logos are registered trademarks of their respective owners. Copyright All rights reserved.
- Page 3 Table of Content 1. Electrical outlet ............. 4 2.
-
Page 4: Electrical Outlet
1. Electrical outlet EnOcean Gateway The EnOcean gateway is a serial interface for integrating wireless radio transmitters. EnOcean devices can be connected to the myGEKKO by means of this interface. EnOcean radio modules are based on miniaturised energy converters, extremely power-saving elec- tronics and reliable radio technology. -
Page 5: Connection Details
Baud rate The baud rate is to be set to 57600 on the EnOcean gateway, i.e. jumpers J1 and J2 are not set. Jumper J3 is for setting the terminating resistor. This is set at the last gateway in the line. -
Page 6: Gateway Configuration
Log in as configurator. In the main settings change to IO configuration The EnOcean gateway can be configured to the IO stations 5-8. For this, set the station to En- Ocean. Select the respective port and set the baud rate to 57600. - Page 7 Read-in of radio transmitters Each radio transmitter has a unique ID. This ID has to be taught-in by the gateway or entered manu- ally in the list of participants. Entering participants manually: Usually, an 8-digit ID can be found on the backside of the radio transmitter. This ID can be entered in the list of participants of the myGEKKO.
- Page 8 A first class product of Europe! The result of a close collaboration between Italy, Switzerland and Germany...
