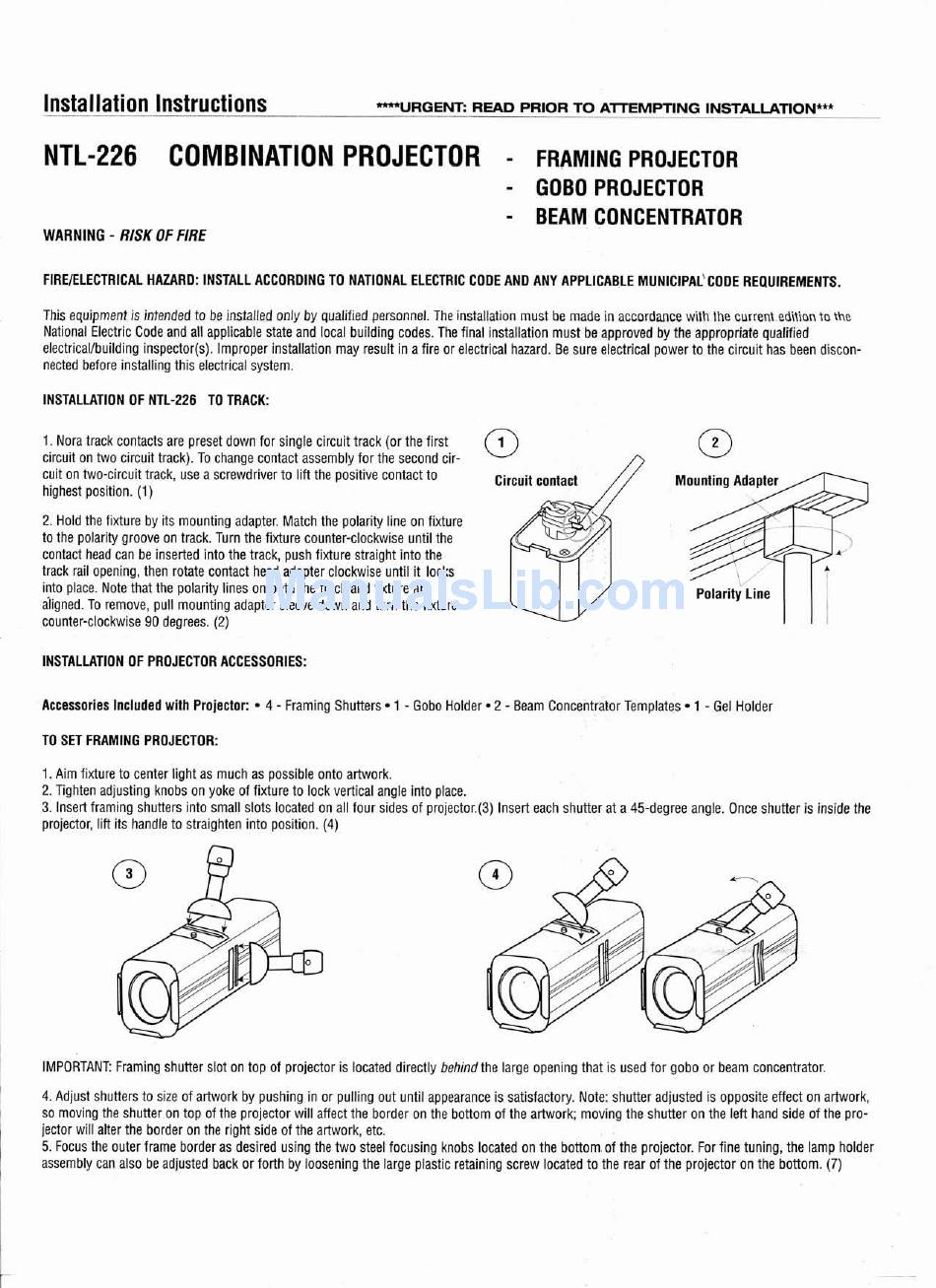

Installation Instructions
****URGENT: READ PRIOR TO ATTEMPTING INSTALLATlON*··
WARNING - RISK OF FIRE
NTl-226 COMBINATION PROJECTOR
FRAMING PROJECTOR
GOBO PROJECTOR
BEAM CONCENTRATOR
FIRE/ElECTRICAL HAZARD: INSTAll ACCORDING TO NATIONAL ELECTRIC CODE AND ANY APPLICABLE MUNICIPAl'CODE REQUIREMENTS.
This equipment is in/ended to be installed Dilly by qualified personnel. The installation must be made in accordance with the current edition \0 'he
National Electric Code and all applicable state and local building codes. The final installation must be approved by the appropriate Qualified
electrical/building inspector(s). Improper installation may result in a fire or electrical hazard. Be sure electrical power to the circuit has been discon-
nected before installing this electrical system.
INSTALLATION OF NTl-226 TO TRACK:
1. Nora track contacts
are
preset down for single circuit track (or the first
0
circuit on two circuit track). To change contact assembly for the second cir-
cuit on two-circuit track, use a screwdriver to lift the positive contact to Circuit contact
highest position. (1)
2. Hold the fixture by its mounting adapter. Match the polarity line on fixture
to the polarity groove on track. Turn the fixture counter-clockwise until the
contact head can be inserted into the track, push fixture straight into the
track rail opening, then rotate contact head adapter clockwise until it locks
into place. Note that the polarity lines on both the track and fixture are
a"ligned. To remove, pull mounting adapter sleeve down and turn the fixture
counter-clockwise 90 degrees. (2)
INSTALLATION OF PROJECTOR ACCESSORIES:
Mounting Adapter
~~
=-----.J)
•
Polarity Line
Accessories Included with Projector: • 4 - Framing Shutters· 1 - Gobo Holder· 2 - Beam Concentralor Templates· 1 • Gel Holder
TO SET FRAMING PROJECTOR:
1. Aim fixture to center light as much as possible onto artwork.
2. Tighten adjusting knobs on yoke of fixture to lock vertical angle into place.
3. Insert framing shutters into small slots located on all four sides of projector.(3) Insert each shutter at a 45-degree angle. Once shutter is inside the
projector, lift its handle to straighten into position. (4)
IMPORTANT: Framing shutter slot on top of projector is located directly behind the large opening that is used for gobo or beam concentrator.
4. Adjust shutters to size of artwork by pushing in or pulling out until appearance is satisfactory. Note: shutter adjusted is opposite effect on artwork,
so moving the shutter on top of the projector will affect the border on the bottom of the artwork; moving the shutter on the left hand side of the pro-
jector will alter the border on the right side of the artwork, etc.
5. Focus the outer frame border as desired using the two steel focusing knobs located on the bottom. of the projector. For fine tuning, the lamp holder
assembly can also be adjusted back or forth by loosening the large plastic retaining screw located to the rear of the projector on the bottom. (7)
