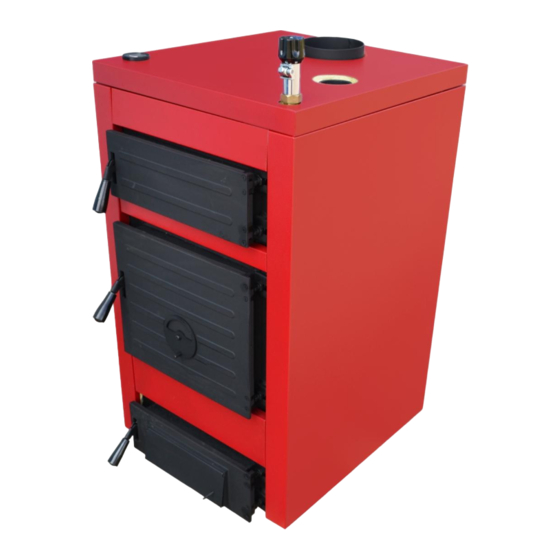

Summary of Contents for FABRIKA SK STR PLUS 25
- Page 1 STR SERIES WOOD AND COAL BOILER INSTALLATION AND MAINTENANCE MANUAL FABRIKA SK S.R.O., PAVLA MUDROŇA 5,01001 ŽILINA SLOVAKIA Tel: +421908 599 938, e-mail:world@fabrikask.sk...
-
Page 2: Ensuring Safety Of Equipment And People
THANK YOU FOR BUYING OUR PRODUCT! INTRODUCTION 1.The boilerand and all associated equipment must be installed and used in accordance with the installation design, all applicable legal regulations and technical standards and with manufacturer´s instructions.The boiler may be used only for the purpose for which it is intended. 2.The boiler may be instelled only in an enviroment which i tis designed for.If the boiler is delivered to the client by the same person who installs it, he must give the user also all accompanying boiler documentation( in particular User Guide, Service Book, etc.). - Page 3 DRAWING OF THE BOILER SERIES STR PLUS Type of the boiler STR PLUS STR PLUS STR PLUS Width of the boiler Boiler depth Water connection Water outlet 2“ 2“ 2“ Return water 2“ 2“ 2“ Eductive valve ½“ ½“ ½“ Chimney diameter...
-
Page 4: Boiler Combustion System
PACKING OF THE BOILER SERIES STR PLUS Measurements STR PLUS 25 STR PLUS 35 STR PLUS 45 Packaging Width Packaging Depth Packaging Height 1220 1220 1220 BOILER COMBUSTION SYSTEM: STR PLUS Series boilers are designed so that the exhaust warmth air gave a heat to the three contact... -
Page 5: Technical Parameters
TECHNICAL PARAMETERS STR PLUS STR PLUS STR PLUS Type Nominal Heat Output (Black Coal – Walnut) 23 – 25 32 - 35 42 - 45 Nominal Heat Output (Hardwood –Split Logs) 20 – 22 27 – 30 34 – 37 11,5 13,9 18,5... -
Page 6: Control And Safety Devices
ECOMMENDED FUEL -Recommended fuels for STR boilers are coal, coke and firewood. -Optimal coal and coke granularity is 24-60 mm. -Optimal firewood size is logs of diameter 40-100 mm. Their lengh will depnded on how many kW Size. -Fuel must be stored in a dry place. To reach the boiler nominal output,water content in firewood must not exceed 20% - When fitting the safety and the control elements remember to meet the principles of work safety. - Page 7 Regulation hatch (Fig.02) Air rosette (Fig.03) Thermometer (Fig.04) EMPERATURE SAFETY VALVE The L boilers are equipped with a safety valve (Fig.06) which ensures dissipation of excessive heat without additional device and supply of external energy in such a way that the maximum permissible boliler temperature of 95 C is not exceeded.A temperature safety valve must be connected to the Intel-outlet connections of the boiler.
- Page 8 YDRAULIC ONNECTION IAGRAM It is suggested hydraulic system should be installed according to following schemes. Open Expansion Tank System (Fig. 06) 1.Safety Heat Exchanger(SHT) 2.Safety Valve(TS 131,STS20) 3.Water Supply 4.System Safety Valva (3bar-1/2“) 5.Check Valve 6.Mixing Valve 7.System Pump 8.Heating System 9.Open Expansion Tank -Open –type expansion tank must be equipped with the higest level in the entire hydraulic system.
-
Page 9: Operation And Controls
Please note The service technician must show the user how to control the boiler and enter the date when the boiler was put into service into the Warranty Certificate. ILLING UP DRAINING THE HEATING SYSTEM The system can olny been filled up or topped up with water which meets the parameters specified by EN standarts.The water must be clear,colourless,free of suspended particles,oil and chemicall corrosive... -
Page 10: Boiler Cleaning
-Provide a minimum 5 cm gap to be between top point of the fuel and ceiling of stoking chamber when boiler is stocked. VERNIGHT HEATING MODE This mode i sused when you want to maintain the fire in the boiler for instance oven night.First csarpe all ash out the combustion chamber,with the chimney flap completly opened.Then stoke the boiler with fuel and shut the boiler up completly.Then shut the chimney flap and also almost shut the regulating hatch.This will reduce the chimney thrust and restrict the supply of combustion air.Shut also the secondary... -
Page 11: Warranty And Warranty Conditions
the combustion chamber,it must be removed with a scraper or burnt with hard wood(orcoke),running the boiler at maximum operating temperature. Please note Ashes should be stored (by using proper glove) in a noncombustible container properly and transported outdoors.Other waste must not be stored in this container. OILER REPAIRS The boiler may repaired by an authorized service technician organisation only.The user or owner may do only normal maintenance and simple replacements of some parts-e.g. -
Page 12: Boiler Location
10.3 H EATING WATER REQUIREMENTS Heating watwer requirements are specified i EN Standards.When the sum of conncentrations of calcium and magnesium in the water exceed 1.8 mmol/l, additional non-chemical teatments preventing line deposition must be considered(e.g. Magnetic or electrostatic field treatment). 11 BOILER LOCATION STR boiler can be located both on non-habitable premises(e.g. -
Page 13: Installation Procedure
12 INSTALLATION PROCEDURE -Place the boiler body on a non-flammable materials. -Install a temperature safety valve,Watch for the arrow indicating the water flow direction.It must be as shown in (Fig. 05). After conncting the boiler to the heating system,screw filling and drain stopcoks into the back section. -Screw the fluel adapter with smoke flap onto the boiler combustion gases outlet. -
Page 14: Troubleshooting
14 TROUBLESHOOTING 15 INSTRUCTIONS FOR PURCHASER-CONDITIONS FOR GUARANTEE AND COMPLAINTS: 1) Complaints of completeness of the delivery can be exercised in accordance with the Commercial Code and Civil Code at the supplier. The buyer is obliged to accept and immediately check the completeness, quantity and type of goods ordered and delivered and compliance with supporting documentation (for example: letter delivery, acceptance protocol, etc..), Where their nature permits. - Page 15 The letter of customer must be duly filled in and sent to the producer or otherwise customer loses claim on the repair under guarantee. All Products of Factory Fabrika SK Ltd. are certified to applicable standards and regulations. Technical and design modifications reserved. A company Fabrika SK Ltd. is not responsible for...
- Page 16 16 RECORD OF PERFORMED GUARANTEE REPAIRS Record of performed repairs within guarantee period and after Date of the record Performed activity Organization Signature of the customer (signature, stamp)
- Page 17 Fabrika SK s.r.o., Pavla Mudroňa 5, 010 01 Žilina, SLOVAKIA LETTER OF GUARANTEE STR SERIES WOOD AND COAL BOILER This warranty replaces the certificate of quality and completeness. The manufacturer confirms that the boiler meets the conditions required quality, is complete to the extent provided documentation and in...
-
Page 18: Declaration Of Conformity
Product: STR series wood and coal boiler Type : STR PLUS 25, STR PLUS 35, STR PLUS 45 Additional information: The certificate, report on initial tests Certificate: Z-IS-TGK-IST-11-12-1210001399-01-11-B-00730... - Page 19 Fabrika SK s.r.o., Pavla Mudroňa 5, 010 01 Žilina, Slovakia LETTER OF CUSTOMER Name: ................. Surname: ................Company: ................. Address: ................(street, Nr.) ................(city) ................(ZIP Code) Tel / mobil: ................Product: ................Serial number: ..............Date of sale: ..............
