Hornington WHR-HP-G300N Quick Start Manual

Hide thumbs

Advertisement

Table of Contents

Enlarged version
WHR-HP-G300N Router Settings (For: Pccw, HGC PPPoE User)

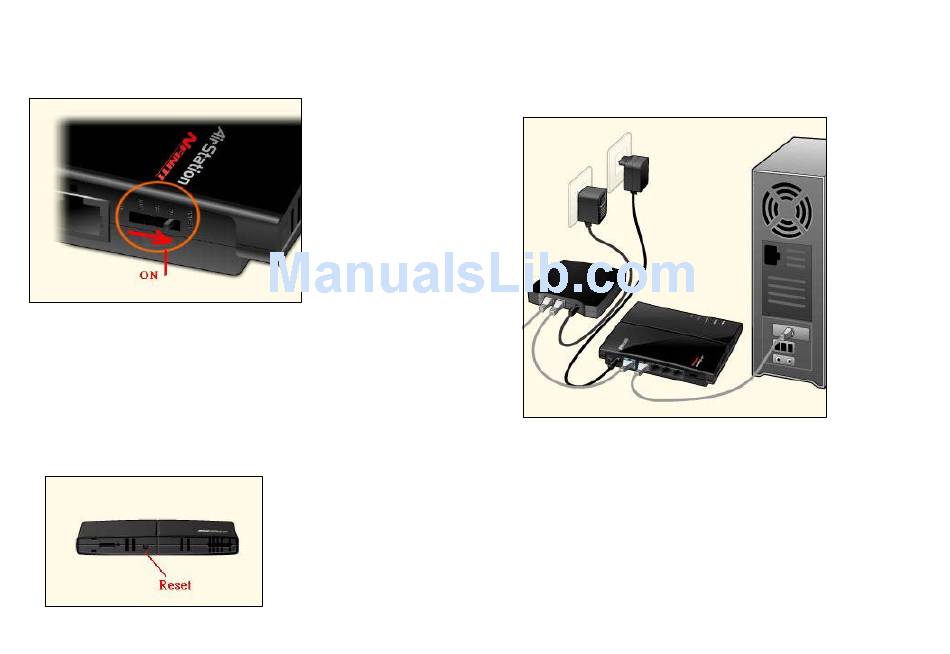

Hardware Setup of WHR-HP-G300N Router:

1.
Set
Router
switch to "ON".
2.
Power on Buffalo Router, and wait for 2 minutes.
The "Power", "Wireless" and "Router" indicators will be ON, and
"DIAG" will be OFF.
3.
To reset the router, please insert "RESET" hole by a paper clip for about
10 seconds, and wait for 2 minutes. The "Power", "Wireless" and
"Router" indicators will be ON, and "DIAG" will be OFF.
Last Updated 28/11/2009
Hornington KB: http://kb.hornington.com
4.
Please connect your broadband service with a network cable (or from
cable modem) to the "INTERNET" port on the ROUTER. Then use
another network cable to connect "LAN1" port on the ROUTER to the
Ethernet adapter on your PC. Make sure indicators "INTERNET" and
"LAN1" near lan ports are ON.
5.
For i-cable user, please power off modem for 1
modem again.
.
Wait for 2 minutes.
hour. Then power on
WHR-HP-G300N PPPoE Settings
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WHR-HP-G300N and is the answer not in the manual?

Questions and answers

Related Manuals for Hornington WHR-HP-G300N

Summary of Contents for Hornington WHR-HP-G300N

  • Page 1 WHR-HP-G300N Router Settings (For: Pccw, HGC PPPoE User) Please connect your broadband service with a network cable (or from Hardware Setup of WHR-HP-G300N Router: cable modem) to the “INTERNET” port on the ROUTER. Then use another network cable to connect “LAN1” port on the ROUTER to the Router switch to “ON”.
  • Page 2 WHR-HP-G300N Router Settings (For: Pccw, HGC PPPoE User) Click “Connections” tab, choose “Never dial a connection”, then click Prepare for Buffalo Router installation (Windows XP) “LAN Settings” (Vista preparation http://support.hornington.com/download/buffalo/vista_prepare/Vista_Prep_Eng.pdf) Click “Start” Click “Control Panel” or “Settings” -> “Control Panel”...
  • Page 3 “Obtain DNS server address then right-click “Local Area Connection”, and choose “Properties” automatically”, then click “OK” twice and go back to Network Connections Wait for 1 minute. Last Updated 28/11/2009 Hornington KB: http://kb.hornington.com WHR-HP-G300N PPPoE Settings Page 3...
  • Page 4 WHR-HP-G300N Router Settings (For: Pccw, HGC PPPoE User) Router is now detecting Internet Connection. Buffalo Router WHR-HP-G300NH Internet Connection Setup: Launch Web Browser, enter http://192.168.11.1 in address bar and then press Enter. Then type username as “root”, password leaves as blank After a few moment, the following page will be displayed and asking for“Username/Password”.
  • Page 5 WHR-HP-G300N Router Settings (For: Pccw, HGC PPPoE User) Return to “Setup” page, click “Internet/LAN” Wait for about 2 minutes. “Check the Internet connection” process is successful, the following page will be displayed. Click “Complete” to close the setup page. If the login information is incorrect, the following page will be displayed.
  • Page 6 Client”. Click “Wireless Config”, under page “WPS”, please UNCHECK Click “Apply” “enable” option behind “WPS” Click “Apply” to save settings Wait for 2 minutes Wait for about 1 minute. Last Updated 28/11/2009 Hornington KB: http://kb.hornington.com WHR-HP-G300N PPPoE Settings Page 6...
  • Page 7 WHR-HP-G300N Router Settings (For: Pccw, HGC PPPoE User) Click "Apply" again to confirm 10. Click "Basic (11n/g/b)" Wireless Channel, choose a channel used for the router. In general, you are suggested to try channel 11, 6, or 1. You may use each channel for a few days to test which channel is more stable in your environment.
  • Page 8 “Wireless Network Name” (SSID) “Wireless Encryption Key” you setup for the router in step 10 for future reference For related topics about WHR-HP-G300N, please refer to Hornington Knowledge Base: http://support.hornington.com/kb/category.php?catID=125 Last Updated 28/11/2009 Hornington KB: http://kb.hornington.com WHR-HP-G300N PPPoE Settings Page 8...
