OnQ Technologies 2x10 PBX/KSU Telephone System Installation Instruction Sheet

Introduction:

1.
The OnQ 2x10 KSU/PBX Telephone System is a complete voice processing system, specifically
designed for today's connected home.
The system uses a series of Voice Prompts (VPs) and Outgoing Greeting Messages (OGMs) to guide
users through the system. These digitally recorded audio scripts play at different times and allow you to
record a Greeting Message that lets callers' direct dial to a specific extension phone.
The system gives you your own voicemail system so you can record callers' messages with a day and
time stamp.
The Phone System switches between the Day Mode and Night Mode automatically when you set the
times in the internal clock.
The system has several additional built in features. See manual for details on system features and use.

Description:

2.
The OnQ 2x10 KSU/PBX Telephone System is a completely integrated unit. The system package
includes the Phone System Module, a power supply, this install sheet and a manual on CD.

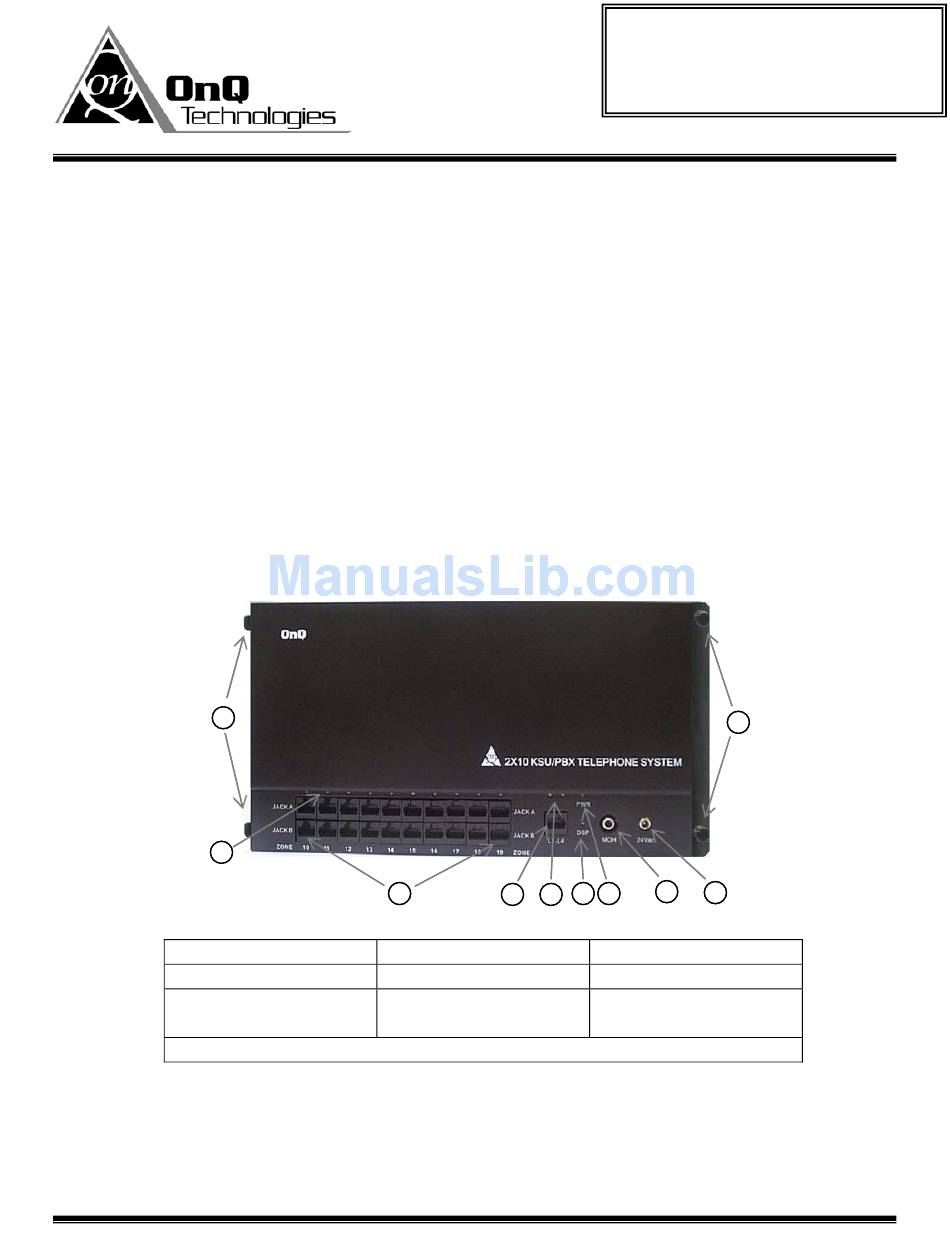

Figure 1 identifies all the interfaces on the phone system.
9 9
4 4
1. Zone Connections
4. Zone LED
7. DSP LED
10. Mounting Plunger & Grommet
All telephone interfaces are industry standard RJ45 (8 position) jacks. The Music on Hold (MOH) port is
a standard audio RCA jack. The 5.5 mm power jack is designed for the system power supply.
IS-0215 Rev. B
OnQ Technologies, Inc.
P.O. Box 60907
Harrisburg, PA 17106-0907
800-321-2343
www.onqtech.com
1 1
2 2 5 5
Figure 1
2. Line In Connection
5. Line LED
8. Music On Hold
Connection
Installation/Instruction Sheet
OnQ 2x10 PBX/KSU Telephone
System
IS-0215 Rev B
10 10
8 8
3 3
7 7 6 6
3. Power Connection
6. Power LED
9. Mounting Tabs
Page 1 of 3
