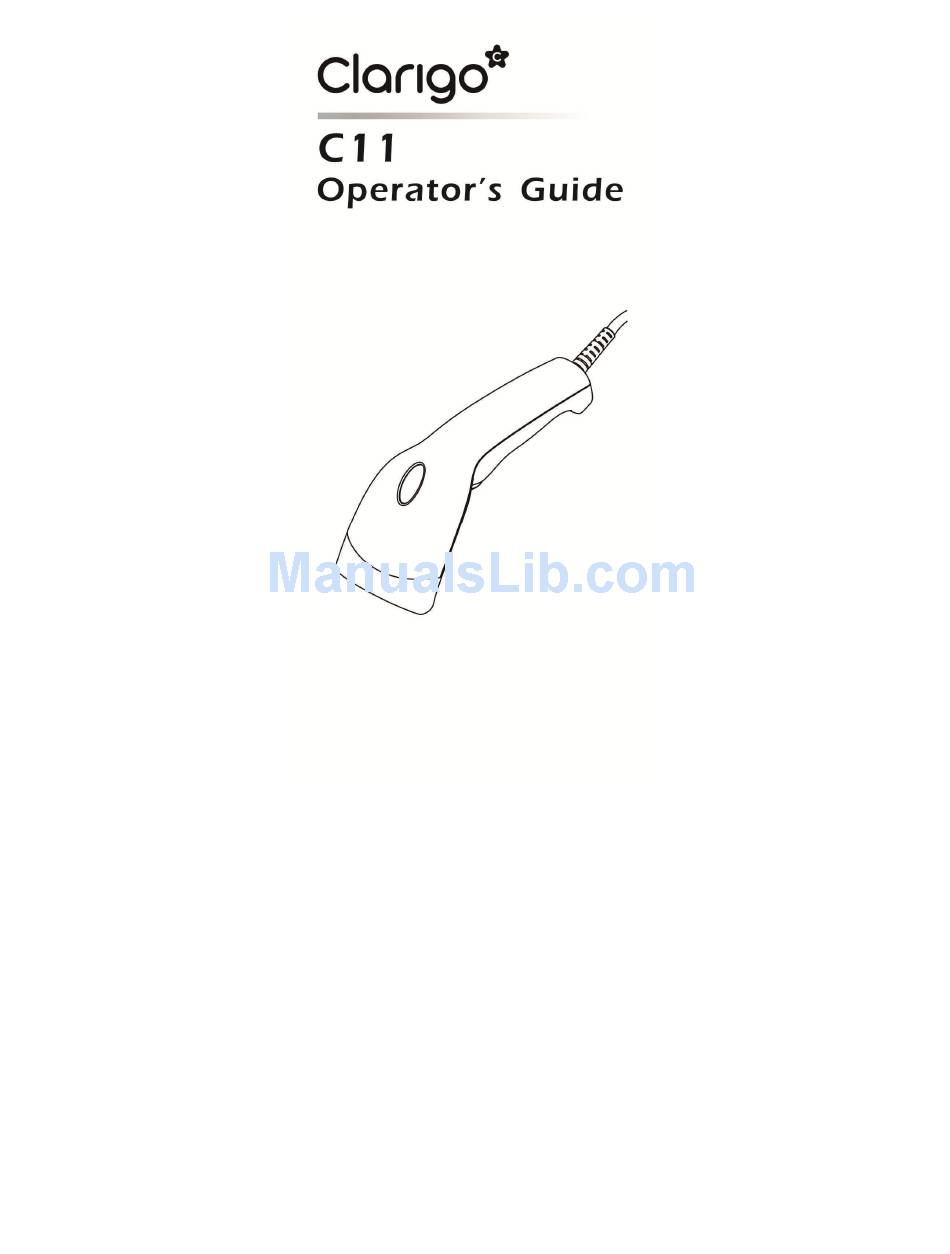

ALcom Clarigo C11 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Clarigo C11 and is the answer not in the manual?

Questions and answers

Summary of Contents for ALcom Clarigo C11

  • Page 2: Table Of Contents

    Contents Setup Flow Chart............3 Part I. System Information 1.1 Reset to default............4 1.2 Firmware version...........4 Part II. Interface Setting 2.1 Interface ..............5 Part III. Keyboard Parameters 3.1 Terminal Type ............6 3.2 Language Selection ..........7 3.3 Function Key Emulation ........
  • Page 3 5.2 Buzzer ..............16 5.3 String ..............18 5.4 Barcode Inverse ..........20 Part VI. Barcode Type Setting 6.1 UPC-A ..............22 6.2 UPC-E ..............24 6.3 EAN-13..............26 6.4 EAN-8..............28 6.5 Code 39...............29 6.6 Codabar...............32 6.7 Code 93...............34 6.8 Code 128 ............

  • Page 4: Setup Flow Chart

    Setup Flow Chart Scan the barcode you like to change to change Reset to default Hex or ASCII Code Scan “End” barcode Note: Note: Note: Note: ◆ Scan “firmware version barcode”, the Version No. will be displayed on monitor. The default settings are shown with < > and bold in the following sections.
  • Page 5 Part I Part I Part I Part I System System System System Information Information Information Information Reset to default Reset to default Reset to default Reset to default: : : : Reset to factory default settings. The default settings are shown with < > and bold. Display Display Display...

  • Page 6: Part I System Information

    Part II System Setting 2.1 Interface: 2.1 Interface: 2.1 Interface: 2.1 Interface: Part I System Information...

  • Page 7: Reset To Default

    Reset to default: Reset to factory default settings. The default settings are shown with < > and bold. Display Firmware Version: Scan barcode to display firmware version. Start Configuration Reset to default Firmware Version End Configuration Part II System Setting...

  • Page 8: Interface

    2.1 Interface: Start Configuration PS/2 Keyboard RS-232 < Keyboard > < Virtual COM > End Configuration Part III Keyboard wedge parameters...

  • Page 9: Terminal Type

    3.1 Terminal Type: Start Configuration < IBM AT > Reserved Reserved Reserved Reserved Reserved...

  • Page 10: Language Selection

    Reserved Reserved End Configuration 3.2 Language Selection: Start Configuration American Italian Spanish...
  • Page 11 France Germany Japanese Reserved Reserved End Configuration Note: Scan the barcode to select local keyboard language, if your keyboard language can't be found, please turn on ALT Mode which is an alternate way to find your language.

  • Page 12: Function Key Emulation

    3.3 Function Key Emulation: Start Configuration < Disable > Enable 3.4 Keyboard Emulation: < Disable > Enable End Configuration Note 1: If the setting of Function Key Emulation is “Enable”, when barcode reader scans the applicable barcode in Appendix B, it represents the function key is enabled in applications.

  • Page 13: Alt Mode

    Note 2: Key Board Emulation is to emulate PC keyboard. If no installation of PC keyboard, recommend to enable this function to assist you in turning on the PC normally. 3.5 ALT Mode: Start Configuration < Disable > Enable 3.6 Caps Lock : <...

  • Page 14: Numeric Key

    3.7 Numeric Key: < Disable > Enable End Configuration Note 1: ALT Mode can emulate most of local keyboard languages in Microsoft system. Note 2: The barcode reader can emulate to enable/disable Caps Lock key. Note 3: The barcode reader can emulate to enable/disable Numeric Key.

  • Page 15: Inter-Character Delay

    3.8 Inter-Character Delay： ： ： ： Start Configuration Enable (00H, 00-64H*1msec) 3.9 Delay After Transmit (Keyboard Wedge): Enable (00H, 00-0AH*100msec) 3.10 Keyboard Speed: Enable (00H, 00-08H)

  • Page 16: Keyboard Wedge Terminator

    3.11 Keyboard Wedge Terminator: None < CR > End Configuration Note: Keyboard Wedge Terminator is to set up the termination character of barcode reader output to adapt to applications.

  • Page 17: Part Iv Rs-232 Protocol

    Part IV RS-232 Protocol: 4.1 Baud Rate： ： ： ： Start Configuration 1200bps 2400bps 4800bps < 9600bps > 19200bps 38400bps...

  • Page 18: Data Bits

    4.2 Data Bits: 7 Digits < 8 Digits > End Configuration 4.3 Stop Bits: Start Configuration < 1 Digit > 2 Digits 4.4 Parity Check: < None >...

  • Page 19: Inter-Character Delay

    Even Mark Space 4.5 Inter-Character Delay: Enable (00H, 00-64H*1msec) 4.6 Delay After Transmit: Enable (00H, 00-0AH*100msec)

  • Page 20: Response Delay Time

    4.7 Response Delay Time: Enable (00H, 00-0AH*100msec) End Configuration Note: Response Delay Time is the time of barcode reader waiting for host to response. The delay time=setting data*100(ms). 4.8 Flow Control: Start Configuration < None > RTS/CTS...

  • Page 21: Rs-232 Interface Terminator

    ACK/NAK Xon/Xoff 4.9 RS232- Interface Terminator: None < CR+LF >...
  • Page 22 STX/ETX End Configuration Note: RS232- Interface Terminator is to set up the termination character of barcode reader output to adapt to applications.

  • Page 23: Part V System Setting

    Part V System Setting 5.1 Scan Mode: Start Configuration Trigger Mode < Auto Off Mode > Continuous/Trigger Off Mode Test Mode Continuous Mode...
  • Page 24 Continuous/Timeout Off Mode Flash Mode Continuous/No Trigger End Configuration Note: Trigger Mode: Press trigger to turn on scanner. To turn off the scanner, just release trigger or after barcode decoded. Auto off Mode: Press trigger to turn on scanner. Scanner will be automatically off when time out or after barcode decoded.

  • Page 25: Buzzer

    and decode barcodes continuously until trigger is pressed again. Continuous Mode: Press trigger to activate continuous scan mode, scanner will keep scanning and decoding barcodes. If the same barcode is scanned, it will only decode once and the red LED is always on. Continuous (Timeout Off) Mode: Press trigger to activate test mode.
  • Page 26 End Configuration 5.2.2 Duration Start Configuration < Long > Medium Short 5.2.3 Power up Buzzer: Disable...
  • Page 27 < Enable > 5.2.4 Good Read Buzzer: Disable < Enable > End Configuration...

  • Page 28: String

    5.3 String 5.3.1 Prefix and Suffix: Start Configuration Set up prefix (00H) Set up suffix (00H) End Configuration Note: The maximum characters can be set as prefix and suffix are 10 ASCII characters, if the setting is 0 means there is no prefix or suffix.
  • Page 29 5.3.2 Insert Character Group (G1/G2): Start Configuration Insert Character G1(00H) Insert Character G2(00H) Insert Character G1(00H) Insert Character G2(00H) End Configuration Note: Up to 10 ASCII codes can be inserted in a group. When the...
  • Page 30 setting is zero, no codes will be inserted. Steps to insert characters： Scan “Start Configuration” and then Scan “G1” barcode. Scan ASCII code barcode in appendix B. Scan “End Configuration” Repeat step 2 and step 3 if you wish to setup G2 Insert Character.

  • Page 31: Barcode Inverse

    Enable End Configuration Note: To transmit Code Type, you have to enable Code Type Transmit. The format is Code Type ID + Barcode Data. 5.4 Barcode Inverse： ： ： ： If background is back, choose Bar = White. If background is white, choose Bar = Black. Start Configuration <...

  • Page 32: Part Vi Barcode Type Setting

    End Configuration Part VI Barcode Type Setting: Enable/Disable barcode：To enable/disable different barcode symbologies decoding, scan the Enable/Disable barcode. Code ID：Set to enable to transmit Code ID of barcode type. How to set Code ID: 1. Scan “Start Configuration”. 2. Scan “Code ID”. 3.

  • Page 33: Upc-A

    Supplements: Supplemental are bar codes appended according to specific format conventions (e.g., UPC A+2, UPC E+2, EAN 13+2). Trim Leading 0: Trim the leading 0 of Barcode. 6.1 UPC-A 6.1.1 Enable/Disable UPC-A: Start Configuration Disable < Enable> 6.1.2 Code ID setting: Set up Code ID (46H, 20-7EH)
  • Page 34 6.1.3 Convert UPC-A to EAN-13: < Disable > Enable 6.1.4 Transmit Check Digit: Disable < Enable > 6.1.5 Truncate Leading Zero: < Disable > Enable...
  • Page 35 6.1.6 Truncate Leading Digits: leading digits(00H, 00-0DH) 6.1.7 Truncate Ending Digits: ending digits(00H, 00-0DH) 6.1.8 Insert Characters: None...
  • Page 36 6.1.9 Decode UPC-A Supplemental: < None > 2 digits 5 digits 2 or 5 digits End Configuration...

  • Page 37: Upc-E

    6.2 UPC-E 6.2.1 Enable/Disable UPC-E: Start Configuration Disable < Enable > 6.2.2 Code ID setting Code setting (47H, 20-7EH) 6.2.3 Convert UPC-E to UPC-A: < Disable > Enable...
  • Page 38 6.2.4 Transmit Check Digit: Disable < Enable> 6.2.5Truncate Leading Zero: < Disable > Enable 6.2.6 Truncate leading digits: leading digits(00H, 00-0DH) 6.2.7 Truncate Ending Digits: ending digits(00H, 00-0DH)
  • Page 39 6.2.8 Insert Characters: None 6.2.9 Decode UPC-E Supplementals: < None > 2 digits 5 digits 2 or 5 digits...

  • Page 40: Ean-13

    End Configuration 6.3 EAN-13 6.3.1 Enable/Disable EAN-13: Start Configuration Disable < Enable > 6.3.2 Code ID Setting: 開 始 Code ID 字元設置(48H, 20-7EH) 6.3.3 Transmit Check Digit: Disable...
  • Page 41 < Enable > 6.3.4 Convert to ISBN/ISSN: < Disable > Enable 6.3.5 Truncate leading digits: leading digits (00H, 00-0DH) 6.3.6 Truncate Ending digits: ending digits(00H, 00-0DH) 6.3.7 Insert Characters: None...
  • Page 42 6.3.8 Decode EAN-13 Supplemental: < None > 2 digits 5 digits 2 or 5 digits End Configuration...

  • Page 43: Ean-8

    6.4 EAN-8 6.4.1 Enable/Disable EAN-8: Start Configuration Disable < Enable > 6.4.2 Code ID Setting: Set up Code ID(49H, 20-7EH) 6.4.3 Transmit Check Digit: Disable < Enable > 6.4.4 Truncate Leading Digits:...
  • Page 44 leading digits(00H, 00-0DH) 6.4.5 Truncate Ending Digits: ending digits(00H, 00-0DH) 6.4.6 Insert Characters: None 6.4.7 Decode EAN-8 Supplemental: < None >...

  • Page 45: Code39

    2 digits 5 digits 2 or 5 digits End Configuration 6.5 Code39 6.5.1 Enable/Disable CODE39: Start Configuration Disable...
  • Page 46 < Enable > 6.5.2 Code ID Setting Set up Code ID(4AH, 20-7EH) 6.5.3 Code 39 Check Digit Verification: < Disable > Enable 6.5.4 Transmit Check Digit: Disable < Enable > 6.5.5 Code 39 Full ASCII Conversion:...
  • Page 47 < Disable > Enable 6.5.6 Transmit Start/End Character: < Disable > Enable 6.5.7 Min Code Length: (defult:00) Set up min code length(00H, 00-32H) 6.5.8 Max Code Length: (default:32H) Set up max code length(00H, 00-32H) 6.5.9 Truncate Leading Digits:...

  • Page 48: Codabar

    leading digits(00H, 00-32H) 6.5.10 Truncate ending digits: ending digits(00H, 00-32H) 6.5.11 Insert Characters: None End Configuration 6.6 Codabar...
  • Page 49 6.6.1 Enable/Disable CODABAR Start Configuration Disable < Enable > 6.6.2 Code ID setting Set up Code ID(4BH, 20-7EH) 6.6.3 Check Digit: < Disable > Enable 6.6.4 Transmit Check Digit:...
  • Page 50 Disable < Enable > 6.6.5 Data Combine: < Disable > Enable 6.6.6 Start/End Transmit Type: < ABCD/ABCD > abcd/abcd abcd/tn*e...
  • Page 51 6.6.7 Start/End Transmit: < Disable > Enable 6.6.8 Min Code Length: (default:00) Set up Min Code Length(00H, 00-3CH) 6.6.9 Max Code Length: (default:32H) Set up Max Code Length(00H, 00-3CH) 6.6.10 Truncate Leading Digits: Leading Digits(00H, 00-3CH) 6.6.11 Truncate Ending Digits:...

  • Page 52: Code93

    ending digits(00H, 00-3CH) 6.6.12 Insert Characters: None End Configuration 6.7 Code93 6.7.1 Enable/Disable CODE93: Start Configuration...
  • Page 53 Disable < Enable > 6.7.2 Code ID Setting: Set up Code ID(4CH, 20-7EH) 6.7.3 Check Digit: Disable < Enable > 6.7.4 Transmit Check Digit: < Disable >...
  • Page 54 Enable 6.7.5 Min Code Length: (default:00) Set up min code length(00H, 00-50H) 6.7.6 Max Code Length: (default:32H) Set up max code length(00H, 00-50H) 6.7.6 Truncate Leading Digits: leading digits(00H, 00-50H) 6.7.7 Truncate Ending Digits: ending digits(00H, 00-50H) 6.7.8 Insert Characters:...

  • Page 55: Code 128

    None End Configuration 6.8 Code 128 6.8.1 Enable/Disable CODE128: Start Configuration Disable...
  • Page 56 < Enable > 6.8.2 Code ID Setting: Set up Code ID(4DH, 20-7EH) 6.8.3 Check Digit: Disable < Enable > 6.8.4 Transmit Check Digit < Disable > Enable 6.8.5 FNC2 Data Combine:...
  • Page 57 < Disable > Enable 6.8.6 UCC/EAN128: < Disable > Enable 6.8.7 FNC1 Transmit: < Disable > Enable 6.8.8 Min Code Length: (default:00) Set up Min...
  • Page 58 Code Length(00H, 00-7FH) 6.8.9 Max Code Length: (default:32H) Set up Max Code Length(00H, 00-7FH) 6.8.10 Truncate Leading Digits: Leading Digits(00H, 00-7FH) 6.8.11 Truncate Ending Digits: Ending Digits(00H, 00-7FH) 6.8.12 Insert Characters: < None >...

  • Page 59: Interleaved 2 Of 5

    End Configuration 6.9 Interleaved 2 of 5 6.9.1 Enable/Disable Interleaved 2 of 5: Start Configuration Disable < Enable > 6.9.2 Code ID Setting: Set up Code ID(4EH, 20-7EH) 6.9.3 Check Digit:...
  • Page 60 < Disable > Enable 6.9.4 Transmit Check Digit: Disable < Enable > 6.9.5 Min Code Length: (default:00) Set up Min Code Length(00H, 00-50H) 6.9.6 Max Code Length: (default:32H) Set up Max Code Length(00H, 00-50H) 6.9.6 Truncate Leading Digits:...

  • Page 61: Industrial 2 Of 5

    Leading Digits(00H, 00-50H) 6.9.7 Truncate Ending Digits: ending digits(00H, 00-50H) 6.9.8 Insert Characters: None End Configuration 6.10 Industrial 2 of 5...
  • Page 62 6.10.1 Enable/Disable Industrial 2 of 5: Start Configuration < Disable > Enable 6.10.2 Code ID Setting: Set up Code ID(4FH, 20-7EH) 6.10.3 Check Digit: < Disable > Enable 6.10.4 Transmit Check Digit:...
  • Page 63 Disable < Enable > 6.10.5 Min Code Length: (default: 00) Set up Min code length(00H, 00-32H) 6.10.6 Max Code Length: (default:32H) Set up Max code length(00H, 00-32H) 6.10.7 Truncate Leading Digits: leading digits(00H, 00-32H) 6.10.8 Truncate ending digits:...

  • Page 64: Matrix 2 Of 5

    Ending digits(00H, 00-32H) 6.10.9 Insert Characters: < None > End Configuration 6.11 Matrix 2 of 5 6.11.1 Enable/Disable Matrix 2 of 5: Start Configuration < Disable >...
  • Page 65 Enable 6.11.2 Code ID Setting: Set up Code ID(50H, 20-7EH) 6.11.3 Check Digit: < Disable > Enable 6.11.4 Transmit Check Digit: Disable < Enable > 6.11.5 Min Code Length: (default: 00)
  • Page 66 Set up Min Code Length(00H, 00-50H) 6.11.6 Max Code Length: (default:32H) Set up Max Code Length(00H, 00-50H) 6.11.6 Truncate Leading Digits: Leading Digits(00H, 00-50H) 6.11.7 Truncate Ending Digits: Ending Digits(00H, 00-50H) 6.11.8 Insert Characters: None...

  • Page 67: China Post Code

    End Configuration 6.12 China Post Code 6.12.1 Enable/Disable China post: Start Configuration < Disable > Enable 6.12.2 Code ID Setting:...
  • Page 68 Set up Code ID(51H, 20-7EH) 6.12.3 Check Digit: < Disable > Enable 6.12.4 Transmit Check Digit: Disable < Enable > 6.12.5 Min Code Length: (default:00) Set up min code length(00H, 00-50H) 6.12.6 Max Code Length: (default:32H)
  • Page 69 Set up max code length(00H, 00-50H) 6.12.6 Truncate Leading Digits: leading digits(00H, 00-50H) 6.12.7 Truncate Ending Digits: ending digits(00H, 00-50H) 6.12.8 Insert Characters: < None >...

  • Page 70: Msi/Plessey

    End Configuration 6.13 MSI/Plessey 6.13.1 Enable/Disable MSI/Plessey: Start Configuration < Disable > Enable 6.13.2 Code ID Setting: Set up Code ID(52H, 20-7EH) 6.13.3 Check Digit:...
  • Page 71 < Disable > MOD 10 MOD 10/10 MOD 11/10 6.13.4 Transmit Check Digit: Disable < Enable > 6.13.5 Min Code Length: (default:00) Set up Min Code Length(00H, 00-3CH)
  • Page 72 6.13.6 Max Code Length: (default:32H) Set up Max Code Length(00H, 00-3CH) 6.13.6 Truncate Leading Digits: Leading Digits(00H, 00-3CH) 6.13.7 Truncate Ending Digits: Ending Digits(00H, 00-3CH) 6.13.8 Insert Characters: < None >...

  • Page 73: Code 32

    End Configuration 6.14 CODE 32 6.14.1 Enable/Disable CODE 32: Start Configuration < Disable > Enable 6.14.2 Code ID Setting: Set up Code ID(53H, 20-7EH) 6.14.3 Check Digit:...
  • Page 74 Disable < Enable > 6.14.4 Transmit Check Digit: Disable < Enable > 6.14.6 Truncate Leading Digits: leading digits(00H, 00-0AH) 6.14.7 Truncate Ending Digits: ending digits(00H, 00-0AH) 6.14.8 Insert Characters:...
  • Page 75 < None > End Configuration 6.15 CODE 11 6.15.1 Enable/Disable CODE 11: Start Configuration < Disable >...
  • Page 76 Enable 6.15.2 Code ID Setting: Set up Code ID(54H, 20-7EH) 6.15.3 Check Digit Disable < Enable > 6.15.4 Transmit Check Digit < Disable > Enable 6.15.5 Min Code Length: (default:00)
  • Page 77 Set up Min Code Length(00H, 00-50H) 6.15.6 Max Code Length: (default:32H) Set up Max Code Length(00H, 00-50H) 6.15.6 Truncate Leading Digits Leading Digits(00H, 00-50H) 6.15.7 Truncate Ending Digits Ending Digits(00H, 00-50H) 6.15.8 Insert Characters None...

  • Page 78: Rss (Optional)

    End Configuration 6.16 RSS 6.16.1 Enable/Disable RSS-14 Start Configuration < Disable > Enable 6.16.2 Enable/Disable RSS-14 Limited...

  • Page 79: Telepen

    < Disable > Enable 6.16.3 Enable/Disable RSS-14 Expanded < Disable > Enable 6.16.4 RSS-14 to UPC/EAN < Disable > Enable 6.17 Telepen 6.17.1 Enable/Disable Telepen:...
  • Page 80 Start Configuration < Disable > Enable 6.17.2 Code ID Setting Set up Code ID(56H, 20-7EH) 6.17.3 Check Digit: Disable < Enable > 6.17.4 Transmit Check Digit:...
  • Page 81 Disable < Enable > 6.17.5 Min Code Length: (default: 00) Set up Min Code Length(00H, 00-32H) 6.17.6 Max Code Length: (default:32H): Set up Max Code Length(00H, 00-32H) 6.17.6 Truncate Leading Digits Leading Digits(00H, 00-0DH) 6.17.7 Truncate Ending Digits...
  • Page 82 ending digits(00H, 00-0DH) 6.17.8 Insert Characters < None > End Configuration...
  • Page 83 Appendix A ASCII Code...
  • Page 84 End of Setting End Configuration ASCII Table: “ & ‘ < >...
  • Page 85 Appendix B Function Key Emulate Table: NULL DOWN LEFT RIGHT PAGE UP PAGE DOWN HOME ENTER INSERT DELETE...
  • Page 86 Function Key Emulate Barcode: Before Scan the barcode below, please Enable Full ASCII Code39. F1($Q) UP($A) F2($R) DOWN($B) F3($S) LEFT($C) F4($T) RIGHT($D) F5($U) PAGE UP($E) F6($V) PAGE DOWN($F) F7($W)
  • Page 87 Scan“End Scan two HEX Scan“Start Configuration”bar Configuration” digits code In Appendix A to barcode represent one ASCII code. F8($X) BS($H) F9($Y) TAB($I) F10($Z) ESC(%A) HOME($K) F11(%B) END($L) F12(%C) ENTER($M) F13(%D) INSERT($N) F14(%E) DELETE($O)
