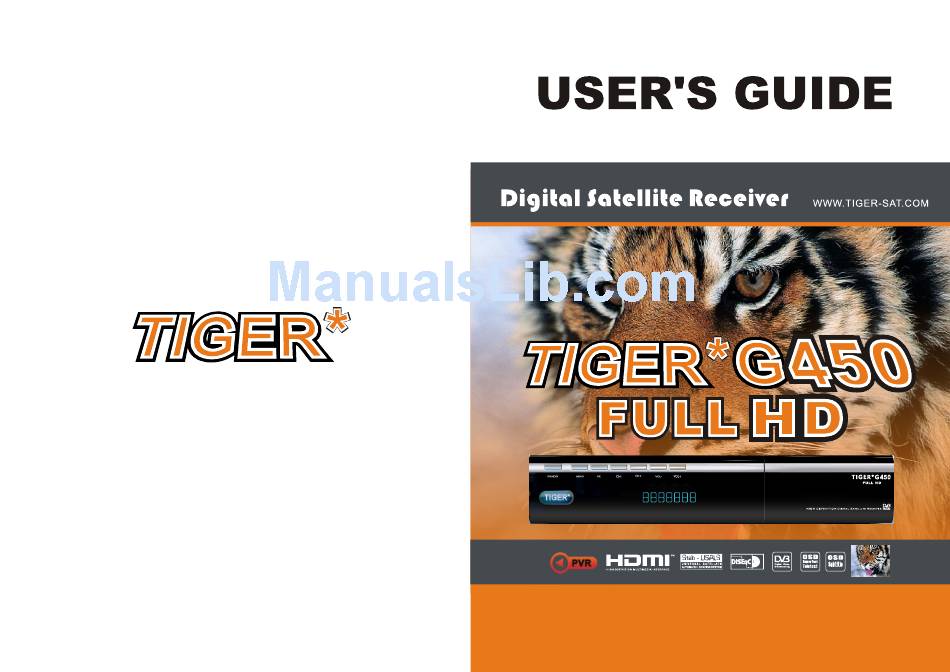

Summary of Contents for Tiger G450
-
Page 2: Table Of Contents
GENERAL INFORMATION Main Features For your Safety Unpacking General Operation Front Panel Rear Panel INSTALLATION Connecting to TV using RCA support Connecting to Digital Amplifier MENU INFORMATION Main Menu 1. Edit Channel 1.1 TV Channel List 1.2 Radio Channel List 1.3 Delete All 1.4 Favorite System Backup... - Page 3 4. Tools 4.1 Network Local Setting 4.2 WiFi Manager 4.3 Upgrade by Network 4.4 Weather Forecast 4.5 RSS Reader 5. Game 6. USB 6.1 Media Player 6.2 PVR Storage Information 6.3 PVR Setting Upgrade by USB 6.5 Remove USB device safely 7.
-
Page 4: General Information
A Digital Satellite Receiver is a convenient product that allows you to view a variety of programs provided through satellite. This user's guide covers the installation of the DSR and the necessary steps to implement various features. This also explains special features available only in this DSR in detail, which will allow you to make full use of these feature. -
Page 5: For Your Safety
For Your Safety To avoid electric-shock hazards, do not Keep the receiver away from flower vases, open the cabinet, refer servicing to qualified tubs, sinks, etc., in order to avoid damaging personnel only. the equipment. Do not expose the receiver un-der the Do not block ventilation holes of the sunlight. -
Page 8: Unpacking
Remote Control Batteries Guide AV cable General Operation Throughout this manual you will notice that the everyday operation of the receiver is based on a series of user friendly on screen display and menus. These menus will help you get the most from your receiver, guiding you through installation, channel organizing, viewing and many other functions. -
Page 9: Rcu
Function Standby on/off When watching a channel, mute the sound Enter number of the required menu item or select a channel number to watch TV/R Switches between TV and Radio mode Switches back to previous channel recall Displays the favorite group list Display the satellite window Display the Find window FIND... -
Page 10: Front Panel
Rear Panel Front Panel Rear Panel Rear Panel CONNECT TO TV SET OR VIDEO PROJECTOR YPbPr OR COMPONENT INPUTS CONNECT TO A DIGITAL AMPLIFIER CONNECT TO A PC FOR S/W UPGRADE CONNECT TO THE INTERNET POWER ON/OFF CONNECT TO USB DEVICE CONNECT TO TV SET HDMI INPUT CONNECT VIDEO TO TV USING RCA JACK CONNECT TO AUDIO R/L TO... -
Page 11: Installation
Connecting to TV using RCA support AUDIO Satellite Dish Connecting to Digital Amplifier Satellite Dish DIGITAL AUDIO CONVERTOR OR DIGITAL AUDIO AMPLIFIER SPEAKER The picture is only for reference,please make the object as the standard. -
Page 12: Menu Information
Main Menu Make sure that you have properly installed and connected the cables of the receiver . If the receiver is the factory status or there is no program list, when power on, the Main Menu window will be displayed on the screen. During the normal TV/Radio mode, press MENU key on the RCU to enter into the Main Menu window. -
Page 13: Edit Channel
If there is no program, you can not exit from the Main Menu window by pressing MENU or EXIT key. System will inform "No channel" and the following items turn grey. Sub-menu Turn grey when there is no program Edit Channel TV Channel List Radio Channel List Favorite... - Page 14 3. Press red colour key to enter move list. In move list select the program and press red key to mark this program with the move mark. Press keys to move the cursor to the position where you want to locate and press OK key to confirm.
-
Page 15: Radio Channel List
Numeric keys Press numeric key repeatedly, display in circle .,*?!@1 ABC2 DEF3 GHI4 JKL5 MNO6 PQRS7 TUV8 WXYZ9 [space]_-0 If the name is empty, system will pop up a dialogue informing "Name" once yellow colour key is pressed. Press OK key to close this dialogue. 1.2 Radio Channel List Same operation as 1.1 TV Channel List, here we don't explain any more. -
Page 16: System Recovery
1.6 System Recovery Move cursor to the System Recovery item, and press OK Key to pop up the dialogue "Recovery will overwrite the current system". Select Yes button and press OK key to save, or select NO button and press OK key to exit without saving. 2. - Page 17 5. Press blue colour key to pop up the Add/Delete window. The same operation as the above Edit Satellite window 6. Press blue colour key and select delete, it will pop up the dialogue "Are you sure to delete?". Select Yes button and press OK key to delete the selected satellite.
- Page 18 4. Motor Setting: Press OK key to the Motor Setting window. Satellite: Press keys to select the satellite in circle. Or press OK key to pop up the drop-down list, then select the desired satellite in the list and press OK key to confirm. Transponder: The same operation as the above.
- Page 19 7. Motor Setting: Press OK key to enter into the Motor setting window. Satellite, Transponder: Press keys to select satellite or transponder, or press OK key to pop up the drop-down list and select in the list. In Antenna Setup List 1.
- Page 20 2.2 CA CA Slot Insert the smart card with the golden chip facing down. Push the smart card into the CA slot. Only a few millimetres of the card should be visible outside the slot. Select CAitem and press OK key, then you will enter into its sub-menu which consists four items of About CA Info, Change PIN, Change Signature PIN, Maturity Level.
-
Page 21: Factory Setting
2.2.5 Subscription Status Know the detail information of Subscription Status. 2.2.6 Even Status Know the detail information of Event Status. 2.2.7 Token Status Know the detail information of Tokens Status. 2.3 Factory Setting Press OK key to enter into the Factory Setting window. -
Page 22: Tv System
3.3 TV System Press PR+, PR- key to move the cursor up or down, while press keys to change the setting and the setting will take effect immediately. 1. Video Resolution: Select among 1080p_24, 1080i_25, 1080i_30, 1080p_50, 720p_60, 720p_50, 576p, 576i, 480p, 480i, By Native TV and By source . 2. -
Page 23: Timer Setting
3.6 Timer Setting If there is no program, you can not enter into this window. There are 8 timers that can be set. Select Timer up or down, and press OK key to enter into the setting window. 1. Timer mode: The default mode is off. You can set the timer once and daily. -
Page 24: Other
3.9 Other 1. LNB Power: Select between Off and On. 2. Channel Play Type: Select among All, Free, Scramble. 3. Channel Change: Select between Black Screen and Freeze. 4. Auto Standby: Select between On and Off. 4. Tools 1. Press OK key or key to pop up the "Input Password"... -
Page 25: Rss Reader
4.5 RSS Reader RSS Channel list is on the left side of window RSS News list is on the right side of window Press PR+, PR- key to select channel you wanted Press red key to update Press green key to add channel Press yellow key to delete channel Press blue key to edit channel 5. -
Page 26: Pvr Storage Information
In music list Press number key 1 to display the Sort window. Press number key 2 to select the repeat mode. The function of colour key is the same as Color key operation In video list Press number key 1 to display the Sort window. The function of colour is the same as Color key operation In record list... -
Page 27: Upgrade By Usb
6.4 Upgrade by USB 1.Upgrade File: Show the Upgrade File. 2.Upgrade Mode: Select between allcode, maincode, defaultdb, userdb and Dump. When users switch the upgrade mode, Upgrade File will show the corresponding file according to the table below: Upgrade Mode File feature All code : File named as "*.abs"... -
Page 28: Hot Key
7. Hot Key 7.1 Info Press INFO key to pop up the Info bar. Press INFO key again to pop up the program guide of the current program. 7.2 EPG Press EPG key to enter into the EPG window. 1. Press PR+, PR-, keys to select up or down, left or right. -
Page 29: Number
7.4 Number Use the numeric keys (0-9) to input the number of the desired channel. If the inputtednumber is beyond the valid channel number, system will "No such a channel" and press OK key to close this message. 7.5 TV/RADIO In normal mode, press TV/RADIO key to switch between TV mode and Radio mode. -
Page 30: Audio
Press F1 key to pop up the Sort drop-down list. Name(A-Z): The ascending order, omitting the $ character, the number is ahead, then the capital letter, at last the lowercase. Name (Z-A): The opposite order of the above Name (A-Z). Free/Scramble: All FTA programs are listed ahead, while all scrambled programs are listed last. - Page 31 Problem Possible causes What to do The display on the front Check that the main cable is plugged into Main cable is not connected. panel does not light up. the power socket. No sound or picture, but the receiver is in standby mode. Press the standby button.
