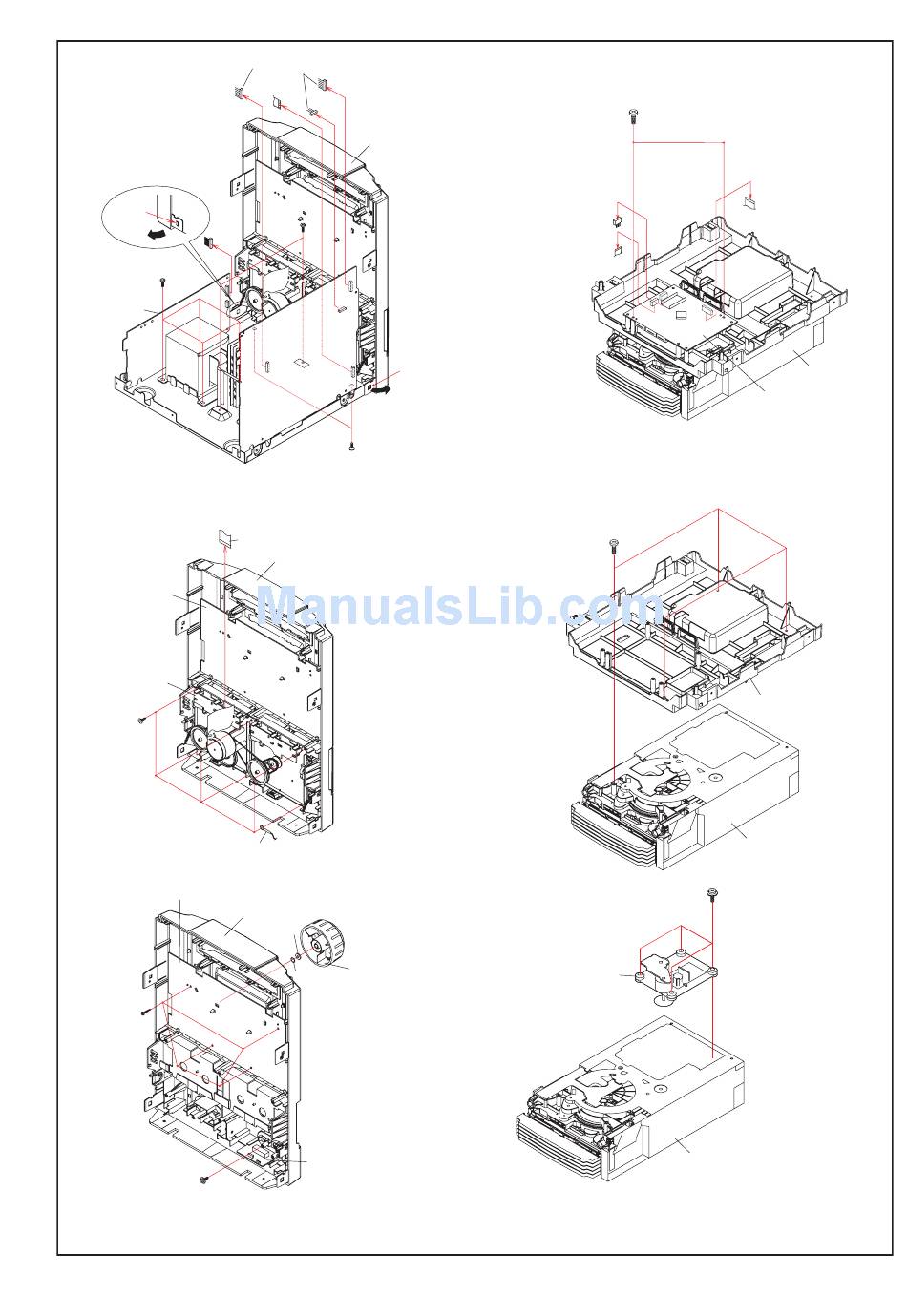

Sharp CD-SW440N Service Manual page 9

(G3) x 1
Hook
(G4) x 1
(H2) x 1
PULL
(J1) x 4
M4 x 8mm
Power PWB
Figure 4
(K2) x 1
Display PWB
Tape
Mechanism
(K1) x 6
M3 x 10mm
Figure 5
Lug wire
Display PWB
Front Panel
(M4) x 4
M2.6 x 10mm
(L1) x 1
Special Screw
Figure 6
(G3) x 2
(G2) x 1
Front Panel
(H1) x 2
M3 x 6mm
Hook
(G4) x 1
PULL
(G1) x 2
M3 x 8mm
Front Panel
(M2) x 1
(M3) x 1 (M1) x 1
Audio In PWB
(N3) x 1
(N2) x 1
Figure 7
(P1) x 4
M3 x 10mm
Figure 8
CD Mechanism
3 – 2
CD-SW440N
(N1) x 2
M3 x 10mm
(N2) x 1
CD PWB
(P2) x 1
Changer
Mechanism
Unit
(Q1) x 4
Special
Changer
Mechanism
Unit
Figure 9
Changer
Mechanism
Unit
