Summary of Contents for Contempo PFM (SWB)

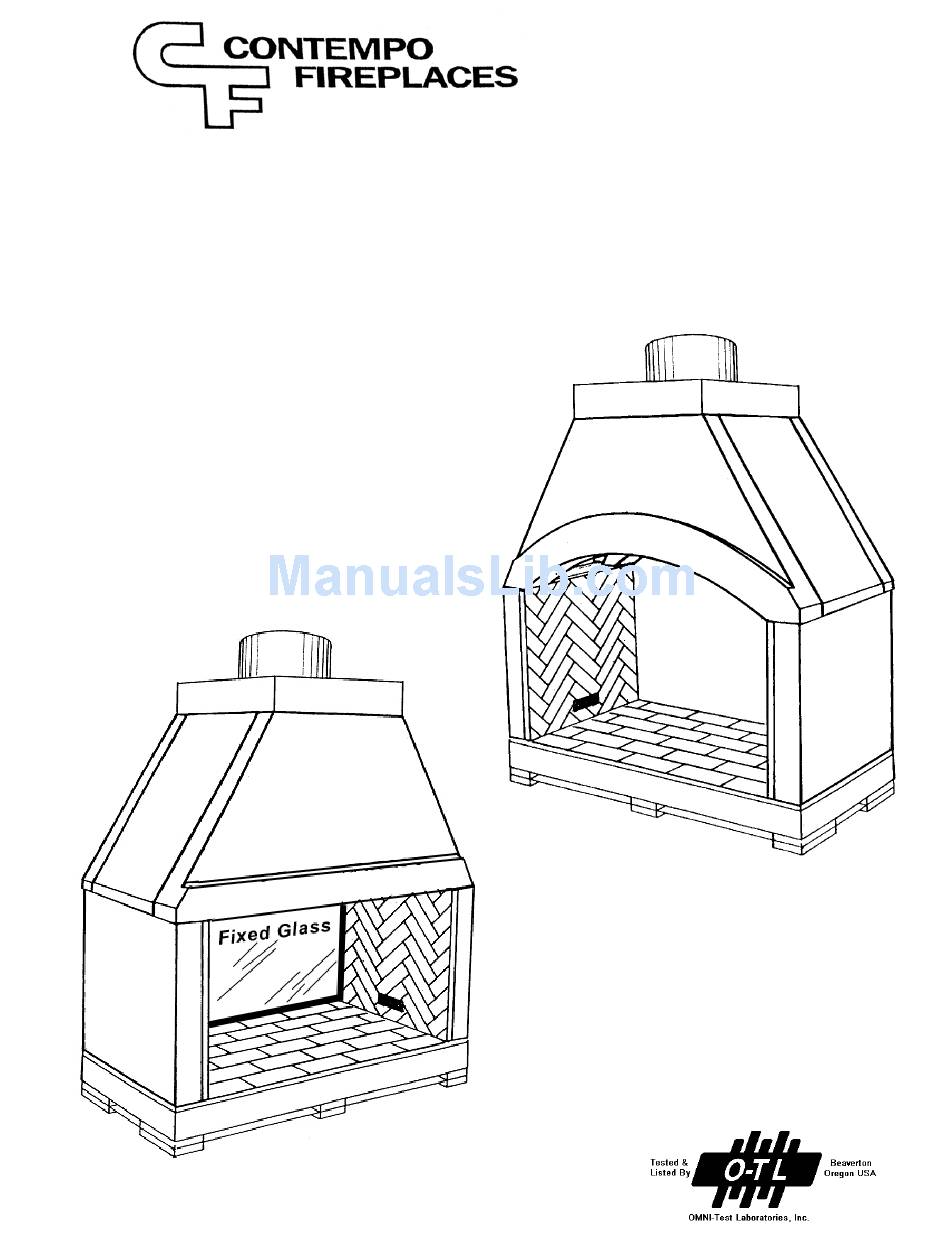

- Page 1 INSTALLATION MANUAL C-THRU MODEL 42 PFM (AGB) PFM (SWB) Gas Burning Only Wood or Gas Burning...
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS Keep these instructions for future use. This fireplace is to be installed ONLY by a company certified by Contempo. Any permits and construction industry inspections required for installation should be obtained by this company. INSTALLATION MANUAL FOR C-THRU MODEL 42 ONLY. -
Page 3: Pre-Installation Requirements
PRE-INSTALLATION REQUIREMENTS Proper preparation prior to installing the Contempo fireplace is VERY IMPORTANT and will eliminate costly delays created by call-back inspections, re-framing or removing framing to meet clearance requirements, as well as additional trips and charges by the installer. - Page 4 FIREBOX CHASE REQUIREMENTS A framed chase or masonry chase is required for all CONTEMPO fireplaces. The plan and section dimensions are illustrated in FIG 3 and FIG 4. If the fireplace is being set on a wood floor it must be set on 6 sets of 2- 1 1/4” thick masonry bricks high with a piece of 24 gauge steel metal sandwiched in between, and arranged as indicated in FIG 3.
- Page 5 CHASE FINISHING If the chase is frame construction, the header over the chase opening must be a minimum of 66” above the hearth floor. ½” masonry board should be installed over the entire area from the header, between the studs, and up to the ½” offset ledge on the firebox. This board can be screwed directly onto the fireplace face.
- Page 6 Determine where the combustion air supply will be in the fireplace chase, then select the side unit with the vent tube penetration(LS). Apply refractory mastic to the area on the base(B) where this piece will set on then set this first side in place. Plywood / Waferboard Right Side Top Back...
- Page 7 NOTE: When this fireplace is being used as a wood burning fireplace, a fixed neo- ceramic glass panel, is required on one side of the C-Thru opening. (These Contempo panels are included when a wood burning unit is ordered). Refer to installation instructions included with fixed panel for assembly procedures.
-
Page 8: Chimney Installation
CHIMNEY INSTALLATION 1. Position the anchor plate/damper with chimney starter collar over the opening on the top section of the firebox, centering over the opening. Trace the outer edge of the anchor plate. Using a ¼” masonry drill, drill into the firebox top through the four holes in the plate. Apply bed of FIG 5 refractory mortar between the anchor plate and top of firebox. -
Page 9: Elbow Installation
5. Return to the roof with the storm collar and termination cap. First install the storm collar around the exterior of the flue section extending above the roof flashing. Tighten and slide down over the top of the roof flashing, secure and seal. Install the termination cap as per manufacturer’s instructions. - Page 10 WARNING: INSTALL ONLY THE TERMINATIONS OUTLINED IN THESE INSTRUCTIONS AND MANUFACTURED BY CONTEMPO. A SERIOUS FIRE HAZARD COULD EXIST IF USING NON-LISTED TERMINATION. THIS CHIMNEY SYSTEM IS NOT INTENDED FOR HORIZONTAL TERMINATION. GAS LOG CONVERSION See pre-installation sheet. This provision for installation of gas pipe is intended for connection to a decorative gas appliance that incorporates an automatic shutoff device and complies with the Standard for Decorative Gas Appliances for Installation in Vented Fireplaces, ANSI Z21.60.
