computrol RP6000 Installation & Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
RP6000 Receipt Printer
Installation & Operation
Manual
Document PN 99-515
© 2008 Computrol Fuel Systems Inc.
All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RP6000 and is the answer not in the manual?

Questions and answers

Summary of Contents for computrol RP6000

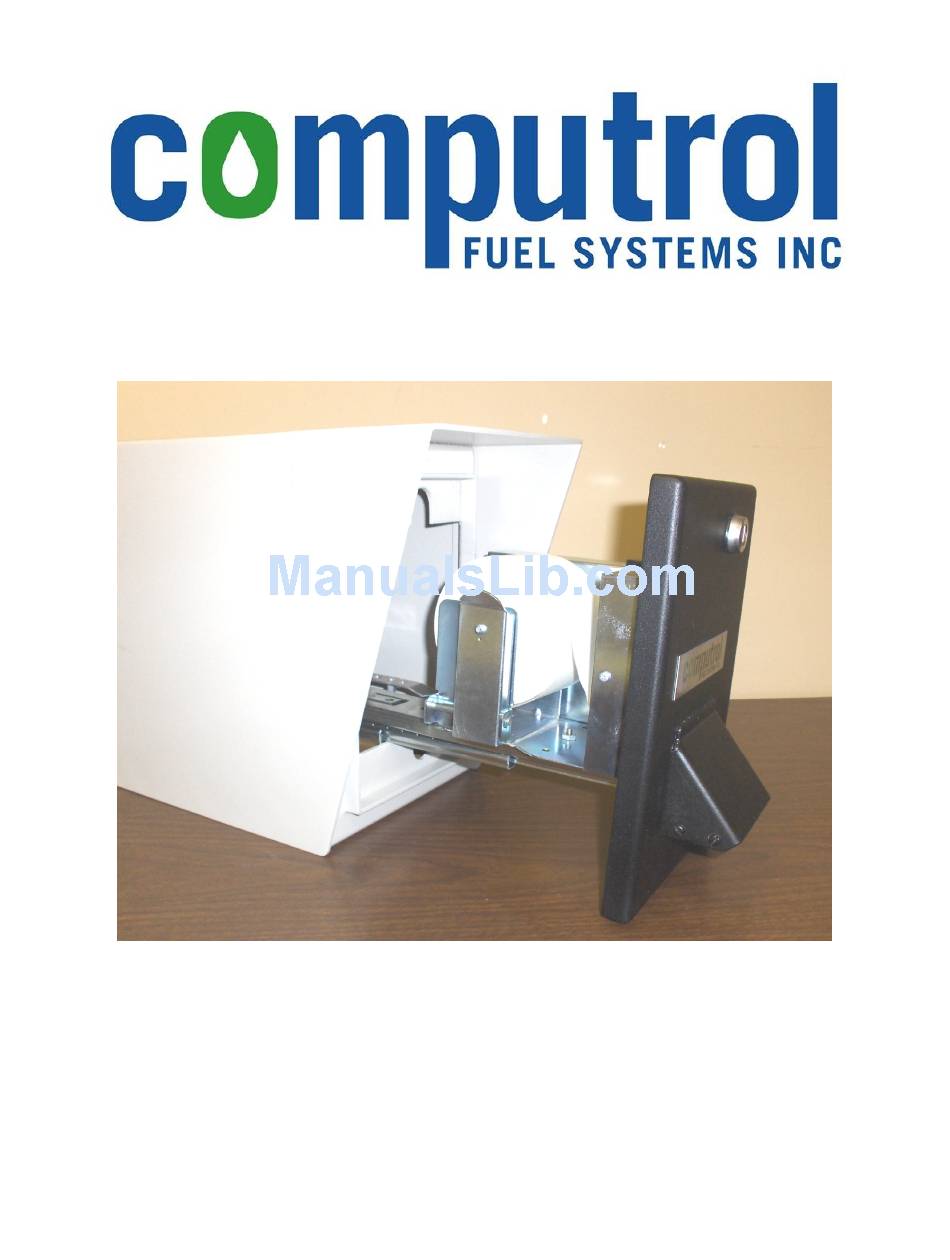

  • Page 1 RP6000 Receipt Printer Installation & Operation Manual Document PN 99-515 © 2008 Computrol Fuel Systems Inc. All rights reserved.

  • Page 2: Installation

    Installation & Operation Manual Congratulations on your purchase of a Computrol RP6000 Receipt Printer (PN 90- 710). Based on Static Thermal Technology, the RP6000 is a highly reliable, user- friendly device designed specifically for Computrol’s C6000 Card-Lock system and we are confident that you will have many years of trouble-free operation.
  • Page 3 ¼” X 1” bolts and ¼” hexnuts supplied. Right Side Mounting. If mounting of the RP6000 Receipt Printer on the right-hand side of the C6000 enclosure is desired, a suitable cover plate must be fashioned and secured to the right-side of the Receipt Printer in order to cover the holes.
  • Page 4 RP6000 Receipt Printer Installation & Operation Manual e) Re-insert the connector onto its header on the POWER SUPPLY BOARD. Figure 3 POWER SUPPLY BOARD wiring complete with HEATER POWER CABLE. 3. Remove the C6000 PCU POWER CABLE from the RECEPTACLE BOX and plug it into a socket in the 3-OUTLET CORD (PN 78-001A).
  • Page 5 RP6000 Receipt Printer Installation & Operation Manual Setup Profuel 2 Setup 1. Start the Profuel 2 Fuel Management software, select the “PCUs” button, and “Edit” the PCU to which the Receipt Printer is attached. The Pump Controller Unit dialog box comes up: Figure 4 Typical Pump Controller Unit dialog box 2.
  • Page 6 RP6000 Receipt Printer Installation & Operation Manual Interface (UI) is busy and therefore the card reader/keypad cannot be used until the receipt(s) are finished printing. 4. Click on the “Pumps/Printers/UI (5)” tab. Then click on the “UI Configuration” button. Figure 5 Click on "UI Configuration" button.
  • Page 7 RP6000 Receipt Printer Installation & Operation Manual Figure 6 UI Configuration dialog box. 6. Be sure to press the “Save” button, then “Close” the “UI Configuration Box”. 7. Back at the “Pumps/Printers/UI (5)” tab, click on the “Receipt Printer Configuration” button.
  • Page 8 RP6000 Receipt Printer Installation & Operation Manual “Job Eject” should be filled in with an integer number representing the number of blank lines to print at the end of a job before the paper cut. 9. Click on the “Save” button and then “Close” the “Receipt Printer Configuration”...
  • Page 9 RP6000 Receipt Printer Installation & Operation Manual Figure 9 Communications File Transfer dialog box. 15. Select the appropriate “PCU Location – Number” from the drop-down boxes. 16. Click on the Config System.ini” button to send the new configuration to the C6000 Pump Control Unit.

  • Page 10: Servicing The Printer

    Only thermal paper rolls with a maximum diameter of 120mm (4.7”), a width of 60mm (2.36”), and a maximum paper thickness of 80 should be used with the RP6000 Receipt Printer. Using paper that does not meet these specifications may result in paper jams and/or damage to the printer mechanism.
  • Page 11 RP6000 Receipt Printer Installation & Operation Manual 5. Press the PAPER FEED button on the top of the PRINTER MECHANISM to advance approximately 20cm (8”) of paper through the PRINTER MECHANISM. 6. Push the PRINTER MECHANISM so that it slides back into the ENCLOSURE.
  • Page 12 RP6000 Receipt Printer Installation & Operation Manual Paper Cutter The PAPER CUTTER normally requires no maintenance, but may be swung open on its hinges by gently prizing the bottom portion of the cutter out from the PRINTER MECHANISM should a paper jam occur.

  • Page 13: Troubleshooting

    RP6000 Receipt Printer Installation & Operation Manual Trouble-shooting Refer to the following table for help in diagnosing problems with the printer. Problem Possible Causes What To Do Colored Stripe on the Paper Paper is low. Replace paper roll. Receipt does not come out.

  • Page 14: Specifications

    Overall dimensions 267H x 191W x 395D 10.5H x 7.5W x 15.6D inches Weight lbs. Table 2 RP6000 Specifications Computrol Fuel Systems Inc. Contact Computrol at: 107 – 1533 Broadway Street Port Coquitlam, B.C. Canada V3C 6P3 Tel: 604-927-1000 Fax: 604-927-1004 Web: www.computrolfuel.com...
