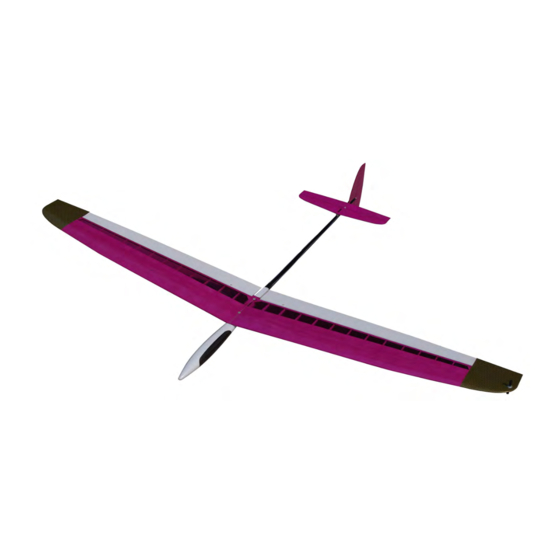

1490mm AG4XXXX SPECTRE Soaring Thermal DLG Glider
Please read it carefully before installation.
It would save you a lot of time!
Installation Manual
Specification:
Wingspan: 1490mm
Fuselage Length: 1095mm
Net Weight: ~300g
Wing Area: 21dm sq.
Wing Load: 14.2 dm sq.
Wing Type: AG455ct-02f /
AG46ct-02f /
AG447ct-02f
Radio: 4Ch or above
Advertisement
Table of Contents
Related Manuals for R2hobbies.com 1490mm AG4XXXX SPECTRE Soaring Thermal DLG Glider
Summary of Contents for R2hobbies.com 1490mm AG4XXXX SPECTRE Soaring Thermal DLG Glider
- Page 1 1490mm AG4XXXX SPECTRE Soaring Thermal DLG Glider Installation Manual Please read it carefully before installation. It would save you a lot of time! Specification: Wingspan: 1490mm Fuselage Length: 1095mm Net Weight: ~300g Wing Area: 21dm sq. Wing Load: 14.2 dm sq.
- Page 2 Step 1: Tail Wing Installation 1. Taking the aircraft tail wing and the tail pipe with the accessories bag which contains wooden parts out from the box. The opening and holes for tail wings have been pre-opened. Please ensure the angles of the wings in straight.
- Page 3 4. Rudder installation: Using cutter to remove the rudder covering along the mounting slot and secure it to the pre- opened mounting slot of the tail pipe with 502 glue and provided screws. Step 2: Fuselage Installation 1. Putting the wooden servo mount into the fuselage. Then drilling 2 holes in the tail for push rods.
- Page 4 4. Now, putting the tail rod pipe together with the fuselage in correct angle. 5. Push rod wires installation: Insert the wires from the servo end to the tail as above pictures. Using shrink tube covers another end of the push rod tube toward to the tail wing and glues it to the wooden...
- Page 5 Step 3: Main Wing Installation 1. Firstly, cutting off excessive covering along the corner of the wing with cutter. 2. Removing the covering on the ailerons servo mounts which is located in between the second and third section of the main wing. 3.
- Page 6 5. Installing main wing servos: Glue the servos to the servo carbines with AB glue and pull the servo wires out thru the wing. (Like the pictures above.) 6. Installing discus handling rod: One of the corners of the wing has been strengthen with carbon fiber cloth.
