MicW
Audio
a member of BSWA Technology Ltd.

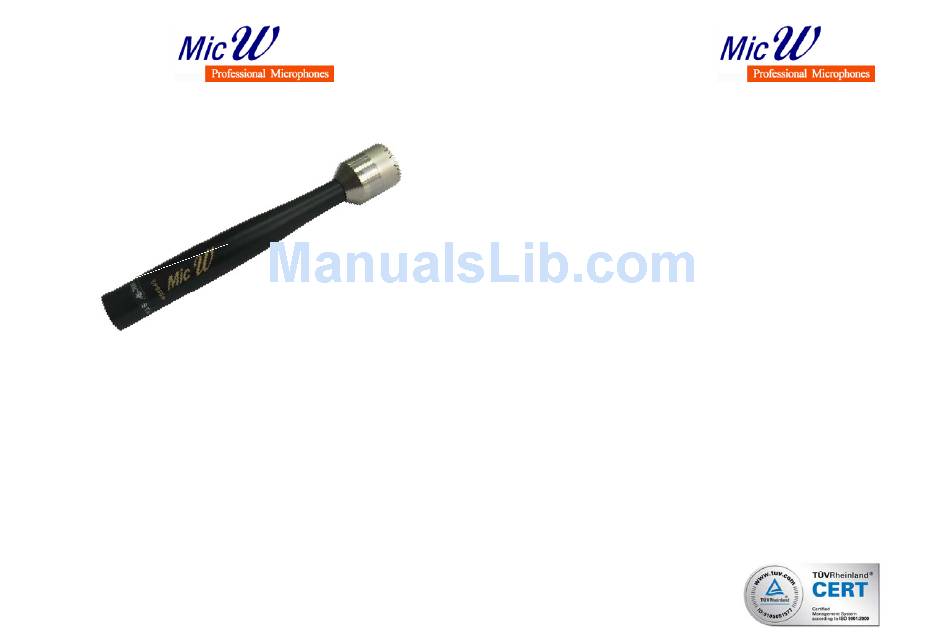

N101/N101-Pair/M101
Unit 1003, North Ring Center, No.18 Yumin Road, Xicheng District
Beijing 100029, China
Phone: +86-10-51285118
Fax: +86-10-8225 1626
Email: sales@mic-w.com
Studio Microphone
Web: www.mic-w.com
User's Manual
MicW
2008,
microphones
Product features and specifications are subject to change without notice.
www.mic-w.com
Advertisement
Related Manuals for Mic W N101
Summary of Contents for Mic W N101
- Page 1 MicW Audio a member of BSWA Technology Ltd. N101/N101-Pair/M101 Unit 1003, North Ring Center, No.18 Yumin Road, Xicheng District Beijing 100029, China Phone: +86-10-51285118 Fax: +86-10-8225 1626 Email: sales@mic-w.com Studio Microphone Web: www.mic-w.com User’s Manual MicW 2008, microphones Product features and specifications are subject to change without notice.
- Page 2 AUDIO CONNECTION It is important to read all safety precautions and operating instructions before To connect the N101 to your equipment, use a balanced XLR microphone cable with attempting to operate the unit. Keep all safety precautions and operating instructions for the following pin assignment: Pin 1 = shielding, pin 2 = +, pin 3 = -.
- Page 3 22mv/Pa; -33 dB re. 1v/Pa Frequency Response 10 Hz ~ 20kHz Power Supply 48 V Phantom power ＜1% up to 130 dB SPL peak Total harmonic distortion (THD) N101/N101-Pair Frequency Response ＜16 dBA Thermal Noise ＜200 Ohm Output impedance Length 157mm...
