Summary of Contents for Wintec Mini POS IDT600

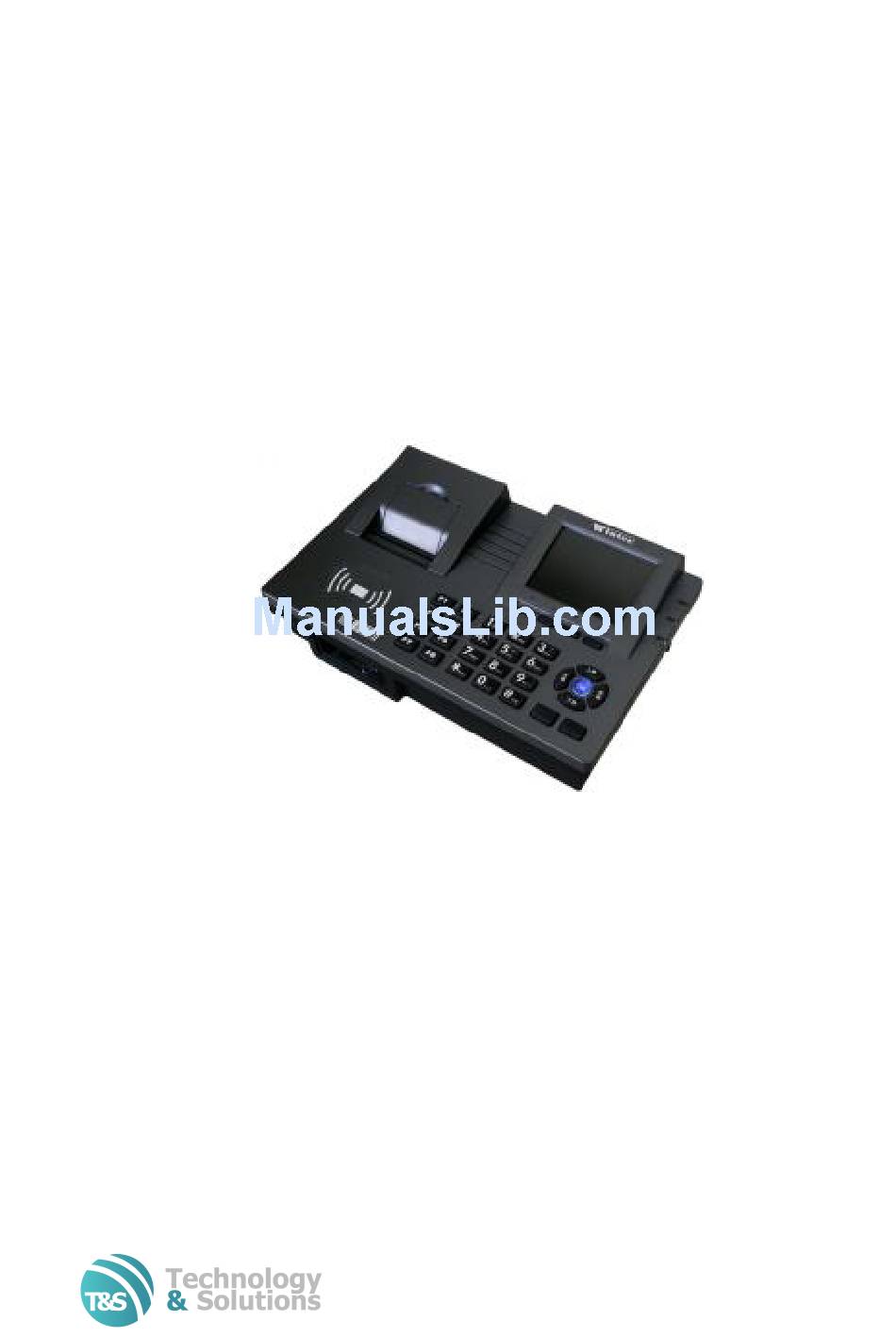

- Page 1 Mini POS IDT600 Hardware Manual Qingdao Wintec System Co., Lt Technology & Solution Carrera 3 No. 73-91 PBX (57 1) 321 2199 FAX (57 1) 321 2149 Bogotá - Colombia...
- Page 2 Wintec. Trademark Acknowledgments Wintec is trademarks of Wintec System Co., Ltd. All rights reserved. Other product names motioned herein may be trademarks or registered trademarks of their respective companies. Wintec claims no interest in trademarks other than its own.
- Page 3 IDT600 Safety Information Before installing and using the IDT600, take note of the following precautions: Do not place the unit on an unstable surface, cart or stand; Do not block the slots and opening on the unit, which are provided for ventilation ...
-
Page 4: Table Of Contents
IDT600 TABLE OF CONTENTS General About the Product .................1 Specification...................2 Identifying Components ...............3 System Design IDT600 system diagram...............8 Core Board ..................9 Main Board..................10 Key parts in Board.................12 Key Components LCD Module..................15 Printer ....................16 Barcode scanner................17 GPRS Module................18 Modem Module ................19 WiFi Module .................20 RF Card Reader ................21 WARRANTY... -
Page 5: General
Thank you for purchasing our powerful IDT600! With this manual, you can operate and maintain the IDT600. About the Product IDT600 is an innovation of Intelligent Data Terminal developed by Wintec. It integrates telephone voice, data processing and communication functions, supports... -
Page 6: Specification
IDT600 Specification ARM9 203MHz Memory 64MB Rom Disk 64MB Nand Flash Display 3.5” TFT LCD, 320×240 Keyboard 31Keys Speaker 2W optional IC Card reader ISO7816 Printer 58mm Thermal printer, paper ease load 1*RS232(internal 2),2*USB, 1*RJ45, Interface 1*RJ11, SD card Power Adapter 8V / 5A Operating Temp. -
Page 7: Identifying Components
IDT600 Identifying Components IDT600 view DESCRIPTION 1 Barcode scanner windows 2 IC card reader 3 power switch 4 keyboard 5 TFT display and touch screen 6 status LED 7 printer paper slot 8 RF card antenna 9 speaker 10 holder for printer... - Page 8 IDT600 IDT600Keyboard Keyboard default define as list: This is the default define of the keys, including number keys(12keys), directional keys(5keys), and shortcut keys(4keys) and function keys(10), including ESC and Enter. You can define the function of the keys, usually the F5 is FEED for printer. Enter and OK are the same. note 1.you’...
- Page 9 IDT600 Interface view DESCRIPTION GPRS or WiFi antenna DC power port 2*USB (down one slave) RJ45 for Ethernet RS232(DB9) Modem or telephone port note 1 " Maybe there are some difference for different spec, the telephone port is only for GPRS telephone function 2 "...
- Page 10 IDT600 IDT600 assembly view...
- Page 11 IDT600 DESCRIPTION 1 CCD induction board 2 Screw 3 Ni-MH Battery 4 Screw 6 Screw 5 CCD tray" battery cover# 8 Screw 7 CCD module" optional# 9 Printer controller 10 Screw 11Printer tray 12 Thermal printer 13 Printer wheel 14 Paper cutter 15 MODEM module"...
-
Page 12: System Design
IDT600 CHAPTER 2 System Design IDT600 system diagram Note 1$ the parts included in the broken frame are used for some special solution. -
Page 13: Core Board
IDT600 There are 2 circuit board in the IDT600,core board and main board .The Core board includes CPU, memory ,Flash memory and real timer etc…,the others parts are included in main board Core Board Core board front view Core board back view... -
Page 14: Main Board
IDT600 Main Board Main Board front view DESCRIPTION 1 IC card slot 2 core board 3 GPRS module P1 Audio Interface P2 LED Interface P3 RJ11 (modem or telephone) P5 JTAG Interface P6 TFT LCD Interface P7 RS232 P8 Keyboard Interface P9 Voice COMM. - Page 15 IDT600 P13 USB port P14 Internal USB Interface P15 RS232 port P16 Battery Interface P17 Voice COMM. Interface 2 P18 Printer Interface P20 Printer power Interface P21 RS232 Interface Main Board front view DESCRIPTION Micro SD card slot U19 SIM Card slot...
-
Page 16: Key Parts In Board
IDT600 Key parts in Board CPU S3C2410A 16/32-Bit RISC architecture and powerful instruction set with ARM920T CPU core Enhanced ARM architecture MMU to support WinCE, EPOC 32 and Linux Address space: 128M bytes for each bank (total 1G bytes), ... -
Page 17: Power Supply
IDT600 NOR FLASH:SST39VF6401B (special use) Superior Reliability Endurance: 100,000 Cycles (Typical) Greater than 100 years Data Retention Security-ID Feature: SST: 128 bits; User: 128 bits supports Nand flash memory from 2MB to 8MB SDRAM HY57V561620 system memory:64MB ... -
Page 18: Usb Port
IDT600 BEEP Indication system runs error ,beep alarm Keyboard support max 5*8keys (only uses 31keys) IC Card Interface Support Memory card and CPU card JTAG Debug Interface support software debug on CPU running Printer Interface GPIO driver Printer Head ... -
Page 19: Key Components
IDT600 CHAPTER 3 Key Components LCD Module IDT600 uses 3.5” TFT LCD module, Display Mode: Normally White Display Technology: α-Si TFT active matrix Viewing Area(mm): 72.88(W)X55.36(H) Active Area(mm): 70.08(W)X52.56(H) Resolution: 320X(RGB)X240 dots Pixel Pitch: 219X219% m Pixel Configuration: RGB Stripe Backlight: 6 LED Response time:50ms Luminance: 200 cd/... -
Page 20: Printer
IDT600 Printer IDT600 uses 58mm thermal printer, ITEM Specifications Printing method Direct thermosensitive method Valid printing width 48 mm Dot structure 384dots /line Dot pitch(rsolution) 0.125 mm (8 dots/mm) Dot size 0.125 0.12 Printing speed 60mm/s Font 12×24(ANK),24×24(Chinesse) Column capacity 32(12×24),36(12×24) Character set IBM Character set II, B2312(Chinese) -
Page 21: Barcode Scanner
IDT600 Barcode scanner IDT600 uses CCD barcode scanner module. General: Interface: RS232, Keyboard and USB optional Code Read: UPC/EAN/JAN & Addon 2/5, Code 39, Code 39 Full ASCII, Code 11, Matrix 25, Code 128, Code 32, Code 93, Interleave 25, Industrial 25, Codabar/MW7, MSI/PLESSEY, Programming: Users Manual or by Download S/W Optical Width of Field: 2.16 inch(55mm)/50 mm(From the front) -
Page 22: Gprs Module
IDT600 GPRS Module IDT600 uses a Tri-Band GSM/GPRS solution in a compact plug-in module. The leading features of the module make it ideal for virtually unlimited application, such as WLL applications (Fixed Cellular Terminal), M2M application, handheld devices and much more. Customized MMI and keypad/LCD support An embedded Powerful TCP/IP protocol stack Based upon mature and field-proven platform, backed up by... -
Page 23: Modem Module
IDT600 Modem Module IDT600 uses Conexant chipset Embedded Modem with high quality, support PNP function. Caller ID :Support Standard:V.92/V.34/V.32bis! V.22 bis, V.22, V.23 and V.21; Bell 212A and 103 Data Error Correction:V.42 LAPM and MNP2-4 Dial-up: tone, pulse dialing Data Compression:V.42 bis and MNP5 Flow control: Hardware CTS/RTS CTS ONLY(DTR/DSR) Software XON/XOFF AT Command Set: Hays At... -
Page 24: Wifi Module
IDT600 WiFi Module The WiFi module of IDT600 is designed to provide wireless LAN function for embedded hardware platform with USB interface. The wireless LAN function is based on Ralink RT2571W MAC/BBP, RT2528 transceiver and high gain power amplifier, which implements the full IEEE802.11b/g standard date rates up to 54Mbps. -
Page 25: Rf Card Reader
IDT600 RF Card Reader The RF Card Reader is a low power consumption Mifare operation modules, which designed base on the PHILIPS’ IC MFRC522, and adopt the 13.56M RF contact less technology. Users needn’t care for the complex control method of MFRC522, just by send the command through the interface of UART/IIC can implement all the operation of the Mifare cards.M104X can support Mifare one S50,S70 and compatible cards. -
Page 26: Warranty
1. Duration of limited warranty 1 year warranty . 2. Online Service You can obtain help from Wintec when you are unable to solve the problem. Please contact our ser and Maintenance Department for any requires. Hotline:0532-85938292. Our service engineers will provide the most efficient help, or visit our website: www.wintec.cn to obtain help online.
