Canvys AOpen DE965 Assembly Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

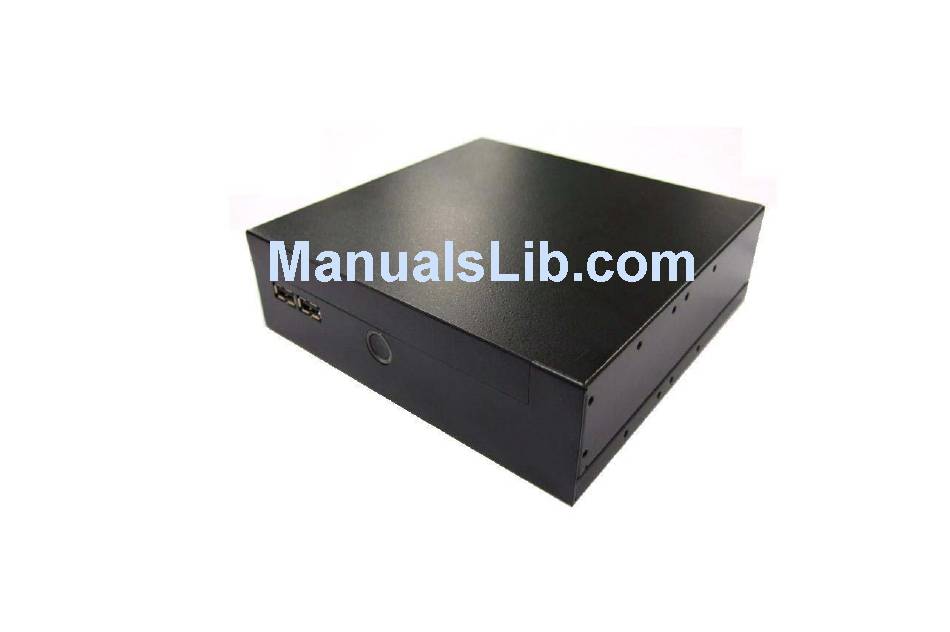

Assembly Guide for DE965
V1.0
2008/03/27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AOpen DE965 and is the answer not in the manual?

Questions and answers

Summary of Contents for Canvys AOpen DE965

  • Page 1 Assembly Guide for DE965 V1.0 2008/03/27...
  • Page 3 Disposal Instruction (US) For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under “Green Products”...
  • Page 4 Verwijderingsinstructie (Dutch) Om mogelijke schade aan het milieu of de menselijke gezondheid door ongecontroleerde afvalverwijdering te voorkomen, moet u dit elektronisch product scheiden van andere soorten afval en op een verantwoorde manier recyclen. Verwijder dit product dan ook alstublieft niet samen met ander huishoudelijk afval. Voor meer informatie over de verzameling en recycling van elektrisch afval en elektronische apparatuur (WEEE), nodigen we u uit om onze homepage te bezoeken www.aopen.com onder "Green Products".
  • Page 5 Istruzioni per lo smaltimento (Italian) Per una migliore salvaguardia del nostro pianeta, si prega di non gettare questo dispositivo elettronico nei normali rifiuti al momento dell'eliminazione. Per ridurre al minimo l'inquinamento ed assicurare la massima protezione dell'ambiente, si prega di riciclare il prodotto. Per maggiori informazioni riguardanti la raccolta ed il riciclaggio delle apparecchiature elettriche ed elettroniche residue (WEEE), siete invitati a visitare la nostra homepage www.aopen.com alla voce "Green Products".
  • Page 6 Instrucciones para depositar los productos electrónicos (Spanish) Para proteger mejor el medio ambiente, por favor, no deposite los productos electrónicos en los contenedores de basura tradicionales. Para reducir la contaminación y proteger el medio ambiente se recomienda que los recicle. Para más información acerca de dónde depositar y cómo reciclar Equipos Electrónicos y Desperdicios Electrónicos (WEEE), por favor, visite la página web www.aopen.com...
  • Page 7 Copyright Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.
  • Page 8 Safety Instructions 1. Please read these safety instructions carefully. 2. Please keep this User’s Manual for later reference. 3. Please disconnect this equipment from connecter before cleaning. Don’t use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning. 4.
  • Page 9 FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 10 Notice: Peripheral devices Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception. Caution Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications Commission, to operate this computer.

  • Page 11: Table Of Contents

    Index 1. Outlook …………..……………………………………………2 2. Open Housing ……………………………………...………...4 3. Install Key components ………………………………………7 4. Assemble the Supporter & Upper Case…………………..16 5. Appendix 1 Packing List…………………………………….25 6. Appendix 2 Table of Screw and TOQUE………………….26 7. Appendix 3 Watch Dog Timer Configuration…….………..27 8.

  • Page 12: Outlook

    1. Outlook Front IO Front USB Front USB Power Button Power Button...
  • Page 13 Rear IO Antenna VGA2 COM port hole Kensington lock hole Mic in HDMI DC 19V VGA1 Line out USB 2.0...

  • Page 14: Open Housing

    2. Open Housing 2-1. 2-2. Detach 2 pcs of the rear side screw ( FPH M3 Push the Upper case to remove it . screw ) by the electric screw driver . Front Side (Screwdriver torque : 5.0±0.2 kgf. cm ) Unscrew Rear Side...
  • Page 15 2-3. Detach 4 pcs of the supporter screw ( FPH 2-4.Remove Supporter M3 screw )by the electric screw driver (Screwdriver torque : 5.0 ±0.2 kgf. cm )
  • Page 16 2-5.You will see the kernel of Digital Engine...

  • Page 17: Install Key Components

    3. Install Key components 3-1 Install Memory 3-1-1. Insert the memory on the socket as this angle. Insert Dimm as this angle 30°...
  • Page 18 3-1-2. Then press the Dimm as flat on the Motherboard, and you will hear the click voice. Make sure it clicks...
  • Page 19 3-1-3.Unscrew the CPU cooler 3-1-5. Unscrew CPU socket counterclockwise Unscrew 3-1-4. Remove the cooler...
  • Page 20 3-1-6 Put the CPU into the socket, and check 3-1-8. Put on the cooler and screw it tightly the direction. . clockwise 3-1-7. Screw the CPU socket. 3-1-9 connect the wire for cooler...
  • Page 21 3-2 Install HDD on Supporter without ODD 3-2-1 Install Card Holder and screw it with 1pcs of M2 screw. (Screwdriver torque : 0.7±0.1kgf.cm) Put the Card Holder on the supporter, 3-2-2.Insert the MPI-SATA card into HDD Screw internal card to Card holder with 2pcs of M2 screws.(Screwdriver torque:0.7±0.1kgf.cm)
  • Page 22 3-2-3. Put the HDD on support 3-2-4. and screw HDD with 4pcs of FPH M3 Please pay attention to the direction of SATA screw (on both flanks) (Screwdriver torque : 2.5 ±0.1 kgf. cm )
  • Page 23 3-3 Install HDD on Supporter with slim ODD 3-3-1 Put slim ODD on the top side of supporter, screw the position 1 and 2 with M2 screw first, then screw position 3 and with M2 screw to fix the slim ODD. (Screwdriver torque : 0.7±0.1kgf.cm)
  • Page 24 3-3-2.Insert the MPI-SATA card into HDD 3-3-3 Screw MPI-SATA card to ODD with 2 pcs of M2 screws. (Screwdriver torque : 0.7±0.1kgf.cm) 3-3-4. Put the HDD on support and screw HDD with 4pcs of FPH M3 screw Please pay attention to the direction of SATA (on both flanks) (Screwdriver torque : 2.5 ±0.1 kgf.
  • Page 25 3-3-5 FPH M3xL5 Screw FPH M2xL3 Screw...

  • Page 26: Assemble The Supporter & Upper Case

    4. Assemble the Supporter & Upper Case 4-1.Make sure Front USB wire connect to MB...
  • Page 27 4-2. Install the supporter (Only HDD is on the supporter now) 4-2-1. Make sure the MPI-SATA card is correctly insert into the socket 4-2-2.Screw 4pcs of M3 screw at the supporter. (Screwdriver torque : 5.0 ± 0.2 kgf.cm)
  • Page 28 4-3. Install the supporter (HDD and ODD are on the supporter now) 4-3-1. Make sure the MPI-SATA card is correctly insert into the socket 4-3-2.Screw 4pcs of M3 screw at the supporter. (Screwdriver torque : 5.0 ± 0.2 kgf.cm)
  • Page 29 4-4. Assemble the upper case (without ODD) 4-4-1. Connect the power switch wire. 4-4-2. Connect the Front-USB wire to upper_case. 4-4-3. Adjust the USB cable to arrange the cable under the supporter . Accord the photo.
  • Page 30 4-5 Assemble the upper case (with ODD) 4-5-1. Remove ODD door on upper case 4-5-2. Connect the power switch wire. 4-5-3.. Accord the photo Connect the 4-5-4. Adjust the USB cable to arrange the Front-USB wire to upper_case cable under the supporter.
  • Page 31 4-6.Screw the upper case 3. Screw 2pcs of M3 screw at rear side (Screwdriver torque : 5.0 ±0.2 kgf. cm )
  • Page 32 Without slim ODD With slim ODD...
  • Page 33 4-7 Assemble miniPCI Wireless LAN or TV Tuner card 4-7-1. cable and nut 4-7-2. Note the hole shape to adjust the A,B inside housing; C,D outside housing antenna SMA connector to insert into the hole. 4-7-3. Insert a washer to one end of the 4-7-4.
  • Page 34 4-7-5. Align the notch and Insert the mini card 4-7-6. Install the antenna wire with the button module into the slot and fix with screw. of the wireless LAN or TV-tuner card 4-7-7. Arrange the wire to avoid damaging the 4-7-8.

  • Page 35: Appendix 1 Packing List

    Appendix 1 Packing List 1 x DE965-HG system 1 x MPI-SATA card 1 x Easy Assembly Guide 1 x Driver CD 1 x 90W Adapter and Power Cord 1 x Card Holder 1 x L type Holder with 8 pcs of M3 screw 4 x M3 - L5 screws 7 x M2 - L3 screws □...

  • Page 36: Appendix 2 Table Of Screw And Toque

    Appendix 2 Table of Screw and Torque Screw Photo Position Q’ty Screw spec. Torque Screw driver spec. ♁ Rear side FPH M3- L5 5±0. 2 Phillips #2 kgf-cm ♁ FPH M3- L5 2.5±0. 2 Phillips #2 Length ≧ 8cm kgf-cm ♁...

  • Page 37: Appendix 3 Watch Dog Timer Configuration

    Appendix 3 Watch Dog Timer Configuration The WDT is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sort of circumstances, the timer will count to zero and the selected outputs will be driven.
  • Page 38 CODE FLOW-CHART 1. Initial Watchdog Pin (1)set -> Logical Device: Global CR: 0x2D Bit: 0 = 0 WDTO. (2)set -> Logical Device: 0x09 CR: 0X30 Start Bit:3 = 1 activate GPIO5 CR: 0xE0, 0xE1, 0xE2 Bit: 6, Bit: 7, Bit: 6 = 0 GPIO port is programmed as an output port.
  • Page 39 1. Set Mode (1)set -> Logical Device: 0x08 CR: 0xF5 Set Min/Sec Mode Bit: 3 = 0 By second = 1 By minute Start Timer 1. Set Mode (1)set -> Logical Device: 0x08 CR: 0xF6 Bit: 7~0 = 0x01 Time- out occur after 1 second/minute = 0xFF Time- out occur after 255 second/minute...

  • Page 40: Sample Code

    SAMPLE CODE: This code and information is provided "as is" without warranty of any kind, either expressed or implied, including but not limited to the implied warranties of merchantability and/or fitness for a particular purpose. This program just for MB with Winbond W83267DHG LPC I/O 1.
  • Page 41 2. Stop Timer 3. Set Min/Sec Mode outportb(0x2E,0x87); outportb(0x2E,0x87); outportb(0x2E,0x87); outportb(0x2E,0x87); outportb(0x2E,0x87); outportb(0x2E,0x87); outportb(0x2E,0x07); outportb(0x2E,0x07); outportb(0x2E,0x07); outportb(0x2F,0x08); outportb(0x2F,0x08); outportb(0x2F,0x08); outportb(0x2E,0xF5); outportb(0x2E,0xF6); outportb(0x2E,0xF7); outportb(0x2F,byBit); outportb(0x2F,byBit); outportb(0x2F,byBit); outportb(0x2E,0xAA); outportb(0x2E,0xAA); outportb(0x2E,0xAA); 4. Start Timer outportb(0x2E,0x87); outportb(0x2E,0x87); outportb(0x2E,0x87); outportb(0x2E,0x87); outportb(0x2E,0x07); outportb(0x2E,0x07); outportb(0x2F,0x08); outportb(0x2F,0x08); outportb(0x2E,0x30); outportb(0x2E,0xF6);...

  • Page 42: Appendix 4 Outline And Holder Drawing

    Appendix 4 Outline and Holder Drawing A. LH01 L type Holder(Include 2 piece holder and 8 FPH M3 screws) L type Holder is a versatile holder, you can You can put on the L type Holder on 2 sides, screw it on any place you want. and screw it tightly.
  • Page 43 A-3 Dimension of L type Holder. (unit: mm)
  • Page 44 B.VM02 Monitor Holder (Include 2 piece holder and 8 FPH M3 and 4 FPH M4 screws) Monitor Holder is base on VESA standard (10cm/7.5cm interval) for you to screw the Digital Engine behind the monitor. You can put on the Holder on monitor VESA mounting hole first, and screw it tightly, then put Digital Engine on VM02 holder and use 4 M3 screws to fix it.
  • Page 45 B-2 Dimension of VM02 Monitor Holder (unit: mm)
  • Page 46 C. ST01 Vertical Holder (Include 2 piece holder and 8 FPH M3 screws) You can put the Digital Engine Vertical with the You can put the stand(s) on right side, and holder screw it tightly.
  • Page 47 C-3 Dimension of Vertical Holder. (Single Stand) (unit: mm)
  • Page 48 C-4 Dimension of Vertical Holder.(Double Stand) (unit: mm)
  • Page 49 D. Dimension of DE965-HG (unit: mm)
  • Page 52 P/N：49.ADE01.0510 S/N：088-033-127...
