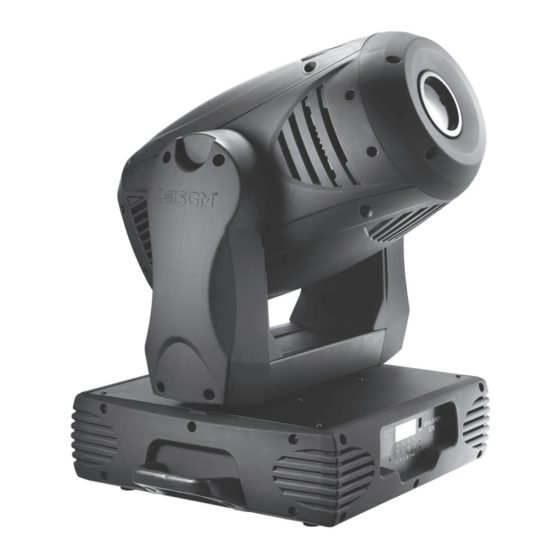

Summary of Contents for SGM IDEA SPOT 700

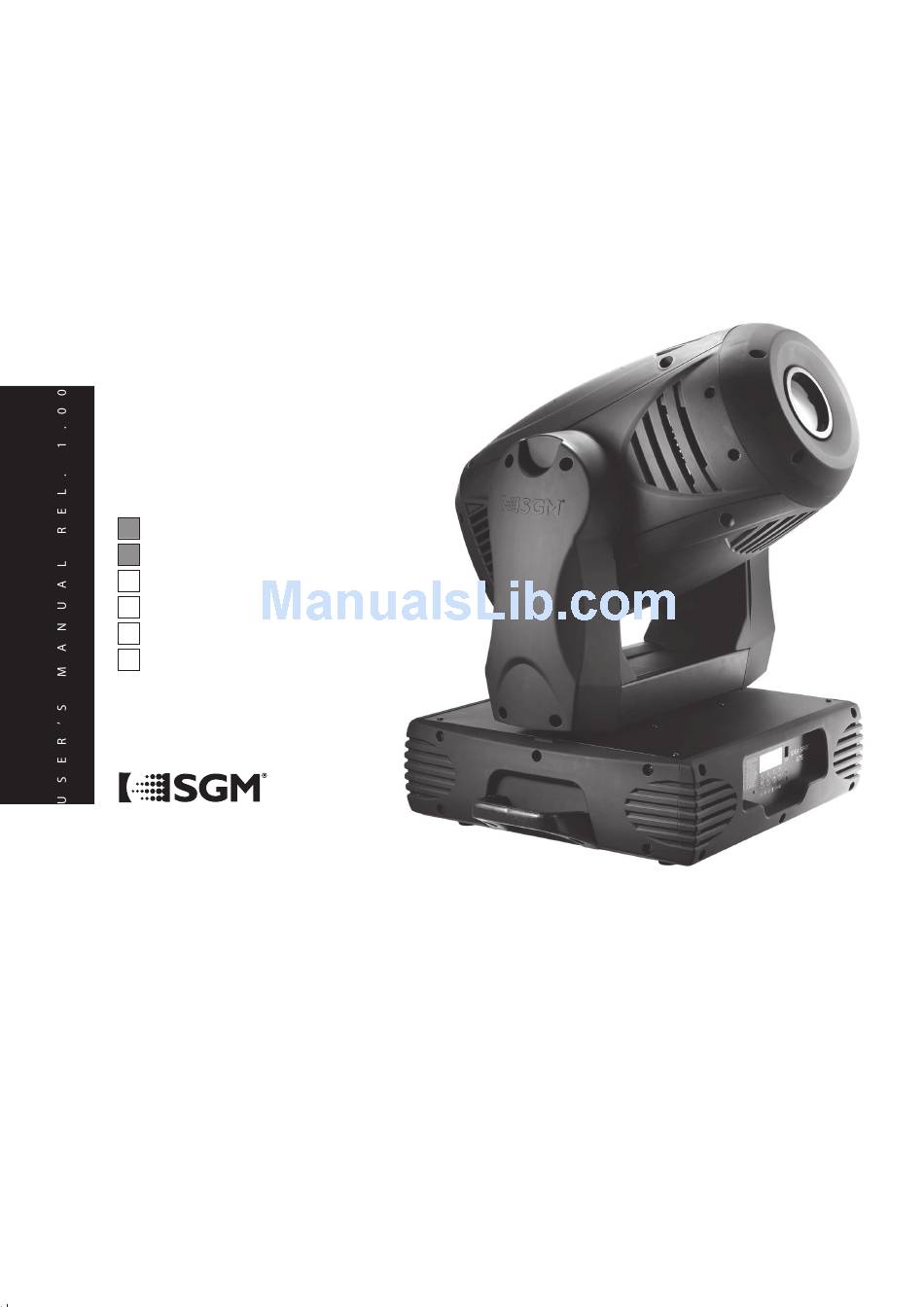

- Page 1 IDEA SPOT M O V I N G H E A D S...
- Page 2 Nell’ottica di qualità SGM, è possibile che l’Azienda apporti migliorie ai suoi prodotti, per cui consigliamo di alle- gare il manuale al prodotto stesso e di trascrivere il numero di serie nell’ultima pagina della copertina: utilizzando il presente manuale con un apparecchio fabbricato prima o dopo la sua stampa, potrebbero esserci discrepanze fra l’apparecchio e quanto riportato nel manuale stesso.
-
Page 3: Table Of Contents
LAMP CONTROL ........................１４ PERSONALITY......................... １５ RESET-FUNCTIONS ......................... １６ EFFECT ADJUST ........................１６ USERS MODE SET ........................１６ EDIT PROGRAM ........................１６ INSTRUCTIONS ON USE: ......................１９ ERROR MESSAGE........................２４ CLEANING AND MAINTENANCE....................２５ TECHNICAL SPECIFICATIONS ....................２５ １ Idea Spot 700 XM473-V1.0-NR... -
Page 4: Introduction
Editable program: Edit and save the program to inside EEPROM via the control board or external controller, up to 250 scenes can be saved and then can be run in Stand Alone or sound activated Number of scenes in Program Run can be changed individually ２ XM473-V1.0-NR Idea Spot 700... -
Page 5: Overview
OVERVIEW Objective-lens LCD-Display Mode/Esc-button Up-button Down-button Enter-button Microphone Wireless DMX antenna Wireless indicator 10. Lamp system 11. Yoke 12. Carrying handle 13. DMX output socket 14. DMX input socket 15. Fuse 16. Power supply ３ Idea Spot 700 XM473-V1.0-NR... -
Page 6: Safety Instructions
Never look directly into the light source, as sensitive persons may suffer an epileptic shock. Please be aware that damages caused by manual modifications to the device are not subject to warranty. Keep away from children and non-professionals. ４ XM473-V1.0-NR Idea Spot 700... -
Page 7: General Guidelines
During the installation of halogen lamps do not touch the glass bulbs bare handed. Always use a cloth to handle the lamps during insertion and removal. Do not install lamps with a higher wattage. They generate higher temperatures than which the device was designed for. ５ Idea Spot 700 XM473-V1.0-NR... - Page 8 Please remember the lamp is not a hot-restrike type, you must wait for approximately 15 minutes after having turned off the lamp before you can turn it back on again. CAUTION Do not operate this device with open cover. ６ XM473-V1.0-NR Idea Spot 700...
-
Page 9: Mounting The Device
The electric connection must only be carried out by a qualified electrician. Before mounting make sure that the installation area can hold a minimum point load of 10 times the device’s weight. Connect the fixture to the mains with the power plug ７ Idea Spot 700 XM473-V1.0-NR... -
Page 10: Installation Method Via Clamp
5-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. Please refer to the diagram below. ８ XM473-V1.0-NR Idea Spot 700... - Page 11 In the case of the moving head, which is 24 channels fixture, you should set the starting address of the first unit to 1, the second unit to 25(24 + 1), the third unit to 49 (25+ 24), and so on. ９ Idea Spot 700 XM473-V1.0-NR...
- Page 12 2. Do not connect the fixture which is under the communication of wireless system to the DMX controller, otherwise it will cause interference from the DMX controller. １０ XM473-V1.0-NR Idea Spot 700...
-
Page 13: Control Board
Fan Voltage High/Low Fan Voltage Select Gobo Speed Quick/Slow Gobo Change Speed Fans Control Auto Fans Speed Fans Speed Mode Select High Fans Speed Low Fans Speed 02~59m 05m Display Setting Shutoff Time Display shutoff time １１ Idea Spot 700 XM473-V1.0-NR... - Page 14 Program 10 Step 64=SCxxx Save and exit Edit Scenes Edit Scene 001 Pan,Tilt,…… Pan=xxx…… Save and automatically Edit Scene --Secne Time-- TIME=xx.xs return Input By Outside manual scenes edit Rec. Controller XX~XX Automat. scenes rec １２ XM473-V1.0-NR Idea Spot 700...
-
Page 15: Display The Dmx 512 Value Of Each Channel
With this function, you can clear last run time of the fixture. The display shows “ON” or “OFF”, Press “Enter” to confirm. L-Time Password With this function, you can display the timer password. The time password is 038. １３ Idea Spot 700 XM473-V1.0-NR... -
Page 16: Software Version
Turn the encoder to select the maximum inside temperature between 60° C and 159° C. Inside temperatures below 90° C are not critical. 90° C and more should lead to the lamp being switched off. １４ XM473-V1.0-NR Idea Spot 700... -
Page 17: Personality
With this function, you can select GOBO speed for quick or slow, the default is Quick. Fans Control With this function, you can set the speed of the running fans. The selections have Auto、high and low. １５ Idea Spot 700 XM473-V1.0-NR... -
Page 18: Reset-Functions
Auto scenes rec. The moving head features an integrated DMX-recorder by which you can transmit the programmed scenes from your DMX-controller to the moving head. Adjust the desired scene numbers via the encoder (from – １６ XM473-V1.0-NR Idea Spot 700... - Page 19 Turn the encoder to select the desired program. With this function you can edit specific scenes into a specific program. Press the Enter button to confirm. Press the Mode/Esc button in order to return to the main menu. １７ Idea Spot 700 XM473-V1.0-NR...
- Page 20 Auto Pro Part 1 is Program 2; Auto Pro Part 2 is Program 3; Auto Pro Part 3 is Program 6 The 3 Slave groups run the Auto Program in certain time segments, as shown in the following picture: １８ XM473-V1.0-NR Idea Spot 700...
-
Page 21: Instructions On Use
Cyan (0-white, 255-100% Cyan) Cyan Color Fine : 0-255 Cyan Fine Magenta Color : 0-255 Magenta (0-white, 255-100% magenta) Magenta Color Fine : 0-255 Magenta Fine Yellow Color : 0-255 Yellow (0-white, 255-100% Yellow) Yellow Color Fine : １９ Idea Spot 700 XM473-V1.0-NR... - Page 22 Rot. gobo wheel cont. rotation slow to fast Rotating gobo index,rotating gobo rotation 2: 0-127 Gobo indexing 128-189 Forwards gobo rotation from fast to slow 190-193 No rotation 194-255 Backwards gobo rotation from slow to fast Rotating gobo indexing Fine 2: ２０ XM473-V1.0-NR Idea Spot 700...
- Page 23 Pulse-effect in sequences 160-191 No function (shutter open) 192-223 Random strobe effect slow to fast 224-255 No function (shutter open) Dimmer intensity: 0-255 Intensity 0 to 100% Fine Dimmer intensity: 0-255 Dimmer intensity fine Iris: ２１ Idea Spot 700 XM473-V1.0-NR...
- Page 24 Macro9 80-87 Macro10 88-95 Macro11 96-103 Macro12 104-111 Macro13 112-119 Macro14 120-127 Macro15 128-135 Macro16 136-143 Macro17 144-151 Macro18 152-159 Macro19 160-167 Macro20 168-175 Macro21 176-183 Macro22 184-191 Macro23 192-199 Macro24 200-207 Macro25 208-215 Macro26 ２２ XM473-V1.0-NR Idea Spot 700...
- Page 25 160-179 Internal program 4 (secne25~32 of EEPROM) 180-199 Internal program 5 (secne33~40 of EEPROM) 200-219 Internal program 6 (secne41~48 of EEPROM) 220-239 Internal program 7 (secne49~56 of EEPROM) 240-255 Music Control (secne of Program 1) ２３ Idea Spot 700 XM473-V1.0-NR...
-
Page 26: Error Message
(Color wheel- error) This message will appear after the reset of the fixture if the magnetic-indexing circuit malfunction (sensor failed or magnet missing) or the stepping-motor is defective (or its driving IC on the main PCB). The color wheel is not located in the default position after the reset. ２４ XM473-V1.0-NR Idea Spot 700... -
Page 27: Cleaning And Maintenance
Packing dimensions: 61 x 53 x 60 cm Net weight: 33KGS Gross weight: 39.5KGS Remark: errors and omissions for every information given in this manual excepted. All information is subject to change without prior notice. ２５ Idea Spot 700 XM473-V1.0-NR...
