Power Guard T-1008-REM Installation Manual

Waterproof alarm for motorcycle
Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
Made In Canada
T-1008-REM
WATERPROOF
ALARM FOR
MOTORCYCLE
INSTALLATION MANUAL (Rev 1.42+)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-1008-REM and is the answer not in the manual?

Questions and answers

Summary of Contents for Power Guard T-1008-REM

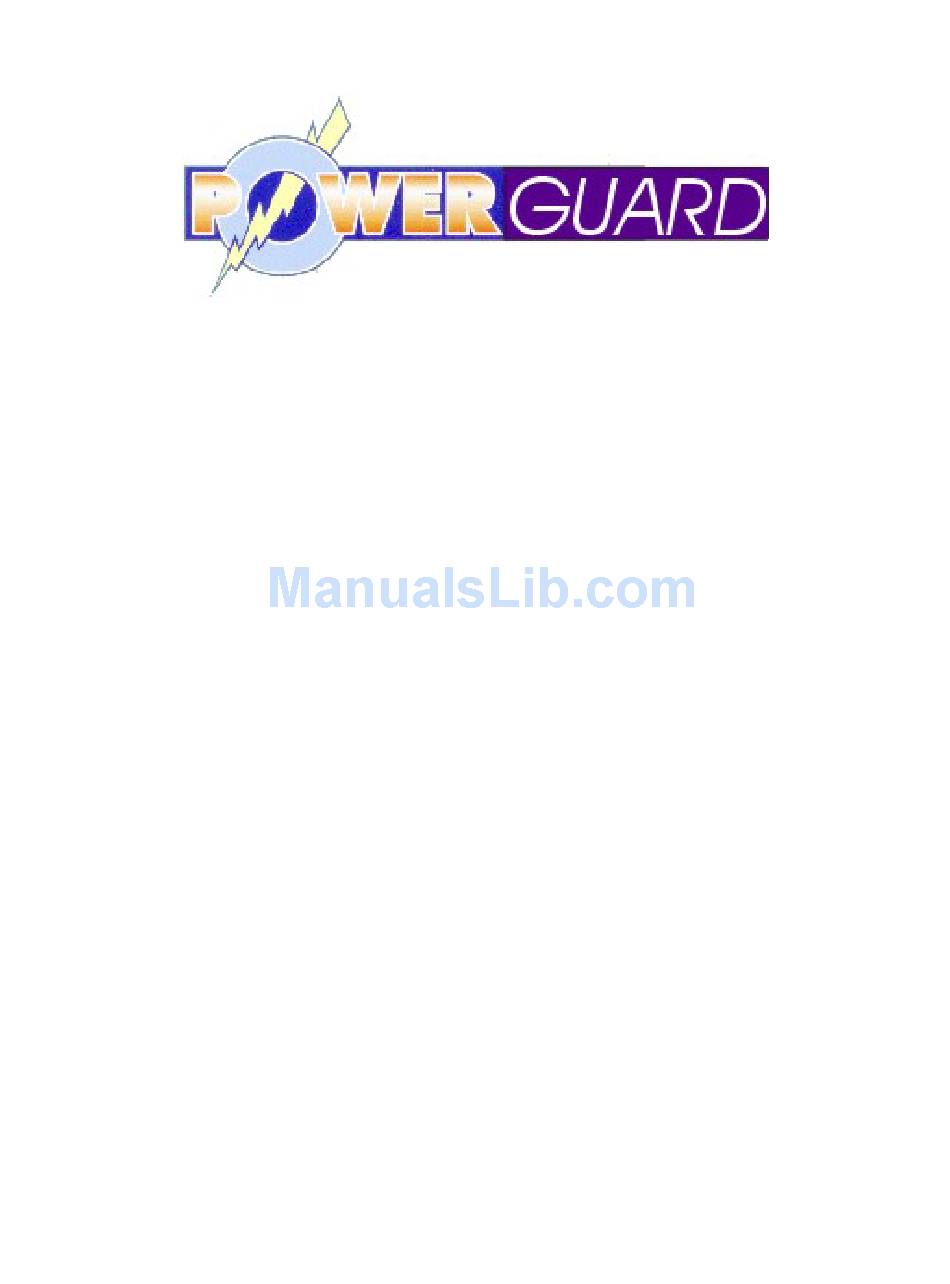

  • Page 1 Made In Canada T-1008-REM WATERPROOF ALARM FOR MOTORCYCLE INSTALLATION MANUAL (Rev 1.42+)
  • Page 2 FEATURES: 1. Three mechanical tilt sensors built-in to eliminate false alarms. 2. One external trigger negative input (mercury switch supplied). 3. Power consumption is less than 10mA. 4. Easy to install and user friendly to operate the unit. 5. Ignition or Starter disables relay built-in. 6.
  • Page 3 ARMING WITH TILT SENSOR (General Arming, Button LOCK) Press button#1 (Lock) will arm the unit with tilt sensor. You should hear one chirp to confirm, if you want to arm silent, press Lock twice. One the system is armed and if the ignition key is turned to ON position or the motorcycle position has been moved, the system will trigger the alarm and siren will sound for 30, 60 or 120 seconds, depending on programming option#3.

  • Page 4: Servicing Your Motorcycle

    SERVICING YOUR MOTORCYCLE: To protect maximum your motorcycle, the factory default is setting for “Active Arming With Safety Rearm” i.e. When the system is arming (general or partial arming), you disarm the system via START button then you have 30 seconds delay to turn ignition key on. If delay 30 seconds is expired and you never turn ON ignition, the system will force an auto-rearm depending your last status general or partial arming.

  • Page 5: Wiring Diagram

    WIRING DIAGRAM BLUE BROWN/WHITE NOT USED GREY NEGATIVE IGNITION KILL Diagram 1 +12V BLUE BLUE BROWN/WHITE BROWN/WHITE NOT USED GREY GREY POSITIVE IGNITION KILL Diagram 3 Diagram 2 IGNITION WIRE GROUND PUSH BUTTON FOR FUSE PROGRAMMING +12V ONLY BLACK RED/WHITE IGNITION ORANGE +12V...
  • Page 6 QUICK OPERATION * To arm the system with tilt switch, press button LOCK. * To arm the system without tilt switch, press button UNLOCK. * To disarm entire system, press button START. * To general silent arming, press button LOCK twice. * To partial arming, press button UNLOCK twice.
