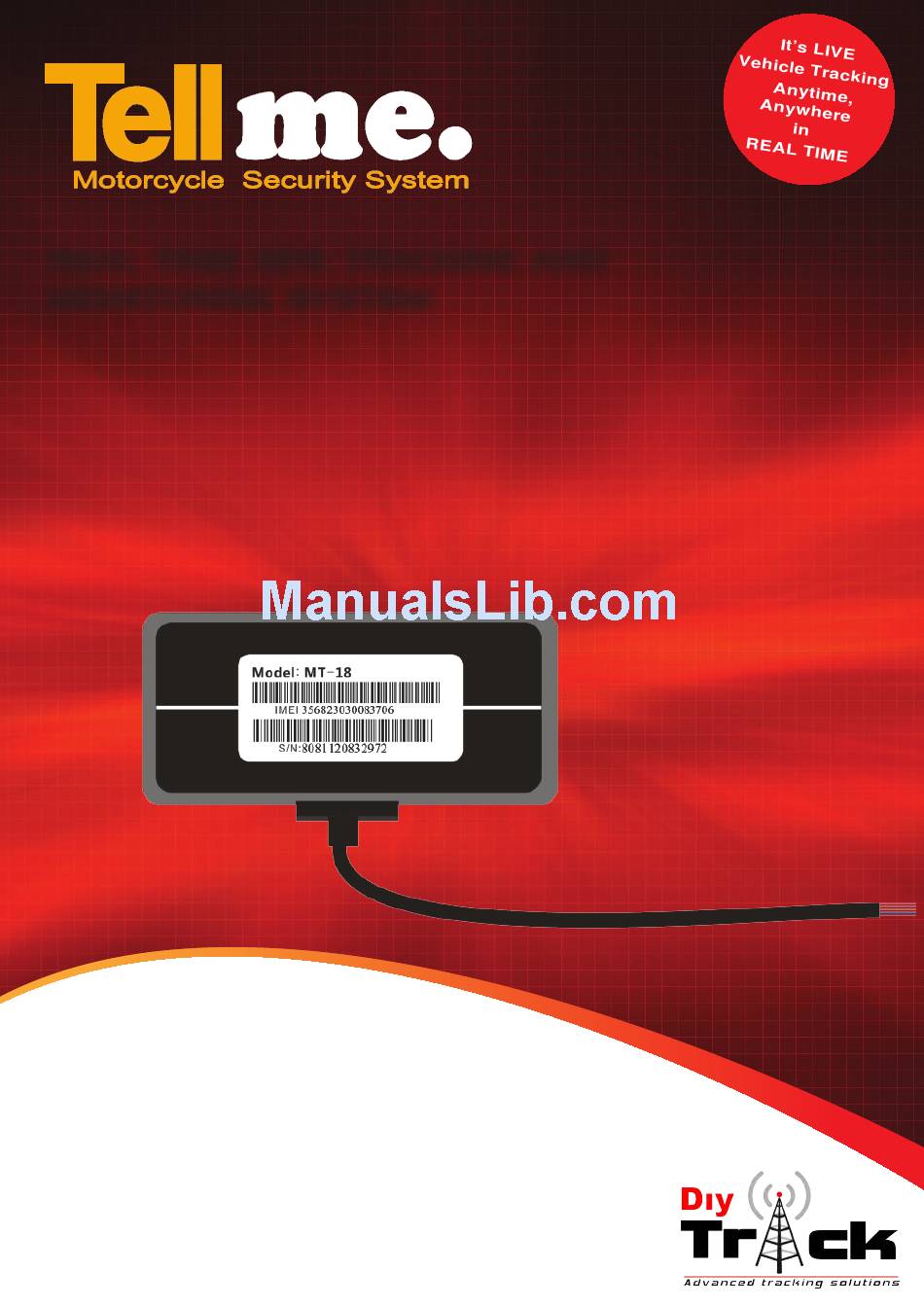

- Page 1 REAL TIME GPS TRACKING AND MONITORING SYSTEM User’s Guide Installation and Operating Instructions...
-
Page 2: Table Of Contents
Contents CONTENTS INTRODUCTION HARDWARE AND ACCESSORIES INSTALLATION PROCESS WIRING DIAGRAM TESTING AND TROUBLESHOOTING WARRANTY AND DISCLAIMER All rights reserved. ©2011 DIY TRACKER... -
Page 3: Introduction
Introduction Thank you for purchasing our “DiyTracker” Each unit has been manufactored to the highest quality to ensure reliability and ease of use. Before Installing This guide covers the installation of the DiyTrack device to ensure a safe and functional install of the unit by either a... -
Page 4: Hardware And Accessories
& Accessories Hardware Contents of the Box 1. DiyTrack TellMe Tracking Unit 2. Cable Harness 3. Relay Tools Needed for Installation • Metric and standard socket set • Screwdriver set • Side cutters, wire cutters • Wire strippers • Pliers •... -
Page 5: Installation Process
Process Installation Installing and Mounting the GPS Unit To ensure the GPS unit receives enough satellite signals at an acceptable signal strength, it must be mounted so that it has a clear view of the sky. In hidden locations, such as under the fairing or seat, it is important to keep any metal interference as far as possible from the top portion of the GPS unit so that the most accurate position can be calculated. -
Page 6: Wiring Diagram
Diagram Wiring Brown Relay +12/24v Yellow +12/24v Ignition Coil Fuel Pump Black Solenoid Bl ue Panic Button Power cut relay (Optional connection) This connection is to remotely immobilise your bike. Please be cautious if installing this optional immobiliser function as large currents are carried when starting the motorcycle and we would hate for you to have an unplanned motorcycle stop due to an installation failure. - Page 7 Process Installation 12/24v Power/Positive Connection (Red Wire) Disconnect the negative terminal from the motorcycle battery to prevent a possible transient voltage surge that will damage your traking unit. Please note warranty does not cover damage from transient voltage surge. Securely attach the wiring harness to the Tracking unit 12-24V DC Power Connection (Red Wire) Locate the Red wire found on the wiring harness.
-
Page 8: Testing And Troubleshooting
& Troubleshooting Testing After the TellMe tracking unit has been powered on for atleast 5 minutes, dial the tracker simcard mobile number that is inserted in your tracking unit. Let it “ring” 3 times then hang up. Now send the following SMS to the simcard mobile number that is inserted in your tracking unit: *1234*P# Please note the above SMS must be sent exactly like the example and all letters must be UPPER CASE If the ITellMe tracking unit has been correctly installed and the GPS antenna has successfully fixed onto... -
Page 9: Warranty And Disclaimer
& Disclaimer Warranty Warranty warrants, to parties purchasing equipment directly from Diy-Track Diy-Track Diy-Track i.e., to its authorized distributors and to no other parties, that for 12 months following the date of purchase, equipment will be free of defects in materials and workmanship when installed, operated, maintained, Diy-Track and serviced in strict accordance with and, if applicable, the manufacturer’s requirements. - Page 10 Commands Setting alarm alert numbers The alarm alert numbers will receive SMS alerts such as panic alert and accident alert A total of 3 mobile numbers can be programmed into the tracking unit to receive alerts Replace [mobilenumber] with your own mobile numbers. *1234*A 44mobilenumber 44mobilenumber...
- Page 11 Commands Immobilize the bike If the relay is installed (see page 7) then an alert number can send SMS commands to the TellMe unit to immobilise the motorcycle. To immobilise the motorcycle : Send SMS: *1234*stop# To restore power to the the motorcycle : Send SMS: *1234*K# Please note:...
