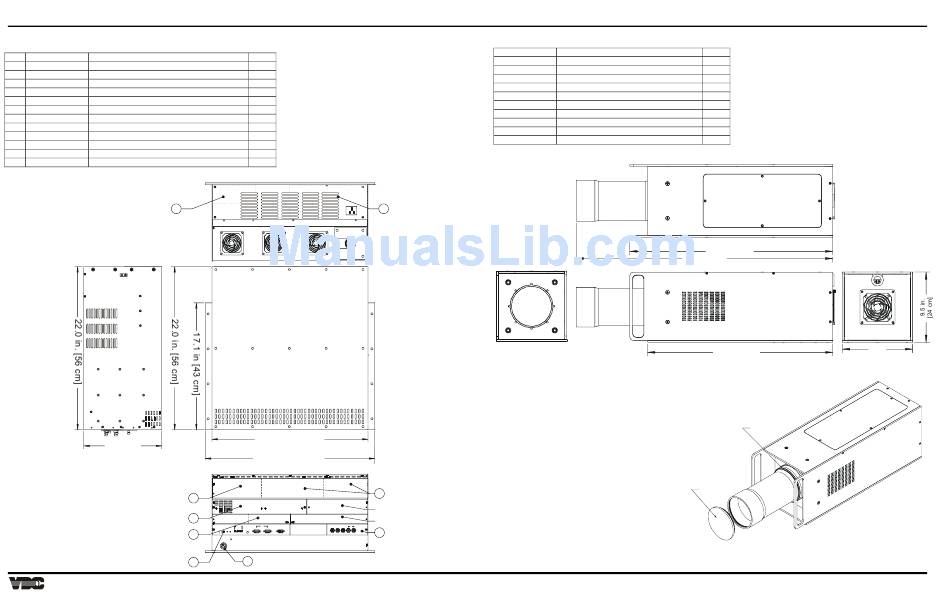

1.3 Electronic Chassis Main Assemblies and Dimensions
# VDCDS P/N DESCRIPTION
1 03-280336-07P Control/DPB/Stig-Waveform
2 81722-01 Marquee Contrast Modulation
3 03-270354-04P Module Focus & Geometry
4 03-271330-02P Stigmator Module
5 03-270350-01P Convergence Amp/Vertical Deflection Module
6 03-270335-05P Video Input Module
7 03-000250-02P IR Sensor
8 03-000310-02P HVPS
9 03-000229-05P LVPS
Ref 81721-01 Conv/Stig/Vert Adaptor, PCB
Ref 81730-01 HUD Mother Board, Elec. Chassis
Ref 81741-01 Vertical Load
8
Side View
10.6 in.
[27 cm]
Display Systems
QTY
1
1
1
1
1
1
1
1
1
1
1
2
Rear View
Top View
21.2 in. [54 cm]
23.0 in. [58 cm]
4
3
DIAGNOSTICS RS-232 SYNC
IN OUT SWITCHER RED GREEN BLUE HOR/COMP VERT
POWER ERROR EHT V FAIL REMOTE
2 LVPS H FAIL C
RESET STANDBY
Front View
7
1
1.4 CRT Head Main Assemblies and Dimensions
VDCDS P/N
03-007062-03P
03-270338-02P
21-000687-04
21-000691-01
21-000692-01
21-000695-01
59874-01
59879-01
81731-01
81732-01
9
FRONT VIEW
Examine the lens and hardware as shown in Figure
2. The lens consists of a single focus barrel. The lens
is secured in place with a lens locking ring.
Additionally, the lens consists of a metal lens cover
which is screwed in-place. To remove the lens cover,
rotate the cover counterclockwise (CCW) and place
in a secure location for reuse. To focus the lens,
loosen the lens locking ring. Note; the lens locking
ring employs fine threads and requires multiple turns.
Once loosen, rotate the lens barrel until the desired
focus is achieved.
5
Blank
Blank
6
DESCRIPTION QTY
Green CRT 8" MAG Focus 1
Video Neck Module 1
Stigmator Ring 1
Yoke Deflection 8" 1
Coil, Convergence 8" 1
Focus MAG with Stigmator 8" 1
Splitter, 1 IN, 1 OUT 1
Lens, Low MAG, Hud 1
HUD Mother Board, Head 1
HUD Horizontal. Deflection Module 1
TOP VIEW
27.4 in [70 cm]
34.6 in [88 cm]
25.0 in. [64 cm]
SDIE VIEW
LENS COVER
Figure 2. 8521 Lens Assembly
9.5 in.
[24 cm]
REAR VIEW
LENS LOCKING
RING
