MULTISPLIT / PA-CONTROL / ZONE-MIX 4/8 DIGITAL
MANUAL VERSION 1.0, OKTOBER 2007
PART 1: HARDWARE DESCRIPTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MULTISPLIT 4/8 DIGITAL and is the answer not in the manual?

Questions and answers

Summary of Contents for Itec MULTISPLIT 4/8 DIGITAL

  • Page 1 MULTISPLIT / PA-CONTROL / ZONE-MIX 4/8 DIGITAL MANUAL VERSION 1.0, OKTOBER 2007 PART 1: HARDWARE DESCRIPTION...
  • Page 2: Dear Customer

    The Multi-Split unit’s flash memory holds up to 10 complete configurations, which users can load as required. Unlike comparable products, ITEC’s devices work with an analog signal path (except for the optional DSP output modules), which is fully digitally controlled. The processors control the VCAs, measure levels and transmitters and switch the signals.
  • Page 3: Table Of Contents

    10. Analog link ..........................11 11. Inputs ............................12 12. Outputs ............................ 12 13. LAN module (optional)......................12 14. Device status output ........................ 12 BLOCK DIAGRAM ........................14 DSP extension (optional).....................15 DSP BLOCK DIAGRAM ....................15 Technical specifications......................16 www.itec-audio.com MULTISPLIT / PA-CONTROL / ZONE-MIX 4/8 DIGITAL...
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS The device must be installed and configured only by suitable qualified persons. To configure the device, use only the original ITEC-SplitDesign software. Connect the device only using the original supplied mains adapter. The mains adapter contains a standard mains plug and a supply cable and is suitable for mains voltages of 115 to 230 V.
  • Page 5: Package Content

    Optional: DSP modules (built-in) LAN module (built-in) Accessories (optional): ITEC-MM-PC-1.5 RS 232 connection cable for PC ITEC-MM-PC-1.5 opto Connection cable for PC with isolated interface ITEC-MM-RJ-0.5 Analog link cable ITEC-SplitDesign Configuration software: The current version is available for download from http://itec-audio.com/download/splitter/splittersetup.exe...
  • Page 6: Part 1: Hardware Manual

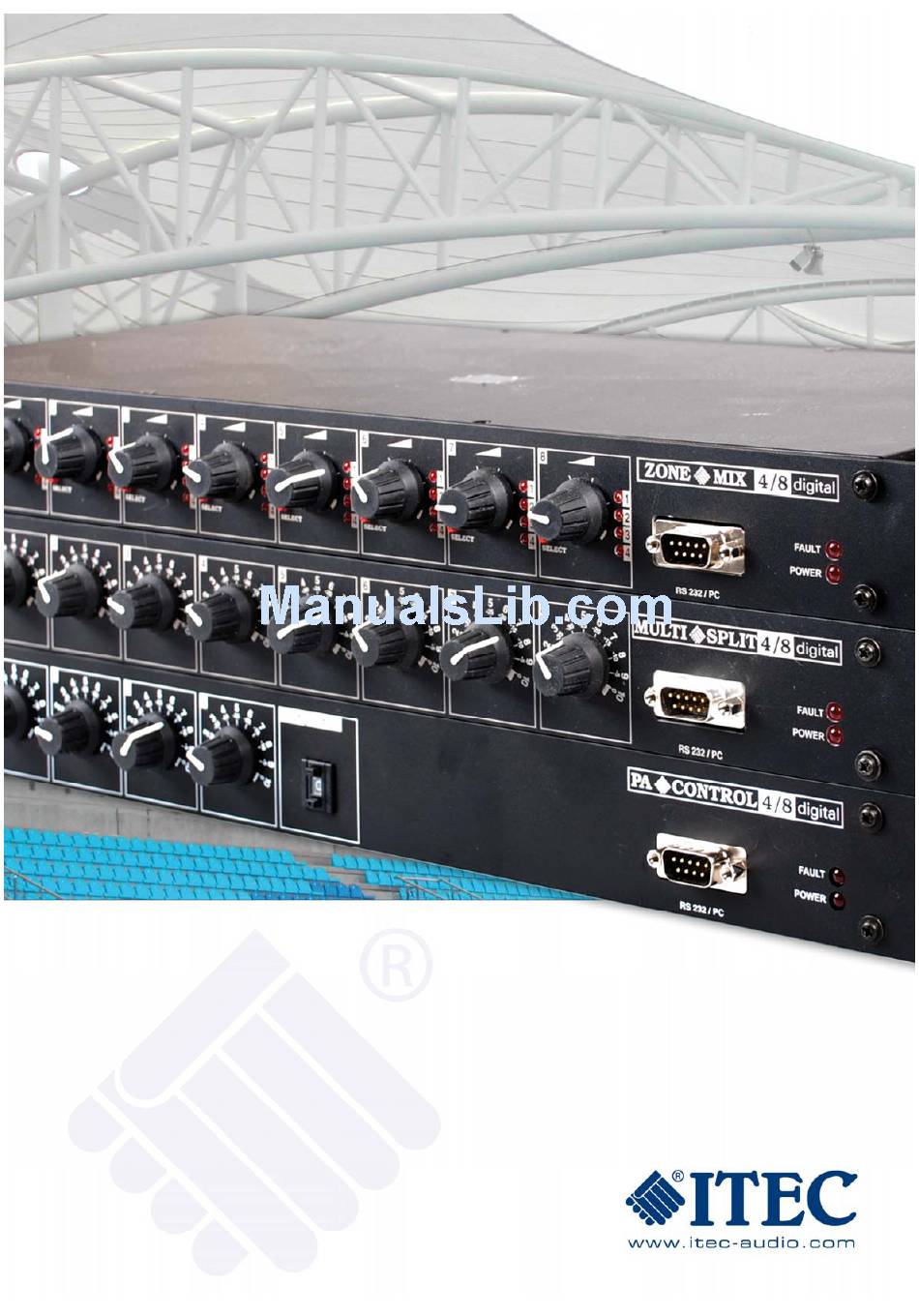

    MULTISPLIT / PA-CONTROL / ZONE-MIX 4/8 DIGITAL PART 1: HARDWARE MANUAL CONTROL AND DISPLAY ELEMENTS ON FRONT PANEL Multisplit 4/8 digital PA-Control 4/8 digital Zone-Mix 4/8 digital 1) Power LED 5) Device status LED 2) LED display 6) Rotary switches A+B (Zonemix) 3) Rotary switches 7) 8 ×...
  • Page 7: Pc Interface

    4. PC interface The 9-pin male sub-D (RS 232) connector on the device front is intended only for connecting a PC with the software ITEC-SplitDesign. A suitable connection cable is available from ITEC: ITEC-MM-PC-1.5. Alternatively you can use any serial null modem or AT link cable. If your laptop does not have a serial port, you can also use a USB-to-serial converter, which the software fully supports.
  • Page 8: Operator Controls And Connectors On The Device Back

    By default, the phantom voltage at pin 6 is 12 V. A higher phantom voltage (up to 48 V) can be achieved by applying a higher voltage at pin 6. Caution: When using a phantom voltage of 48 V, the input signal lines must no be short- circuited to ground. www.itec-audio.com MULTISPLIT / PA-CONTROL / ZONE-MIX 4/8 DIGITAL...
  • Page 9: External Control Inputs

    Ext pot 8 Input resistance: 40 kΩ We recommend the use of a 1 kΩ or 5 kΩ linear potentiometer. For longer cable lengths, use screened cables (as shown in the drawing). www.itec-audio.com MULTISPLIT / PA-CONTROL / ZONE-MIX 4/8 DIGITAL...
  • Page 10: 8B. External Configuration Switching

    (see software manual). In this state configurations can be switched from the PC. If a number is selected for which no configuration has been defined, the current configuration remains active. Configuration switching with range switch Rotary selector switch www.itec-audio.com MULTISPLIT / PA-CONTROL / ZONE-MIX 4/8 DIGITAL...
  • Page 11: Media Remote Control Port

    This RJ45 socket on the device back, labelled “LINK IN”, can be used to quickly connect the device to the four bus signals of an ITEC Multi-Mix. The four analog inputs of the LINK IN socket are connected in parallel with the XLR socket inputs. If you are using the LINK IN socket, do not use the XLR sockets (see block diagram on p.
  • Page 12: Inputs

    13. LAN module (optional) A device version with built-in Ethernet LAN module is available. This can be used for remote maintenance and configuration of the device through TCP/IP. For details, see the software manual. www.itec-audio.com MULTISPLIT / PA-CONTROL / ZONE-MIX 4/8 DIGITAL...
  • Page 13 Up to 30 V DC/2 A or 125 V AC/400 mA can be applied to this output. 1. Device fault (NC) 2. Common 3. Device OK (NO) Shown in Off (fault) state. www.itec-audio.com MULTISPLIT / PA-CONTROL / ZONE-MIX 4/8 DIGITAL...
  • Page 14: Block Diagram

    MULTISPLIT / PA-CONTROL / ZONE-MIX 4/8 DIGITAL BLOCK DIAGRAM www.itec-audio.com MULTISPLIT / PA-CONTROL / ZONE-MIX 4/8 DIGITAL...
  • Page 15: Dsp Extension (Optional)

    DSP extension (optional) A version with two built-in 4×4 DSP matrix modules is also available. The user-friendly configuration functions for the DSP modules are contained in the ITEC- SplitDesign program. The DSP module works in 24-bit/96 kHz mode and is equipped with the most suitable algorithms.
  • Page 16: Technical Specifications

    You can download the current version of our software from the following address: http://itec-audio.com/download/splitter/splittersetup.exe If you have any questions, please contact us at office@itec-audio.com http://www.itec-audio.com/ ITEC Tontechnik und Industrieelektronik GesmbH, A-8200 Lassnitzthal 300, Austria, Europe Tel.: +43 (0)3133 37800, office@itec-audio.com, www.itec-audio.com www.itec-audio.com MULTISPLIT / PA-CONTROL / ZONE-MIX 4/8 DIGITAL...
