Summary of Contents for Christ Touch-it Monitor

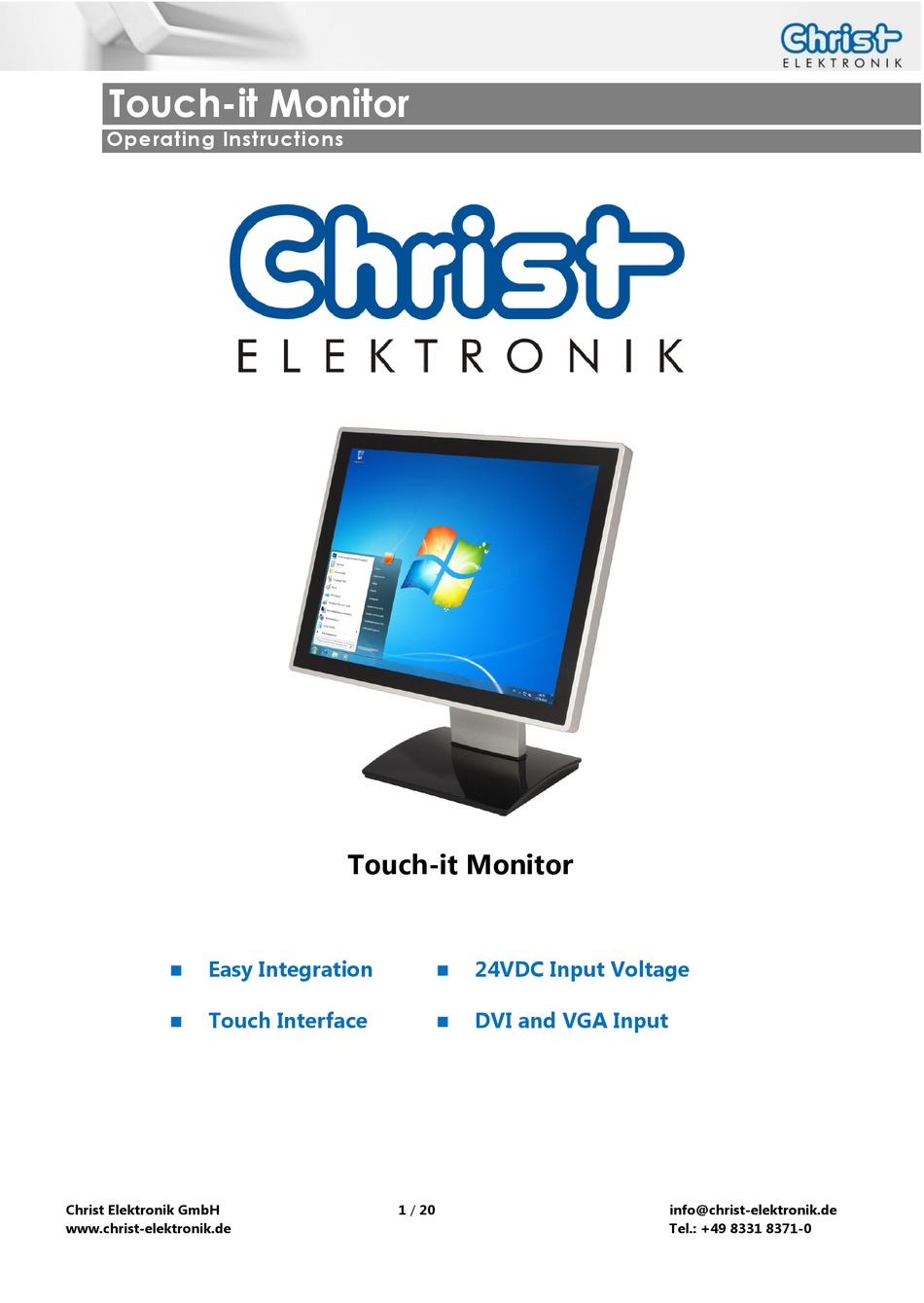

- Page 1 Touch-it Monitor Operating Instructions Touch-it Monitor Easy Integration 24VDC Input Voltage Touch Interface DVI and VGA Input Christ Elektronik GmbH 1 / 20 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
- Page 2 Christ-Elektronik GmbH. Technical changes Christ-Elektronik GmbH reserves the right to change specifications, exe- cutions and technical data held within this document without prior no- tice.
-
Page 3: Table Of Contents
Touch-it Monitor Operating Instructions Table of contents Page General ........................4 Overview ..........................4 Power Supply ........................5 Mechanical & Environmental .................... 5 Commissioning ...................... 6 Mounting ........................6 2.1.1 Touch-it XELO Open Frame / Open Frame glass ..............6 2.1.2... -
Page 4: General
Touch-it Monitor Operating Instructions General OVERVIEW Series Touch-it Monitor Open Frame glass Open Frame (on request) Front Panel glass Front Panel Housing VESA glass VESA Touch Foil Touch, analog resistive Projected Capacitive Touch Sizes 10.4” (26.4 cm) (Display) 15” (38.1 cm) 21.5”... -
Page 5: Power Supply
Touch-it Monitor Operating Instructions POWER SUPPLY Supply Voltage 24 VDC ± 20% Power Dissipation See specific datasheet Power Switch MECHANICAL & ENVIRONMENTAL Open Frame Open Frame glass Housing Front Without Frame Without Frame Housing Stainless steel Stainless steel Cooling Passive... -
Page 6: Commissioning
Touch-it Monitor Operating Instructions 2 Commissioning 2.1 Mounting 2.1.1 Touch-it XELO Open Frame / Open Frame glass The variant Touch-it XELO Open Frame is designed for customer specific mounting. Each Open Frame Panel has its own cut-out drawing. For example: For the appropriated drawing see the specific data sheet. -
Page 7: Touch-It Xelo Front Panel / Front Panel Glass
Touch-it Monitor Operating Instructions 2.1.2 Touch-it XELO Front Panel / Front Panel glass The variant Touch-it XELO Front Panel is designed for front mounting. Each Front Panel has its own cut-out drawing. For the appropriated drawing see the specific data sheet. -
Page 8: Touch-It Xelo Vesa / Vesa Glass
Touch-it Monitor Operating Instructions 2.1.3 Touch-it XELO VESA / VESA glass The variant Touch-it XELO VESA is designed for VESA75 mount. Suitable mounting variants are: VESA Desk Stand Arm Mounting System VESA-SA75 Christ Elektronik GmbH 8 / 20 info@christ-elektronik.de www.christ-elektronik.de... -
Page 9: Interfaces Connector Side
1 x DVI-D 1 x VGA Control Button Power, Left, Right, Menu, Auto Power Connector Phoenix Connector side Touch-it Monitor All interfaces are described in the chapter Interfaces. Christ Elektronik GmbH 9 / 20 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 10: Software
Touch-it Monitor Operating Instructions 3 Software 3.1 Video Signal Adjust the VGA Video Signal To adjust the best suited values press the AUTO button on the rear of the Touch Monitor. Choose the right input signal If the VGA and DVI connector is plugged into the Touch Monitor you have to choose the input Signal. -
Page 11: Touch Driver
Touch-it Monitor Operating Instructions Touch Driver 1. Installation Download the touch driver from: www.eeti.com.tw ->Download->Driver-> choose your right driver Then install the downloaded file on your computer. 2. Implementation Plug the touch cable into the monitor and your PC. Open the eGalaxTouch Configure Utility (eGalaxTouch.exe) and press the “Add” button under the General tab. - Page 12 Touch-it Monitor Operating Instructions Now the USB Controller must occur. After the calibration your touch is ready to use. (See Chapter Touch Calibration) Christ Elektronik GmbH 12 / 20 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
-
Page 13: Touch Calibration
Touch-it Monitor Operating Instructions Touch Calibration Foil Touch analog resistive Open the eGalaxTouch Configure Utility (eGalaxTouch.exe) and press the “4 Points Calibration” under the Tools tab. (See Chapter Software -> Touch Driver) Projected Capacitive Touch There is no need to calibrate the projected capacitive touch. -
Page 14: Interfaces
Touch-it Monitor Operating Instructions Interfaces 5.1 Power Supply Connector Mating Phoenix Connector MC 1.5/3-ST-3.5 Connector Function Description Power Supply GND Power Supply VCC 5.2 VGA Connector Type Mini Sub-D BU HD15 The VGA interface is equal with the standard VGA pin assignment. -
Page 15: Usb Type B Connector
Touch-it Monitor Operating Instructions 5.4 USB Type B Connector Type USB Type B The USB Type B interface is equal with the standard USB Type B pin assignment. Christ Elektronik GmbH 15 / 20 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 16: Pointers
Touch-it Monitor Operating Instructions 6 Pointers 6.1 Used symbols Symbols The following symbols are used in this instruction manual: DANGER! Denotes a direct threat of danger. Not observing this pointer may be life threatening or lead to serious injuries. CAUTION! Denotes a possibly dangerous situation. -
Page 17: Safety Pointers
Christ-Elektronik GmbH will not hold damages liable. Do not operate the touch-sensitive surface of the screen with any abrasive or sharp-edged objects. Protect the Touch-it Monitor against caustic chemicals and long solar ra- diation. Christ Elektronik GmbH 17 / 20 info@christ-elektronik.de... -
Page 18: Maintenance Plan
In the case of defect please inform us immediately. 6.4 Maintenance plan INFORMATION! Only the manufacturer (Christ-Elektronik GmbH) is allowed to replace the internal lithium battery. The calibration of the analog resistive touch may be required from time to time. -
Page 19: Cleaning
Touch-it Monitor Operating Instructions 6.6 Cleaning DANGER! Disconnect the Touch-it Monitor from the supply voltage before cleaning. CAUTION! Do not clean the touch-sensitive surface of the monitor with detergents containing solvent or acid. INFORMATION! Use a humid and soft cloth with gentle soap suds to clean. -
Page 20: More Information
Delivery availability. Any liability that the Christ – Elektronik GmbH sales subject to availability data and illustrations are complete, representative or visit our website. actual or correct is excluded. Des- http://www.christ-elektronik.de...
