OnQ Technologies KSU Installation Instructions

Introduction:

1.
The OnQ KSU/PBX Door Intercom allows a person at the door to communicate with someone at any
other phone location in the house.

Description:

2.
The OnQ KSU/PBX Door Intercom, see Figure 1 below, contains a loudspeaker, microphone and
pushbutton, which is used to signal the other phones in the house that someone is at the door. An LED is
also provided to help find the pushbutton in low light conditions. The Door Intercom is available in three
finishes as listed below, and fits in a single gang box with the dimensions shown in Figure 2 below.
OnQ Part Number 364605-01 – White
OnQ Part Number 364605-02 – Polished Brass
OnQ Part Number 364605-03 – Antique Brass

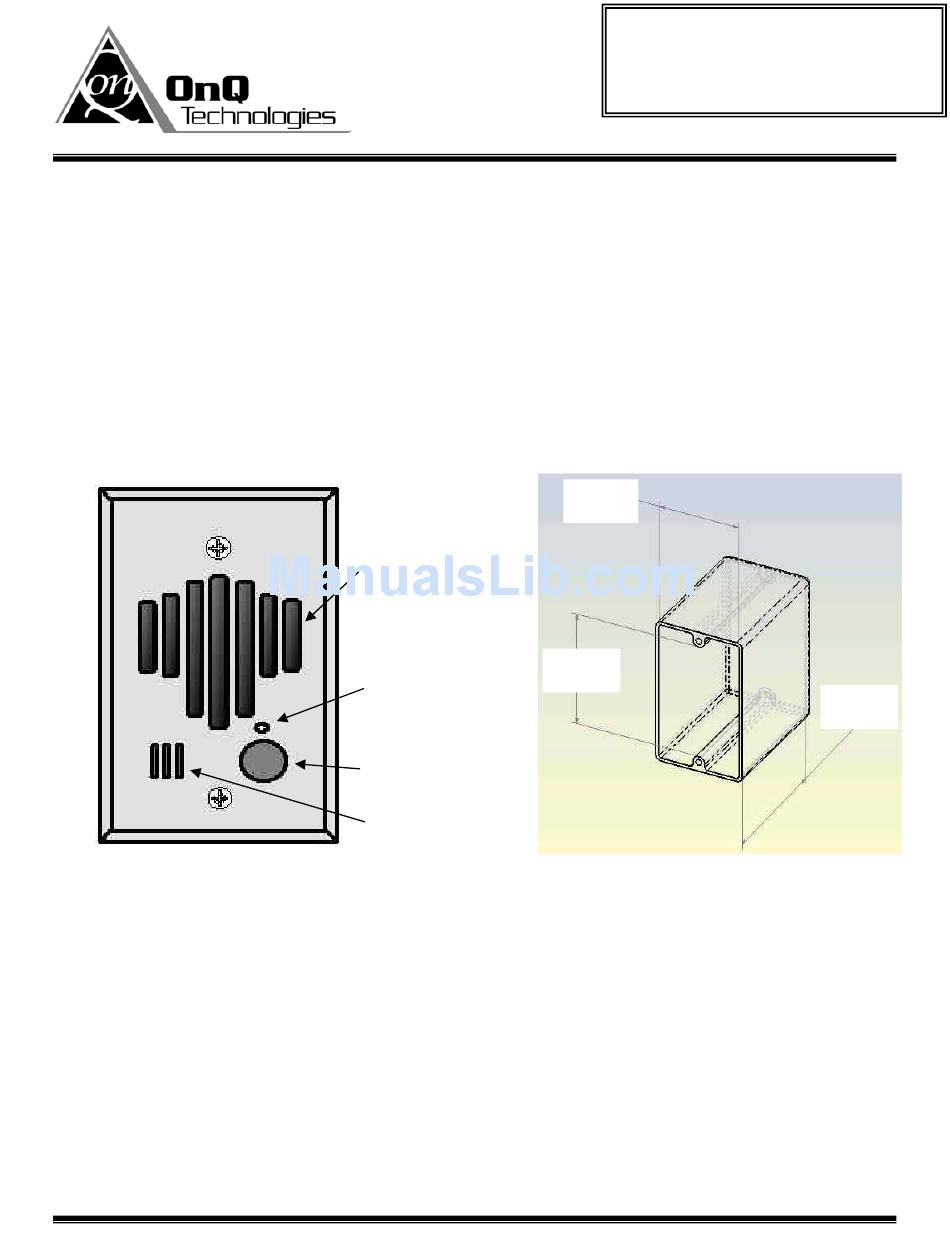

Figure 1

3. Operation:

When someone at the door pushes and releases the button on the faceplate, the OnQ KSU/PBX Door
Intercom system rings all on-hook extension phones with the Intercom cadence, two short (.5 second)
rings followed by a 3 second pause. If no one answers, this cadence repeats a total of five times, and the
call is terminated. When someone does answer, the person at the door communicates speakerphone
style, by just talking into the microphone and listening to the loudspeaker.

4. Installation:

The OnQ KSU/PBX Door Intercom mounts in a 1-gang box as indicated in Figure 2 above. The unit is
shipped with the faceplate connected to a backing plate with two screws and nuts. These may be
discarded and replaced upon installation by the color matched mounting screws, which are provided.
Although the door intercom comes with a weatherproofing gasket that installs between the faceplate and
IS-0226 Rev. A
OnQ Technologies, Inc.
P.O. Box 60907
Harrisburg, PA 17106-0907
800-321-2343
www.onqtech.com
Loudspeaker
LED
Call Button
Microphone
Installation/Instruction Sheet
KSU/PBX Door Intercom
IS-0226 Rev A
Carlon, 20.3 cu. In. - Model B-120A
RACO, 18 cu. In. - Model D-34068-1
2.1" Min
Width
3.0" Min
Height
Figure 2
3.3" Min
Depth
Page 1 of 2
