Summary of Contents for Qtx WDMX-2

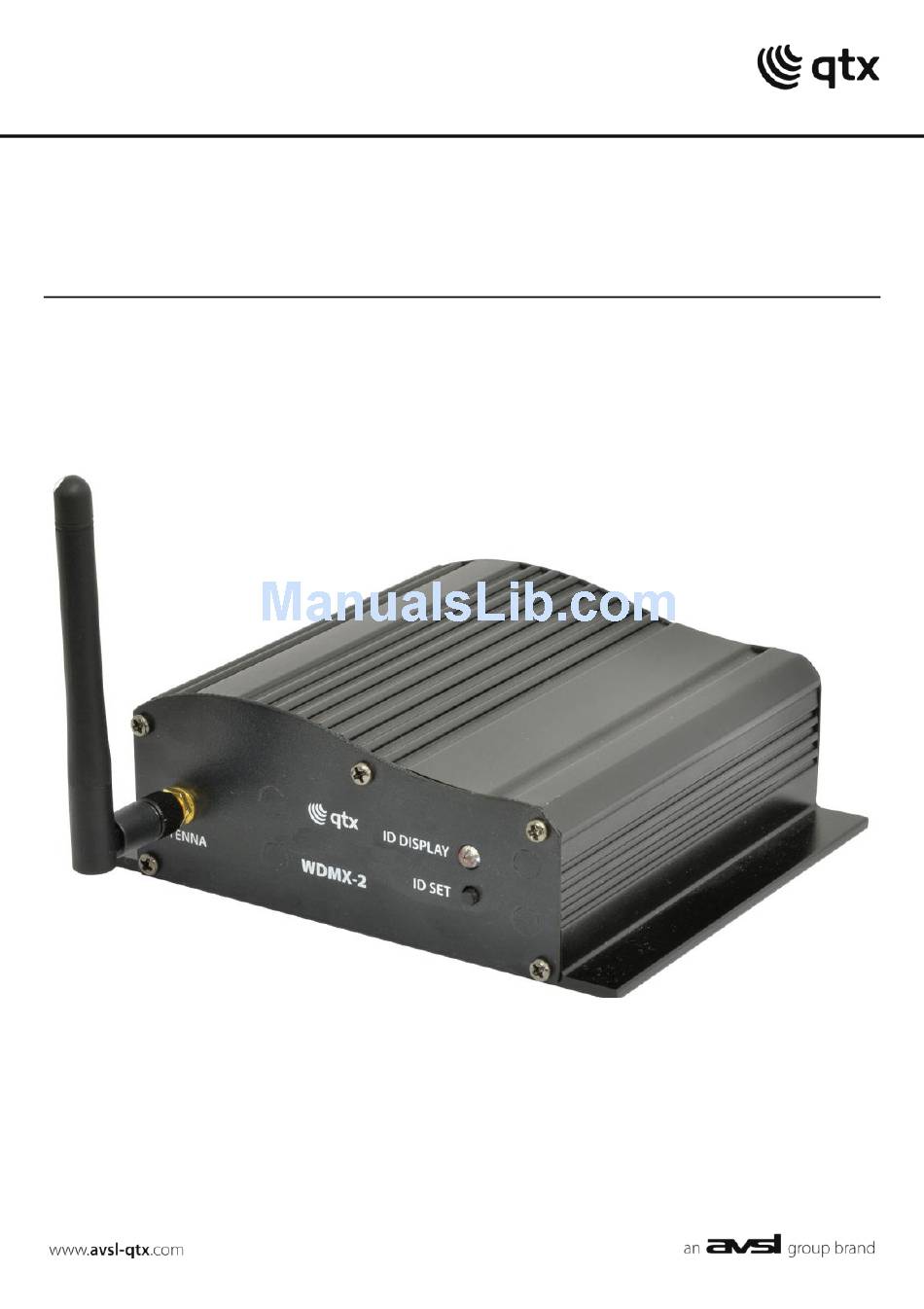

- Page 1 WDMX-2 Item ref: 154.152UK User Manual Wireless DMX Transceiver...
- Page 2 Thank you for choosing the WDMX-2 wireless DMX transceiver as part of your lighting control system. This unit can be used as a transmitter for qtx wireless PAR lights or in pairs for a wireless link between standard DMX512 lighting controllers and fixtures.
-
Page 3: Front And Rear Panels
The DMX signal can be repeated as a wired output from the DMX Out connector. If the WDMX-2 is to be used as a receiver, connect DMX control signal from the DMX Out XLR connector to the first lighting fixture in the DMX chain to be controlled. -
Page 4: Specifications
Specifications Power supply 240Vac 50/60Hz (IEC) Frequency band 2.4GHz ID settings 7 tags (with colour LED indicator) Connections DMX out (XLRF), DMX in (XLRM), Antenna (mini TNC), mains (IEC) Dimensions 138 x 46 x 155mm Weight 400g Troubleshooting Check mains voltage is correct and outlet is switched on No power Check IEC lead and mains fuse (if fuse continually blows, refer to your dealer) Check DMX leads are connected correctly (in to transmitter, out from receiver)
