Blizzard Lighting AutoBahn 8 DMX/ArtNet User Manual

Blizzard Lighting AutoBahn 8 DMX/ArtNet User Manual

19” rackmount interface

Advertisement

Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AutoBahn 8 DMX/ArtNet and is the answer not in the manual?

Questions and answers

Summary of Contents for Blizzard Lighting AutoBahn 8 DMX/ArtNet

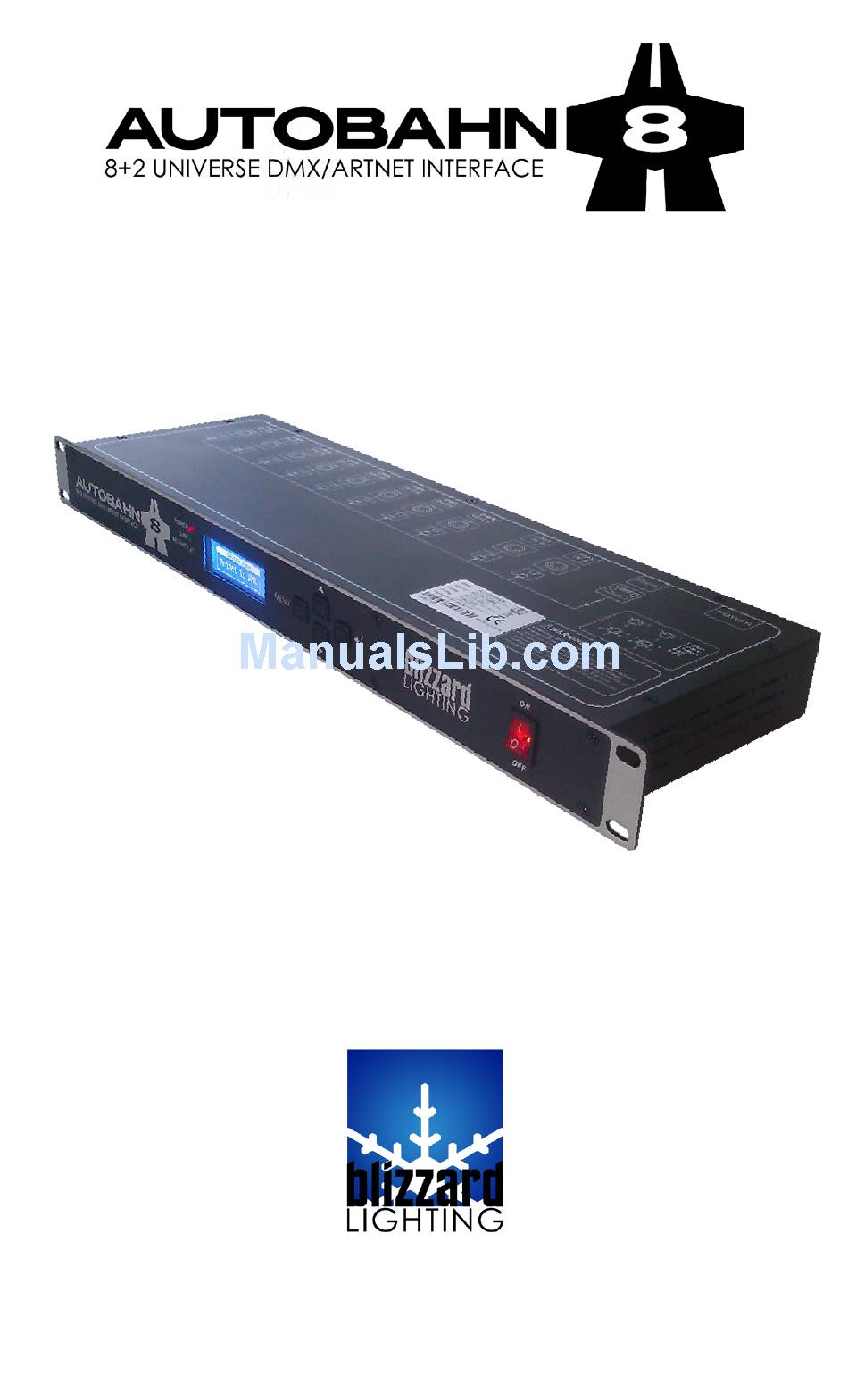

  • Page 1: Autobahn™ 8 Dmx/Artnet 19" Rackmount Interface

    Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2014...
  • Page 2: Table Of Contents

    Firmware Version 4. Appendix A Quick Lesson on ArtNet Keeping Your AutoBahn™ 8 As Good As New Returns (Gasp!) Shipping Issues Application Diagram Dimensional Diagram Tech Specs Page 2 AutoBahn™ 8 User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC...
  • Page 3: Getting Started

    Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www.blizzardlighting.com.
  • Page 4: Meet The Autobahn

    5.) Menu Button Return to main or previous menu 6.) Up/Down Buttons To scroll through menu selections 7.) Enter Button To confirm a menu selection 8.) Power Switch To power ON/OFF the unit Page 4 AutoBahn™ 8 User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC...
  • Page 5: Operating Instructions

    A/B, and 1-8 refers to DMX outputs 1-8. In the second row of port status screen; “x” means the port is inactive, “√” means the port is active, and “—” means the port has been set as disabled. Page 5 AutoBahn™ 8 User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC...
  • Page 6: Renaming The Device

    <ENTER> button to confirm the change. Repeat this process for each character group as necessary. To finish setting the IP address, you must save your changes by using the <Up/DOWN> buttons to scroll to “Enter”, and then push the <ENTER> button. *Please Note: The IP address must be unique! Page 6 AutoBahn™ 8 User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC...
  • Page 7: Setting The Netmask

    “input”, the Port Mode can be set as “normal” or “Backup”. For all of the DMX Port Settings on page 8, use the <Up/DOWN> buttons to scroll through your choices, and push the <ENTER> button to confirm. Repeat this process for each group as necessary. Page 7 AutoBahn™ 8 User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC...
  • Page 8 DMX universes (principal and secondary). It will compare and output the one with higher value to the network. And like Single and LTP, the universes can be set within the range of 0.0-F.F. Merger Merger Page 8 AutoBahn™ 8 User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC...
  • Page 9: Setting The Id

    30 seconds of idle. To finish setting your backlight preference, you must save your changes by using the <Up/DOWN> buttons to scroll to “Enter”, and then push the <ENTER> button. Page 9 AutoBahn™ 8 User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC...
  • Page 10: User Presets

    DMX signals directly from the network individually. 6.) Factory Setting = All settings including the Device Name, Device ID, and Device IP will be restored to the original factory settings. Page 10 AutoBahn™ 8 User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC...
  • Page 11: Firmware Version

    So what is the big deal with ArtNet? Well ArtNet supports up to 256 universes over one piece of CAT-5 cable compared to one universe over a DMX cable! Page 11 AutoBahn™ 8 User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC...
  • Page 12: Keeping Your Autobahn™ 8 As Good As New

    Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 12 AutoBahn™ 8 User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC...
  • Page 13: Application Diagram

    6.1 inches (155 mm) Weight 5.1 lbs (2.3 kg) Other Information When you step on the brakes your life is in your foot’s hands. Warranty 2-year limited warranty. Page 13 AutoBahn™ 8 User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC...
  • Page 14 This page intentionally left blank. Page 14 AutoBahn™ 8 User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC...
  • Page 15 This page intentionally left blank. Page 15 AutoBahn™ 8 User Manual - Rev. A (c) 2014 Blizzard Lighting, LLC...
  • Page 16 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
