Summary of Contents for PureAire HA-500.30.763

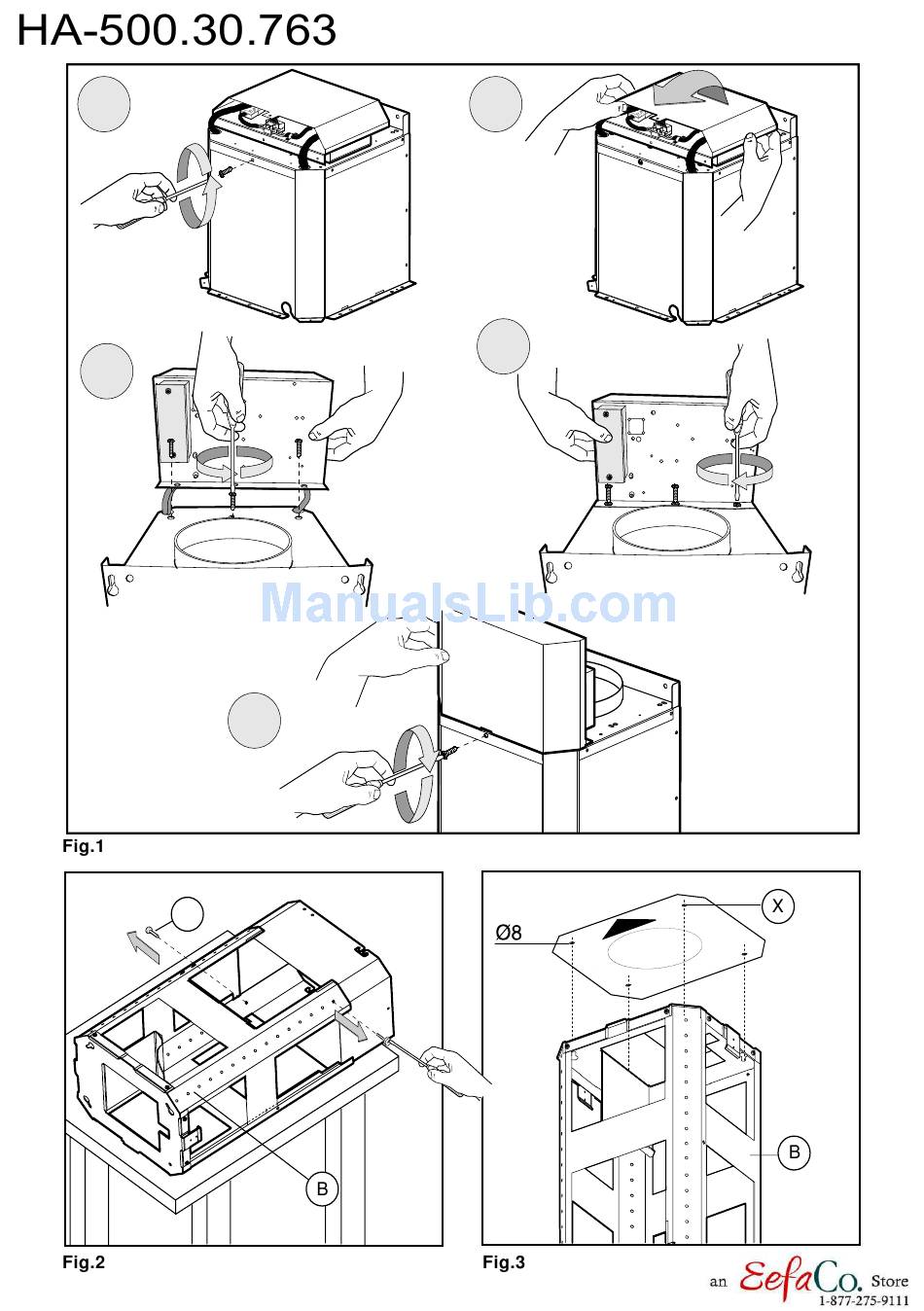

- Page 1 - 3 -...
- Page 2 Fig.4 Fig.5 Fig.6 - 4 -...
- Page 3 Max 0-1/8" - 5 -...
- Page 4 Fig.11 Fig.10 Fig.12 Fig.13a Fig.13b Fig.13 - 6 -...
- Page 5 3-9/16" X = C - (3-9/16"+A+25-9/16"+B) 25-9/16" Fig.14 Fig.15 Fig.16 - 7 -...
- Page 6 Fig.17 - 8 -...
- Page 7 ENGLISH IMPORTANT SAFETY INSTRUCTIONS FOR RESIDENTIAL USE ONLY READ AND SAVE THESE INSTRUCTIONS PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING. IMPORTANT: Save these Instructions for the Local Electrical Inspectors use. INSTALLER: Please leave these Instructions with this unit for the owner. OWNER: Please retain these instructions for future reference.
- Page 8 settings. B. Always turn hood ON when cooking at high heat or when flambeing foods ( i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambè ). C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. D.
- Page 9 C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. D. Ducted fans must always be vented to the outdoors. E. This unit must be grounded. WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY BE DANGEROUS.
-
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS OPERATING INSTRUCTION READ AND SAVE THESE INSTRUCTIONS GENERAL • Carefully read the following important information regarding installation safety and main- tenance. Keep this information booklet accessible for further consultations. The appliance has been designed for use in the ducting version (air exhaust to the outside –... - Page 11 that are not completely tightened.Rotate slightly to fit (fig.4). Drive in the fourth screw X and tighten the remaining 3 to allow definitive blocking of the upper part of structure B - Take the lower part of the telescopic structure C and insert it into the upper struc- ture B (fig.5).
- Page 12 B = OFF C = SPEED I D = SPEED II E = SPEED III F = AUTOMATIC STOP TIMER - 15 minutes • If your appliance does have the INTENSIVE speed function, press key E for two seconds and it will be activated for 10 minutes after which it will return to the previously set speed. When the function is active the LED flashes.
- Page 13 B = OFF/SPEED I C = SPEED II D = SPEED III E = AUTOMATIC STOP TIMER – 15 minutes L = LOGIC The “automatic stop timer” delays stopping of the hood, which will continue functioning for 15 minutes at the operating speed set at the time this function is activated. •...
