UVP GelCam 310 User Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GelCam 310 Camera
Installation and User Instructions
UVP, LLC
Ultra-Violet Products Ltd.
2066 W. 11th Street
Unit 1, Trinity Hall Farm Estate,
Upland, CA 91786
Nuffield Road, Cambridge CB4 1TG UK
Phone: (800) 452-6788 / (909) 946-3197
Phone: +44(0)1223-420022
Fax: (909) 946-3597
Fax: +44(0)1223-420561
Web Site: www.uvp.com
81-0302-01 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GelCam 310 and is the answer not in the manual?

Questions and answers

Summary of Contents for UVP GelCam 310

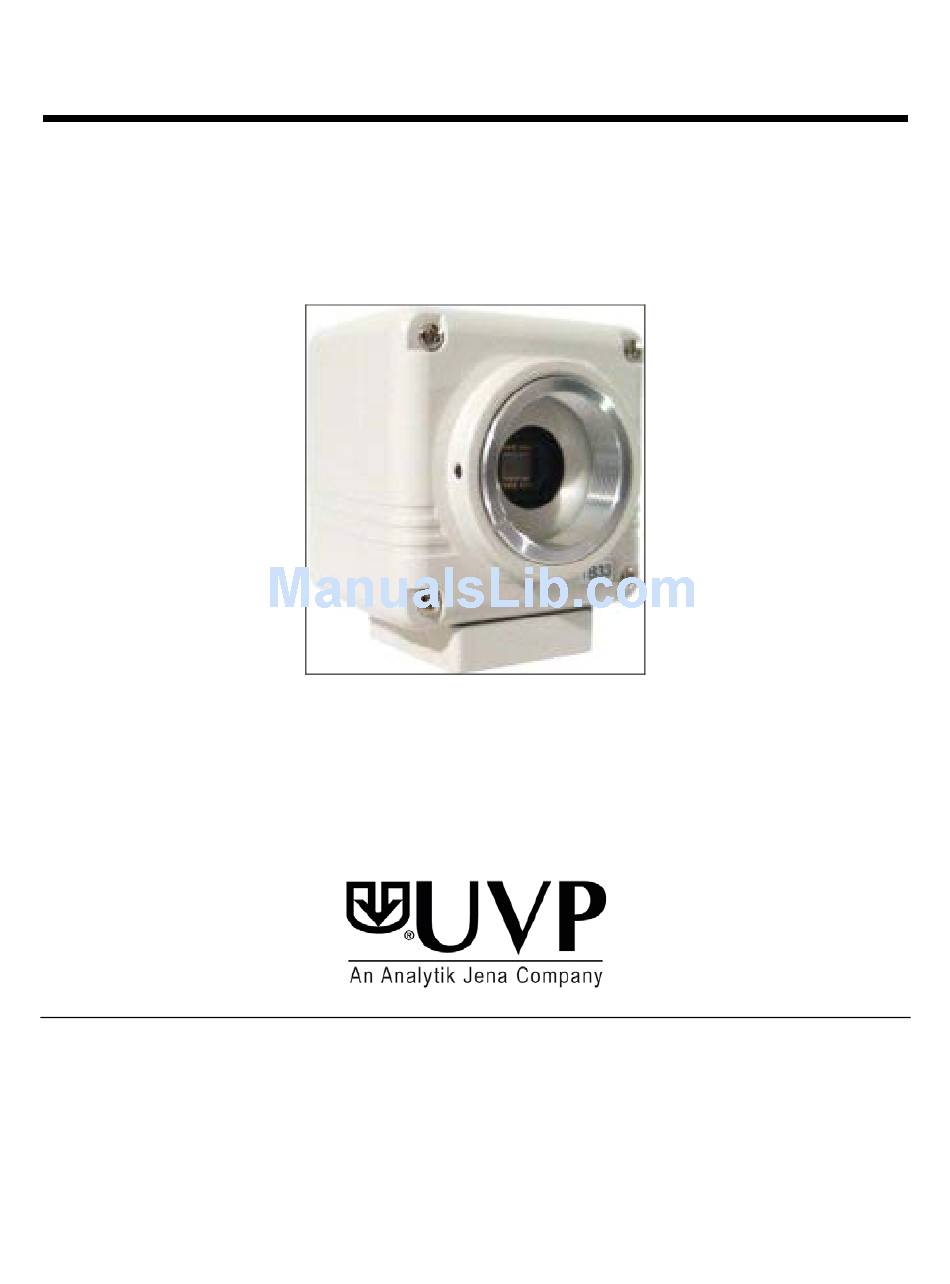

  • Page 1 GelCam 310 Camera Installation and User Instructions UVP, LLC Ultra-Violet Products Ltd. 2066 W. 11th Street Unit 1, Trinity Hall Farm Estate, Upland, CA 91786 Nuffield Road, Cambridge CB4 1TG UK Phone: (800) 452-6788 / (909) 946-3197 Phone: +44(0)1223-420022 Fax: (909) 946-3597 Fax: +44(0)1223-420561 Web Site: www.uvp.com...
  • Page 2 GelCam 310 Introduction The high sensitivity, non-cooled CCD GelCam 310 Camera is designed for use with a variety of UVP’s Imaging Systems. The instruction manual covers assembly of the camera on the darkroom and installation of software. Refer to the system (manual for additional system information and the VisionWorksLS Software Manual or Help Files for software information.
  • Page 3 GelCam 310 Align the holes of the gasket and base. Attach the base and gasket to the darkroom using the screws provided. Position the bracket on the mounting base aligning the holes on the base. Using the four thumb screws provided, secure the bracket to the base.
  • Page 4 GelCam 310 GelDoc-It with Motorized Lens Bracket mounts on This configuration comes with:  top of filter tray for GelCam 310 Camera the TS unit  Motorized lens  Lens control box  +2 diopter  Bracket  Base (typically shipped on system) ...
  • Page 5 GelCam 310 Plug in the serial cable from the motorized lens to the lens control box. Plug the 90 degree cable into the top of the camera. Leave the other end unplugged until you are ready to install the Visionworks disk.
  • Page 6 GelCam 310 BioSpectrum with Motorized Lens This configuration comes with:  GelCam 310 Camera  Motorized lens  Lens control box  +2 diopter  Bracket  Base (typically shipped on system)  USB Cable (for connection from camera to PC)
  • Page 7 GelCam 310 Knob for attaching camera to bracket Bracket and base securing camera Software Installation (for BioSpectrum) The lens is controlled through VisionWorks®LS software. Note: Make sure the system has at least a VisionWorksLS Version 7 before continuing with the installation.

  • Page 8: Technical Support

    GelCam 310 Technical Support UVP offers free lifetime technical support on all of its products and software. Should you have any questions regarding the product’s use, operation or repair, contact UVP’s offices at the locations below, or visit www.uvp.com. If you are in North America, South...
