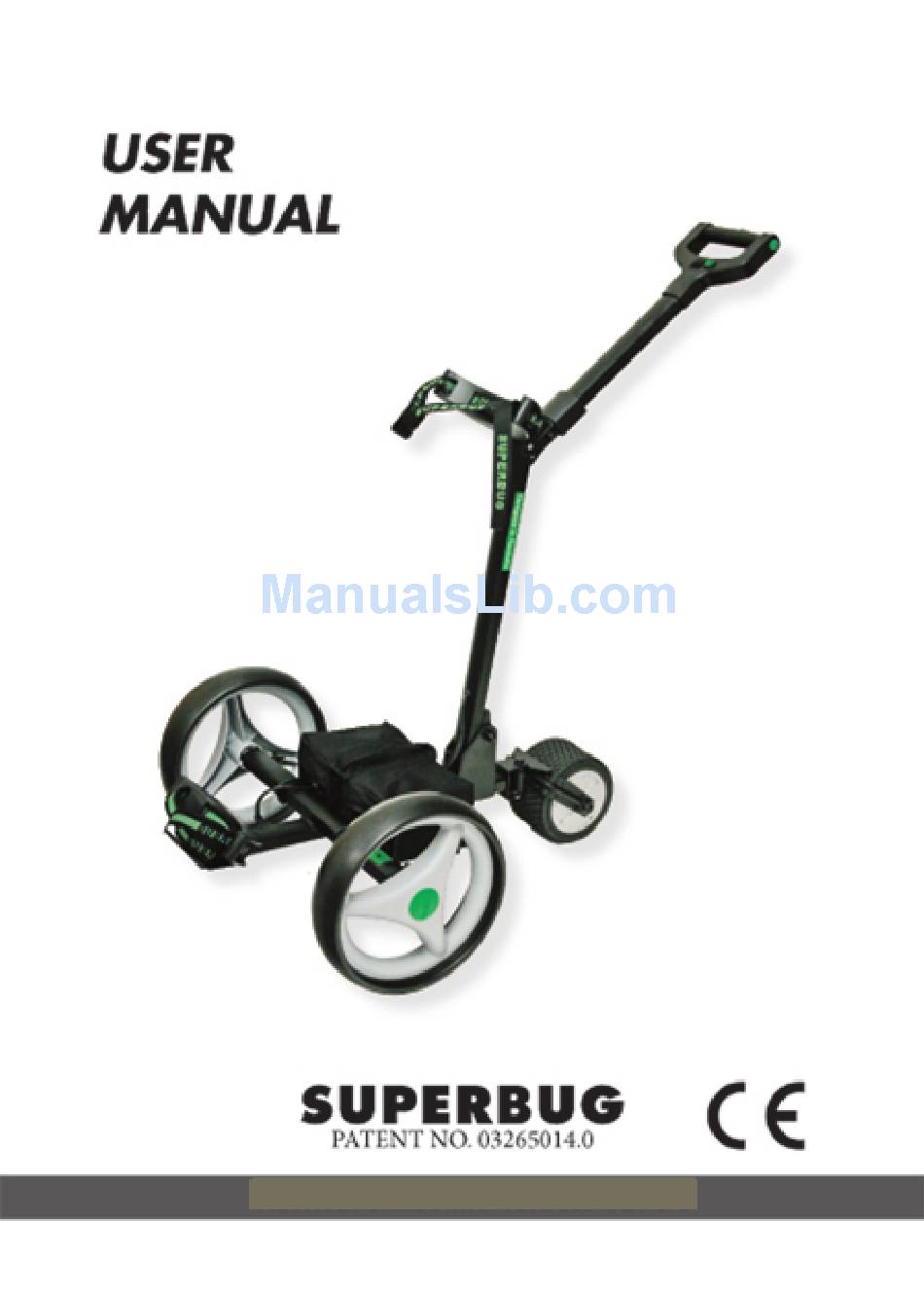

Newhope electric vehicle Superbug Remote User Manual

Hide thumbs

Table Of Contents

Table of Contents

Need help?

Do you have a question about the Superbug Remote and is the answer not in the manual?

Questions and answers

Summary of Contents for Newhope electric vehicle Superbug Remote

Page 2: Table Of Contents
Superbug Contents ........6 Assembly ........7 Using your Superbug ........8 Best Practice ........10 Care of the Batteries ........11 Charging the Batteries ........12 Technical Speciﬁcations ........13 Care of your Superbug ........14 Troubleshooting ........14...
Page 3: Superbug Diagram
SUPERBUG Fig 1 1 - ‘D’ Handle 7 - Lower handle lock 2 - Upper Handle 8 - Battery Power Connector 3 - Sliding Lock 9 - Lower Bag Support 4 - Lower Handle 10 - Lower Bag Mount 5 - Drivewheel with AT tyre...
Page 4: Welcome
• In operation, ensure that the trolley is under control at all times. If it allowed to collide with other people or property then injury or damage may occur. • Superbug is designed to carry a golf bag of upto 15Kg - overloading the trolley may cause damage and will invalidate the warranty.
Page 5: User Controls
SUPERBUG Superbug folds in just a few seconds to a tiny package to ﬁt in very small cars and for easy storage. All controls are located on the D-Handle (Fig 2). There are two on/off switches, variable speed control and the auxillary function button.
Page 6: Superbug Contents
SUPERBUG Superbug Contents The Superbug carton will contain the following items: • Frame with handle folded, integral rear wheel and bag straps • Front wheels x 2 • Wire Frame Battery Carrier • Batteries in a custom ﬁt battery bag •...
Page 7: Assembly
Fig 5 The lower handle locks into position in the folded position to make the Superbug easy to carry. To unlock it press the two lock buttons on either side of the main pivot and lift the lower handle. The upper handle locks in place by means of sliding the locking cover fully over the joint.
Page 8: Using Your Superbug
• Turn both power switches to the on “I” position. • Push the Superbug forwards until the motor begins to drive (usually within 1/4 to 1/2 metre) and then adjust the speed of the trolley to your preferred walking pace by means of the speed control.
Page 9 SUPERBUG DESCENT CONTROL, if the set speed of the Superbug is too fast to negotiate a hill, engaging Descent Control can be activated by setting the speed control to minimum i.e. fully towards you. Descent control will then limit the speed of the trolley LOW VOLTAGE PROTECTION protects the battery from damage as a result of being excessively discharged.
Page 10: Best Practice
Do not try to use your Superbug like a conventional trolley. You should not push down on the rear wheel to turn the trolley rather you should steer the trolley in the direction that you want to go by turning the handle.
Page 11: Care Of The Batteries
Superbug is not designed to be used without a golf bag. It is designed to carry a maximum 15Kg golf bag and should not be used to carry excess weight or to pull you along.
Page 12: Charging The Batteries
If this problem persists call your retailer. The Superbug battery is fused (15A) to protect from over current. The fuse is located inside the battery bag and should be checked in case of apparent power failure.
Page 13: Technical Speciﬁcations
36 holes Battery 2 x 12V 12AH (288WH) sealed lead acid Battery Charger Three stage automatic 2A output Superbug D200 : as Superbug with the following exceptions Motor 200W, 24 volt, high torque, brushless Weight 18.5 Kg including batteries Superbug Remote : as Superbug with the following exceptions...
Page 14: Care Of Your Superbug
SUPERBUG Care of your Superbug Whilst the Superbug is designed to be used in both wet and dry conditions, like any electronic device it is advisable to limit the amount of rain that it is exposed to during play and it should not be keft standing in the rain.
Page 15 Battery fuse is blown Check and replace as necessary Controller / wiring / Contact Retailer or motor fault Superbug to arrange for repair service. Vibration or Stalling from The slope is too steep Do not attempt to climb the Motor...
