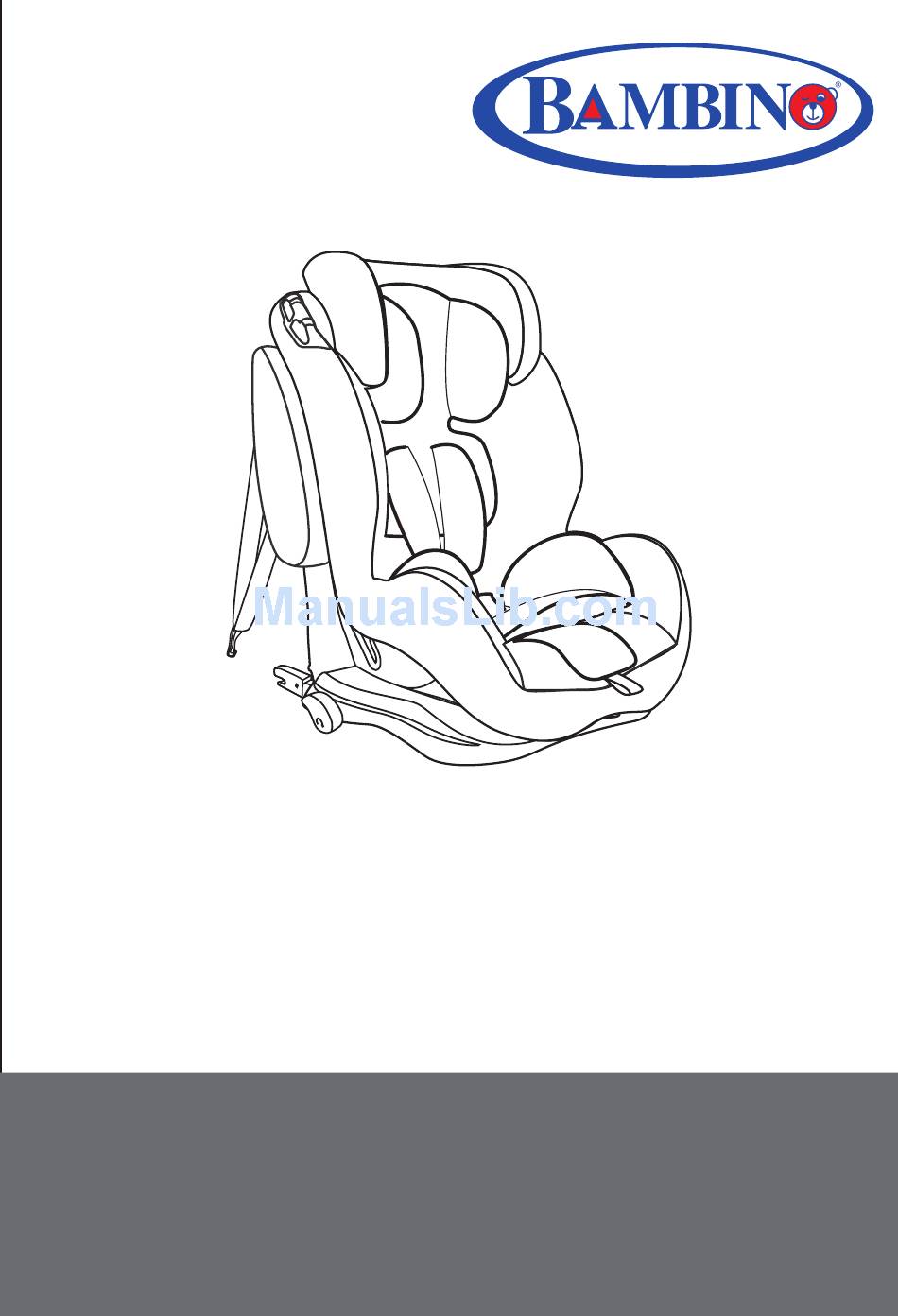

"Elite Isofix" child car seat
Instruction Manual
UNIVERSAL
GroupI: 9-18kg
SEMI-UNIVERSAL
GroupII: 15-25kg
GroupIII: 22-36kg

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite Isofix and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bambino Elite Isofix

  • Page 1 “Elite Isofix” child car seat Instruction Manual UNIVERSAL SEMI-UNIVERSAL GroupI: 9-18kg GroupII: 15-25kg GroupIII: 22-36kg...
  • Page 2 Notice 1.This is a ‘Universal’ child restraint for Group I (9-18kg), and Semi-universal child restraint for Group II (15-18kg). It is approved to Regulation No. 44,04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats. 2.A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a child restraint for this age group.
  • Page 3 When Using the Child Car Seat Warning: Make sure that the child car seat is placed somewhere so that rigid items and plastic parts do not become trapped in doors or movable seat units when the seat is in everyday use. Warning: Always use the vehicle’s door child safety lock system, if one is available, to make it impossible for the child to open the car doors from inside.

  • Page 4: Table Of Contents

    Your 1 Year Warranty Our promise is to repair, replace or refund the “Elite Isofix” Car Seat if it has an identified manufacturing defect from the date of purchase for a full 1 year thereafter at no extra cost.

  • Page 5: Welcome

    Welcome Thank you for purchasing the “Elite Isofix” child car seat. Please read these instructions carefully before use to ensure safe and satisfactory operation of this product. Your child’s safety is your responsibility. If you have a query with this product or require replacement parts, please contact your nearest retail store.

  • Page 6: Positioning The Seat

    Positioning the seat 1) The “Elite Isofix” can be used with isofix anchors and top tether for group I 9-18kg child. 2) The “Elite Isofix”must be used with an ISOFIX anchor and top tether as well as a 3-point seat belt for group 2 ,3 15-36kg child.

  • Page 7: Installing For Group I [9-18Kg]

    Installing for Group I [9-18kg] a) Place the “Elite Isofix” on the vehicles seat b) Rotate the adjuster button in an anti-clock wise direction(A),and pull the isofix anchors outwards as far as it goes, make sure it cannot be pushed back (B)
  • Page 8 Installing for Group I [9-18kg] c) Push the car seat towards the back of vehicles seat(A) d) Match the isofix anchors to the Push vehicles anchoring point until you hear a “click”(B) e) Rotate the adjuster button in an Push anti-clock wise direction(C),and push the car seat to the back of vehicles seat as much as possible(D)

  • Page 9: Adjusting The Headrest And Harness Height

    Adjusting the headrest and harness height Adjust the headrest by pulling the adjuster handle on the back of the headrest and raise or lower according to your child’s height. The harness strap slots should be level with your child’s shoulders. Placing your child in the seat - Group I [9-18kg] the child car seat correctly, following the steps under...
  • Page 10 Placing your child in the seat - Group I [9-18kg] (continued) Place the harness straps over the side of the shell, position your child in the child car seat ensuring no toys or other hard objects are in the seat. After placing your child in the child car seat, match the two halves of the harness buckles together and...

  • Page 11: Converting For Groups Ii [15-25Kg] + Iii [22-36Kg]

    (C). IMPORTANT: DO NOT pull the shoulder pads. Note: the “Elite Isofix” must be used with Isofix anchors and top tether at the same time with 3-point automatic seat belt for group at all times. Pull the recline adjuster handle under...
  • Page 12 Converting for groups II+III [15-36kg] (continued) Pull and hold the shell forward. Unhook the shoulder pad straps from shoulder pad connector (F). Unhook the shoulder harness straps from yoke (G). Pass the shoulder straps through the slots in the back of the shell (H). Undo the two Velcro tabs on each side ®...
  • Page 13 Converting for groups II+III [15-36kg] (continued) rear view of shell Locate the two metal retainer buckles (J) under the seat cover at points (1) and (2). Pass the metal buckles on the waist harness from the front of the shell, through the inner slots (K) on the back of the shell and back out the outer slots (L), to the front to remove the harness.

  • Page 14: Installing For Groups Ii [15-25Kg] + Iii [22-36Kg]

    Converting for groups II+III [15-36kg] (continued) Return the shell to its original position and re-insert the installation bar (N) and secure the catch (O). The child car seat can now be placed into your vehicle. WARNING: The child car seat should always be strapped in using the vehicle’s seatbelt, whether a child is seated in the child car seat or not.

  • Page 15: Removing The Seat Cover

    Installing for groups II [15-25kg] + III [22-36kg] (continued) Place the seatbelt shoulder strap through the most suitable belt guide slot (A): Use the lower strap hook for children in group II [15 - 25kg]. Use the higher strap hook for children in group III [22 - 36kg].

  • Page 16: Replacing The Seat Cover

    Removing the seat cover (continued) The main cover is held in place by a series of hooks (B) located on the back and underside of the shell. Unhook the cover’s elastic from the hooks. Undo the Velcro tabs (C) on the shoulders ®...

  • Page 17: Replacing The Harness

    Replacing the seat cover (continued) Stretch the headrest cover (D) over the headrest and tuck the lower part of the headrest cover (E) behind the main seat cover. Replacing the harness Adjust the shell to its most reclined position. Pull the recline adjuster handle under the front of the shell and whilst holding it, pull the shell forwards to its most reclined position.
  • Page 18 Replacing the harness (continued) Take the two harness shoulder straps with the buckle clips and crotch strap and match the buckle tongue sections together and insert into the buckle. With the buckle connected you will have something similar to the illustration opposite.
  • Page 19 Replacing the harness (continued) Adjust the headrest so that when you lift up the headrest fabric you are able to see the metal bar (E) through the backrest. Slide the shoulder pads (F) over the shoulder harness straps (G), ensuring the seams of the shoulder pads are facing outwards.

  • Page 20: Maintenance And Cleaning

    Replacing the harness (continued) Return the shell to its original position and re-insert the installation bar (L) and secure lock (M). Maintenance and cleaning Storage 1) Store this child car seat in a safe place when not in use. 2) DO NOT place heavy objects on top of it. 3) Always store the child car seat in a dry environment.
  • Page 22 Bambino International (Pty) Ltd. Tel: +27 (31) 205 8309 | Email: bambino@globrand.co.za...
